Wheels and Tyres of Aston Martin Aston Martin DB7 (1997)

View All

Aston Martin DB7 (1997) - Wheels and Tyres

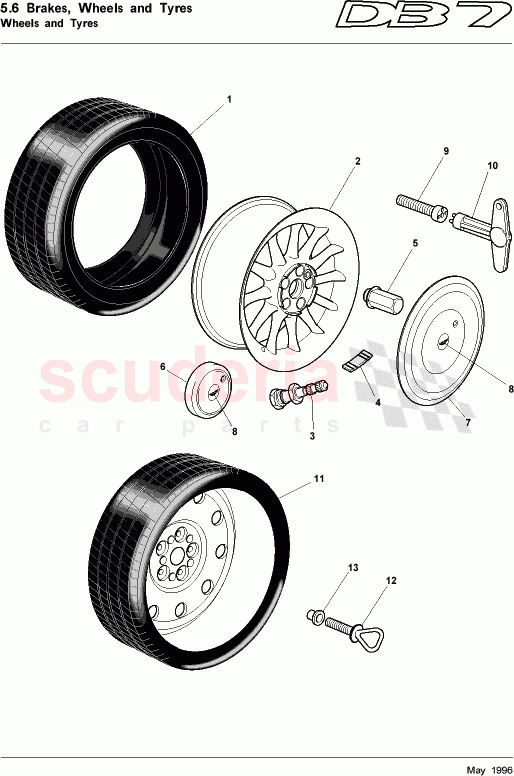

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3686560	TYRE FRT-245/40 R18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91321	WHEEL 8Jx18in x 14.5 mm SPARK SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3680551	TYRE VALVE-METAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3680552	ASSY BALANCE WEIGHT STRIP=3x10g;6x5g=60g AIRVERT VC07 60G	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3684683	WHEEL NUT STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3680556	Wheel cover assembly	Enquire	To Order
	36110884AA	KIT-SMALL WHEEL CAP STANDARD WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36111839AA	KIT-SMALL WHEEL CAP (98.5MY USA)	Enquire	To Order
	36111840AA	Small wheel cap	Enquire	To Order
	36111829AA	WHEEL-8Jx18x14.5mm (98.5MY USA)	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3680563	WASHER - CLAMP SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9783763	LABEL-SNOW WHEEL	9783763 LABEL-SNOW WHEEL Affix to windscreen	-	1	Enquire
-	3684643	Wheel nut	3684643 Wheel nut From (V) 201481	-	20	Enquire
-	36111590AA	ASY-S/WHL CAP-SNGL-D	36111590AA ASY-S/WHL CAP-SNGL-D Dunhill cars	-	1	Enquire
-	36111658AA	Wheel & tyre assembly - RH	36111658AA Wheel & tyre assembly - RH Dunhill cars	-	2	Enquire
-	36111657AA	Wheel & tyre assembly - LH	36111657AA Wheel & tyre assembly - LH Dunhill cars	-	2	Enquire
-	91475	RD WHL-8Jx18x14.5mm	91475 RD WHL-8Jx18x14.5mm Dunhill cars	-	4	Enquire
-	36130021AA	Valve, rubber snap-in	36130021AA Valve, rubber snap-in Dunhill cars	-	4	Enquire
-	7682639	SPACER BUTTON	7682639 SPACER BUTTON	-	1	Enquire
-	36110884AA	KIT-SMALL WHEEL CAP STANDARD WHEEL	36110884AA KIT-SMALL WHEEL CAP STANDARD WHEEL	-	1	Enquire
-	3683757	Wheel & tyre assembly - RH - winter	3683757 Wheel & tyre assembly - RH - winter	-	2	Enquire
-	3683758	Wheel & tyre assembly - LH - winter	3683758 Wheel & tyre assembly - LH - winter	-	2	Enquire
-	3686560	TYRE FRT-245/40 R18	3686560 TYRE FRT-245/40 R18	-	2	Enquire
-	3685704	WHL CTR BADGE&VLV KT	3685704 WHL CTR BADGE&VLV KT	-	4	Enquire
-	3683759	Tyre, winter Pirelli 225/55 x 16	3683759 Tyre, winter Pirelli 225/55 x 16	-	4	Enquire
-	3683761	TRIM ASSY- WINTER WHEEL	3683761 TRIM ASSY- WINTER WHEEL	-	4	Enquire
-	3684022	Spring clip, wheel cover	3684022 Spring clip, wheel cover	-	4	Enquire
-	3683762	Key - winter wheel cover	3683762 Key - winter wheel cover	-	4	Enquire
-	3683832	T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	3683832 T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	-	4	Enquire
-	3683760	WHEEL - WINTER	3683760 WHEEL - WINTER	-	4	Enquire
-	4580553	Lubricant liquid tyre bead	4580553 Lubricant liquid tyre bead	-	-	Enquire
-	705623	GREASE-RED	705623 GREASE-RED	-	-	Enquire
1	3686560	TYRE FRT-245/40 R18	3686560 TYRE FRT-245/40 R18	-	2	Enquire
2	91321	WHEEL 8Jx18in x 14.5 mm SPARK SILVER	91321 WHEEL 8Jx18in x 14.5 mm SPARK SILVER	-	4	Enquire
3	3680551	TYRE VALVE-METAL	3680551 TYRE VALVE-METAL Not winter wheel	-	4	Enquire
4	3680552	ASSY BALANCE WEIGHT STRIP=3x10g;6x5g=60g AIRVERT VC07 60G	3680552 ASSY BALANCE WEIGHT STRIP=3x10g;6x5g=60g AIRVERT VC07 60G	-	4	Enquire
5	3684683	WHEEL NUT STAINLESS STEEL	3684683 WHEEL NUT STAINLESS STEEL Up to (V) 201480	-	20	Enquire
6	3680556	Wheel cover assembly	3680556 Wheel cover assembly Optional	-	4	Enquire
6	36110884AA	KIT-SMALL WHEEL CAP STANDARD WHEEL	36110884AA KIT-SMALL WHEEL CAP STANDARD WHEEL	-	4	Enquire
9	36111839AA	KIT-SMALL WHEEL CAP (98.5MY USA)	36111839AA KIT-SMALL WHEEL CAP (98.5MY USA) 98.5 MY USA DB7	-	1	Enquire
9	36111840AA	Small wheel cap	36111840AA Small wheel cap 98.5 MY USA DB7	-	4	Enquire
9	36111829AA	WHEEL-8Jx18x14.5mm (98.5MY USA)	36111829AA WHEEL-8Jx18x14.5mm (98.5MY USA) 98.5 MY USA DB7	-	4	Enquire
9	36111842AA	Kit - small wheel cap	36111842AA Kit - small wheel cap Beverley Hills	-	1	Enquire
9	36111843AA	Small wheel cap	36111843AA Small wheel cap Beverley Hills	-	4	Enquire
9	36111827AA	WHEEL-8Jx18 x14.5mm (BEVERLY HILLS)	36111827AA WHEEL-8Jx18 x14.5mm (BEVERLY HILLS) Beverley Hills	-	4	Enquire
9	36111845AA	Kit - small wheel cap	36111845AA Kit - small wheel cap Neiman Marcus	-	1	Enquire
9	36111846AA	Small wheel cap	36111846AA Small wheel cap Neiman Marcus	-	4	Enquire
9	91474	RD WHL-8Jx18x14.5mm	91474 RD WHL-8Jx18x14.5mm Neiman Marcus	-	4	Enquire
9	36111686AA	KIT-WHL TRM LCK BLT	36111686AA KIT-WHL TRM LCK BLT	-	1	Enquire
9	3684780	ROAD WHEEL BADGE AND CENTRE ASSY	3684780 ROAD WHEEL BADGE AND CENTRE ASSY	-	4	Enquire
9	3684781	ROAD WHEEL BADGE AND ADHESIVE PAD	3684781 ROAD WHEEL BADGE AND ADHESIVE PAD	-	4	Enquire
13	3680563	WASHER - CLAMP SCREW	3680563 WASHER - CLAMP SCREW	-	1	Enquire
