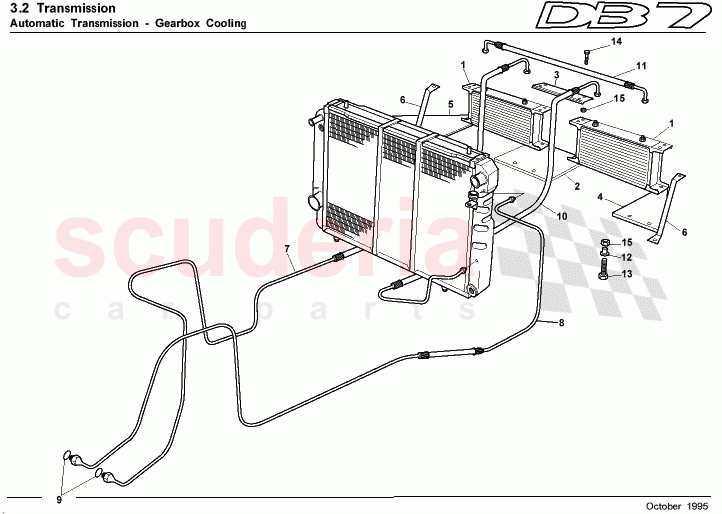

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4283508	AUTO TRANS COOLER PIPE-RETURN	$659.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4281651	ASSY PIPE TRANS COOLER-TRANSFER	$483.36	To Order

Photo	Part No	Description	Price (each)	Stock
	697177	Nut, M6, Flanged	$0.12	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	4283508	AUTO TRANS COOLER PIPE-RETURN	4283508 AUTO TRANS COOLER PIPE-RETURN From (V)100469	$659.13	1
-	4283510	RUBBER SLEEVE- AUTO TRANS.PIPES	4283510 RUBBER SLEEVE- AUTO TRANS.PIPES From (V)100469	$6.47	3
-	4281653	CLIP	4281653 CLIP Pipe support	$0.61	4
-	2483424	ARMOUR - HOSE 15	2483424 ARMOUR - HOSE 15	$13.92	1
7	4283508	AUTO TRANS COOLER PIPE-RETURN	4283508 AUTO TRANS COOLER PIPE-RETURN Up to (V)100468	$659.13	1
8	4283509	AUTO TRANS COOLER PIPE-FEED	4283509 AUTO TRANS COOLER PIPE-FEED Up to (V)100468	$105.49	1
8	4283509	AUTO TRANS COOLER PIPE-FEED	4283509 AUTO TRANS COOLER PIPE-FEED From (V)100469	$105.49	1
11	4281651	ASSY PIPE TRANS COOLER-TRANSFER	4281651 ASSY PIPE TRANS COOLER-TRANSFER	$483.36	1
15	697177	Nut, M6, Flanged	697177 Nut, M6, Flanged	$0.12	11
