Find Your Part

View All

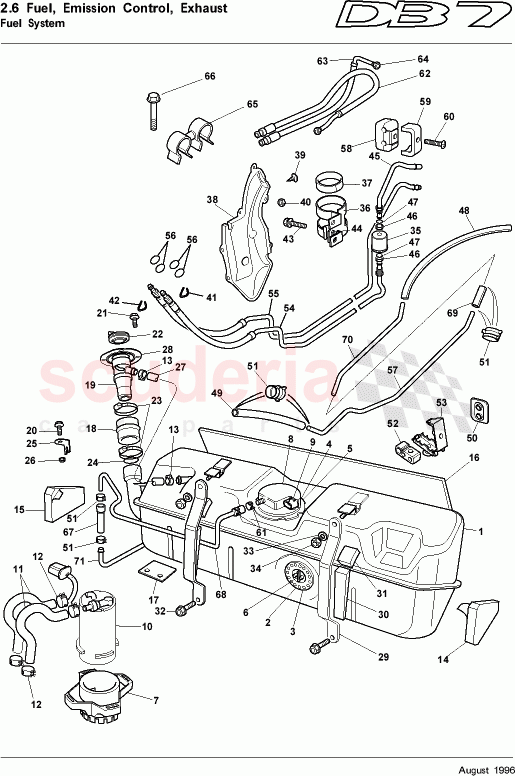

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3481409	FUEL TANK ASSY COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3486516	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6884491	ASY PIPE-FUEL FILLER COMPLETE UNLEADED	Enquire	To Order
	6883395	FUEL FILLER ASSY- LEADED FUEL COMP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3481409	FUEL TANK ASSY COMPLETE	3481409 FUEL TANK ASSY COMPLETE	-	1	Enquire
10	3486516	FUEL PUMP	3486516 FUEL PUMP	-	1	Enquire
19	6884491	ASY PIPE-FUEL FILLER COMPLETE UNLEADED	6884491 ASY PIPE-FUEL FILLER COMPLETE UNLEADED	-	1	Enquire
19	6883395	FUEL FILLER ASSY- LEADED FUEL COMP	6883395 FUEL FILLER ASSY- LEADED FUEL COMP	-	1	Enquire
68	9781468	LABEL-CLEANLINESS- FUEL TANK	9781468 LABEL-CLEANLINESS- FUEL TANK	-	1	Enquire
68	6883073	SEPARATOR- FUEL BREATHER	6883073 SEPARATOR- FUEL BREATHER	-	1	Enquire
68	3481467	PIPE ASSY-VAPOUR REAR	3481467 PIPE ASSY-VAPOUR REAR	-	1	Enquire
68	6883075	HOSE-FILLER GUIDE	6883075 HOSE-FILLER GUIDE	-	1	Enquire
68	6883074	PAD- SEPARATOR INSULATION	6883074 PAD- SEPARATOR INSULATION	-	2	Enquire
68	114679	HOSE-CLIP S/STEEL	114679 HOSE-CLIP S/STEEL	-	4	Enquire
