Cylinder Head of Aston Martin Aston Martin DB7 (1995)

View All

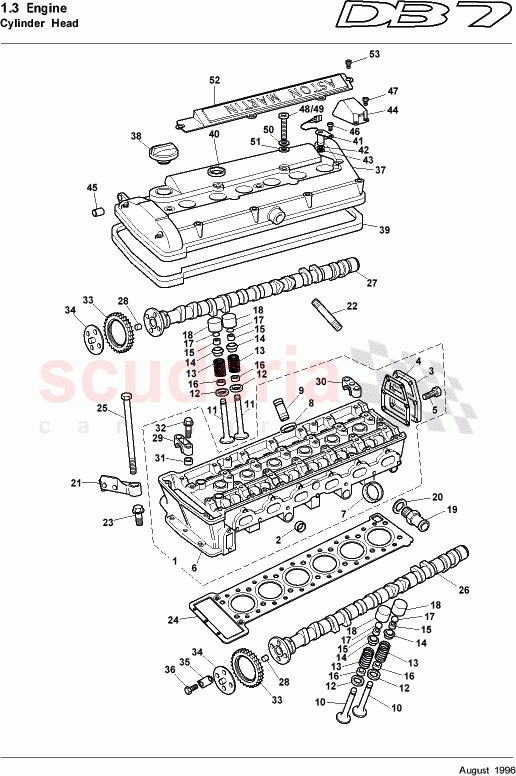

Aston Martin DB7 (1995) - Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	680061	INLET VALVE	Enquire	To Order
	680061	INLET VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	682962	SHIM-0.0850	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	682963	SHIM-0.0855	682963 SHIM-0.0855	-	-	Enquire
-	682964	SHIM-0.0860	682964 SHIM-0.0860	-	-	Enquire
-	682965	SHIM-0.0865	682965 SHIM-0.0865	-	-	Enquire
-	682966	SHIM-0.0870	682966 SHIM-0.0870	-	-	Enquire
-	682967	SHIM-0.0875	682967 SHIM-0.0875	-	-	Enquire
-	682968	SHIM-0.0880	682968 SHIM-0.0880	-	-	Enquire
-	682969	SHIM-0.0885	682969 SHIM-0.0885	-	-	Enquire
-	682970	SHIM-0.0890	682970 SHIM-0.0890	-	-	Enquire
-	682971	SHIM-0.0895	682971 SHIM-0.0895	-	-	Enquire
-	682972	SHIM-0.0900	682972 SHIM-0.0900	-	-	Enquire
-	682973	SHIM-0.0905	682973 SHIM-0.0905	-	-	Enquire
-	682974	SHIM-0.0910	682974 SHIM-0.0910	-	-	Enquire
-	682975	SHIM-0.0915	682975 SHIM-0.0915	-	-	Enquire
-	682976	SHIM-0.0920	682976 SHIM-0.0920	-	-	Enquire
-	682977	SHIM-0.0925	682977 SHIM-0.0925	-	-	Enquire
-	682978	SHIM-0.0930	682978 SHIM-0.0930	-	-	Enquire
-	682979	SHIM-0.0935	682979 SHIM-0.0935	-	-	Enquire
-	682980	SHIM-0.0940	682980 SHIM-0.0940	-	-	Enquire
-	682981	SHIM-0.0945	682981 SHIM-0.0945	-	-	Enquire
-	682982	SHIM-0.0950	682982 SHIM-0.0950	-	-	Enquire
-	682983	SHIM-0.0955	682983 SHIM-0.0955	-	-	Enquire
-	682984	SHIM-0.0960	682984 SHIM-0.0960	-	-	Enquire
-	682985	SHIM-0.0965	682985 SHIM-0.0965	-	-	Enquire
-	682986	SHIM-0.0970	682986 SHIM-0.0970	-	-	Enquire
-	682987	SHIM-0.0975	682987 SHIM-0.0975	-	-	Enquire
-	682988	SHIM-0.0980	682988 SHIM-0.0980	-	-	Enquire
-	682989	SHIM-0.0985	682989 SHIM-0.0985	-	-	Enquire
-	682990	SHIM-0.0990	682990 SHIM-0.0990	-	-	Enquire
-	682991	SHIM-0.0995	682991 SHIM-0.0995	-	-	Enquire
-	682992	SHIM-0.1000	682992 SHIM-0.1000	-	-	Enquire
-	682993	SHIM-0.1005	682993 SHIM-0.1005	-	-	Enquire
-	682994	SHIM-0.1010	682994 SHIM-0.1010	-	-	Enquire
-	682995	SHIM-0.1015	682995 SHIM-0.1015	-	-	Enquire
-	682996	SHIM-0.1020	682996 SHIM-0.1020	-	-	Enquire
-	682997	SHIM-0.1025	682997 SHIM-0.1025	-	-	Enquire
-	682998	SHIM-0.1030	682998 SHIM-0.1030	-	-	Enquire
-	682999	SHIM-0.1035	682999 SHIM-0.1035	-	-	Enquire
-	683000	SHIM-0.1040	683000 SHIM-0.1040	-	-	Enquire
-	683001	SHIM-0.1045	683001 SHIM-0.1045	-	-	Enquire
-	683002	SHIM-0.1050	683002 SHIM-0.1050	-	-	Enquire
-	683003	SHIM-0.1055	683003 SHIM-0.1055	-	-	Enquire
-	683004	SHIM-0.1060	683004 SHIM-0.1060	-	-	Enquire
-	683005	SHIM-0.1065	683005 SHIM-0.1065	-	-	Enquire
-	683006	SHIM-0.1070	683006 SHIM-0.1070	-	-	Enquire
-	683007	SHIM-0.1075	683007 SHIM-0.1075	-	-	Enquire
-	683008	SHIM-0.1080	683008 SHIM-0.1080	-	-	Enquire
-	683009	SHIM-0.1085	683009 SHIM-0.1085	-	-	Enquire
-	683010	SHIM-0.1090	683010 SHIM-0.1090	-	-	Enquire
-	683011	SHIM-0.1095	683011 SHIM-0.1095	-	-	Enquire
-	683012	SHIM-0.1100	683012 SHIM-0.1100	-	-	Enquire
-	683813	CYL HEAD COMPL-95MY	683813 CYL HEAD COMPL-95MY	-	-	Enquire
10	680061	INLET VALVE	680061 INLET VALVE Up to (E) 00428	-	12	Enquire
10	680061	INLET VALVE	680061 INLET VALVE From (E) 00429	-	12	Enquire
17	682962	SHIM-0.0850	682962 SHIM-0.0850 Use selectively	-	-	Enquire
