Find Your Part

Front wheel brake of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

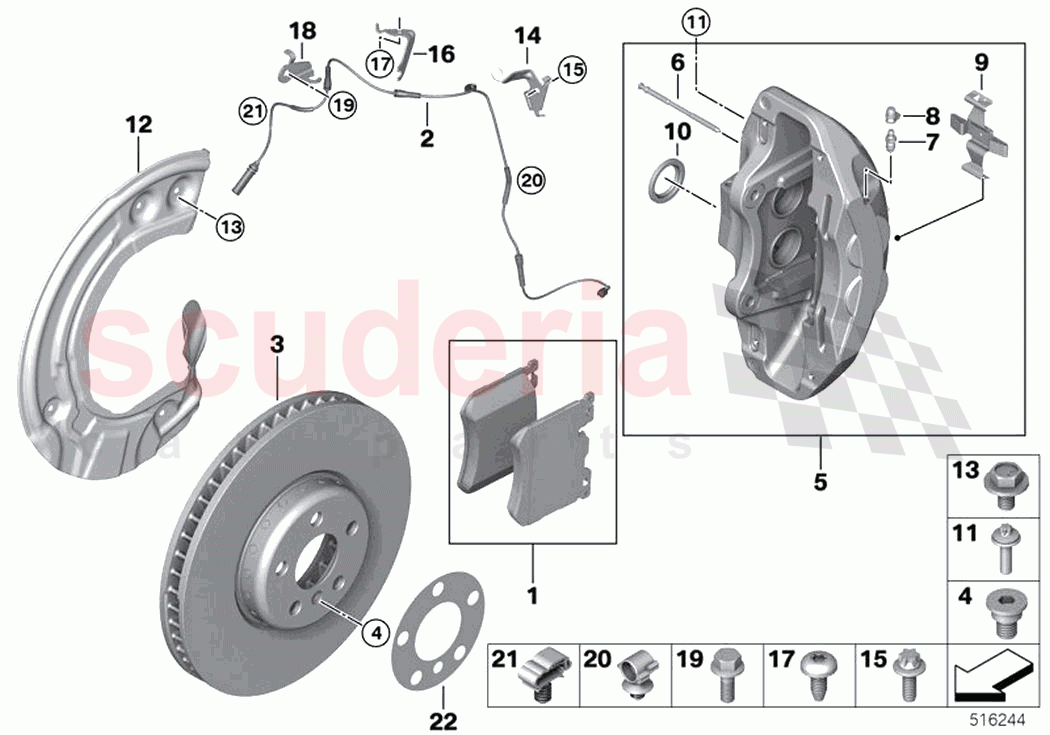

Rolls Royce Phantom Extended RR12(2017-2023) - Front wheel brake

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	34116889585	Repair kit, brake pads asbestos-free	Enquire	To Order
	34116889585	Repair kit, brake pads asbestos-free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34356871915	Brake pad wear sensor, front left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34116887397	Brake disc, lightweight, ventilated,left	Enquire	To Order
	34106887398	Brake disc, lightweight,ventilated,right	Enquire	To Order
	34106889211	Brake disc, lightweight, ventilated	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34211161806	Inner hex bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34106878283	Caliper housing left	Enquire	To Order
	34106878284	Caliper housing right	Enquire	To Order
	34106892247	Caliper housing left	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	34116872572	Repair kit guide pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34116780509	Bleeder valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34116780508	Dust cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34116872573	Repair kit, expanding spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34111162178	Dust protection collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34106864424	Torx screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34106875623	Protection plate left	Enquire	To Order
	34106875624	Protection plate right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34116868785	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871917	Left ABS/BVA tube bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34509804151	ASA screw, thread-forming	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871919	Left ABS/BVA tube bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31146786689	Torx screw, self-tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871921	Left ABS/BVA tube bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904371	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12517801070	Retaining clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34521164653	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34106884839	Washer f.increasing coefficient of fric.	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	34116889585	Repair kit, brake pads asbestos-free	34116889585 Repair kit, brake pads asbestos-free from 08.2020	-	1	Enquire
1	34116889585	Repair kit, brake pads asbestos-free	34116889585 Repair kit, brake pads asbestos-free	-	1	Enquire
2	34356871915	Brake pad wear sensor, front left	34356871915 Brake pad wear sensor, front left	-	1	Enquire
3	34116887397	Brake disc, lightweight, ventilated,left	34116887397 Brake disc, lightweight, ventilated,left 395X36; from 12.2019	-	1	Enquire
3	34106887398	Brake disc, lightweight,ventilated,right	34106887398 Brake disc, lightweight,ventilated,right 395X36; from 12.2019	-	1	Enquire
3	34106889211	Brake disc, lightweight, ventilated	34106889211 Brake disc, lightweight, ventilated 395X36; to 12.2019	-	2	Enquire
4	34211161806	Inner hex bolt	34211161806 Inner hex bolt M8X14	-	2	Enquire
5	34106878283	Caliper housing left	34106878283 Caliper housing left SCHWARZ; from 12.2017	-	1	Enquire
5	34106878284	Caliper housing right	34106878284 Caliper housing right SCHWARZ; from 12.2017	-	1	Enquire
5	34106892247	Caliper housing left	34106892247 Caliper housing left SCHWARZ	-	1	Enquire
5	34106892248	Caliper housing right	34106892248 Caliper housing right SCHWARZ	-	1	Enquire
5	34108845031	Caliper housing left	34108845031 Caliper housing left	-	1	Enquire
5	34108845032	Caliper housing right	34108845032 Caliper housing right	-	1	Enquire
5	34108845035	Caliper housing left	34108845035 Caliper housing left	-	1	Enquire
5	34108845036	Caliper housing right	34108845036 Caliper housing right	-	1	Enquire
5	34108845033	Caliper housing left	34108845033 Caliper housing left	-	1	Enquire
5	34108845034	Caliper housing right	34108845034 Caliper housing right	-	1	Enquire
6	34116872572	Repair kit guide pin	34116872572 Repair kit guide pin	-	2	Enquire
7	34116780509	Bleeder valve	34116780509 Bleeder valve	-	2	Enquire
8	34116780508	Dust cap	34116780508 Dust cap	-	2	Enquire
9	34116872573	Repair kit, expanding spring	34116872573 Repair kit, expanding spring	-	2	Enquire
10	34111162178	Dust protection collar	34111162178 Dust protection collar	-	2	Enquire
11	34106864424	Torx screw with washer	34106864424 Torx screw with washer M12X1,5X43 ZNS3	-	4	Enquire
12	34106875623	Protection plate left	34106875623 Protection plate left	-	1	Enquire
12	34106875624	Protection plate right	34106875624 Protection plate right	-	1	Enquire
13	34116868785	Hex Bolt	34116868785 Hex Bolt M6X12-10.9-MK-	-	8	Enquire
14	34306871917	Left ABS/BVA tube bracket	34306871917 Left ABS/BVA tube bracket	-	1	Enquire
15	34509804151	ASA screw, thread-forming	34509804151 ASA screw, thread-forming M6X16	-	1	Enquire
16	34306871919	Left ABS/BVA tube bracket	34306871919 Left ABS/BVA tube bracket	-	1	Enquire
17	31146786689	Torx screw, self-tapping	31146786689 Torx screw, self-tapping M6X13-ZNNIVSI	-	1	Enquire
18	34306871921	Left ABS/BVA tube bracket	34306871921 Left ABS/BVA tube bracket	-	1	Enquire
19	7119904371	Hex Bolt	7119904371 Hex Bolt M6X16-8.8-ZNS3	-	1	Enquire
20	12517801070	Retaining clip	12517801070 Retaining clip	-	1	Enquire
21	34521164653	Tubing support	34521164653 Tubing support	-	1	Enquire
22	34106884839	Washer f.increasing coefficient of fric.	34106884839 Washer f.increasing coefficient of fric.	-	2	Enquire
