Rear axle support wheel suspension of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

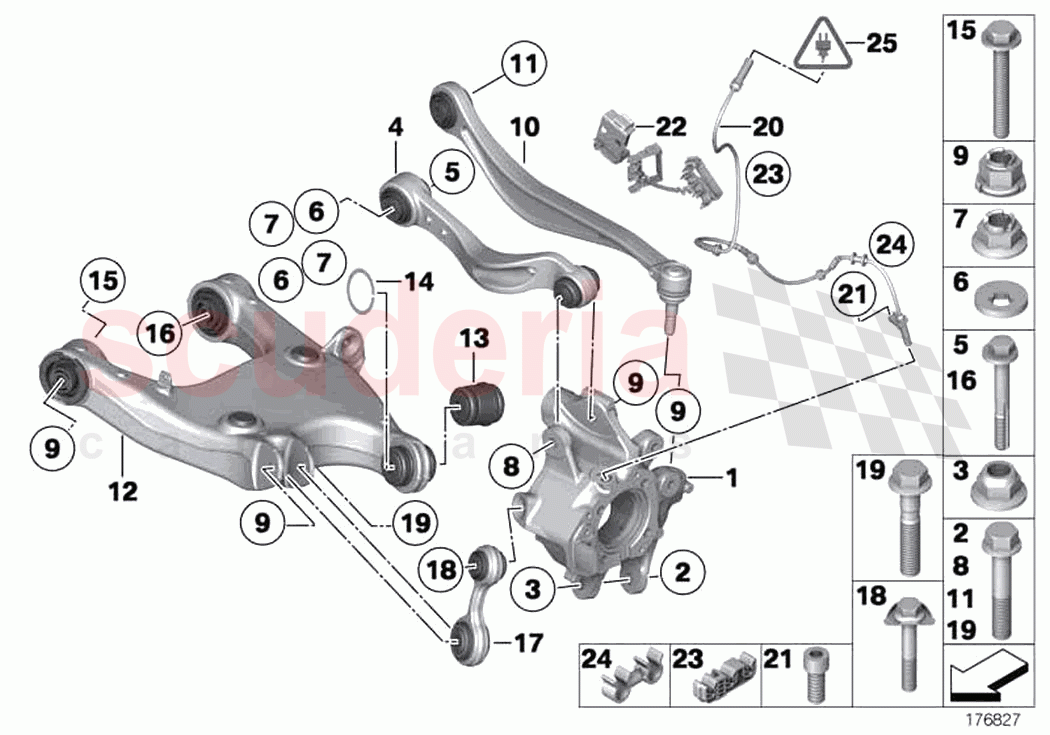

Rolls Royce Dawn RR6(2017-2023) - Rear axle support wheel suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33326863843	Wheel carrier, rear left	Enquire	To Order
	33326863844	Wheel carrier, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306786218	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906287	Self-locking hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326782131	Wishbone, left	Enquire	To Order
	33326782132	Wishbone, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146888627	Eccentric bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106890194	Hexagon nut with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326775902	Track strut with rubber mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906489	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326865897	Left swing part	Enquire	To Order
	33326865898	Right swing part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326780438	Ball joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33321091687	Snap ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106786144	Hexagon collar screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326775683	Integral link	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306793891	Securing bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326764927	Hex screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526775864	Pulse generator, DSC rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905536	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526790833	Tubing support, left	Enquire	To Order
	34526790834	Tubing support, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526783705	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526783179	Pipe clip	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	31106768886	Hexagon nut with collar	31106768886 Hexagon nut with collar M14X1,5-10 ZNS3	-	1	Enquire
-	33326779785	Eccentric bolt	33326779785 Eccentric bolt M14X105-10.9	-	1	Enquire
-	33326783031	Hexagon collar screw	33326783031 Hexagon collar screw M14X120-10.9	-	1	Enquire
-	33306786187	Eccentric flat washer	33306786187 Eccentric flat washer	-	1	Enquire
-	33306787062	Combination nut	33306787062 Combination nut M14X1,5-10ZNNIV	-	1	Enquire
1	33326863843	Wheel carrier, rear left	33326863843 Wheel carrier, rear left	-	1	Enquire
1	33326863844	Wheel carrier, rear right	33326863844 Wheel carrier, rear right	-	1	Enquire
2	33306786218	Hex Bolt with washer	33306786218 Hex Bolt with washer M16X118-10.9	-	2	Enquire
3	7119906287	Self-locking hex nut	7119906287 Self-locking hex nut M16X1,5-10 ZNS3	-	2	Enquire
4	33326782131	Wishbone, left	33326782131 Wishbone, left	-	1	Enquire
4	33326782132	Wishbone, right	33326782132 Wishbone, right	-	1	Enquire
5	7146888627	Eccentric bolt	7146888627 Eccentric bolt M14X105-10.9	-	2	Enquire
7	31106890194	Hexagon nut with collar	31106890194 Hexagon nut with collar M14X1,5-10 ZNS3	-	4	Enquire
10	33326775902	Track strut with rubber mount	33326775902 Track strut with rubber mount	-	2	Enquire
11	7119906489	Hexagon screw with flange	7119906489 Hexagon screw with flange M12X1,5X67-10.9	-	2	Enquire
12	33326865897	Left swing part	33326865897 Left swing part	-	1	Enquire
12	33326865898	Right swing part	33326865898 Right swing part	-	1	Enquire
13	33326780438	Ball joint	33326780438 Ball joint	-	2	Enquire
14	33321091687	Snap ring	33321091687 Snap ring	-	1	Enquire
15	31106786144	Hexagon collar screw	31106786144 Hexagon collar screw M14X120-10.9-MK	-	2	Enquire
17	33326775683	Integral link	33326775683 Integral link	-	2	Enquire
18	33306793891	Securing bolt	33306793891 Securing bolt M12X1,5X74-10.9	-	2	Enquire
19	33326764927	Hex screw with collar	33326764927 Hex screw with collar M14X1,5X74-10.9	-	2	Enquire
20	34526775864	Pulse generator, DSC rear	34526775864 Pulse generator, DSC rear	-	2	Enquire
21	7129905536	ISA screw	7129905536 ISA screw M6X16-8.8-ZNNIV	-	2	Enquire
22	34526790833	Tubing support, left	34526790833 Tubing support, left	-	1	Enquire
22	34526790834	Tubing support, right	34526790834 Tubing support, right	-	1	Enquire
23	34526783705	Tubing support	34526783705 Tubing support	-	2	Enquire
24	34526783179	Pipe clip	34526783179 Pipe clip	-	1	Enquire
