McLaren McLaren Artura - 31 - HVAC SYSTEM - 31.2 - HVAC FLUIDS CIRCUIT

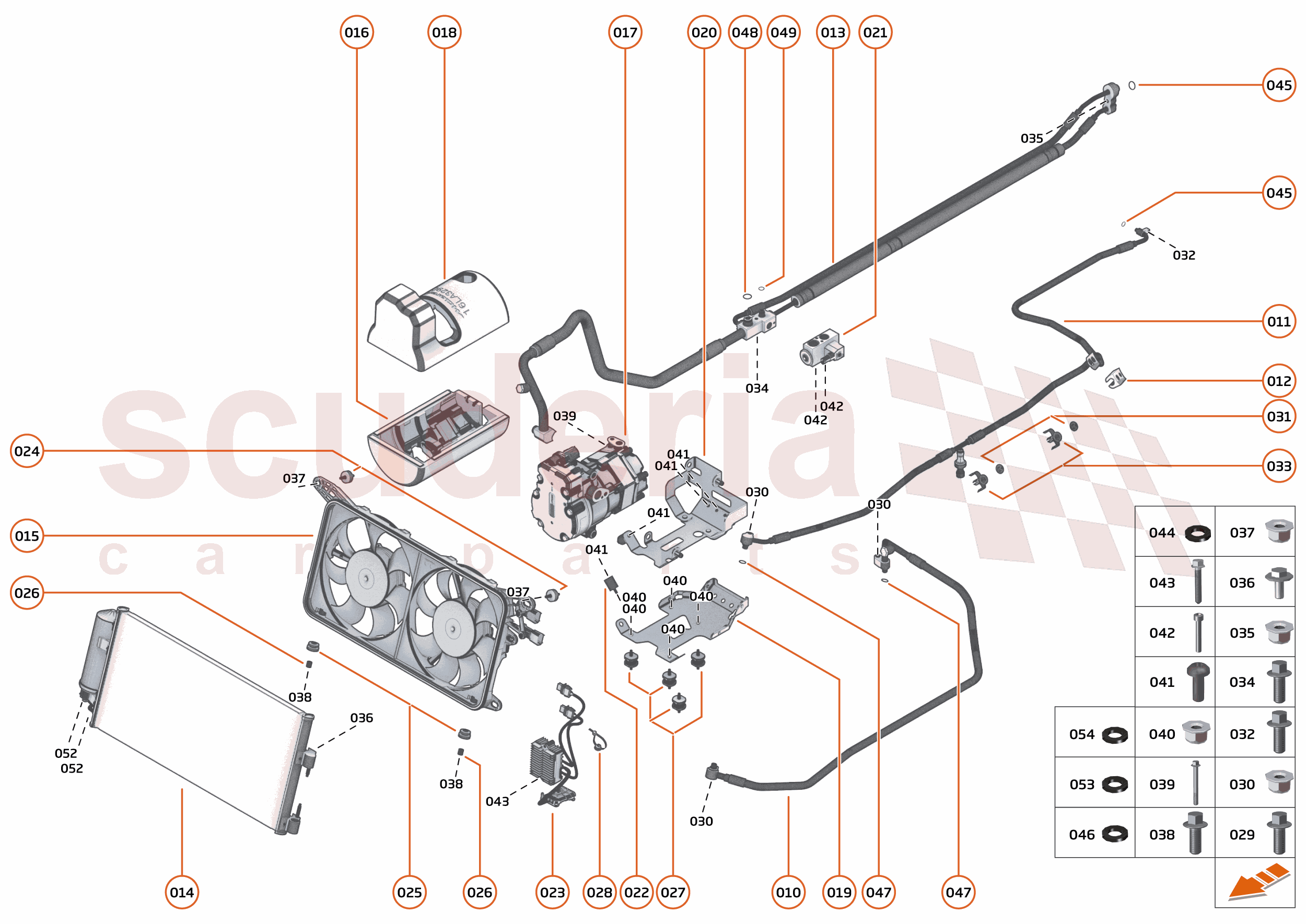

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16LA712CP ASSY-PIPE-COMPRESSOR-TO - CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
16LA711CP ASSY-PIPE-CONDENSER-TO-TUNNEL Enquire To Order
Photo Part No Description Price (each) Stock
16LA339CP PIPE RUBBER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
16LA697CP ASSY-TUNNEL-PIPES Enquire To Order
Photo Part No Description Price (each) Stock
16LA210CP ASSY - CONDENSER - RECEIVER - DRIER $694.18 To Order
Photo Part No Description Price (each) Stock
16LA740CP ASSY-CONDENSER FANS SHROUD Enquire To Order
16LA462CP ASSY-PWM-CONDENSER -FANS $394.11 To Order
Photo Part No Description Price (each) Stock
16LA271CP BOTTOM NVH-JACKET-E-COMPRESSOR $58.70 To Order
Photo Part No Description Price (each) Stock
16LA653CP HVAC E-COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
16LA329CP TOP NVH-JACKET-E-COMPRESSOR $57.44 To Order
Photo Part No Description Price (each) Stock
16LA566CP LOWER-BRACKET-HVAC COMPRESSOR $80.93 To Order
Photo Part No Description Price (each) Stock
16LA739CP TOP-BRACKET-HVAC COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
16LA238CP ASSY-HVAC-TXV $122.01 To Order
Photo Part No Description Price (each) Stock
16LA365CP CYLINDER AV-MOUNT- E-COMPRESSOR $6.94 To Order
Photo Part No Description Price (each) Stock
16LA355CP PRESSURE SENSOR-HVAC $88.62 To Order
Photo Part No Description Price (each) Stock
16LA272CP AV-MOUNT-CONDENSER-SHROUD-TOP $4.27 To Order
Photo Part No Description Price (each) Stock
16LA349CP AV-MOUNT-BUSH-NR $6.78 To Order
Photo Part No Description Price (each) Stock
16LA294CP AV-MOUNT-SLEEVE-M8 $4.23 To Order
Photo Part No Description Price (each) Stock
16LA270CP AV-MOUNT-E-COMPRESSOR $15.71 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA764 BLT-HX HD-FL-M8X1.25X30-8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB257 CLIP BASE-6.5-MALE-FIR TREE - ACE-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB243 CLIP-PIPE-DBL-PA66-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA712 BLT-HX HD-W-PPT-M5X0.8X14.7 - 8.8-81 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA711 BLT-HX HD-FL-M8X1.25X100 - 8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA577 NUT-HX-FL-M6X1-8-ZFB Enquire To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA719 SCR-CAP HD-HX-M5X0.8X50-8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA715 BLT-HX HD-FL-M4X0.7X30-8.8-80 Enquire To Order
Photo Part No Description Price (each) Stock
16LA685CP O-RING - PIPE-COMPRESSOR-TO-CONDENSER - 7X1.2MM Enquire To Order
Photo Part No Description Price (each) Stock
16LA691CP O-RING - ASSY-TUNNEL-PIPES - 7.65X1.78MM Enquire To Order
Photo Part No Description Price (each) Stock
16LA692CP O-RING - ASSY-TUNNEL-PIPES - 14X1.2MM Enquire To Order
Photo Part No Description Price (each) Stock
16LA689CP O-RING - PIPE-CONDENSER-TO-TUNNEL - AND COMPRESSOR-TO-CONDENSER - 9.92X2.62MM Enquire To Order
Photo Part No Description Price (each) Stock
16LA706CP O-RING - ASSY-TUNNEL-PIPES - 12.5MM ID X 3MM CS Enquire To Order
Photo Part No Description Price (each) Stock
16LA707CP O-RING - ASSY-TUNNEL-PIPES - 8.8MM ID X 1.9MM CS Enquire To Order
Photo Part No Description Price (each) Stock
16LA716CP O-RING - ASSY-TUNNEL-PIPES - 12.5MMX3MM - CR6010-70 Enquire To Order
Photo Part No Description Price (each) Stock
16LA717CP O-RING - ASSY-TUNNEL-PIPES - 8.92MMX1.83MM - CR6010-70 Enquire To Order
16LA690CP O-RING - ASSY-TUNNEL-PIPES - 5X1.2MM Enquire To Order
16LA693CP O-RING - ASSY-TUNNEL-PIPES - 12.37X2.62MM Enquire To Order
...and 3 more part variants. See table on right for more details.
View All
31 - HVAC SYSTEM - 31.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 16LA719CP
CHARGE PORT CAP WITH SEALING
Row ID: ID__16LA719CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 16LA720CP
SCREW 8.8 FINISH M5X0.8L16
Row ID: ID__16LA720CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 16LA722CP
SEALING WASHER 9.52MM
Row ID: ID__16LA722CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 16LA723CP
SEALING WASHER 19.05MM
Row ID: ID__16LA723CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 16LA725CP
PLASTIC PIPE 8.5X13.9
Row ID: ID__16LA725CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 16LA726CP
SEALING WASHER 12.7MM
Row ID: ID__16LA726CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 16LA712CP
ASSY-PIPE-COMPRESSOR-TO - CONDENSER
Row ID: ID__16LA712CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 16LA711CP
ASSY-PIPE-CONDENSER-TO-TUNNEL
Row ID: ID__16LA711CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 16LA339CP
PIPE RUBBER BLOCK
Row ID: ID__16LA339CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 16LA697CP
ASSY-TUNNEL-PIPES
Row ID: ID__16LA697CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 16LA210CP
ASSY - CONDENSER - RECEIVER - DRIER
Row ID: ID__16LA210CP_ContPgHS; Resolution: Available; 		$694.18 1
015 16LA740CP
ASSY-CONDENSER FANS SHROUD
Row ID: ID__16LA740CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 16LA462CP
ASSY-PWM-CONDENSER -FANS
Row ID: ID__16LA462CP_ContPgHS; Resolution: Available; 		$394.11 1
016 16LA271CP
BOTTOM NVH-JACKET-E-COMPRESSOR
Row ID: ID__16LA271CP_ContPgHS; Resolution: Available; 		$58.70 1
017 16LA653CP
HVAC E-COMPRESSOR
Row ID: ID__16LA653CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 16LA329CP
TOP NVH-JACKET-E-COMPRESSOR
Row ID: ID__16LA329CP_ContPgHS; Resolution: Available; 		$57.44 1
019 16LA566CP
LOWER-BRACKET-HVAC COMPRESSOR
Row ID: ID__16LA566CP_ContPgHS; Resolution: Available; 		$80.93 1
020 16LA739CP
TOP-BRACKET-HVAC COMPRESSOR
Row ID: ID__16LA739CP_ContPgHS; Resolution: Available; 		- 1 Enquire
021 16LA238CP
ASSY-HVAC-TXV
Row ID: ID__16LA238CP_ContPgHS; Resolution: Available; 		$122.01 1
022 16LA365CP
CYLINDER AV-MOUNT- E-COMPRESSOR
Row ID: ID__16LA365CP_ContPgHS; Resolution: Available; 		$6.94 4
023 16LA355CP
PRESSURE SENSOR-HVAC
Row ID: ID__16LA355CP_ContPgHS; Resolution: Available; 		$88.62 1
024 16LA272CP
AV-MOUNT-CONDENSER-SHROUD-TOP
Row ID: ID__16LA272CP_ContPgHS; Resolution: Available; 		$4.27 2
025 16LA349CP
AV-MOUNT-BUSH-NR
Row ID: ID__16LA349CP_ContPgHS; Resolution: Available; 		$6.78 2
026 16LA294CP
AV-MOUNT-SLEEVE-M8
Row ID: ID__16LA294CP_ContPgHS; Resolution: Available; 		$4.23 2
027 16LA270CP
AV-MOUNT-E-COMPRESSOR
Row ID: ID__16LA270CP_ContPgHS; Resolution: Available; 		$15.71 4
028 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID__00RL001_ContPgHS; Resolution: Available; 		- 1 Enquire
029 00RA764
BLT-HX HD-FL-M8X1.25X30-8.8-72
Row ID: ID__00RA764_ContPgHS; Resolution: Available; 		- 1 Enquire
030 00RA075
NUT - M8-8 - HEX
Row ID: ID__00RA075_ContPgHS; Resolution: Available; 		- 1 Enquire
031 00RB257
CLIP BASE-6.5-MALE-FIR TREE - ACE-BLK
Row ID: ID__00RB257_ContPgHS; Resolution: Available; 		- 2 Enquire
032 00RX001
Bolt - M5x16 - Hex
Row ID: ID__00RX001_ContPgHS; Resolution: Available; 		- 1 Enquire
033 00RB243
CLIP-PIPE-DBL-PA66-BLK
Row ID: ID__00RB243_ContPgHS; Resolution: Available; 		- 2 Enquire
034 00RA073
SCREW - M6X30 - HEX
Row ID: ID__00RA073_ContPgHS; Resolution: Available; 		- 1 Enquire
035 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 1 Enquire
036 00RA712
BLT-HX HD-W-PPT-M5X0.8X14.7 - 8.8-81
Row ID: ID__00RA712_ContPgHS; Resolution: Available; 		- 3 Enquire
037 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 4 Enquire
038 00RA120
SCREW - M6X25 - HEX
Row ID: ID__00RA120_ContPgHS; Resolution: Available; 		- 2 Enquire
039 00RA711
BLT-HX HD-FL-M8X1.25X100 - 8.8-72
Row ID: ID__00RA711_ContPgHS; Resolution: Available; 		- 2 Enquire
040 00RA577
NUT-HX-FL-M6X1-8-ZFB
Row ID: ID__00RA577_ContPgHS; Resolution: Available; 		- 8 Enquire
041 00RA019
SCREW - M6X12-10.9 - HEX
Row ID: ID__00RA019_ContPgHS; Resolution: Available; 		- 4 Enquire
042 00RA719
SCR-CAP HD-HX-M5X0.8X50-8.8-72
Row ID: ID__00RA719_ContPgHS; Resolution: Available; 		- 2 Enquire
043 00RA715
BLT-HX HD-FL-M4X0.7X30-8.8-80
Row ID: ID__00RA715_ContPgHS; Resolution: Available; 		- 2 Enquire
044 16LA685CP
O-RING - PIPE-COMPRESSOR-TO-CONDENSER - 7X1.2MM
Row ID: ID__16LA685CP_ContPgHS; Resolution: Available; 		- 1 Enquire
045 16LA691CP
O-RING - ASSY-TUNNEL-PIPES - 7.65X1.78MM
Row ID: ID__16LA691CP_ContPgHS; Resolution: Available; 		- 1 Enquire
046 16LA692CP
O-RING - ASSY-TUNNEL-PIPES - 14X1.2MM
Row ID: ID__16LA692CP_ContPgHS; Resolution: Available; 		- 1 Enquire
047 16LA689CP
O-RING - PIPE-CONDENSER-TO-TUNNEL - AND COMPRESSOR-TO-CONDENSER - 9.92X2.62MM
Row ID: ID__16LA689CP_ContPgHS; Resolution: Available; 		- 1 Enquire
048 16LA706CP
O-RING - ASSY-TUNNEL-PIPES - 12.5MM ID X 3MM CS
Row ID: ID__16LA706CP_ContPgHS; Resolution: Available; 		- 1 Enquire
049 16LA707CP
O-RING - ASSY-TUNNEL-PIPES - 8.8MM ID X 1.9MM CS
Row ID: ID__16LA707CP_ContPgHS; Resolution: Available; 		- 1 Enquire
053 16LA716CP
O-RING - ASSY-TUNNEL-PIPES - 12.5MMX3MM - CR6010-70
Row ID: ID__16LA716CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 16LA717CP
O-RING - ASSY-TUNNEL-PIPES - 8.92MMX1.83MM - CR6010-70
Row ID: ID__16LA717CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 16LA690CP
O-RING - ASSY-TUNNEL-PIPES - 5X1.2MM
Row ID: ID__16LA690CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 16LA693CP
O-RING - ASSY-TUNNEL-PIPES - 12.37X2.62MM
Row ID: ID__16LA693CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 16LA694CP
O-RING - ASSY-TUNNEL-PIPES - 8.73X 1.78MM
Row ID: ID__16LA694CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 16LA727CP
O-RING 9.9X2.62 EPDM 70SH
Row ID: ID__16LA727CP_ContPgHS; Resolution: Available; 		- 1 Enquire
054 16LA721CP
O RING 7.94X1.78 EPDM 70SH
Row ID: ID__16LA721CP_ContPgHS; Resolution: Available; 		- 1 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
