McLaren McLaren Artura - 29 - FUEL SYSTEM - 29.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14KA063CP CONTROLLER - FUEL PUMP $283.92 To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16KA188CP ASSY FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
12K0229CP SEAL - RETAINING RING - FUEL PUMP $65.75 To Order
Photo Part No Description Price (each) Stock
14K0079CP FLANGE - FUEL TANK $78.54 To Order
Photo Part No Description Price (each) Stock
14K0087CP PUMP MOUNT - MOULDED - FUEL TANK $71.94 To Order
Photo Part No Description Price (each) Stock
16K0009CP CHARCOL CANISTER $792.10 To Order
Photo Part No Description Price (each) Stock
16K0018CP HOSE - FUEL - FEED TANK $50.85 To Order
Photo Part No Description Price (each) Stock
16K0019CP HARNESS - FUEL CELL $125.32 To Order
Photo Part No Description Price (each) Stock
16KA087CP PIPE - BREATHER - CANISTER $37.18 To Order
Photo Part No Description Price (each) Stock
16K0017CP HOSE BREATHER - TANK - TO - CANISTER $76.00 To Order
Photo Part No Description Price (each) Stock
16K0010CP ASSY PIPE PURGE TANK $147.34 To Order
View All

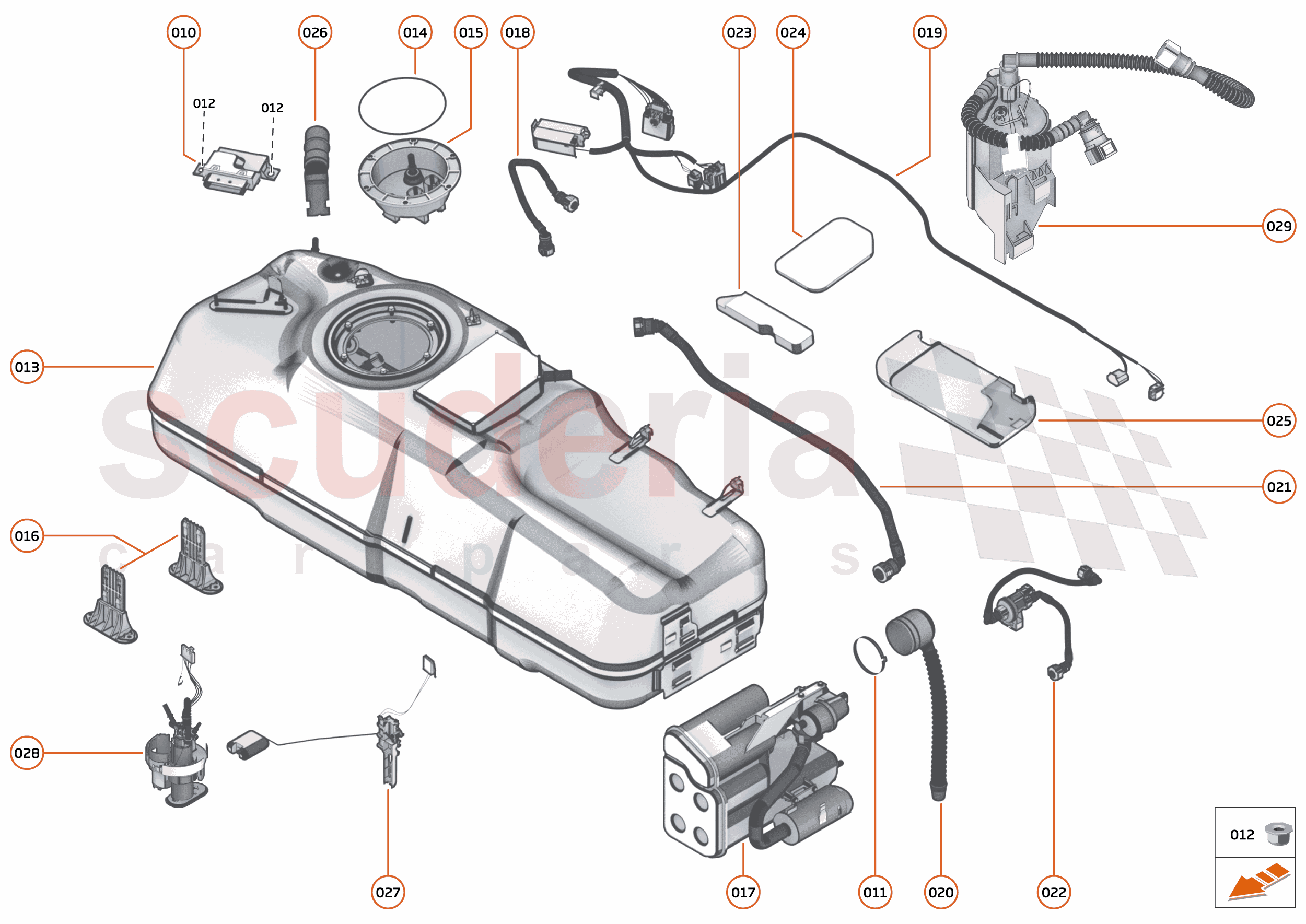

29 - FUEL SYSTEM - 29.1 - FUEL TANK of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14KA063CP
CONTROLLER - FUEL PUMP
Row ID: ID__14KA063CP_ContPgHS; Resolution: Available; 		$283.92 1
011 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA
Row ID: ID__00RB147_ContPgHS; Resolution: Available; 		- 1 Enquire
012 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
013 16KA188CP
ASSY FUEL TANK
Row ID: ID__16KA188CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 12K0229CP
SEAL - RETAINING RING - FUEL PUMP
Row ID: ID__12K0229CP_ContPgHS; Resolution: Available; 		$65.75 1
015 14K0079CP
FLANGE - FUEL TANK
Row ID: ID__14K0079CP_ContPgHS; Resolution: Available; 		$78.54 1
016 14K0087CP
PUMP MOUNT - MOULDED - FUEL TANK
Row ID: ID__14K0087CP_ContPgHS; Resolution: Available; 		$71.94 2
017 16K0009CP
CHARCOL CANISTER
Row ID: ID__16K0009CP_ContPgHS; Resolution: Available; 		$792.10 1
018 16K0018CP
HOSE - FUEL - FEED TANK
Row ID: ID__16K0018CP_ContPgHS; Resolution: Available; 		$50.85 1
019 16K0019CP
HARNESS - FUEL CELL
Row ID: ID__16K0019CP_ContPgHS; Resolution: Available; 		$125.32 1
020 16KA087CP
PIPE - BREATHER - CANISTER
Row ID: ID__16KA087CP_ContPgHS; Resolution: Available; 		$37.18 1
021 16K0017CP
HOSE BREATHER - TANK - TO - CANISTER
Row ID: ID__16K0017CP_ContPgHS; Resolution: Available; 		$76.00 1
022 16K0010CP
ASSY PIPE PURGE TANK
Row ID: ID__16K0010CP_ContPgHS; Resolution: Available; 		$147.34 1
