28 - Fuel System - 28.5 - Fuel Delivery

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 28 - FUEL SYSTEM - 28.5 - FUEL DELIVERY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16KA094CP FUEL FEED PIPE TO ENGINE BAY $428.45 To Order
Photo Part No Description Price (each) Stock
13F0872CP FUEL PRESSURE AND TEMP SENSOR $145.09 To Order
Photo Part No Description Price (each) Stock
16KA045CP FUEL PRESSURE SENSOR MANIFOLD $11.85 To Order
Photo Part No Description Price (each) Stock
00RA154 SCREW - M5X20 - HEX Enquire To Order
View All

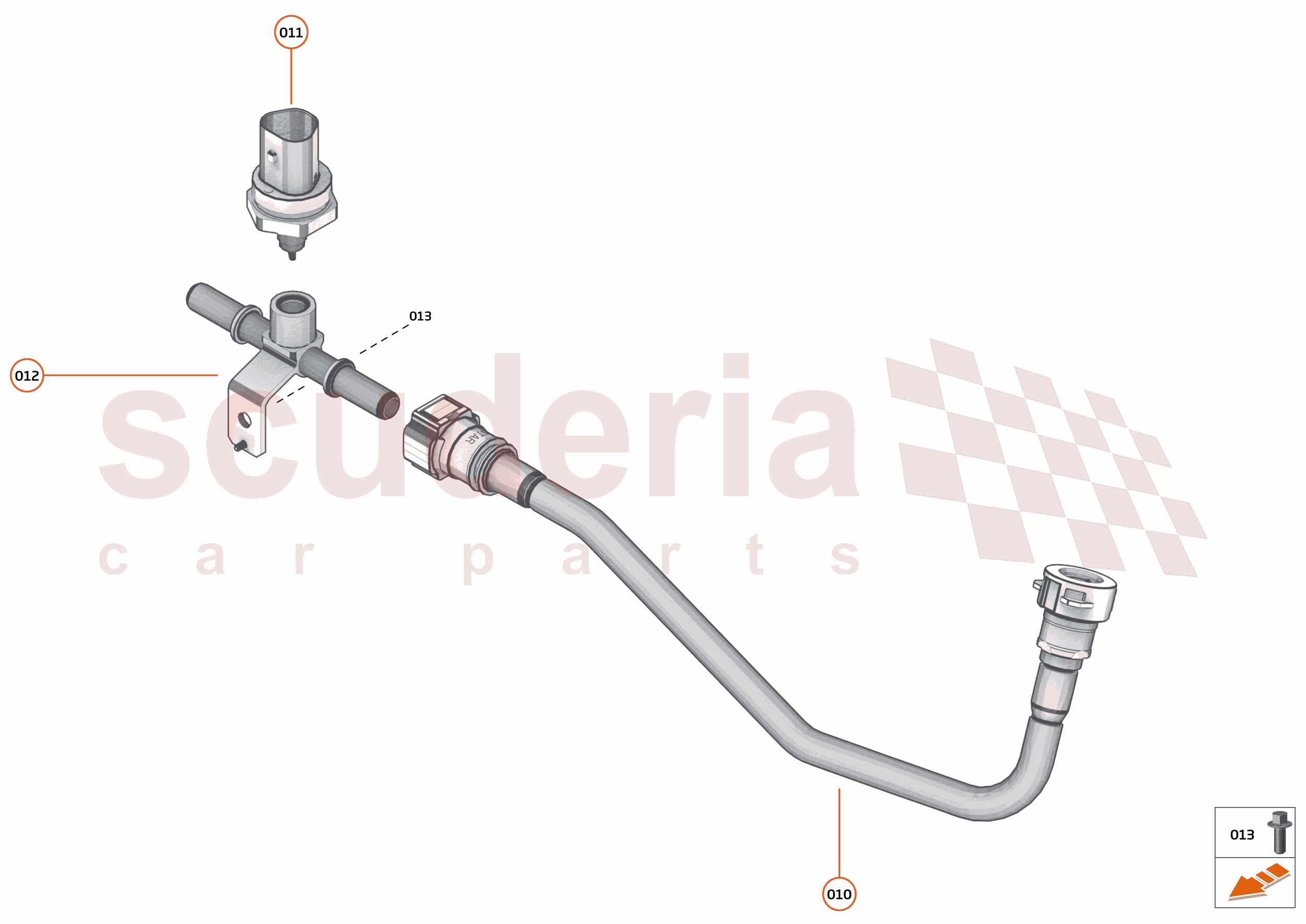

28 - FUEL SYSTEM - 28.5 - FUEL DELIVERY of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16KA094CP
FUEL FEED PIPE TO ENGINE BAY
Row ID: ID__16KA094CP_ContPgHS; Resolution: Available; 		$428.45 1
011 13F0872CP
FUEL PRESSURE AND TEMP SENSOR
Row ID: ID__13F0872CP_ContPgHS; Resolution: Available; 		$145.09 1
012 16KA045CP
FUEL PRESSURE SENSOR MANIFOLD
Row ID: ID__16KA045CP_ContPgHS; Resolution: Available; 		$11.85 1
013 00RA154
SCREW - M5X20 - HEX
Row ID: ID__00RA154_ContPgHS; Resolution: Available; 		- 1 Enquire
