35 - REAR AXLE MOTORS & CONTROLLERS - 35.2 - REAR AXLE COOLING E-MOTORS of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 35 - REAR AXLE MOTORS & CONTROLLERS - 35.2 - REAR AXLE COOLING E-MOTORS

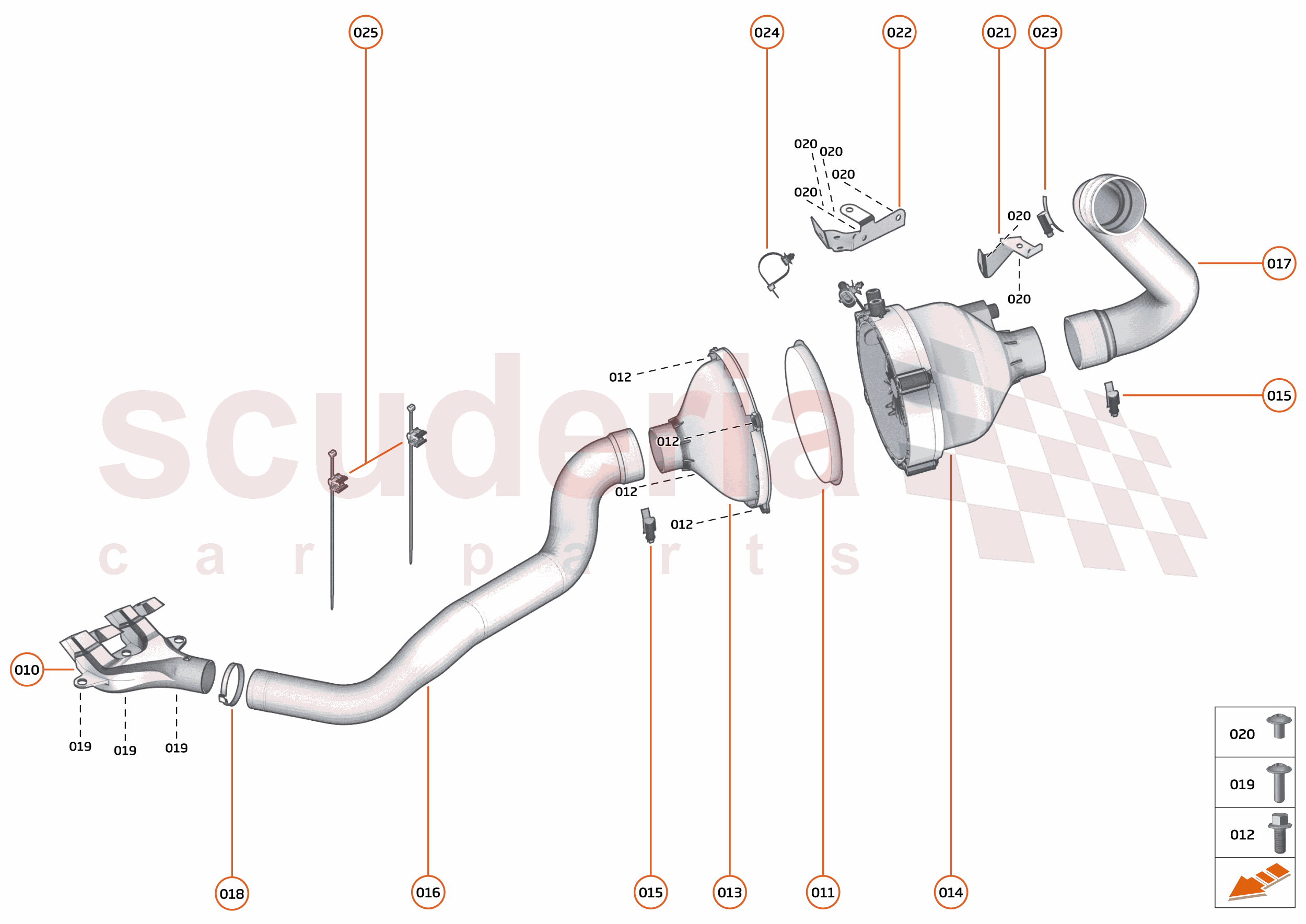

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16JA322CP	DUCT-TRANSMISSION	$182.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA208CP	FILTER-ROTOR AIR COOLING	$25.37	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA257CP	DUCT FR-FAN ROTOR AIR COOLING	$105.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA263CP	FAN-ROTOR AIR COOLING	$355.29	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB049	Hose Clamp - 40-60mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA603CP	HOSE LWR-ROTOR AIR COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA605CP	HOSE UPR-ROTOR AIR COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB092	OETIKER CLIP - 44.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA238	SCREW - M6X16 - LOCK BUTTON	Enquire	To Order
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA601	Screw - M6x1x12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA078CP	BRKT RR-FAN ROTOR AIR COOLING	$33.89	To Order

Photo	Part No	Description	Price (each)	Stock
	16JA325CP	BRKT FR-FAN ROTOR AIR COOLING	$16.67	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL046	EDGE-CLIP-TIE-WRAP 200MM X 4.6MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16JA322CP	DUCT-TRANSMISSION	16JA322CP DUCT-TRANSMISSION Row ID: ID__16JA322CP_ContPgHS; Resolution: Available;	$182.12	1
011	16JA208CP	FILTER-ROTOR AIR COOLING	16JA208CP FILTER-ROTOR AIR COOLING Row ID: ID__16JA208CP_ContPgHS; Resolution: Available;	$25.37	1
012	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	4	Enquire
013	16JA257CP	DUCT FR-FAN ROTOR AIR COOLING	16JA257CP DUCT FR-FAN ROTOR AIR COOLING Row ID: ID__16JA257CP_ContPgHS; Resolution: Available;	$105.53	1
014	16JA263CP	FAN-ROTOR AIR COOLING	16JA263CP FAN-ROTOR AIR COOLING Row ID: ID__16JA263CP_ContPgHS; Resolution: Available;	$355.29	1
015	00RB049	Hose Clamp - 40-60mm	00RB049 Hose Clamp - 40-60mm Row ID: ID__00RB049_ContPgHS; Resolution: Available;	-	2	Enquire
016	16JA603CP	HOSE LWR-ROTOR AIR COOLING	16JA603CP HOSE LWR-ROTOR AIR COOLING Row ID: ID__16JA603CP_ContPgHS; Resolution: Available;	-	1	Enquire
017	16JA605CP	HOSE UPR-ROTOR AIR COOLING	16JA605CP HOSE UPR-ROTOR AIR COOLING Row ID: ID__16JA605CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	00RB092	OETIKER CLIP - 44.0	00RB092 OETIKER CLIP - 44.0 Row ID: ID__00RB092_ContPgHS; Resolution: Available;	-	1	Enquire
019	00RA238	SCREW - M6X16 - LOCK BUTTON	00RA238 SCREW - M6X16 - LOCK BUTTON Row ID: ID__00RA238_ContPgHS; Resolution: Available;	-	3	Enquire
019	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID__00RA556_ContPgHS; Resolution: Available;	-	3	Enquire
020	00RA601	Screw - M6x1x12	00RA601 Screw - M6x1x12 Row ID: ID__00RA601_ContPgHS; Resolution: Available;	-	6	Enquire
021	16JA078CP	BRKT RR-FAN ROTOR AIR COOLING	16JA078CP BRKT RR-FAN ROTOR AIR COOLING Row ID: ID__16JA078CP_ContPgHS; Resolution: Available;	$33.89	1
022	16JA325CP	BRKT FR-FAN ROTOR AIR COOLING	16JA325CP BRKT FR-FAN ROTOR AIR COOLING Row ID: ID__16JA325CP_ContPgHS; Resolution: Available;	$16.67	1
023	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Row ID: ID__00RB030_ContPgHS; Resolution: Available;	-	1	Enquire
024	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS; Resolution: Available;	-	1	Enquire
025	00RL046	EDGE-CLIP-TIE-WRAP 200MM X 4.6MM	00RL046 EDGE-CLIP-TIE-WRAP 200MM X 4.6MM Row ID: ID__00RL046_ContPgHS; Resolution: Available;	-	2	Enquire
