McLaren McLaren Artura - 33 - ENERGY STORAGE SYSTEM - 33.1 - ENERGY STORAGE UNIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16JA327CP CONNECTOR $118.78 To Order
Photo Part No Description Price (each) Stock
16JA328CP ELECTRIC EXPANSION VALVE $252.29 To Order
Photo Part No Description Price (each) Stock
16JA329CP HEX BOLT $4.50 To Order
Photo Part No Description Price (each) Stock
16JA332CP ISA SCREW $12.03 To Order
Photo Part No Description Price (each) Stock
16JA336CP DISTRIBUTION UNIT HIGH-VOLTAGE BATTERY $1,658.92 To Order
Photo Part No Description Price (each) Stock
16JA337CP SEAL DISTRIBUTION UNIT $46.07 To Order
Photo Part No Description Price (each) Stock
16JA338CP HEX BOLT WITH WASHER $2.19 To Order
Photo Part No Description Price (each) Stock
16JA339CP COMMUNICATIONS WIRING HARNESS $473.23 To Order
Photo Part No Description Price (each) Stock
16JA340CP CSC WIRING HARNESS $85.63 To Order
Photo Part No Description Price (each) Stock
16JA341CP PLUG-IN CONNECTION BRACKET $5.43 To Order
Photo Part No Description Price (each) Stock
16JA367CP HOUSING FOR HIGH-VOLTAGE BATTERY $2,209.42 To Order
Photo Part No Description Price (each) Stock
16JA368CP SEAL FOR HV BATTERY $128.19 To Order
Photo Part No Description Price (each) Stock
16JA369CP TORX SCREW SELF-LOCKING $5.82 To Order
Photo Part No Description Price (each) Stock
16JA333CP DATA PLATE FOR HIGH-VOLTAGE BATTERY $50.20 To Order
Photo Part No Description Price (each) Stock
16JA614CP WARNING STICKER FOR HV STORAGE MEDIUM Enquire To Order
Photo Part No Description Price (each) Stock
16JA335CP WARNING STICKER FOR HV STORAGE MEDIUM $7.06 To Order
Photo Part No Description Price (each) Stock
16JA326CP COOLER FOR HIGH-VOLTAGE BATTERY $1,298.78 To Order
Photo Part No Description Price (each) Stock
16JA266CP ASSY - HV BATTERY STRUCTURAL - FLOOR $4,044.68 To Order
Photo Part No Description Price (each) Stock
00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Enquire To Order
View All

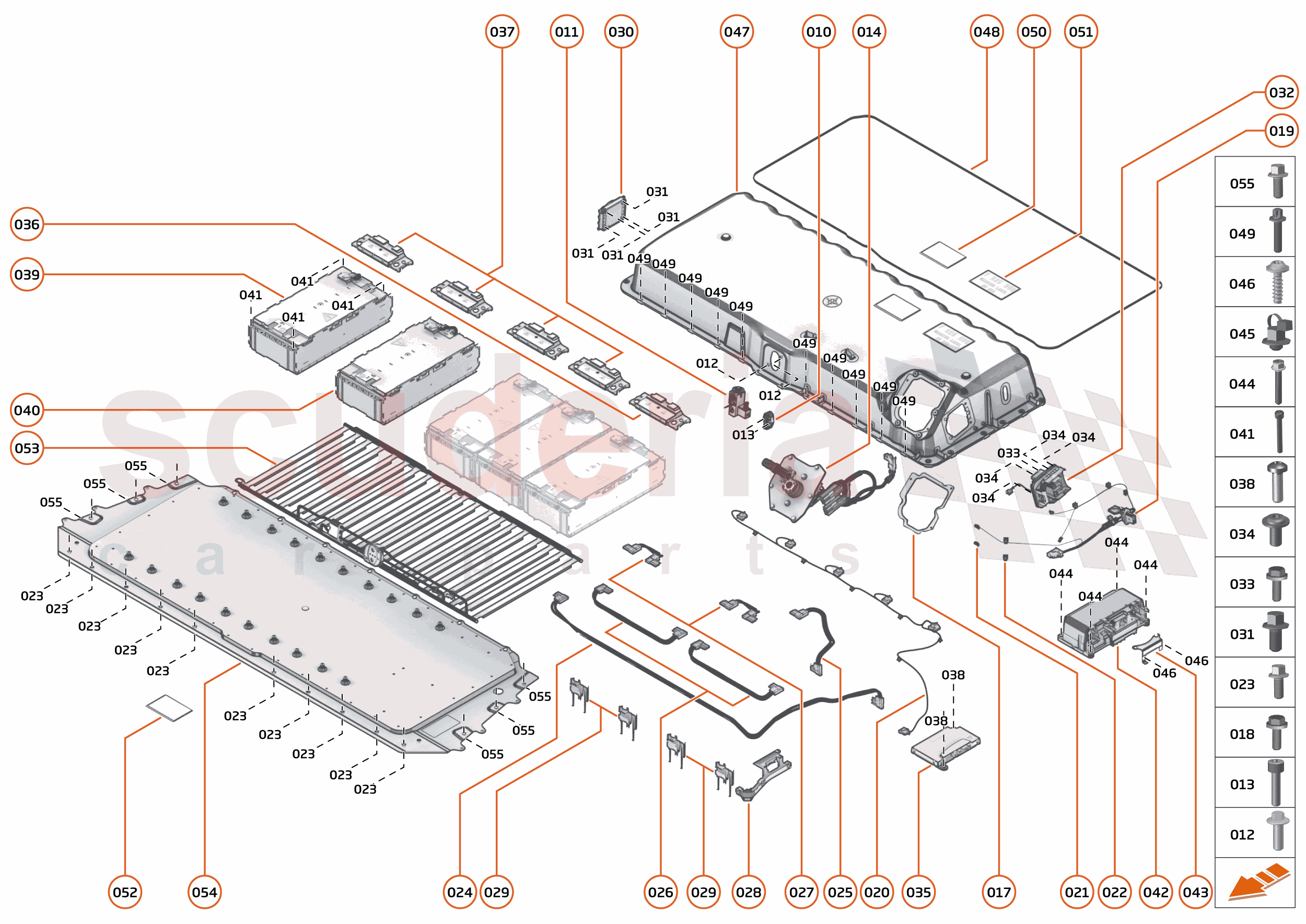

33 - ENERGY STORAGE SYSTEM - 33.1 - ENERGY STORAGE UNIT of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16JA327CP
CONNECTOR
Row ID: ID__16JA327CP_ContPgHS; Resolution: Available; 		$118.78 1
011 16JA328CP
ELECTRIC EXPANSION VALVE
Row ID: ID__16JA328CP_ContPgHS; Resolution: Available; 		$252.29 1
012 16JA329CP
HEX BOLT
Row ID: ID__16JA329CP_ContPgHS; Resolution: Available; 		$4.50 2
013 16JA332CP
ISA SCREW
Row ID: ID__16JA332CP_ContPgHS; Resolution: Available; 		$12.03 2
014 16JA336CP
DISTRIBUTION UNIT HIGH-VOLTAGE BATTERY
Row ID: ID__16JA336CP_ContPgHS; Resolution: Available; 		$1,658.92 1
017 16JA337CP
SEAL DISTRIBUTION UNIT
Row ID: ID__16JA337CP_ContPgHS; Resolution: Available; 		$46.07 1
018 16JA338CP
HEX BOLT WITH WASHER
Row ID: ID__16JA338CP_ContPgHS; Resolution: Available; 		$2.19 6
019 16JA339CP
COMMUNICATIONS WIRING HARNESS
Row ID: ID__16JA339CP_ContPgHS; Resolution: Available; 		$473.23 1
020 16JA340CP
CSC WIRING HARNESS
Row ID: ID__16JA340CP_ContPgHS; Resolution: Available; 		$85.63 1
021 16JA341CP
PLUG-IN CONNECTION BRACKET
Row ID: ID__16JA341CP_ContPgHS; Resolution: Available; 		$5.43 1
047 16JA367CP
HOUSING FOR HIGH-VOLTAGE BATTERY
Row ID: ID__16JA367CP_ContPgHS; Resolution: Available; 		$2,209.42 1
048 16JA368CP
SEAL FOR HV BATTERY
Row ID: ID__16JA368CP_ContPgHS; Resolution: Available; 		$128.19 1
049 16JA369CP
TORX SCREW SELF-LOCKING
Row ID: ID__16JA369CP_ContPgHS; Resolution: Available; 		$5.82 35
050 16JA333CP
DATA PLATE FOR HIGH-VOLTAGE BATTERY
Row ID: ID__16JA333CP_ContPgHS; Resolution: Available; 		$50.20 1
051 16JA614CP
WARNING STICKER FOR HV STORAGE MEDIUM
Row ID: ID__16JA614CP_ContPgHS; Resolution: Available; 		- 1 Enquire
052 16JA335CP
WARNING STICKER FOR HV STORAGE MEDIUM
Row ID: ID__16JA335CP_ContPgHS; Resolution: Available; 		$7.06 1
053 16JA326CP
COOLER FOR HIGH-VOLTAGE BATTERY
Row ID: ID__16JA326CP_ContPgHS; Resolution: Available; 		$1,298.78 1
054 16JA266CP
ASSY - HV BATTERY STRUCTURAL - FLOOR
Row ID: ID__16JA266CP_ContPgHS; Resolution: Available; 		$4,044.68 1
055 00RA486
BOLT - HEX HEAD - FLANGED - M8X30
Row ID: ID__00RA486_ContPgHS; Resolution: Available; 		- 1 Enquire
