40 - Infotainment - 40.3 - Sound System - High

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 40 - INFOTAINMENT - 40.3 - SOUND SYSTEM - HIGH

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16MA465CP 100MM TRANSDUCER-HIGH $161.23 To Order
Photo Part No Description Price (each) Stock
14MA003CP TWEETER - 25MM - HIGH LINE $136.97 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16MB706CP ENCLOSURE DOOR LH-TRANSDUCER Enquire To Order
Photo Part No Description Price (each) Stock
16MB704CP ENCLOSURE DOOR RH-TRANSDUCER Enquire To Order
Photo Part No Description Price (each) Stock
16MA468CP AUDIO AMPLIFIER-HL $2,731.91 To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC063 WASHER - M5X20X1 Enquire To Order
Photo Part No Description Price (each) Stock
13M1024CP Speaker - 200mm - High-Line $341.02 To Order
Photo Part No Description Price (each) Stock
16MA843CP ASSY ENCLOSURE SUBWOOFER LH - TRANSDUCER $182.79 To Order
Photo Part No Description Price (each) Stock
16MA844CP ASSY ENCLOSURE SUBWOOFER RH - TRANSDUCER $182.79 To Order
Photo Part No Description Price (each) Stock
16MA847CP PANEL BULKHEAD-SUBWOOFER-HL $98.84 To Order
Photo Part No Description Price (each) Stock
16MA752CP BRKT SUBWOOFER UPR $50.37 To Order
Photo Part No Description Price (each) Stock
16MA658CP BRKT SUBWOOFER LWR $156.75 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL048 CAB TIE-ADHESIVE MOUNT-28X4.7 - NYLON BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RL010 SEAT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
16MB284CP SPEAKER FOAM DOOR-HL $164.21 To Order
Photo Part No Description Price (each) Stock
16MA123SP BRKT RR QTR LH-TRANSDUCER Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
16MA124SP BRKT RR QTR RH-TRANSDUCER Enquire To Order
View All

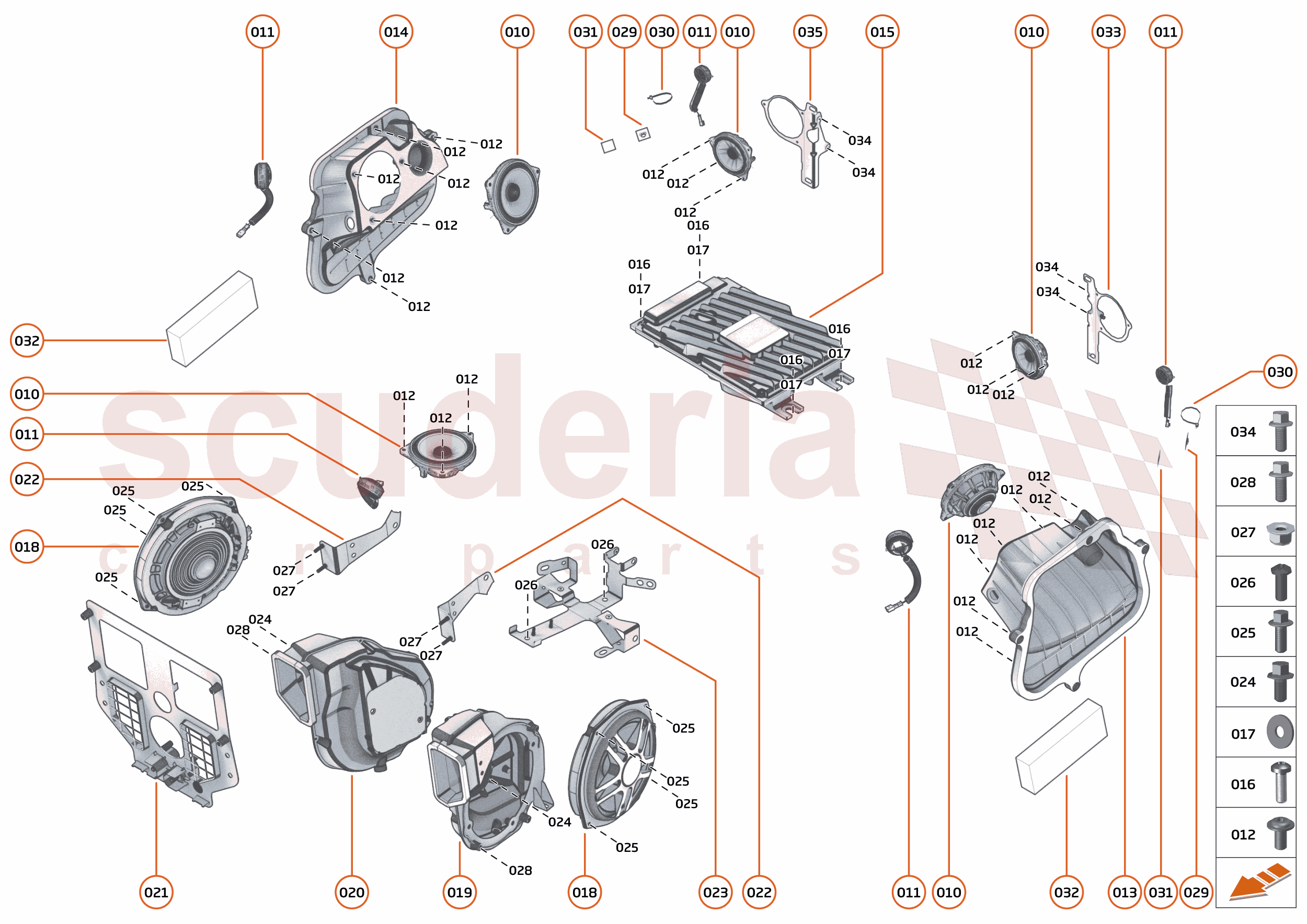

40 - INFOTAINMENT - 40.3 - SOUND SYSTEM - HIGH of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16MA465CP
100MM TRANSDUCER-HIGH
Row ID: ID__16MA465CP_ContPgHS; Resolution: Available; 		$161.23 -
011 14MA003CP
TWEETER - 25MM - HIGH LINE
Row ID: ID__14MA003CP_ContPgHS; Resolution: Available; 		$136.97 -
012 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; Resolution: Available; 		- 3 Enquire
013 16MB706CP
ENCLOSURE DOOR LH-TRANSDUCER
Row ID: ID__16MB706CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 16MB704CP
ENCLOSURE DOOR RH-TRANSDUCER
Row ID: ID__16MB704CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 16MA468CP
AUDIO AMPLIFIER-HL
Row ID: ID__16MA468CP_ContPgHS; Resolution: Available; 		$2,731.91 -
016 00RA522
BOLT - BUTTON HEAD - TORX - M5X16
Row ID: ID__00RA522_ContPgHS; Resolution: Available; 		- 4 Enquire
017 00RC063
WASHER - M5X20X1
Row ID: ID__00RC063_ContPgHS; Resolution: Available; 		- 4 Enquire
018 13M1024CP
Speaker - 200mm - High-Line
Row ID: ID__13M1024CP_ContPgHS; Resolution: Available; 		$341.02 -
019 16MA843CP
ASSY ENCLOSURE SUBWOOFER LH - TRANSDUCER
Row ID: ID__16MA843CP_ContPgHS; Resolution: Available; 		$182.79 1
020 16MA844CP
ASSY ENCLOSURE SUBWOOFER RH - TRANSDUCER
Row ID: ID__16MA844CP_ContPgHS; Resolution: Available; 		$182.79 1
021 16MA847CP
PANEL BULKHEAD-SUBWOOFER-HL
Row ID: ID__16MA847CP_ContPgHS; Resolution: Available; 		$98.84 1
022 16MA752CP
BRKT SUBWOOFER UPR
Row ID: ID__16MA752CP_ContPgHS; Resolution: Available; 		$50.37 2
023 16MA658CP
BRKT SUBWOOFER LWR
Row ID: ID__16MA658CP_ContPgHS; Resolution: Available; 		$156.75 1
024 00RA165
BOLT - M5X8 - HEX
Row ID: ID__00RA165_ContPgHS; Resolution: Available; 		- 6 Enquire
025 00RX001
Bolt - M5x16 - Hex
Row ID: ID__00RX001_ContPgHS; Resolution: Available; 		- 8 Enquire
026 00RA081
SCREW - TORX - PAN - M6X16-8.8
Row ID: ID__00RA081_ContPgHS; Resolution: Available; 		- 2 Enquire
027 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 4 Enquire
028 00RA064
BOLT - M5X12 - HEX
Row ID: ID__00RA064_ContPgHS; Resolution: Available; 		- 2 Enquire
029 00RL048
CAB TIE-ADHESIVE MOUNT-28X4.7 - NYLON BLACK
Row ID: ID__00RL048_ContPgHS; Resolution: Available; 		- 1 Enquire
030 00RL010
SEAT ASSY
Row ID: ID__00RL010_ContPgHS; Resolution: Available; 		- 1 Enquire
031 00RL004
FELT TAPE
Row ID: ID__00RL004_ContPgHS; Resolution: Available; 		- 1 Enquire
032 16MB284CP
SPEAKER FOAM DOOR-HL
Row ID: ID__16MB284CP_ContPgHS; Resolution: Available; 		$164.21 -
033 16MA123SP
BRKT RR QTR LH-TRANSDUCER
Row ID: ID__16MA123SP_ContPgHS; Resolution: Available; 		- 1 Enquire
034 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
035 16MA124SP
BRKT RR QTR RH-TRANSDUCER
Row ID: ID__16MA124SP_ContPgHS; Resolution: Available; 		- 1 Enquire
