McLaren McLaren Artura - 38 - WIRING HARNESS - 38.1 - POWER AND GROUND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA344 SCREW - HEX - FLANGE - M8X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
16MA345CP CABLE GROUND FRONT Enquire To Order
Photo Part No Description Price (each) Stock
16MA363CP CABLE GROUND IPU LHD Enquire To Order
16M0158CP CABLE GROUND IPU RHD $513.92 To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MA340CP CABLE GROUND TRANSMISSION $513.92 To Order
Photo Part No Description Price (each) Stock
16MA344CP CABLE GROUND BATTERY $513.92 To Order
Photo Part No Description Price (each) Stock
16MB161CP BUSBAR CABIN $11,277.53 To Order
Photo Part No Description Price (each) Stock
00RA262 HALF NUT - M8 - DIN 439 Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
00RL015 CABLE TIE - SF100 - 18X - 110MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB015CP CABLE BATTERY POSITIVE FEED Enquire To Order
Photo Part No Description Price (each) Stock
16MA198CP CABLE POWER CABIN BUS BAR Enquire To Order
Photo Part No Description Price (each) Stock
16MA200CP CABLE POWER IPU - VEHICLE LHD Enquire To Order
16MA201CP CABLE POWER IPU - BATTERY LHD Enquire To Order
Photo Part No Description Price (each) Stock
16MB250CP CABLE POWER IPU - VEHICLE RHD $513.92 To Order
16MA364CP CABLE POWER IPU - BATTERY RHD $513.92 To Order
Photo Part No Description Price (each) Stock
16MB163CP CABLE STARTER MOTOR $513.92 To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
16MA860CP BRACKET - STARTER CABLE $36.01 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB348CP BUSBAR EXTERNAL STARTER $4,235.02 To Order
Photo Part No Description Price (each) Stock
11M0743CP BUSBAR RETENTION PLATE $52.12 To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
11M0779CP Busbar Retention Plate Aft - Rear $21.87 To Order
Photo Part No Description Price (each) Stock
16MA196CP BATTERY DISTN FUSE BOX $403.07 To Order
Photo Part No Description Price (each) Stock
16MA807CP BRACKET - PRE FUSE $72.54 To Order
Photo Part No Description Price (each) Stock
00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA577 NUT-HX-FL-M6X1-8-ZFB Enquire To Order
Photo Part No Description Price (each) Stock
16MB016CP BUSBAR GROUND REAR $2,966.10 To Order
Photo Part No Description Price (each) Stock
16MB052CP BUSBAR RETENTION PLATE $43.56 To Order
Photo Part No Description Price (each) Stock
00RA689 BLT-HX HD-FL-M6X1X12-SS-90 Enquire To Order
Photo Part No Description Price (each) Stock
16MB496CP CABLE GROUND NVH CASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA325 SCREW - M8X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
16MA575CP CABLE GROUND IPU CASE - LHD Enquire To Order
16MB447CP CABLE GROUND IPU CASE - RHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RL022 EDGE CLIP - 202X4.6MM - INLINE Enquire To Order
Photo Part No Description Price (each) Stock
16MB360CP BRACKET - STARTER BUSBAR $31.44 To Order
Photo Part No Description Price (each) Stock
00RL010 SEAT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16KA046CP FUEL CELL - PAD - REAR - UPRIGHTS $164.21 To Order
Photo Part No Description Price (each) Stock
00RA458 BOLT - M6X10 - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
00RA116 SCREW - M6X10 - BUTTON - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
16ZE319CP HARNESS TCU CASE Enquire To Order
View All

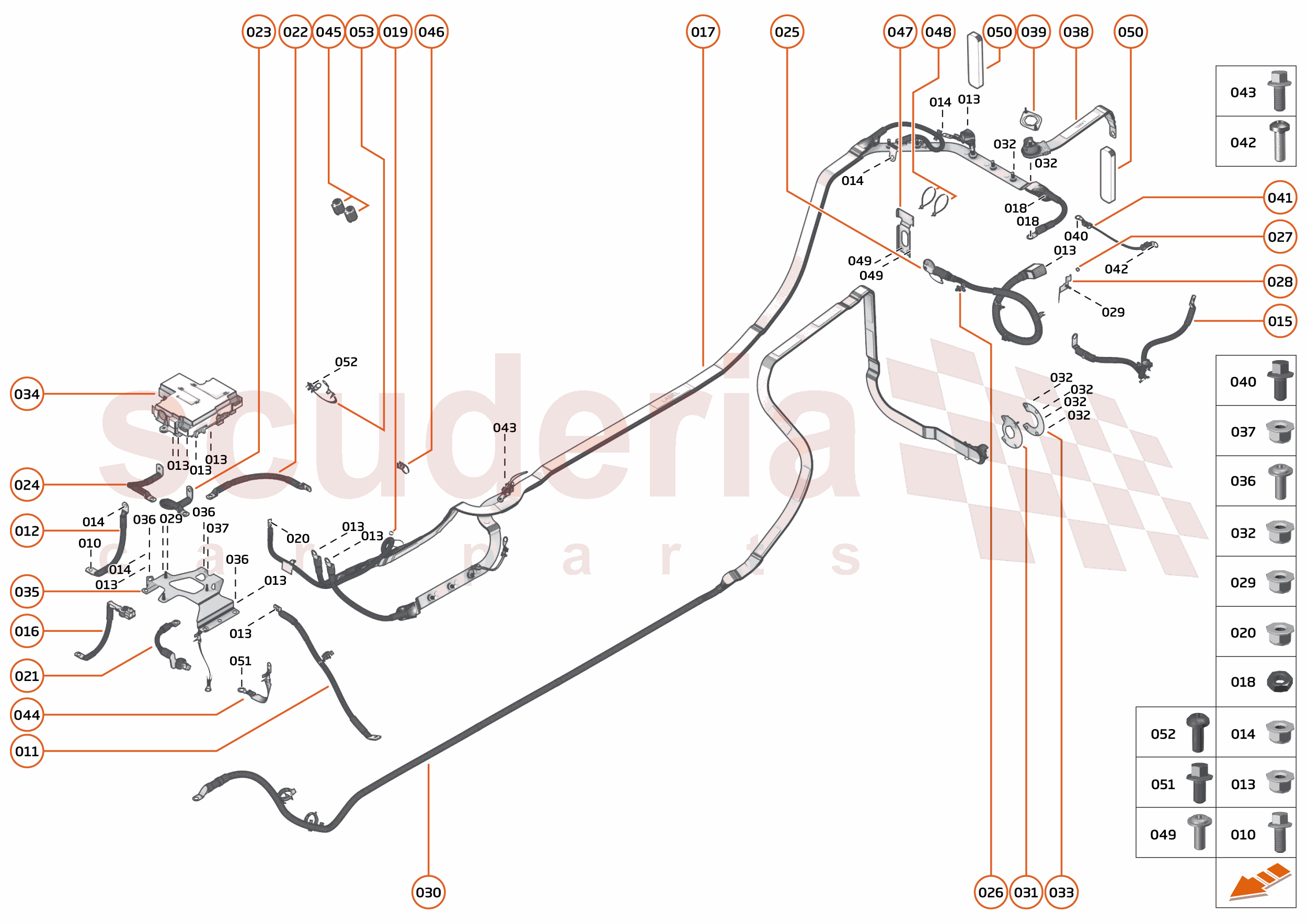

38 - WIRING HARNESS - 38.1 - POWER AND GROUND DISTRIBUTION of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL004
FELT TAPE
Row ID: ID__00RL004_ContPgHS; Resolution: Available; 		- 1 Enquire
010 00RA344
SCREW - HEX - FLANGE - M8X16-8.8
Row ID: ID__00RA344_ContPgHS; Resolution: Available; 		- 2 Enquire
011 16MA345CP
CABLE GROUND FRONT
Row ID: ID__16MA345CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 16MA363CP
CABLE GROUND IPU LHD
Row ID: ID__16MA363CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 16M0158CP
CABLE GROUND IPU RHD
Row ID: ID__16M0158CP_ContPgHS; Resolution: Available; 		$513.92 1
013 00RA075
NUT - M8-8 - HEX
Row ID: ID__00RA075_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 1 Enquire
015 16MA340CP
CABLE GROUND TRANSMISSION
Row ID: ID__16MA340CP_ContPgHS; Resolution: Available; 		$513.92 1
016 16MA344CP
CABLE GROUND BATTERY
Row ID: ID__16MA344CP_ContPgHS; Resolution: Available; 		$513.92 1
017 16MB161CP
BUSBAR CABIN
Row ID: ID__16MB161CP_ContPgHS; Resolution: Available; 		$11,277.53 1
018 00RA262
HALF NUT - M8 - DIN 439
Row ID: ID__00RA262_ContPgHS; Resolution: Available; 		- 2 Enquire
019 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID__00RL001_ContPgHS; Resolution: Available; 		- 1 Enquire
019 00RL015
CABLE TIE - SF100 - 18X - 110MM
Row ID: ID__00RL015_ContPgHS; Resolution: Available; 		- 1 Enquire
020 00RA582
NUT - M5 - HEX
Row ID: ID__00RA582_ContPgHS; Resolution: Available; 		- 1 Enquire
021 16MB015CP
CABLE BATTERY POSITIVE FEED
Row ID: ID__16MB015CP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 16MA198CP
CABLE POWER CABIN BUS BAR
Row ID: ID__16MA198CP_ContPgHS; Resolution: Available; 		- 1 Enquire
023 16MA200CP
CABLE POWER IPU - VEHICLE LHD
Row ID: ID__16MA200CP_ContPgHS; Resolution: Available; 		- 1 Enquire
023 16MA201CP
CABLE POWER IPU - BATTERY LHD
Row ID: ID__16MA201CP_ContPgHS; Resolution: Available; 		- 1 Enquire
024 16MB250CP
CABLE POWER IPU - VEHICLE RHD
Row ID: ID__16MB250CP_ContPgHS; Resolution: Available; 		$513.92 1
024 16MA364CP
CABLE POWER IPU - BATTERY RHD
Row ID: ID__16MA364CP_ContPgHS; Resolution: Available; 		$513.92 1
025 16MB163CP
CABLE STARTER MOTOR
Row ID: ID__16MB163CP_ContPgHS; Resolution: Available; 		$513.92 1
026 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE
Row ID: ID__00RG019_ContPgHS; Resolution: Available; 		- 1 Enquire
027 00RB018
CLIP - 11-13MM - MALE
Row ID: ID__00RB018_ContPgHS; Resolution: Available; 		- 1 Enquire
028 16MA860CP
BRACKET - STARTER CABLE
Row ID: ID__16MA860CP_ContPgHS; Resolution: Available; 		$36.01 1
029 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 1 Enquire
030 16MB348CP
BUSBAR EXTERNAL STARTER
Row ID: ID__16MB348CP_ContPgHS; Resolution: Available; 		$4,235.02 1
031 11M0743CP
BUSBAR RETENTION PLATE
Row ID: ID__11M0743CP_ContPgHS; Resolution: Available; 		$52.12 1
032 00RA555
NUT - M5X0.8 - HEX LOCKED
Row ID: ID__00RA555_ContPgHS; Resolution: Available; 		- 4 Enquire
033 11M0779CP
Busbar Retention Plate Aft - Rear
Row ID: ID__11M0779CP_ContPgHS; Resolution: Available; 		$21.87 1
034 16MA196CP
BATTERY DISTN FUSE BOX
Row ID: ID__16MA196CP_ContPgHS; Resolution: Available; 		$403.07 1
035 16MA807CP
BRACKET - PRE FUSE
Row ID: ID__16MA807CP_ContPgHS; Resolution: Available; 		$72.54 1
036 00RA483
SCREW - BUTTON HEAD - TORX - M6X16
Row ID: ID__00RA483_ContPgHS; Resolution: Available; 		- 3 Enquire
037 00RA577
NUT-HX-FL-M6X1-8-ZFB
Row ID: ID__00RA577_ContPgHS; Resolution: Available; 		- 1 Enquire
038 16MB016CP
BUSBAR GROUND REAR
Row ID: ID__16MB016CP_ContPgHS; Resolution: Available; 		$2,966.10 1
039 16MB052CP
BUSBAR RETENTION PLATE
Row ID: ID__16MB052CP_ContPgHS; Resolution: Available; 		$43.56 1
040 00RA689
BLT-HX HD-FL-M6X1X12-SS-90
Row ID: ID__00RA689_ContPgHS; Resolution: Available; 		- 2 Enquire
041 16MB496CP
CABLE GROUND NVH CASE
Row ID: ID__16MB496CP_ContPgHS; Resolution: Available; 		- 1 Enquire
042 00RA325
SCREW - M8X20 - BUTTON
Row ID: ID__00RA325_ContPgHS; Resolution: Available; 		- 1 Enquire
043 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 1 Enquire
044 16MA575CP
CABLE GROUND IPU CASE - LHD
Row ID: ID__16MA575CP_ContPgHS; Resolution: Available; 		- 1 Enquire
044 16MB447CP
CABLE GROUND IPU CASE - RHD
Row ID: ID__16MB447CP_ContPgHS; Resolution: Available; 		- 1 Enquire
045 00RA366
PIPE PROTECTOR - 13MM ID
Row ID: ID__00RA366_ContPgHS; Resolution: Available; 		- 2 Enquire
046 00RL022
EDGE CLIP - 202X4.6MM - INLINE
Row ID: ID__00RL022_ContPgHS; Resolution: Available; 		- 1 Enquire
047 16MB360CP
BRACKET - STARTER BUSBAR
Row ID: ID__16MB360CP_ContPgHS; Resolution: Available; 		$31.44 1
048 00RL010
SEAT ASSY
Row ID: ID__00RL010_ContPgHS; Resolution: Available; 		- 2 Enquire
049 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; Resolution: Available; 		- 2 Enquire
050 16KA046CP
FUEL CELL - PAD - REAR - UPRIGHTS
Row ID: ID__16KA046CP_ContPgHS; Resolution: Available; 		$164.21 2
051 00RA458
BOLT - M6X10 - FLANGED
Row ID: ID__00RA458_ContPgHS; Resolution: Available; 		- 1 Enquire
052 00RA116
SCREW - M6X10 - BUTTON - 8.8
Row ID: ID__00RA116_ContPgHS; Resolution: Available; 		- 1 Enquire
053 16ZE319CP
HARNESS TCU CASE
Row ID: ID__16ZE319CP_ContPgHS; Resolution: Available; 		- - Enquire
