15 - WIPERS AND WASHER SYSTEM - 15.2 - WINDSCREEN WIPER ARMS parts for McLaren McLaren Artura | Scuderia Car Parts

Find Your Part

15 - WIPERS AND WASHER SYSTEM - 15.2 - WINDSCREEN WIPER ARMS of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 15 - WIPERS AND WASHER SYSTEM - 15.2 - WINDSCREEN WIPER ARMS

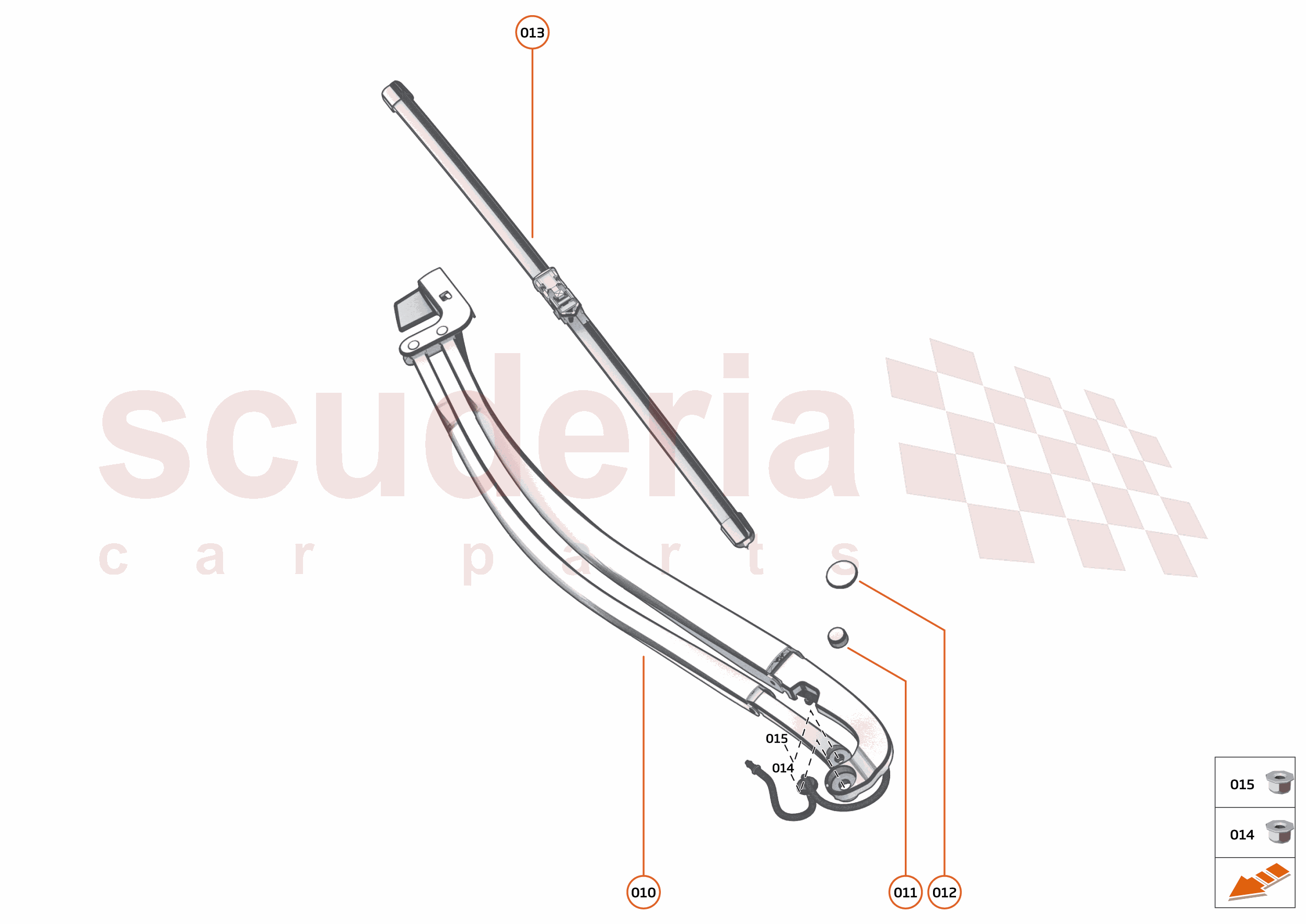

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AF086CP	ASSY-WIPER ARM-LHD	Enquire	To Order
	16AF087CP	ASSY-WIPER ARM-RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA289CP	WIPER-PRIMARY ARM CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA290CP	WIPER-SECONDARY ARM CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF648CP	WIPER BLADE-LHD	Enquire	To Order
	16AF649CP	WIPER BLADE-RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA269	NUT - M10 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

View All

15 - WIPERS AND WASHER SYSTEM - 15.2 - WINDSCREEN WIPER ARMS of McLaren McLaren McLaren Artura

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	16AF086CP	ASSY-WIPER ARM-LHD	16AF086CP ASSY-WIPER ARM-LHD Row ID: ID__16AF086CP_ContPgHS; Resolution: Available;	-	1		Enquire
	010	16AF087CP	ASSY-WIPER ARM-RHD	16AF087CP ASSY-WIPER ARM-RHD Row ID: ID__16AF087CP_ContPgHS; Resolution: Available;	-	1		Enquire
	011	16AA289CP	WIPER-PRIMARY ARM CAP	16AA289CP WIPER-PRIMARY ARM CAP Row ID: ID__16AA289CP_ContPgHS; Resolution: Available;	-	1		Enquire
	012	16AA290CP	WIPER-SECONDARY ARM CAP	16AA290CP WIPER-SECONDARY ARM CAP Row ID: ID__16AA290CP_ContPgHS; Resolution: Available;	-	1		Enquire
	013	16AF648CP	WIPER BLADE-LHD	16AF648CP WIPER BLADE-LHD Row ID: ID__16AF648CP_ContPgHS; Resolution: Available;	-	1		Enquire
	013	16AF649CP	WIPER BLADE-RHD	16AF649CP WIPER BLADE-RHD Row ID: ID__16AF649CP_ContPgHS; Resolution: Available;	-	1		Enquire
	014	00RA269	NUT - M10 - HEX	00RA269 NUT - M10 - HEX Row ID: ID__00RA269_ContPgHS; Resolution: Available;	-	1		Enquire
	015	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS; Resolution: Available;	-	1		Enquire
