15 - DUCTS VENTS AND FLOORS - 15.1 - FRONT DUCTS AND VENTS parts for McLaren McLaren Artura | Scuderia Car Parts

Find Your Part

15 - DUCTS VENTS AND FLOORS - 15.1 - FRONT DUCTS AND VENTS of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 15 - DUCTS VENTS AND FLOORS - 15.1 - FRONT DUCTS AND VENTS

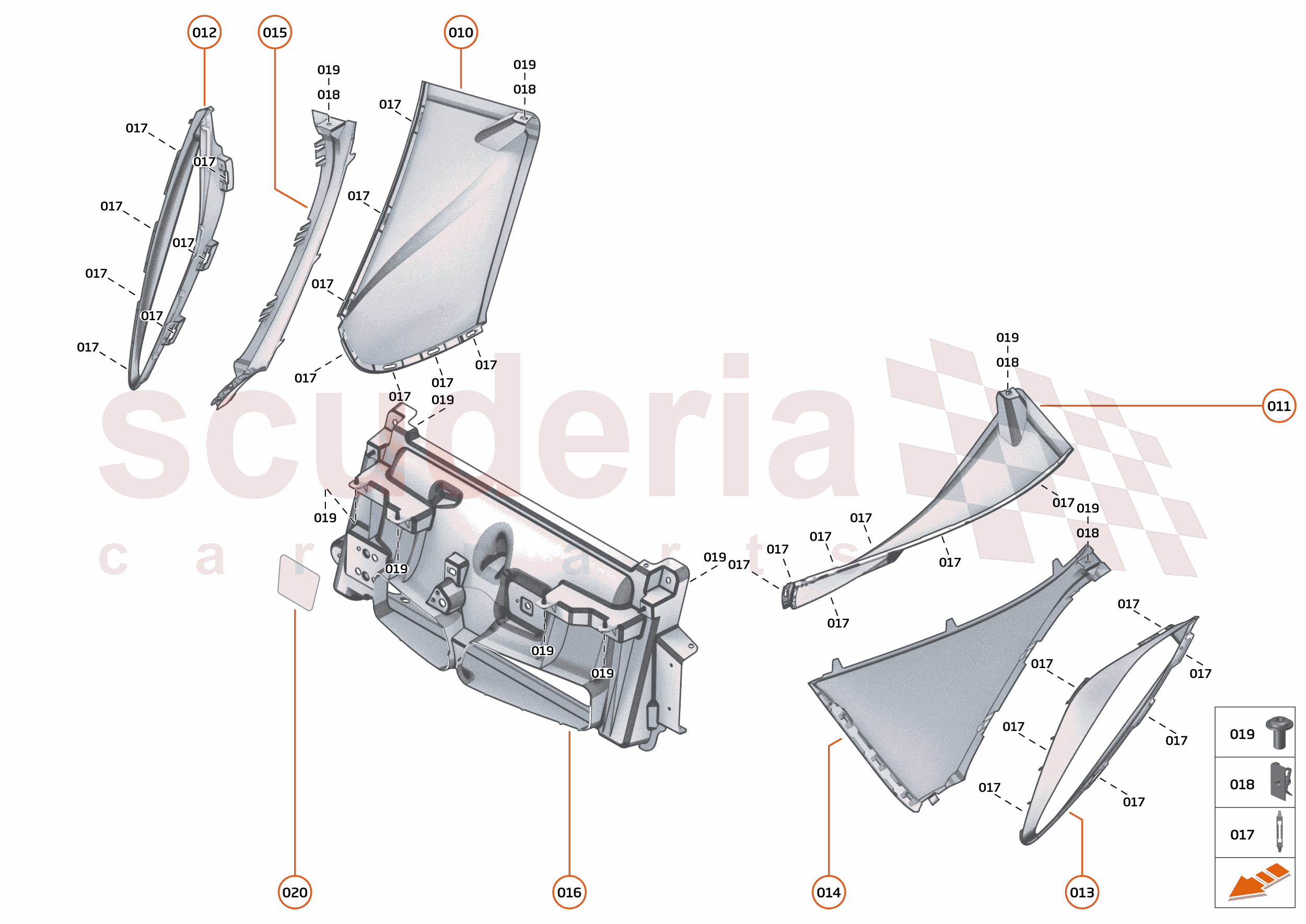

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AA800CP	ASSY LTR-DUCT-INNER-RH	$232.88	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA801CP	ASSY LTR-DUCT-INNER-LH	$291.11	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF623CP	ASSY LTR-DUCT-OUTER-RH - GRAINED	Enquire	To Order
	16AC258CP	ASSY LTR-DUCT-OUTER-RH	$242.95	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC259CP	ASSY LTR-DUCT-OUTER-LH	$242.95	To Order
	16AF622CP	ASSY LTR-DUCT-OUTER-LH - GRAINED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC661CP	ASSY LTR-DUCT-MID-LH	$237.37	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC663CP	ASSY LTR-DUCT-MID-RH	$237.37	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD705CP	ASSY CONDENSER DUCT FRT	$367.23	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB176	CLIP - STEM	Enquire	To Order

View All

15 - DUCTS VENTS AND FLOORS - 15.1 - FRONT DUCTS AND VENTS of McLaren McLaren McLaren Artura

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	16AA800CP	ASSY LTR-DUCT-INNER-RH	16AA800CP ASSY LTR-DUCT-INNER-RH Row ID: ID__16AA800CP_ContPgHS; Resolution: Available;	$232.88	1
	011	16AA801CP	ASSY LTR-DUCT-INNER-LH	16AA801CP ASSY LTR-DUCT-INNER-LH Row ID: ID__16AA801CP_ContPgHS; Resolution: Available;	$291.11	1
	012	16AF623CP	ASSY LTR-DUCT-OUTER-RH - GRAINED	16AF623CP ASSY LTR-DUCT-OUTER-RH - GRAINED Row ID: ID__16AF623CP_ContPgHS; Resolution: Available;	-	1		Enquire
	012	16AC258CP	ASSY LTR-DUCT-OUTER-RH	16AC258CP ASSY LTR-DUCT-OUTER-RH Row ID: ID__16AC258CP_ContPgHS; Resolution: Available;	$242.95	1
	013	16AC259CP	ASSY LTR-DUCT-OUTER-LH	16AC259CP ASSY LTR-DUCT-OUTER-LH Row ID: ID__16AC259CP_ContPgHS; Resolution: Available;	$242.95	1
	013	16AF622CP	ASSY LTR-DUCT-OUTER-LH - GRAINED	16AF622CP ASSY LTR-DUCT-OUTER-LH - GRAINED Row ID: ID__16AF622CP_ContPgHS; Resolution: Available;	-	1		Enquire
	014	16AC661CP	ASSY LTR-DUCT-MID-LH	16AC661CP ASSY LTR-DUCT-MID-LH Row ID: ID__16AC661CP_ContPgHS; Resolution: Available;	$237.37	1
	015	16AC663CP	ASSY LTR-DUCT-MID-RH	16AC663CP ASSY LTR-DUCT-MID-RH Row ID: ID__16AC663CP_ContPgHS; Resolution: Available;	$237.37	1
	016	16AD705CP	ASSY CONDENSER DUCT FRT	16AD705CP ASSY CONDENSER DUCT FRT Row ID: ID__16AD705CP_ContPgHS; Resolution: Available;	$367.23	1
	017	00RB176	CLIP - STEM	00RB176 CLIP - STEM Row ID: ID__00RB176_ContPgHS; Resolution: Available;	-	28		Enquire
