12 - EXTERIOR ORNAMENTATION - 12.8 - REAR BUMPER of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 12 - EXTERIOR ORNAMENTATION - 12.8 - REAR BUMPER

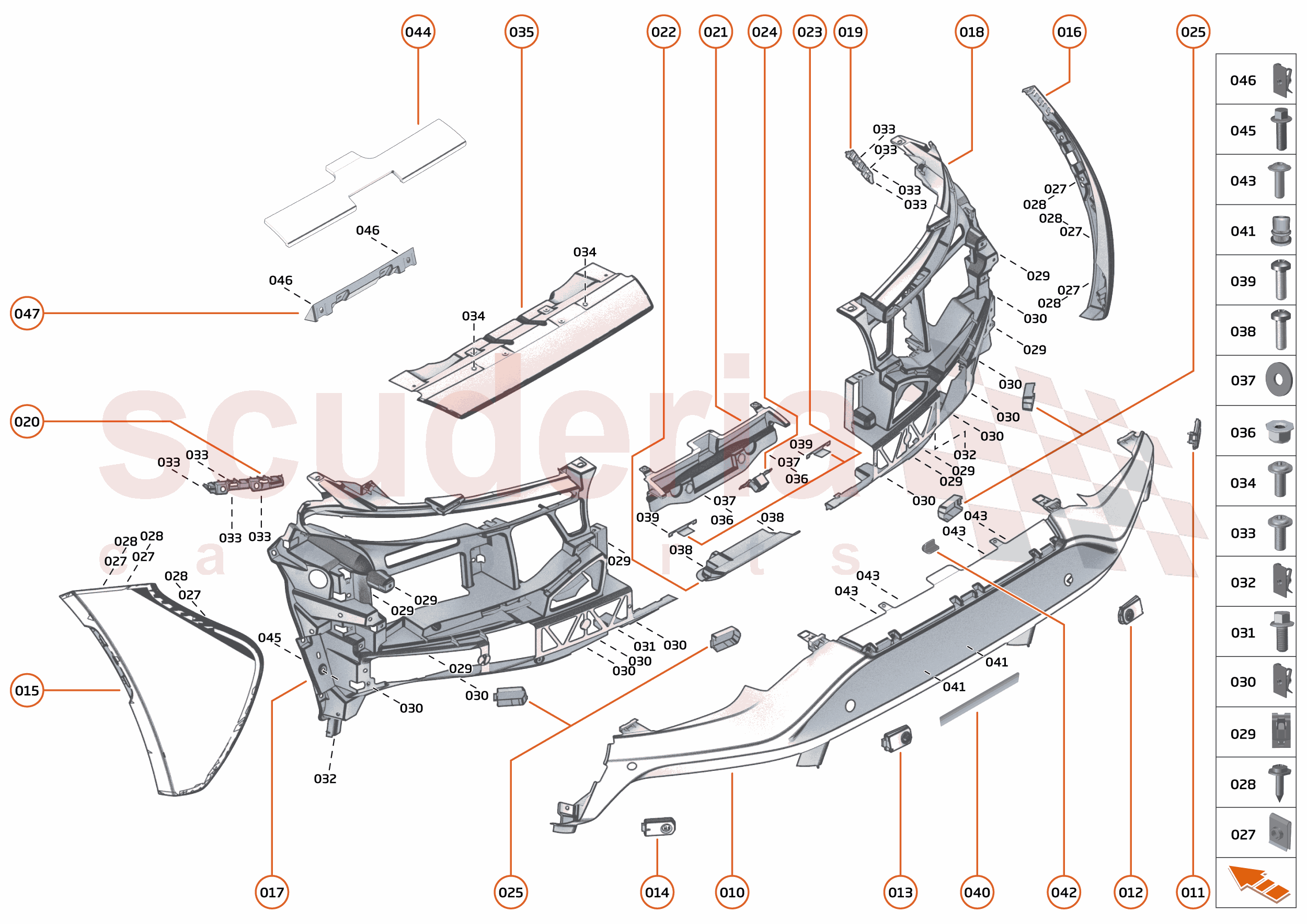

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AF022CP	ASSY BUMPER REAR OTR -PDC -CAM	Enquire	To Order
	16AF020CP	ASSY BUMPER REAR OTR	Enquire	To Order
	16AF021CP	ASSY BUMPER REAR OTR -CAM	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16AA791CP	BRKT REAR PTS 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA792CP	BRKT REAR PTS 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA793CP	BRKT REAR PTS 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA794CP	BRKT REAR PTS 4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB453SP	ASSY PNL BUMPER RR FED LH - SIDE	Enquire	To Order
	16AB454SP	ASSY PNL BUMPER RR ROW LH - SIDE	Enquire	To Order
	16AB455SP	ASSY PNL BUMPER RR ROW BLIS - LH SIDE - MY25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD390CP	ASSY PNL BUMPER RR FED RH - SIDE	Enquire	To Order
	16AD756CP	ASSY PNL BUMPER RR ROW RH - SIDE	Enquire	To Order
	16AB456SP	ASSY PNL BUMPER RR ROW BLIS RH SIDE - MY25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB764SP	OUTRIGGER BUMPER BLIS LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB765SP	OUTRIGGER BUMPER BLIS RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF534CP	BRKT BUMPER-CLAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF443CP	BRKT BUMPER-CLAM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF251CP	ASSY RR CAMERA CAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC247CP	REV FOG LAMP COVER	$26.50	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC798CP	BRKT RR BUMPER HT SHEILD	$31.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF150CP	RR CAMERA BRACKET	$235.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14A4456CP	REAR PDC BEZEL COVER	$23.29	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA112	TORX SCREW-WASHER 4.2X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA329	CLIP - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA762	CLIP-U NUT-M5X0.8-2.1-SS-90	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB194	CLIP - U NUT NPT - M6X0.5-4-MS-78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE781CP	HEATSHIELD BUMPER RR	$546.04	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA309	NUT - M6-SS - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA363	SCREW - TORX - 4X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB123CP	REAR REFLECTOR FOAM	$164.21	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM023	RIVNUT - M6 - 0.7-3.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7405CP	CLIP - HARNESS	$18.11	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE818CP	RR BUMPER ZERO CLEARANCE FOAM	$48.35	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA729	BOLT - M5X0.8X16-SS-90 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF254CP	LICENSE PLATE PLINTH REAR FED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS BLACK	00RA695 ISO 7380-2 BTN HD FL-M5X16-SS BLACK Row ID: ID__00RA695_ContPgHS; Resolution: Available;	-	2	Enquire
000	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS; Resolution: Available;	-	4	Enquire
000	00RC077	CONVERTIBLE ROOF	00RC077 CONVERTIBLE ROOF Row ID: ID__00RC077_ContPgHS; Resolution: Available;	-	2	Enquire
010	16AF022CP	ASSY BUMPER REAR OTR -PDC -CAM	16AF022CP ASSY BUMPER REAR OTR -PDC -CAM Row ID: ID__16AF022CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF020CP	ASSY BUMPER REAR OTR	16AF020CP ASSY BUMPER REAR OTR Row ID: ID__16AF020CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF021CP	ASSY BUMPER REAR OTR -CAM	16AF021CP ASSY BUMPER REAR OTR -CAM Row ID: ID__16AF021CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF024CP	ASSY BUMPER REAR OTR -CHN	16AF024CP ASSY BUMPER REAR OTR -CHN Row ID: ID__16AF024CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF023CP	ASSY BUMPER REAR OTR -CAM -CHN	16AF023CP ASSY BUMPER REAR OTR -CAM -CHN Row ID: ID__16AF023CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF025CP	ASSY BUMPER REAR OTR-PDC-CAM - CHN	16AF025CP ASSY BUMPER REAR OTR-PDC-CAM - CHN Row ID: ID__16AF025CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF676CP	ASSY BUMPER REAR OTR - VCF	16AF676CP ASSY BUMPER REAR OTR - VCF Row ID: ID__16AF676CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF677CP	ASSY BUMPER REAR OTR -CAM - VCF - NO MSO LOGO	16AF677CP ASSY BUMPER REAR OTR -CAM - VCF - NO MSO LOGO Row ID: ID__16AF677CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF678CP	ASSY BUMPER REAR OTR -PDC -CAM - VCF - NO MSO LOGO	16AF678CP ASSY BUMPER REAR OTR -PDC -CAM - VCF - NO MSO LOGO Row ID: ID__16AF678CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF679CP	ASSY BUMPER REAR OTR - CHN - VCF - NO MSO LOGO	16AF679CP ASSY BUMPER REAR OTR - CHN - VCF - NO MSO LOGO Row ID: ID__16AF679CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF680CP	ASSY BUMPER REAR OTR - CAM - CHN - VCF - NO MSO LOGO	16AF680CP ASSY BUMPER REAR OTR - CAM - CHN - VCF - NO MSO LOGO Row ID: ID__16AF680CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	16AF681CP	ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF - NO MSO LOGO	16AF681CP ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF - NO MSO LOGO Row ID: ID__16AF681CP_ContPgHS; Resolution: Available;	-	1	Enquire
011	16AA791CP	BRKT REAR PTS 1	16AA791CP BRKT REAR PTS 1 Row ID: ID__16AA791CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	16AA792CP	BRKT REAR PTS 2	16AA792CP BRKT REAR PTS 2 Row ID: ID__16AA792CP_ContPgHS; Resolution: Available;	-	1	Enquire
013	16AA793CP	BRKT REAR PTS 3	16AA793CP BRKT REAR PTS 3 Row ID: ID__16AA793CP_ContPgHS; Resolution: Available;	-	1	Enquire
014	16AA794CP	BRKT REAR PTS 4	16AA794CP BRKT REAR PTS 4 Row ID: ID__16AA794CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	16AB453SP	ASSY PNL BUMPER RR FED LH - SIDE	16AB453SP ASSY PNL BUMPER RR FED LH - SIDE Row ID: ID__16AB453SP_ContPgHS; Resolution: Available;	-	1	Enquire
015	16AB454SP	ASSY PNL BUMPER RR ROW LH - SIDE	16AB454SP ASSY PNL BUMPER RR ROW LH - SIDE Row ID: ID__16AB454SP_ContPgHS; Resolution: Available;	-	1	Enquire
015	16AB455SP	ASSY PNL BUMPER RR ROW BLIS - LH SIDE - MY25	16AB455SP ASSY PNL BUMPER RR ROW BLIS - LH SIDE - MY25 Row ID: ID__16AB455SP_ContPgHS; Resolution: Available;	-	-	Enquire
016	16AD390CP	ASSY PNL BUMPER RR FED RH - SIDE	16AD390CP ASSY PNL BUMPER RR FED RH - SIDE Row ID: ID__16AD390CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	16AD756CP	ASSY PNL BUMPER RR ROW RH - SIDE	16AD756CP ASSY PNL BUMPER RR ROW RH - SIDE Row ID: ID__16AD756CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	16AB456SP	ASSY PNL BUMPER RR ROW BLIS RH SIDE - MY25	16AB456SP ASSY PNL BUMPER RR ROW BLIS RH SIDE - MY25 Row ID: ID__16AB456SP_ContPgHS; Resolution: Available;	-	-	Enquire
017	16AB764SP	OUTRIGGER BUMPER BLIS LH	16AB764SP OUTRIGGER BUMPER BLIS LH Row ID: ID__16AB764SP_ContPgHS; Resolution: Available;	-	1	Enquire
018	16AB765SP	OUTRIGGER BUMPER BLIS RH	16AB765SP OUTRIGGER BUMPER BLIS RH Row ID: ID__16AB765SP_ContPgHS; Resolution: Available;	-	1	Enquire
019	16AF534CP	BRKT BUMPER-CLAM RH	16AF534CP BRKT BUMPER-CLAM RH Row ID: ID__16AF534CP_ContPgHS; Resolution: Available;	-	1	Enquire
020	16AF443CP	BRKT BUMPER-CLAM LH	16AF443CP BRKT BUMPER-CLAM LH Row ID: ID__16AF443CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	16AF251CP	ASSY RR CAMERA CAPPING	16AF251CP ASSY RR CAMERA CAPPING Row ID: ID__16AF251CP_ContPgHS; Resolution: Available;	-	1	Enquire
022	16AC247CP	REV FOG LAMP COVER	16AC247CP REV FOG LAMP COVER Row ID: ID__16AC247CP_ContPgHS; Resolution: Available;	$26.50	1
023	16AC798CP	BRKT RR BUMPER HT SHEILD	16AC798CP BRKT RR BUMPER HT SHEILD Row ID: ID__16AC798CP_ContPgHS; Resolution: Available;	$31.00	1
024	16AF150CP	RR CAMERA BRACKET	16AF150CP RR CAMERA BRACKET Row ID: ID__16AF150CP_ContPgHS; Resolution: Available;	$235.12	1
025	14A4456CP	REAR PDC BEZEL COVER	14A4456CP REAR PDC BEZEL COVER Row ID: ID__14A4456CP_ContPgHS; Resolution: Available;	$23.29	4
027	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Row ID: ID__00RB006_ContPgHS; Resolution: Available;	-	3	Enquire
028	00RA112	TORX SCREW-WASHER 4.2X16	00RA112 TORX SCREW-WASHER 4.2X16 Row ID: ID__00RA112_ContPgHS; Resolution: Available;	-	3	Enquire
029	00RA329	CLIP - M6	00RA329 CLIP - M6 Row ID: ID__00RA329_ContPgHS; Resolution: Available;	-	4	Enquire
030	00RA762	CLIP-U NUT-M5X0.8-2.1-SS-90	00RA762 CLIP-U NUT-M5X0.8-2.1-SS-90 Row ID: ID__00RA762_ContPgHS; Resolution: Available;	-	5	Enquire
031	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS; Resolution: Available;	-	4	Enquire
032	00RB194	CLIP - U NUT NPT - M6X0.5-4-MS-78	00RB194 CLIP - U NUT NPT - M6X0.5-4-MS-78 Row ID: ID__00RB194_ContPgHS; Resolution: Available;	-	1	Enquire
033	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS; Resolution: Available;	-	2	Enquire
034	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	2	Enquire
035	16AE781CP	HEATSHIELD BUMPER RR	16AE781CP HEATSHIELD BUMPER RR Row ID: ID__16AE781CP_ContPgHS; Resolution: Available;	$546.04	-
036	00RA309	NUT - M6-SS - HEX	00RA309 NUT - M6-SS - HEX Row ID: ID__00RA309_ContPgHS; Resolution: Available;	-	2	Enquire
037	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS; Resolution: Available;	-	2	Enquire
038	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Row ID: ID__00RA464_ContPgHS; Resolution: Available;	-	2	Enquire
039	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12 Row ID: ID__00RA363_ContPgHS; Resolution: Available;	-	2	Enquire
040	16AB123CP	REAR REFLECTOR FOAM	16AB123CP REAR REFLECTOR FOAM Row ID: ID__16AB123CP_ContPgHS; Resolution: Available;	$164.21	1
041	00RM023	RIVNUT - M6 - 0.7-3.3	00RM023 RIVNUT - M6 - 0.7-3.3 Row ID: ID__00RM023_ContPgHS; Resolution: Available;	-	2	Enquire
042	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Row ID: ID__11A7405CP_ContPgHS; Resolution: Available;	$18.11	2
043	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS; Resolution: Available;	-	4	Enquire
044	16AE818CP	RR BUMPER ZERO CLEARANCE FOAM	16AE818CP RR BUMPER ZERO CLEARANCE FOAM Row ID: ID__16AE818CP_ContPgHS; Resolution: Available;	$48.35	1
045	00RA729	BOLT - M5X0.8X16-SS-90 - HEX	00RA729 BOLT - M5X0.8X16-SS-90 - HEX Row ID: ID__00RA729_ContPgHS; Resolution: Available;	-	1	Enquire
046	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS; Resolution: Available;	-	5	Enquire
047	16AF254CP	LICENSE PLATE PLINTH REAR FED	16AF254CP LICENSE PLATE PLINTH REAR FED Row ID: ID__16AF254CP_ContPgHS; Resolution: Available;	-	1	Enquire
