3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

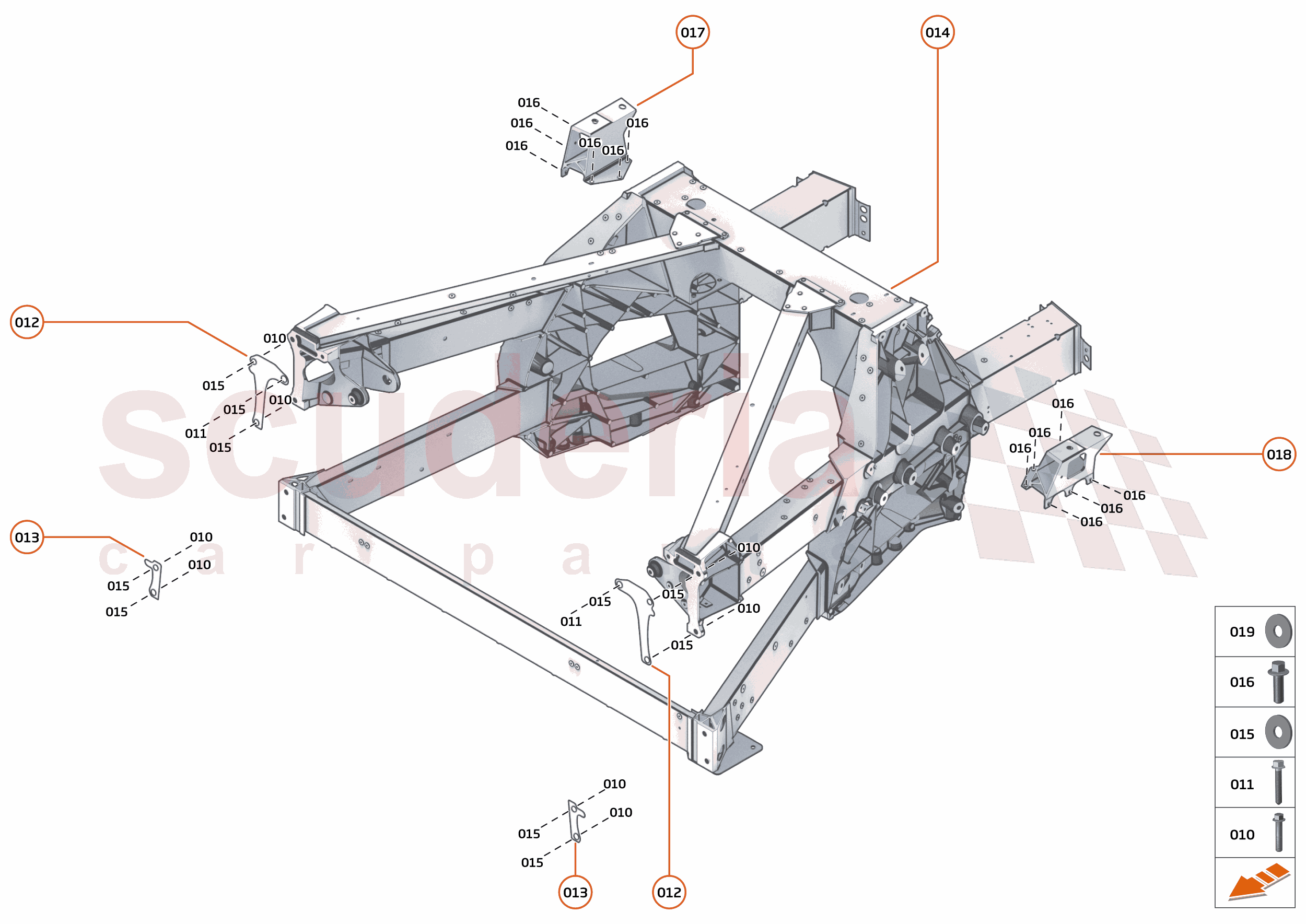

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA665	SCREW-HEX HEAD-FLANGE-M10X50-10.9 -72	Enquire	To Order
	00RA559	BOLT - HEX HEAD - M10X1.5X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16A0528CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	$9.20	To Order

Photo	Part No	Description	Price (each)	Stock
	16A0531CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	$6.13	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD644CP	ASSY-RR FRAME	$10,785.83	To Order
	16AF797CP	ASSY-RR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC065	WASHER - M10X21X2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA568	Bolt - M6x20 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA713CP	BRACKET MOUNTING RR CLAM RH	$158.24	To Order
	16AF423CP	BRACKET MOUNTING RR CLAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA712CP	BRACKET MOUNTING RR CLAM LH	$197.81	To Order
	16AF422CP	BRACKET MOUNTING RR CLAM LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA504	NUT-HX-FL-LCK-M8X1.25-STL-85	00RA504 NUT-HX-FL-LCK-M8X1.25-STL-85 Row ID: ID__00RA504_ContPgHS; Resolution: Available;	-	2	Enquire
000	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS; Resolution: Available;	-	3	Enquire
000	00RX049	BOLT - M8X60 - HEX	00RX049 BOLT - M8X60 - HEX Row ID: ID__00RX049_ContPgHS; Resolution: Available;	-	2	Enquire
000	16FC418CP	SPACER ENGINE LINK	16FC418CP SPACER ENGINE LINK Row ID: ID__16FC418CP_ContPgHS; Resolution: Available;	-	2	Enquire
000	16FC419CP	SPACER TOP HAT FRAME	16FC419CP SPACER TOP HAT FRAME Row ID: ID__16FC419CP_ContPgHS; Resolution: Available;	-	2	Enquire
000	16AG232CP	ASSY-CRUSH CAN-RR-LH	16AG232CP ASSY-CRUSH CAN-RR-LH Row ID: ID__16AG232CP_ContPgHS; Resolution: Available;	-	1	Enquire
000	16AG233CP	ASSY-CRUSH CAN-RR-RH	16AG233CP ASSY-CRUSH CAN-RR-RH Row ID: ID__16AG233CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	00RA665	SCREW-HEX HEAD-FLANGE-M10X50-10.9 -72	00RA665 SCREW-HEX HEAD-FLANGE-M10X50-10.9 -72 Row ID: ID__00RA665_ContPgHS; Resolution: Available;	-	8	Enquire
010	00RA559	BOLT - HEX HEAD - M10X1.5X40	00RA559 BOLT - HEX HEAD - M10X1.5X40 Row ID: ID__00RA559_ContPgHS; Resolution: Available;	-	8	Enquire
011	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	00RA666 SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72 Row ID: ID__00RA666_ContPgHS; Resolution: Available;	-	2	Enquire
012	16A0528CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	16A0528CP SHIM REAR FRAME TO TUB-UPR - 0.5MM Row ID: ID__16A0528CP_ContPgHS; Resolution: Available;	$9.20	2
013	16A0531CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	16A0531CP SHIM REAR FRAME TO TUB-UPR - 0.5MM Row ID: ID__16A0531CP_ContPgHS; Resolution: Available;	$6.13	2
014	16AD644CP	ASSY-RR FRAME	16AD644CP ASSY-RR FRAME Row ID: ID__16AD644CP_ContPgHS; Resolution: Available;	$10,785.83	1
014	16AF797CP	ASSY-RR FRAME	16AF797CP ASSY-RR FRAME Row ID: ID__16AF797CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 Row ID: ID__00RC065_ContPgHS; Resolution: Available;	-	10	Enquire
016	00RA568	Bolt - M6x20 - Hex	00RA568 Bolt - M6x20 - Hex Row ID: ID__00RA568_ContPgHS; Resolution: Available;	-	12	Enquire
017	16AA713CP	BRACKET MOUNTING RR CLAM RH	16AA713CP BRACKET MOUNTING RR CLAM RH Row ID: ID__16AA713CP_ContPgHS; Resolution: Available;	$158.24	1
017	16AF423CP	BRACKET MOUNTING RR CLAM RH	16AF423CP BRACKET MOUNTING RR CLAM RH Row ID: ID__16AF423CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	16AA712CP	BRACKET MOUNTING RR CLAM LH	16AA712CP BRACKET MOUNTING RR CLAM LH Row ID: ID__16AA712CP_ContPgHS; Resolution: Available;	$197.81	1
018	16AF422CP	BRACKET MOUNTING RR CLAM LH	16AF422CP BRACKET MOUNTING RR CLAM LH Row ID: ID__16AF422CP_ContPgHS; Resolution: Available;	-	1	Enquire
