36 - Engine Air Systems - 36.4 - Intake Sound Generator (Isg) System

McLaren McLaren 765LT Spider

Find Your Part

McLaren McLaren 765LT Spider - 36 - ENGINE AIR SYSTEMS - 36.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RE024 END CAP - ISG ADAPTER - 24.6X25.4 Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
00RB139 Stepless Ear Clamp - 34.6-706DR Enquire To Order
Photo Part No Description Price (each) Stock
14F0763CP BRACKET - INTAKE SOUND GENERATOR - BULKHEAD $71.17 To Order
View All

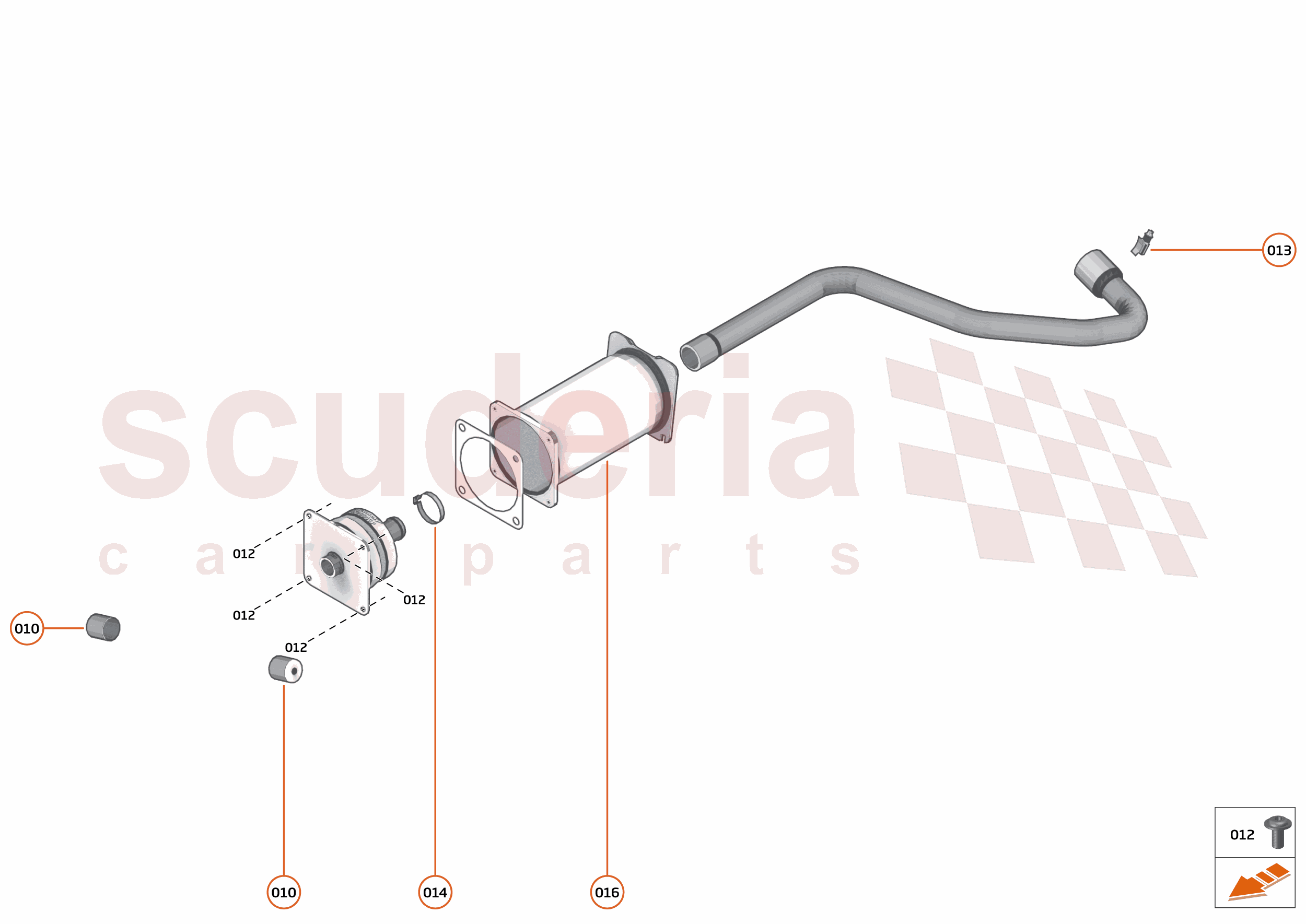

36 - ENGINE AIR SYSTEMS - 36.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM of McLaren McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RE024
END CAP - ISG ADAPTER - 24.6X25.4
Row ID: ID__00RE024_ContPgHS; Resolution: Available; 		- 2 Enquire
012 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX
Row ID: ID__00RA492_ContPgHS; Resolution: Available; 		- 4 Enquire
013 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO
Row ID: ID__00RB053_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RB139
Stepless Ear Clamp - 34.6-706DR
Row ID: ID__00RB139_ContPgHS; Resolution: Available; 		- 1 Enquire
016 14F0763CP
BRACKET - INTAKE SOUND GENERATOR - BULKHEAD
Row ID: ID__14F0763CP_ContPgHS; Resolution: Available; 		$71.17 1
