49 - Interior Systems - 49.4 - Assy Tunnel Console - Components & Hardware

McLaren McLaren 765LT Spider

Find Your Part

McLaren McLaren 765LT Spider - 49 - INTERIOR SYSTEMS - 49.4 - ASSY TUNNEL CONSOLE - COMPONENTS & HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14NB569CP NVH PAD TUNNEL FRONT LH $59.94 To Order
Photo Part No Description Price (each) Stock
14NB576CP NVH PAD SIDE PANEL FRONT LH - LHD $53.19 To Order
14NB578CP NVH PAD SIDE PANEL FRONT LH - RHD $59.94 To Order
Photo Part No Description Price (each) Stock
14NB577CP NVH PAD SIDE PANEL FRONT RH - LHD $53.19 To Order
14NB579CP NVH PAD SIDE PANEL FRONT RH - RHD $59.94 To Order
14NB580CP NVH PAD SIDE PANEL FRONT RH - FED Enquire To Order
Photo Part No Description Price (each) Stock
11N0829CP ASHTRAY $67.18 To Order
Photo Part No Description Price (each) Stock
11N0965CP Accessory Socket - 12V $28.99 To Order
Photo Part No Description Price (each) Stock
14NA627CP HOUSING-12V $35.46 To Order
Photo Part No Description Price (each) Stock
14N0072CP MAT - TUNNEL BIN $37.02 To Order
14NB335CP MAT - TUNNEL BIN - TRIMMED Enquire To Order
Photo Part No Description Price (each) Stock
11N0793CP BRKT-BIN SUPPORT-RR $66.36 To Order
14NA316RP ASSY STORAGE BIN SUPPORT BRKT $29.09 To Order
Photo Part No Description Price (each) Stock
14N1521CP MAT - CUPHOLDER - REAR $20.50 To Order
Photo Part No Description Price (each) Stock
14N1522CP MAT - TUNNEL - FRONT $26.45 To Order
Photo Part No Description Price (each) Stock
14NA302CP HARNESS - CONSOLE LATCH Enquire To Order
13MA116CP WIRING HARNESS - MICROWAVE SENSOR $61.24 To Order
Photo Part No Description Price (each) Stock
14NB437CP ASSY LATCH BIN TUNNEL $191.93 To Order
Photo Part No Description Price (each) Stock
13N1911CP SPRING - PUSH BUTTON $28.07 To Order
Photo Part No Description Price (each) Stock
14NA577CP MOULDING - KEY HOLDER $24.92 To Order
Photo Part No Description Price (each) Stock
13N2147CP ASSY-BRKT-TUNNEL MTG-LOWER $102.77 To Order
Photo Part No Description Price (each) Stock
14NB570CP NVH PAD TUNNEL FRONT RH $59.94 To Order
Photo Part No Description Price (each) Stock
14NB828CP ASSY-LID TUNNEL UPPER Enquire To Order
14NB829CP ASSY-LID TUNNEL UPPER-ALARM Enquire To Order
Photo Part No Description Price (each) Stock
14NB438CP LATCH STRIKER BIN TUNNEL - CONSOLE $55.04 To Order
Photo Part No Description Price (each) Stock
14NB761CP ASSY-SWITCHPACK BOX LWR Enquire To Order
Photo Part No Description Price (each) Stock
14NA149RP PILLOW CARRIER MOULD Enquire To Order
Photo Part No Description Price (each) Stock
14NA348RP PILLOW CARRIER MOULD RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA071 SCREW - M6X16 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
14NA628CP TUNNEL BIN - FLOCKED Enquire To Order
Photo Part No Description Price (each) Stock
11N0380CP HINGE-LID-TUNNEL-UPPR $98.99 To Order
Photo Part No Description Price (each) Stock
13MA273CP SENSOR ALARM-MICROWAVE $112.85 To Order
14NB200CP HARDWARE-SENSOR ALARM - MICROWAVE Enquire To Order
Photo Part No Description Price (each) Stock
14NB191CP MAGNET - CONSOLE LID Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
View All

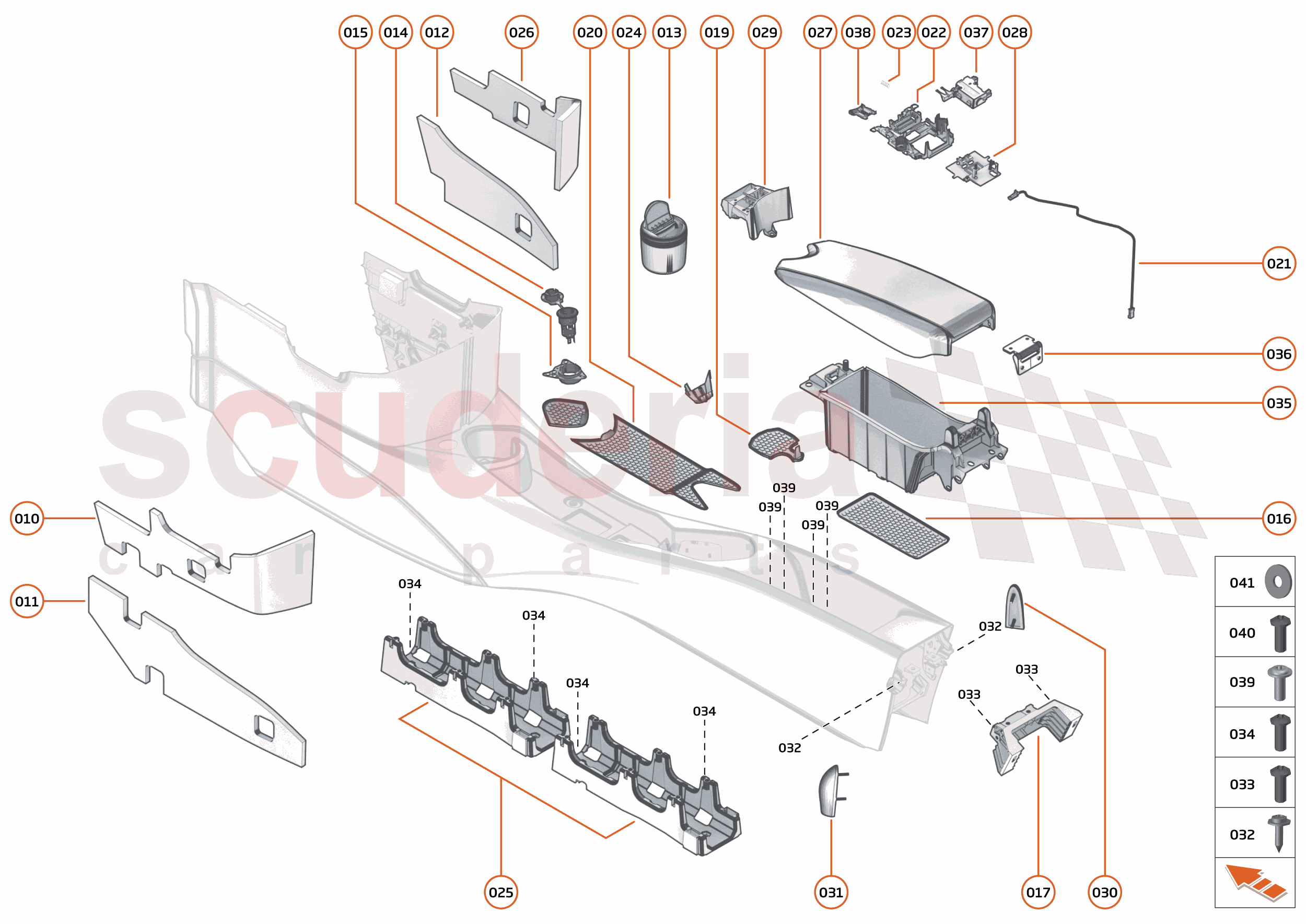

49 - INTERIOR SYSTEMS - 49.4 - ASSY TUNNEL CONSOLE - COMPONENTS & HARDWARE of McLaren McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14NB569CP
NVH PAD TUNNEL FRONT LH
Row ID: ID__14NB569CP_ContPgHS; Resolution: Available; 		$59.94 1
011 14NB576CP
NVH PAD SIDE PANEL FRONT LH - LHD
Row ID: ID__14NB576CP_ContPgHS; Resolution: Available; 		$53.19 1
011 14NB578CP
NVH PAD SIDE PANEL FRONT LH - RHD
Row ID: ID__14NB578CP_ContPgHS; Resolution: Available; 		$59.94 1
012 14NB577CP
NVH PAD SIDE PANEL FRONT RH - LHD
Row ID: ID__14NB577CP_ContPgHS; Resolution: Available; 		$53.19 1
012 14NB579CP
NVH PAD SIDE PANEL FRONT RH - RHD
Row ID: ID__14NB579CP_ContPgHS; Resolution: Available; 		$59.94 1
012 14NB580CP
NVH PAD SIDE PANEL FRONT RH - FED
Row ID: ID__14NB580CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11N0829CP
ASHTRAY
Row ID: ID__11N0829CP_ContPgHS; Resolution: Available; 		$67.18 1
014 11N0965CP
Accessory Socket - 12V
Row ID: ID__11N0965CP_ContPgHS; Resolution: Available; 		$28.99 1
015 14NA627CP
HOUSING-12V
Row ID: ID__14NA627CP_ContPgHS; Resolution: Available; 		$35.46 1
016 14N0072CP
MAT - TUNNEL BIN
Row ID: ID__14N0072CP_ContPgHS; Resolution: Available; 		$37.02 1
016 14NB335CP
MAT - TUNNEL BIN - TRIMMED
Row ID: ID__14NB335CP_ContPgHS; 		- 1 Enquire
017 11N0793CP
BRKT-BIN SUPPORT-RR
Row ID: ID__11N0793CP_ContPgHS; Resolution: Available; 		$66.36 1
017 14NA316RP
ASSY STORAGE BIN SUPPORT BRKT
Row ID: ID__14NA316RP_ContPgHS; Resolution: Available; 		$29.09 2
018 14N1520CP
MAT - CUPHOLDER - FRONT
Row ID: ID__14N1520CP_ContPgHS; Resolution: Available; 		$19.36 1
019 14N1521CP
MAT - CUPHOLDER - REAR
Row ID: ID__14N1521CP_ContPgHS; Resolution: Available; 		$20.50 1
020 14N1522CP
MAT - TUNNEL - FRONT
Row ID: ID__14N1522CP_ContPgHS; Resolution: Available; 		$26.45 1
021 14NA302CP
HARNESS - CONSOLE LATCH
Row ID: ID__14NA302CP_ContPgHS; Resolution: Available; 		- 1 Enquire
021 13MA116CP
WIRING HARNESS - MICROWAVE SENSOR
Row ID: ID__13MA116CP_ContPgHS; Resolution: Available; 		$61.24 1
022 14NB437CP
ASSY LATCH BIN TUNNEL
Row ID: ID__14NB437CP_ContPgHS; Resolution: Available; 		$191.93 1
023 13N1911CP
SPRING - PUSH BUTTON
Row ID: ID__13N1911CP_ContPgHS; Resolution: Available; 		$28.07 1
024 14NA577CP
MOULDING - KEY HOLDER
Row ID: ID__14NA577CP_ContPgHS; Resolution: Available; 		$24.92 1
025 13N2147CP
ASSY-BRKT-TUNNEL MTG-LOWER
Row ID: ID__13N2147CP_ContPgHS; Resolution: Available; 		$102.77 2
026 14NB570CP
NVH PAD TUNNEL FRONT RH
Row ID: ID__14NB570CP_ContPgHS; Resolution: Available; 		$59.94 1
027 14NB828CP
ASSY-LID TUNNEL UPPER
Row ID: ID__14NB828CP_ContPgHS; 		- 1 Enquire
027 14NB829CP
ASSY-LID TUNNEL UPPER-ALARM
Row ID: ID__14NB829CP_ContPgHS; 		- 1 Enquire
028 14NB438CP
LATCH STRIKER BIN TUNNEL - CONSOLE
Row ID: ID__14NB438CP_ContPgHS; Resolution: Available; 		$55.04 1
029 14NB761CP
ASSY-SWITCHPACK BOX LWR
Row ID: ID__14NB761CP_ContPgHS; 		- 1 Enquire
030 14NA149RP
PILLOW CARRIER MOULD
Row ID: ID__14NA149RP_ContPgHS; Resolution: Available; 		- 1 Enquire
031 14NA348RP
PILLOW CARRIER MOULD RH
Row ID: ID__14NA348RP_ContPgHS; Resolution: Available; 		- 1 Enquire
032 00RA112
TORX SCREW-WASHER 4.2X16
Row ID: ID__00RA112_ContPgHS; Resolution: Available; 		- 2 Enquire
033 00RA071
SCREW - M6X16 - BUTTON
Row ID: ID__00RA071_ContPgHS; Resolution: Available; 		- 2 Enquire
034 00RA081
SCREW - TORX - PAN - M6X16-8.8
Row ID: ID__00RA081_ContPgHS; Resolution: Available; 		- 4 Enquire
035 14NA628CP
TUNNEL BIN - FLOCKED
Row ID: ID__14NA628CP_ContPgHS; Resolution: Available; 		- 1 Enquire
036 11N0380CP
HINGE-LID-TUNNEL-UPPR
Row ID: ID__11N0380CP_ContPgHS; Resolution: Available; 		$98.99 1
037 13MA273CP
SENSOR ALARM-MICROWAVE
Row ID: ID__13MA273CP_ContPgHS; Resolution: Available; 		$112.85 1
037 14NB200CP
HARDWARE-SENSOR ALARM - MICROWAVE
Row ID: ID__14NB200CP_ContPgHS; Resolution: Available; 		- 1 Enquire
038 14NB191CP
MAGNET - CONSOLE LID
Row ID: ID__14NB191CP_ContPgHS; Resolution: Available; 		- 1 Enquire
039 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; Resolution: Available; 		- 18 Enquire
040 00RA522
BOLT - BUTTON HEAD - TORX - M5X16
Row ID: ID__00RA522_ContPgHS; Resolution: Available; 		- 2 Enquire
041 00RC064
WASHER - M6X18X1.6 - BLACK
Row ID: ID__00RC064_ContPgHS; Resolution: Available; 		- 2 Enquire
042 14NA046SP
BEZEL SWITCHES - SPIDER
Row ID: ID__14NA046SP_ContPgHS; Resolution: Available; 		- 1 Enquire
043 00RA165
BOLT - M5X8 - HEX
Row ID: ID__00RA165_ContPgHS; Resolution: Available; 		- 4 Enquire
