37 - ENGINE OIL SYSTEM - 37.2 - ENGINE OIL FEED & RETURN HOSES of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 37 - ENGINE OIL SYSTEM - 37.2 - ENGINE OIL FEED & RETURN HOSES

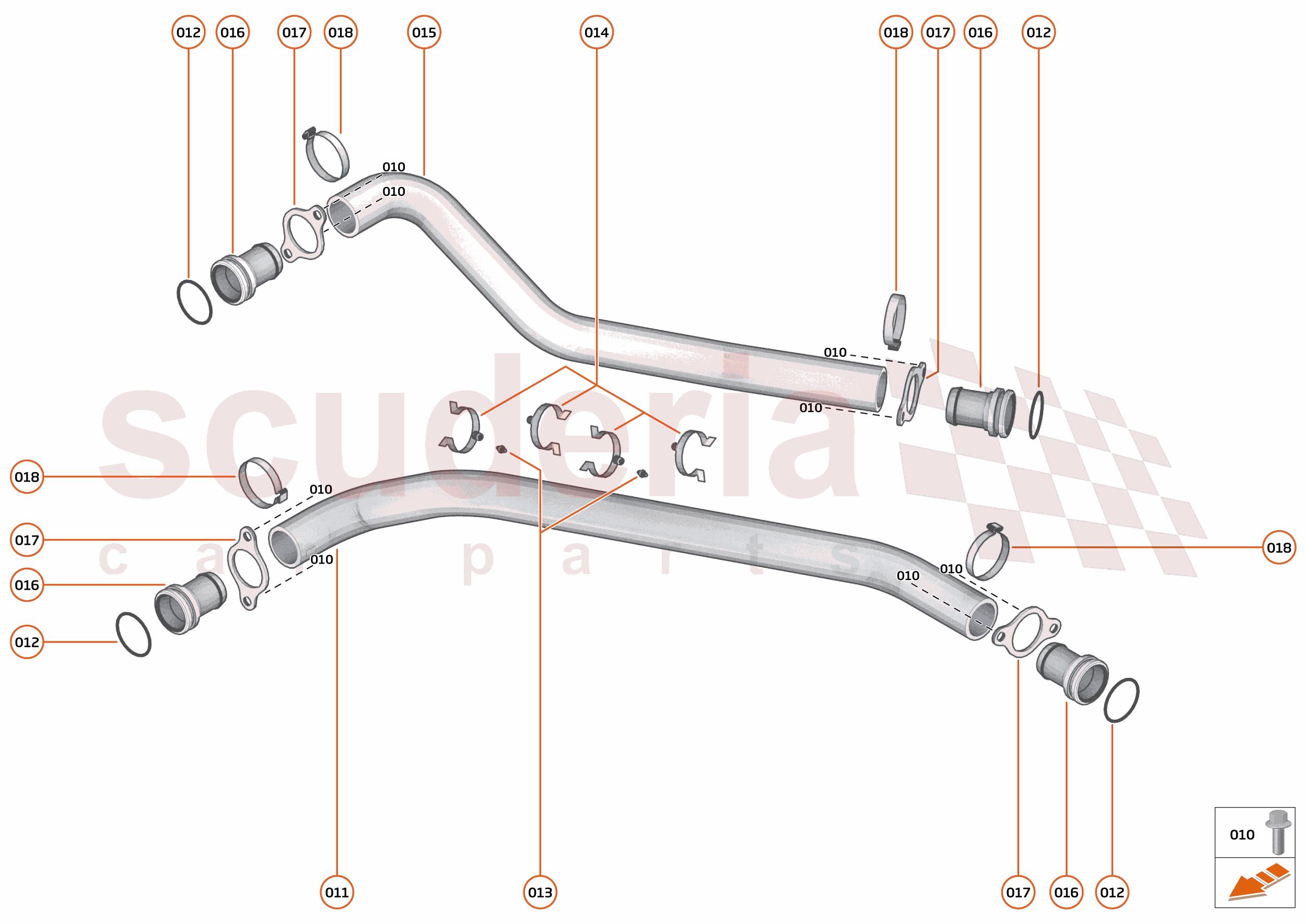

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA284CP	ASSY PIPE RETURN TO TANK	$585.29	To Order
	14FA366CP	ASSY PIPE RETURN TO TANK FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22FA094GP	O-RING 29 X 2.5MM	$12.70	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB023	CLIP SPACER-1MM-MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA281CP	ASSY PIPE OIL FEED TO ENGINE	$709.01	To Order
	14FA363CP	ASSY PIPE OIL FEED TO ENGINE FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22FA092GP	END FITTING PIPE OIL FEED TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22FA093GP	FIXING FLANGE PIPE OIL FEED TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22FA095GP	CLAMP-STEPLESS EAR-OETIKER-33.1-706	Enquire	To Order
	14FA367CP	CLAMP-STEPLESS EAR-OETIKER-34.6-706	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID__00RA556_ContPgHS; Resolution: Available;	-	4	Enquire
011	14FA284CP	ASSY PIPE RETURN TO TANK	14FA284CP ASSY PIPE RETURN TO TANK Row ID: ID__14FA284CP_ContPgHS; Resolution: Available;	$585.29	1
011	14FA366CP	ASSY PIPE RETURN TO TANK FED	14FA366CP ASSY PIPE RETURN TO TANK FED Row ID: ID__14FA366CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	22FA094GP	O-RING 29 X 2.5MM	22FA094GP O-RING 29 X 2.5MM Row ID: ID__22FA094GP_ContPgHS; Resolution: Available;	$12.70	2
013	00RB023	CLIP SPACER-1MM-MALE	00RB023 CLIP SPACER-1MM-MALE Row ID: ID__00RB023_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	00RB066 SWIVEL CLIP - 25-27MM - FEMALE Row ID: ID__00RB066_ContPgHS; Resolution: Available;	-	2	Enquire
015	14FA281CP	ASSY PIPE OIL FEED TO ENGINE	14FA281CP ASSY PIPE OIL FEED TO ENGINE Row ID: ID__14FA281CP_ContPgHS; Resolution: Available;	$709.01	1
015	14FA363CP	ASSY PIPE OIL FEED TO ENGINE FED	14FA363CP ASSY PIPE OIL FEED TO ENGINE FED Row ID: ID__14FA363CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	22FA092GP	END FITTING PIPE OIL FEED TO ENGINE	22FA092GP END FITTING PIPE OIL FEED TO ENGINE Row ID: ID__22FA092GP_ContPgHS; Resolution: Available;	-	2	Enquire
017	22FA093GP	FIXING FLANGE PIPE OIL FEED TO ENGINE	22FA093GP FIXING FLANGE PIPE OIL FEED TO ENGINE Row ID: ID__22FA093GP_ContPgHS; Resolution: Available;	-	2	Enquire
018	22FA095GP	CLAMP-STEPLESS EAR-OETIKER-33.1-706	22FA095GP CLAMP-STEPLESS EAR-OETIKER-33.1-706 Row ID: ID__22FA095GP_ContPgHS; Resolution: Available;	-	2	Enquire
018	14FA367CP	CLAMP-STEPLESS EAR-OETIKER-34.6-706	14FA367CP CLAMP-STEPLESS EAR-OETIKER-34.6-706 Row ID: ID__14FA367CP_ContPgHS; Resolution: Available;	-	2	Enquire
