36 - Engine Air Systems - 36.2 - Air Intake High Pressure System

McLaren McLaren 750S Spider

Find Your Part

McLaren McLaren 750S Spider - 36 - ENGINE AIR SYSTEMS - 36.2 - AIR INTAKE HIGH PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0446CP HOSE HP AIR LH-TC TO WCAC $171.68 To Order
Photo Part No Description Price (each) Stock
14F0447CP HOSE HP AIR RH-TC TO WCAC $171.68 To Order
Photo Part No Description Price (each) Stock
14F0208CP HOSE HP AIR RH-WCAC TO THROTTLE $180.64 To Order
Photo Part No Description Price (each) Stock
00RB188 Hose Clamp - 90x20 Enquire To Order
Photo Part No Description Price (each) Stock
14F0207CP HOSE HP AIR LH-WCAC TO THROTTLE $180.64 To Order
View All

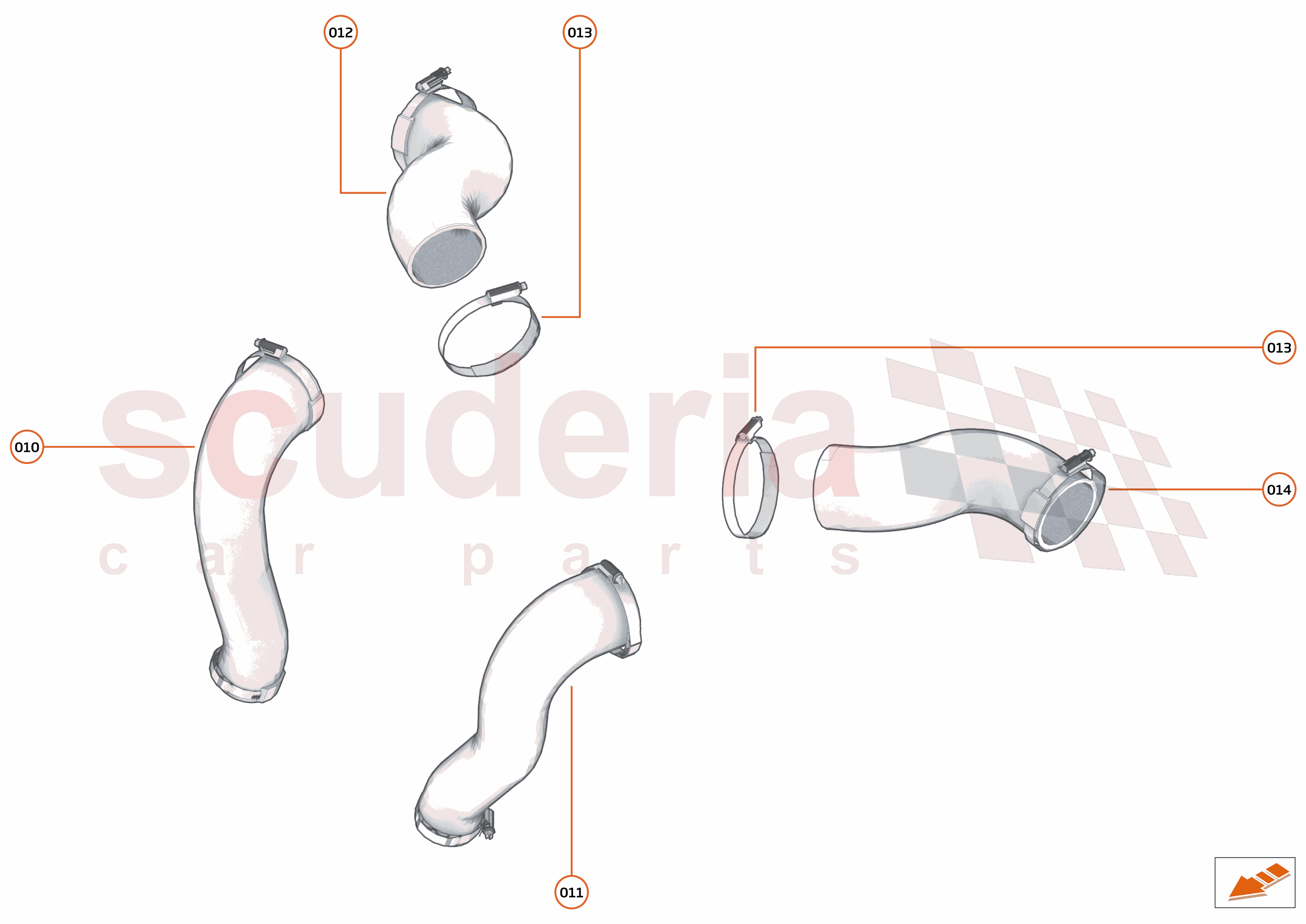

36 - ENGINE AIR SYSTEMS - 36.2 - AIR INTAKE HIGH PRESSURE SYSTEM of McLaren McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0446CP
HOSE HP AIR LH-TC TO WCAC
Row ID: ID__14F0446CP_ContPgHS; Resolution: Available; 		$171.68 1
011 14F0447CP
HOSE HP AIR RH-TC TO WCAC
Row ID: ID__14F0447CP_ContPgHS; Resolution: Available; 		$171.68 1
012 14F0208CP
HOSE HP AIR RH-WCAC TO THROTTLE
Row ID: ID__14F0208CP_ContPgHS; Resolution: Available; 		$180.64 1
013 00RB188
Hose Clamp - 90x20
Row ID: ID__00RB188_ContPgHS; Resolution: Available; 		- 2 Enquire
014 14F0207CP
HOSE HP AIR LH-WCAC TO THROTTLE
Row ID: ID__14F0207CP_ContPgHS; Resolution: Available; 		$180.64 1
