McLaren McLaren 750S Spider - 35 - ENGINE - 35.16 - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0590CP Pipe - Secondary Air Injection Valve - Cylinder Head - Engine - RH $112.94 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
13F0360CP Secondary Air Valve - Engine - Inc Gasket $306.04 To Order
Photo Part No Description Price (each) Stock
13F0336CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH $142.16 To Order
Photo Part No Description Price (each) Stock
13F0335CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH $142.16 To Order
Photo Part No Description Price (each) Stock
11F0821CP SENSOR - ENGINE SECONDARY AIR - PRESSURE INC BOLT $123.82 To Order
Photo Part No Description Price (each) Stock
11F1785CP BOLT - HEX - M5X10 $6.50 To Order
Photo Part No Description Price (each) Stock
14F0101CP HOSE SECONDARY AIR RH $118.59 To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
00RB047 SWIVEL CLIP - 9-9.5 - MALE-FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG017 C-CLIP FIRTREE BASE 25-27 Enquire To Order
Photo Part No Description Price (each) Stock
14F0189CP HOSE SECONDARY AIR LH $111.73 To Order
Photo Part No Description Price (each) Stock
12F0750CP PUMP - SECONDARY AIR $343.35 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
14FA073CP BRKT SECONDARY AIR PUMP $82.17 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
11F1862CP OETIKER CLIP - 26.9 - 30.1MM $7.52 To Order
Photo Part No Description Price (each) Stock
13F0594CP NORMA QUICK CONNECTOR V2 19MM-90-90 Enquire To Order
View All

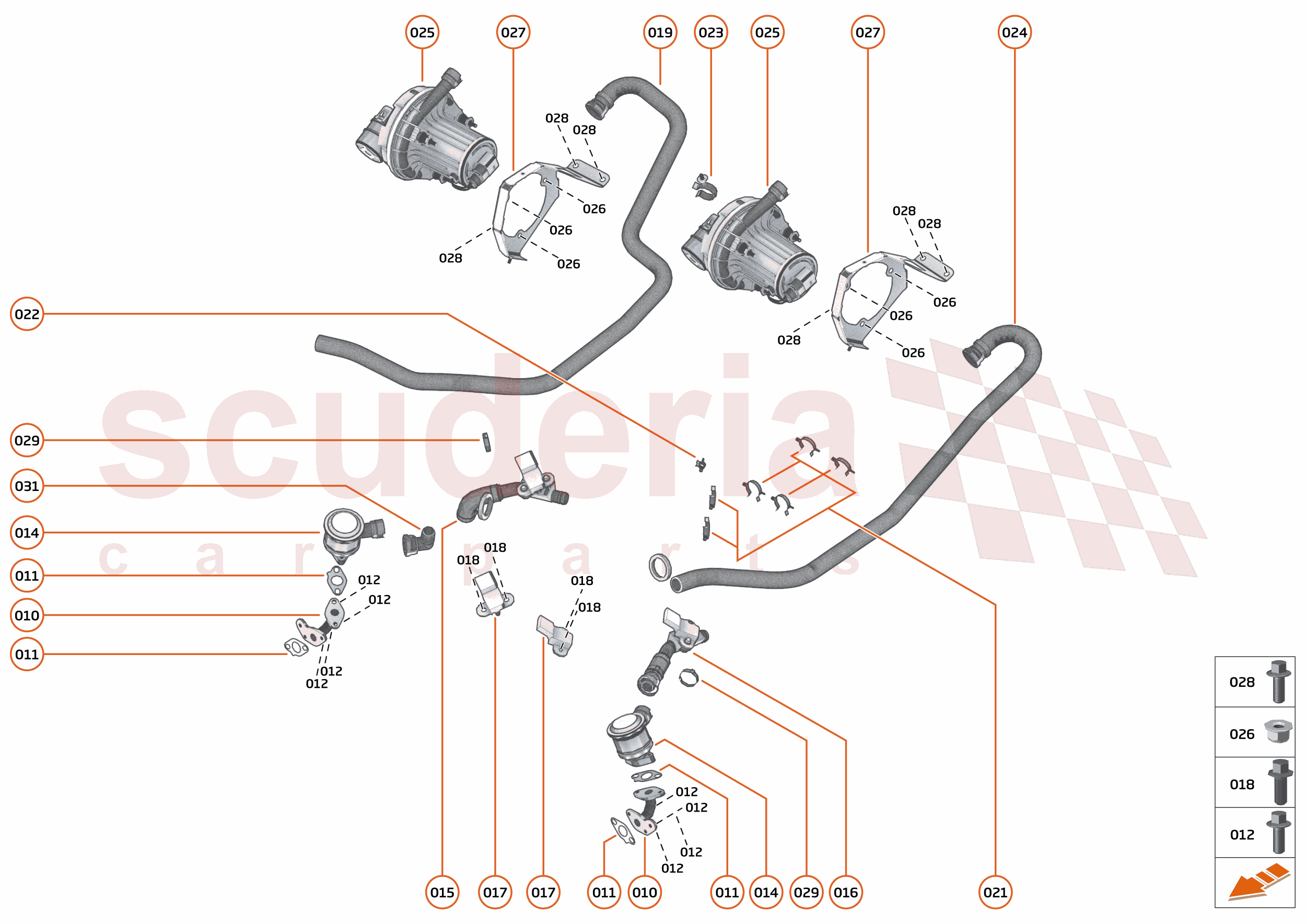

35 - ENGINE - 35.16 - SECONDARY AIR SYSTEM of McLaren McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB035
Cable Tie - Female - Dia 8-20
Row ID: ID__00RB035_ContPgHS; Resolution: Available; 		- 1 Enquire
01 11F1970CP
GASKET - SENCONDARY AIR - INJECTION PIPE TO ENGINE
Row ID: ID__11F1970CP_ContPgHS; Resolution: Available; 		$13.53 1
010 13F0590CP
Pipe - Secondary Air Injection Valve - Cylinder Head - Engine - RH
Row ID: ID__13F0590CP_ContPgHS; Resolution: Available; 		$112.94 1
012 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID__00RA556_ContPgHS; Resolution: Available; 		- 6 Enquire
013 13F0591CP
Pipe - Secondary Air Injection Valve - Cylinder Head - Engine - LH
Row ID: ID__13F0591CP_ContPgHS; Resolution: Available; 		$113.20 1
014 13F0360CP
Secondary Air Valve - Engine - Inc Gasket
Row ID: ID__13F0360CP_ContPgHS; Resolution: Available; 		$306.04 1
015 13F0336CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH
Row ID: ID__13F0336CP_ContPgHS; Resolution: Available; 		$142.16 1
016 13F0335CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH
Row ID: ID__13F0335CP_ContPgHS; Resolution: Available; 		$142.16 1
017 11F0821CP
SENSOR - ENGINE SECONDARY AIR - PRESSURE INC BOLT
Row ID: ID__11F0821CP_ContPgHS; Resolution: Available; 		$123.82 1
018 11F1785CP
BOLT - HEX - M5X10
Row ID: ID__11F1785CP_ContPgHS; Resolution: Available; 		$6.50 2
019 14F0101CP
HOSE SECONDARY AIR RH
Row ID: ID__14F0101CP_ContPgHS; Resolution: Available; 		$118.59 1
020 00RB137
HOSE CLAMP - 28.6 - 706R - OETIKER
Row ID: ID__00RB137_ContPgHS; Resolution: Available; 		- 2 Enquire
021 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25
Row ID: ID__00RG028_ContPgHS; Resolution: Available; 		- 6 Enquire
022 00RB047
SWIVEL CLIP - 9-9.5 - MALE-FEMALE
Row ID: ID__00RB047_ContPgHS; Resolution: Available; 		- 1 Enquire
023 00RG017
C-CLIP FIRTREE BASE 25-27
Row ID: ID__00RG017_ContPgHS; Resolution: Available; 		- 1 Enquire
024 14F0189CP
HOSE SECONDARY AIR LH
Row ID: ID__14F0189CP_ContPgHS; Resolution: Available; 		$111.73 1
025 12F0750CP
PUMP - SECONDARY AIR
Row ID: ID__12F0750CP_ContPgHS; Resolution: Available; 		$343.35 2
026 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 6 Enquire
027 14FA073CP
BRKT SECONDARY AIR PUMP
Row ID: ID__14FA073CP_ContPgHS; Resolution: Available; 		$82.17 2
028 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 6 Enquire
029 11F1862CP
OETIKER CLIP - 26.9 - 30.1MM
Row ID: ID__11F1862CP_ContPgHS; Resolution: Available; 		$7.52 1
031 13F0594CP
NORMA QUICK CONNECTOR V2 19MM-90-90
Row ID: ID__13F0594CP_ContPgHS; Resolution: Available; 		- 1 Enquire
032 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 6 Enquire
