3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren McLaren 750S Spider

View All

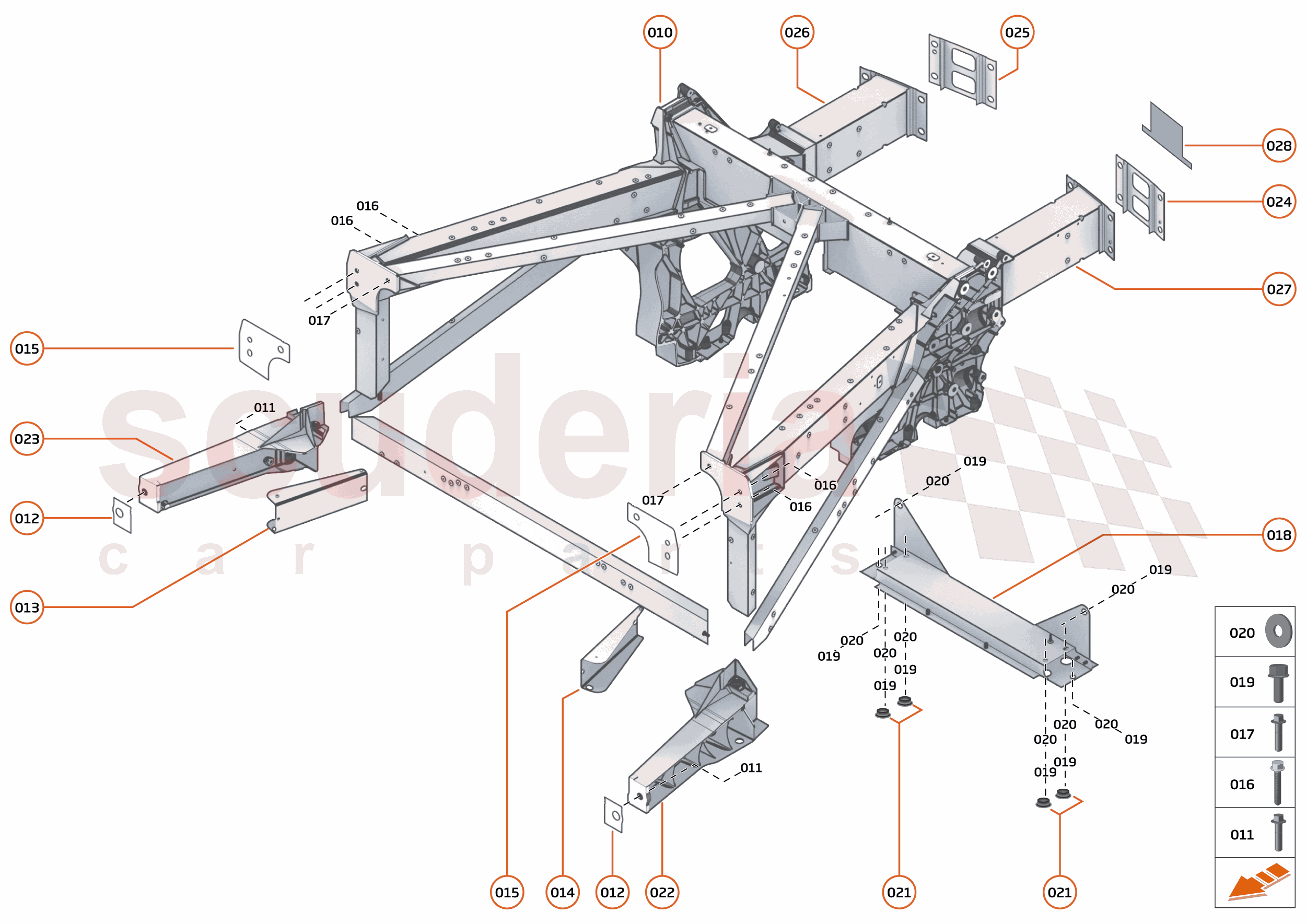

McLaren McLaren 750S Spider - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	28AA548CP	ASSY-RR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA164	BOLT - M16X80 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB837CP	SHIM REAR FRAME TO TUB-LWR-2MM	$9.37	To Order
	14AB838CP	SHIM REAR FRAME TO TUB-LWR-1MM	$8.60	To Order
	14AB839CP	SHIM REAR FRAME TO TUB-LWR-0.5MM	$8.47	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	$93.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3816CP	COVER - REAR FRAME TO FUEL CELL - RH	$93.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB834CP	SHIM REAR FRAME TO TUB-UPR-2MM	$18.00	To Order
	14AB835CP	SHIM REAR FRAME TO TUB-UPPR-1MM	$15.59	To Order
	14AB836CP	SHIM REAR FRAME TO TUB-UPR-0.5MM	$13.52	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	28AA548CP	ASSY-RR FRAME	28AA548CP ASSY-RR FRAME Row ID: ID__28AA548CP_ContPgHS; Resolution: Available;	-	1	Enquire
011	00RA164	BOLT - M16X80 - HEX	00RA164 BOLT - M16X80 - HEX Row ID: ID__00RA164_ContPgHS; Resolution: Available;	-	2	Enquire
012	14AB837CP	SHIM REAR FRAME TO TUB-LWR-2MM	14AB837CP SHIM REAR FRAME TO TUB-LWR-2MM Row ID: ID__14AB837CP_ContPgHS; Resolution: Available;	$9.37	1
012	14AB838CP	SHIM REAR FRAME TO TUB-LWR-1MM	14AB838CP SHIM REAR FRAME TO TUB-LWR-1MM Row ID: ID__14AB838CP_ContPgHS; Resolution: Available;	$8.60	1
012	14AB839CP	SHIM REAR FRAME TO TUB-LWR-0.5MM	14AB839CP SHIM REAR FRAME TO TUB-LWR-0.5MM Row ID: ID__14AB839CP_ContPgHS; Resolution: Available;	$8.47	1
013	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	11A3817CP COVER - REAR FRAME TO FUEL CELL - LH Row ID: ID__11A3817CP_ContPgHS; Resolution: Available;	$93.52	1
014	11A3816CP	COVER - REAR FRAME TO FUEL CELL - RH	11A3816CP COVER - REAR FRAME TO FUEL CELL - RH Row ID: ID__11A3816CP_ContPgHS; Resolution: Available;	$93.52	1
015	14AB834CP	SHIM REAR FRAME TO TUB-UPR-2MM	14AB834CP SHIM REAR FRAME TO TUB-UPR-2MM Row ID: ID__14AB834CP_ContPgHS; Resolution: Available;	$18.00	1
015	14AB835CP	SHIM REAR FRAME TO TUB-UPPR-1MM	14AB835CP SHIM REAR FRAME TO TUB-UPPR-1MM Row ID: ID__14AB835CP_ContPgHS; Resolution: Available;	$15.59	1
015	14AB836CP	SHIM REAR FRAME TO TUB-UPR-0.5MM	14AB836CP SHIM REAR FRAME TO TUB-UPR-0.5MM Row ID: ID__14AB836CP_ContPgHS; Resolution: Available;	$13.52	1
