9 - Opening Roof Systems - 9.2 - Opening Roof Systems Misc

McLaren McLaren 750S Spider

Find Your Part

McLaren McLaren 750S Spider - 9 - OPENING ROOF SYSTEMS - 9.2 - OPENING ROOF SYSTEMS MISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RL009 TY-FAST PLATFORM-750-0-C Enquire To Order
Photo Part No Description Price (each) Stock
00RL015 CABLE TIE - SF100 - 18X - 110MM Enquire To Order
Photo Part No Description Price (each) Stock
11A4164SP Release Button - Tonneau - Luggage Compartment Lid - US Enquire To Order
Photo Part No Description Price (each) Stock
00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
14AB488SP RHT RECEIVER SHIM - 0.5MM $9.28 To Order
Photo Part No Description Price (each) Stock
14AB489SP RHT RECEIVER SHIM - 1MM $9.66 To Order
14AB490SP RHT RECEIVER SHIM - 2MM $10.01 To Order
Photo Part No Description Price (each) Stock
14AB357SP RHT HEADER STRIKER LH $128.96 To Order
Photo Part No Description Price (each) Stock
14AB358SP RHT HEADER STRIKER RH $128.96 To Order
Photo Part No Description Price (each) Stock
14A1614SP RHT PIN RECEIVER LH $209.00 To Order
Photo Part No Description Price (each) Stock
14A1616SP RHT PIN RECEIVER RH $209.00 To Order
Photo Part No Description Price (each) Stock
14AB653SP ROOF DOWN GUIDE $21.60 To Order
Photo Part No Description Price (each) Stock
14AA957SP ASSY HEADER SENSOR HARNESS $75.06 To Order
Photo Part No Description Price (each) Stock
00RA740 SCR-BTN HD-HX-FL-M4X0.7X6-10.9-84 LP Enquire To Order
View All

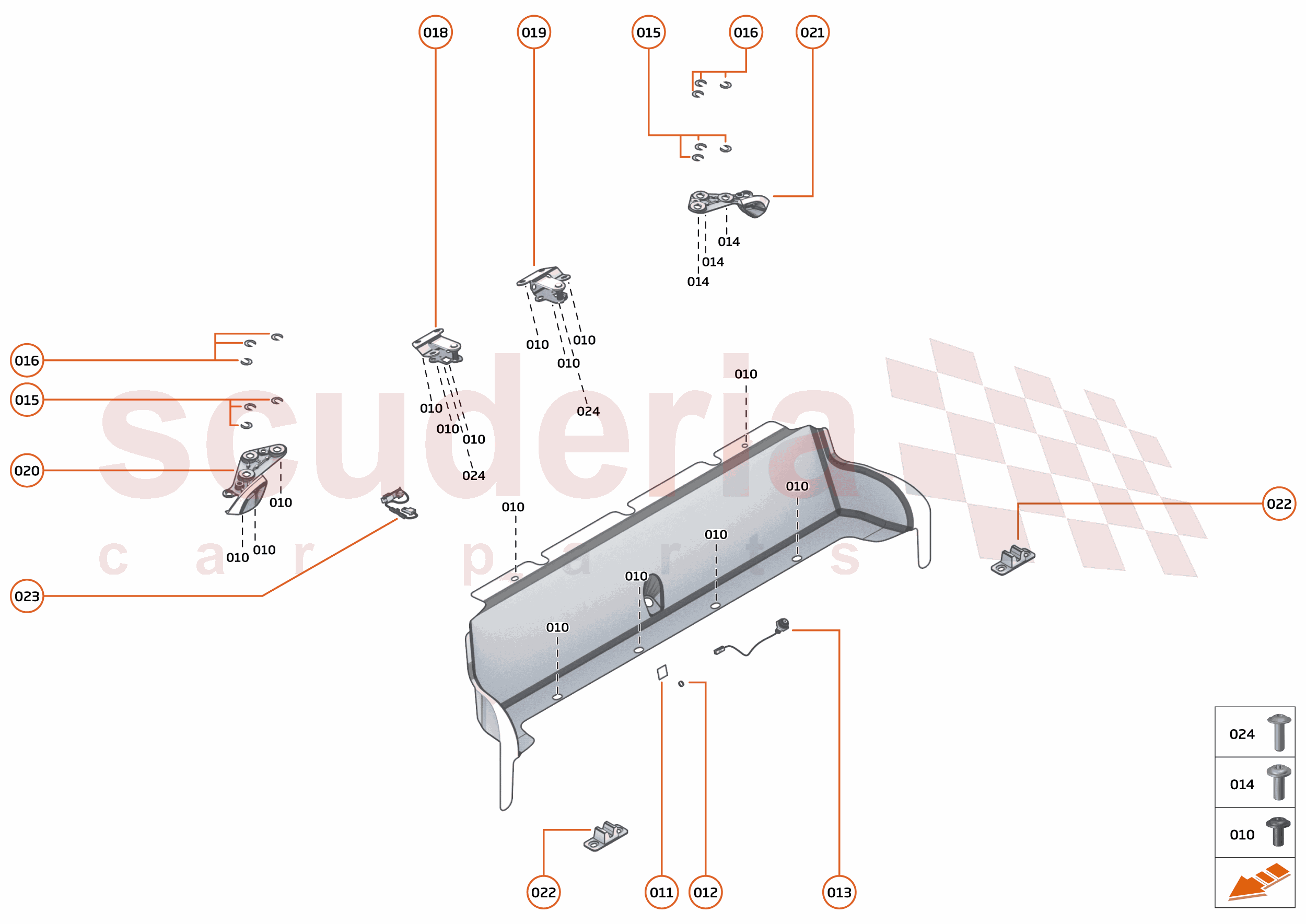

9 - OPENING ROOF SYSTEMS - 9.2 - OPENING ROOF SYSTEMS MISC of McLaren McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA601
Screw - M6x1x12
Row ID: ID__00RA601_ContPgHS; Resolution: Available; 		- 6 Enquire
010 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 6 Enquire
011 00RL009
TY-FAST PLATFORM-750-0-C
Row ID: ID__00RL009_ContPgHS; Resolution: Available; 		- 1 Enquire
012 00RL015
CABLE TIE - SF100 - 18X - 110MM
Row ID: ID__00RL015_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11A4164SP
Release Button - Tonneau - Luggage Compartment Lid - US
Row ID: ID__11A4164SP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RA483
SCREW - BUTTON HEAD - TORX - M6X16
Row ID: ID__00RA483_ContPgHS; Resolution: Available; 		- 3 Enquire
015 14AB488SP
RHT RECEIVER SHIM - 0.5MM
Row ID: ID__14AB488SP_ContPgHS; Resolution: Available; 		$9.28 2
016 14AB489SP
RHT RECEIVER SHIM - 1MM
Row ID: ID__14AB489SP_ContPgHS; Resolution: Available; 		$9.66 1
016 14AB490SP
RHT RECEIVER SHIM - 2MM
Row ID: ID__14AB490SP_ContPgHS; Resolution: Available; 		$10.01 2
017 14AB276SP
DRIP ROOF STOWAGE
Row ID: ID__14AB276SP_ContPgHS; Resolution: Available; 		$161.23 1
017 14AB277SP
DRIP ROOF STOWAGE FEDERAL
Row ID: ID__14AB277SP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 14AB357SP
RHT HEADER STRIKER LH
Row ID: ID__14AB357SP_ContPgHS; Resolution: Available; 		$128.96 1
019 14AB358SP
RHT HEADER STRIKER RH
Row ID: ID__14AB358SP_ContPgHS; Resolution: Available; 		$128.96 1
020 14A1614SP
RHT PIN RECEIVER LH
Row ID: ID__14A1614SP_ContPgHS; Resolution: Available; 		$209.00 1
021 14A1616SP
RHT PIN RECEIVER RH
Row ID: ID__14A1616SP_ContPgHS; Resolution: Available; 		$209.00 1
022 14AB653SP
ROOF DOWN GUIDE
Row ID: ID__14AB653SP_ContPgHS; Resolution: Available; 		$21.60 2
023 14AA957SP
ASSY HEADER SENSOR HARNESS
Row ID: ID__14AA957SP_ContPgHS; Resolution: Available; 		$75.06 1
024 00RA740
SCR-BTN HD-HX-FL-M4X0.7X6-10.9-84 LP
Row ID: ID__00RA740_ContPgHS; Resolution: Available; 		- 1 Enquire
