Name: 7 - CLOSURES - 7.8 - DOOR HARDWARE
Rating: 4.1 (1 reviews)

7 - CLOSURES - 7.8 - DOOR HARDWARE of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 7 - CLOSURES - 7.8 - DOOR HARDWARE

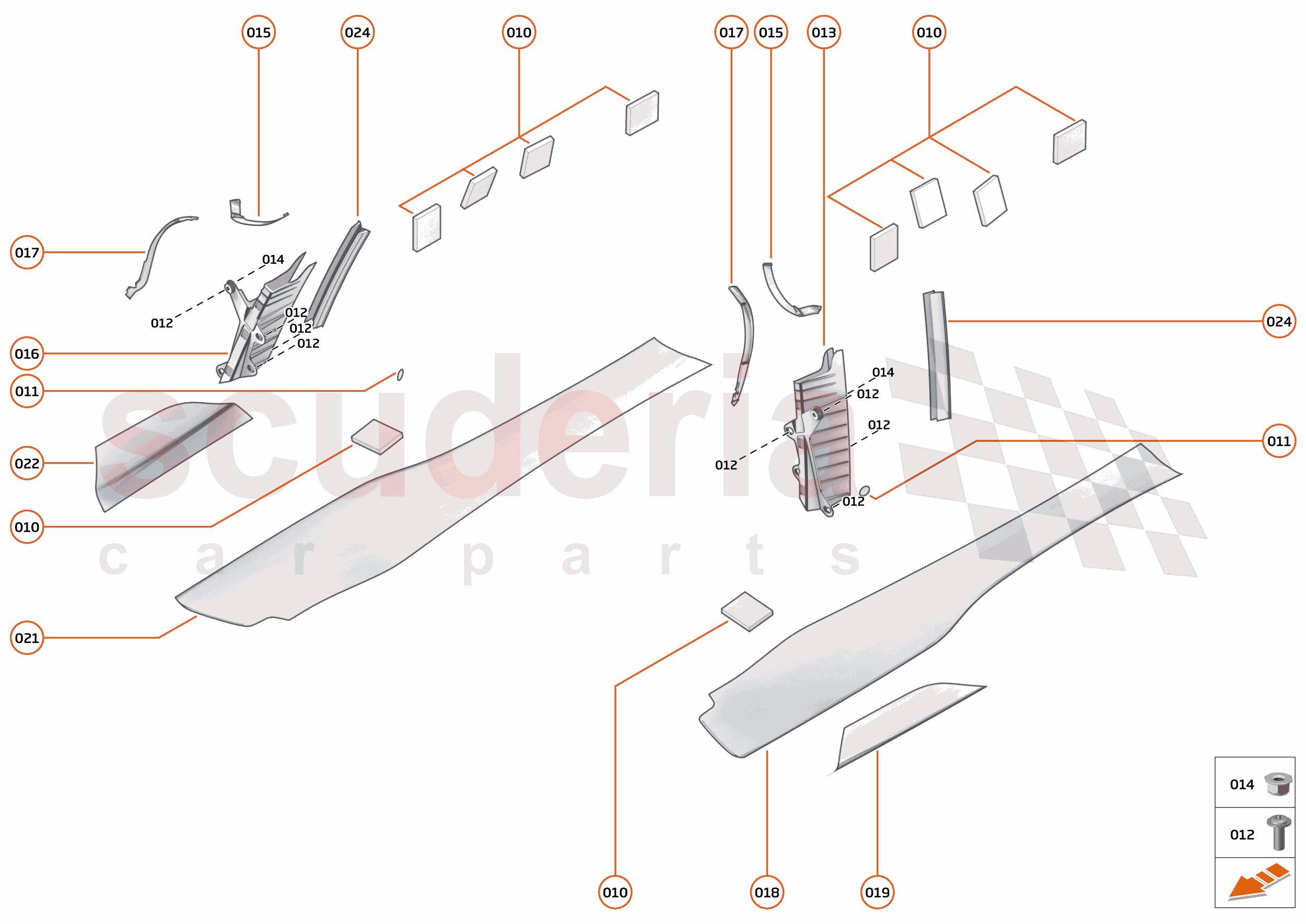

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A5635CP	NVH FOAM - DOOR INNER - GT BULKHEAD	$3.34	To Order
	14AB690SP	DOOR CAVITY FOAM BLOCK RH UPPER	$99.52	To Order
	14AB691SP	DOOR CAVITY FOAM BLOCK RH LOWER	$99.52	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A7484CP	PERMANENT SEALING TAPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB029SP	ASSY MLDG GLASS GUIDE FRT DOOR LH SP	$42.36	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA134	NUT - M6 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB442SP	PNL DOOR OTR UPPER FOAM 135X15X5MM	$228.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB030SP	ASSY MLDG GLASS GUIDE FRT DOOR RH SP	$42.36	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB443SP	PNL DOOR INR LOWER FOAM 190X15X10MM	$236.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD396CP	AERO BLADE STONE PROTECTION LH	$18.27	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB032CP	TAPE AEROBLADE OTR STONE PROTECTION LH	$31.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD397CP	AERO BLADE STONE PROTECTION RH	$18.27	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB040CP	TAPE AEROBLADE OTR STONE PROTECTION RH	$31.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA522SP	SEAL CHANNEL GLASS GUIDE SPIDER	$20.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13A5635CP	NVH FOAM - DOOR INNER - GT BULKHEAD	13A5635CP NVH FOAM - DOOR INNER - GT BULKHEAD Row ID: ID__13A5635CP_ContPgHS; Resolution: Available;	$3.34	5
010	14AB690SP	DOOR CAVITY FOAM BLOCK RH UPPER	14AB690SP DOOR CAVITY FOAM BLOCK RH UPPER Row ID: ID__14AB690SP_ContPgHS; Resolution: Available;	$99.52	1
010	14AB691SP	DOOR CAVITY FOAM BLOCK RH LOWER	14AB691SP DOOR CAVITY FOAM BLOCK RH LOWER Row ID: ID__14AB691SP_ContPgHS; Resolution: Available;	$99.52	1
010	14AB688SP	DOOR CAVITY FOAM BLOCK LH UPPER	14AB688SP DOOR CAVITY FOAM BLOCK LH UPPER Row ID: ID__14AB688SP_ContPgHS; Resolution: Available;	$99.52	1
010	14AB689SP	DOOR CAVITY FOAM BLOCK LH LOWER	14AB689SP DOOR CAVITY FOAM BLOCK LH LOWER Row ID: ID__14AB689SP_ContPgHS; Resolution: Available;	$99.52	1
011	11A7484CP	PERMANENT SEALING TAPE	11A7484CP PERMANENT SEALING TAPE Row ID: ID__11A7484CP_ContPgHS; Resolution: Available;	-	2	Enquire
012	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS; Resolution: Available;	-	4	Enquire
013	14AB029SP	ASSY MLDG GLASS GUIDE FRT DOOR LH SP	14AB029SP ASSY MLDG GLASS GUIDE FRT DOOR LH SP Row ID: ID__14AB029SP_ContPgHS; Resolution: Available;	$42.36	1
014	00RA134	NUT - M6 - HEX	00RA134 NUT - M6 - HEX Row ID: ID__00RA134_ContPgHS; Resolution: Available;	-	1	Enquire
015	14AB442SP	PNL DOOR OTR UPPER FOAM 135X15X5MM	14AB442SP PNL DOOR OTR UPPER FOAM 135X15X5MM Row ID: ID__14AB442SP_ContPgHS; Resolution: Available;	$228.41	1
016	14AB030SP	ASSY MLDG GLASS GUIDE FRT DOOR RH SP	14AB030SP ASSY MLDG GLASS GUIDE FRT DOOR RH SP Row ID: ID__14AB030SP_ContPgHS; Resolution: Available;	$42.36	1
017	14AB443SP	PNL DOOR INR LOWER FOAM 190X15X10MM	14AB443SP PNL DOOR INR LOWER FOAM 190X15X10MM Row ID: ID__14AB443SP_ContPgHS; Resolution: Available;	$236.34	1
018	14AD396CP	AERO BLADE STONE PROTECTION LH	14AD396CP AERO BLADE STONE PROTECTION LH Row ID: ID__14AD396CP_ContPgHS; Resolution: Available;	$18.27	1
019	14AB032CP	TAPE AEROBLADE OTR STONE PROTECTION LH	14AB032CP TAPE AEROBLADE OTR STONE PROTECTION LH Row ID: ID__14AB032CP_ContPgHS; Resolution: Available;	$31.97	1
021	14AD397CP	AERO BLADE STONE PROTECTION RH	14AD397CP AERO BLADE STONE PROTECTION RH Row ID: ID__14AD397CP_ContPgHS; Resolution: Available;	$18.27	1
022	14AB040CP	TAPE AEROBLADE OTR STONE PROTECTION RH	14AB040CP TAPE AEROBLADE OTR STONE PROTECTION RH Row ID: ID__14AB040CP_ContPgHS; Resolution: Available;	$31.97	1
024	14AA522SP	SEAL CHANNEL GLASS GUIDE SPIDER	14AA522SP SEAL CHANNEL GLASS GUIDE SPIDER Row ID: ID__14AA522SP_ContPgHS; Resolution: Available;	$20.14	1
