15 - DUCTS, VENTS AND FLOORS - 15.2 - SIDE DUCTS AND VENTS of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 15 - DUCTS, VENTS AND FLOORS - 15.2 - SIDE DUCTS AND VENTS

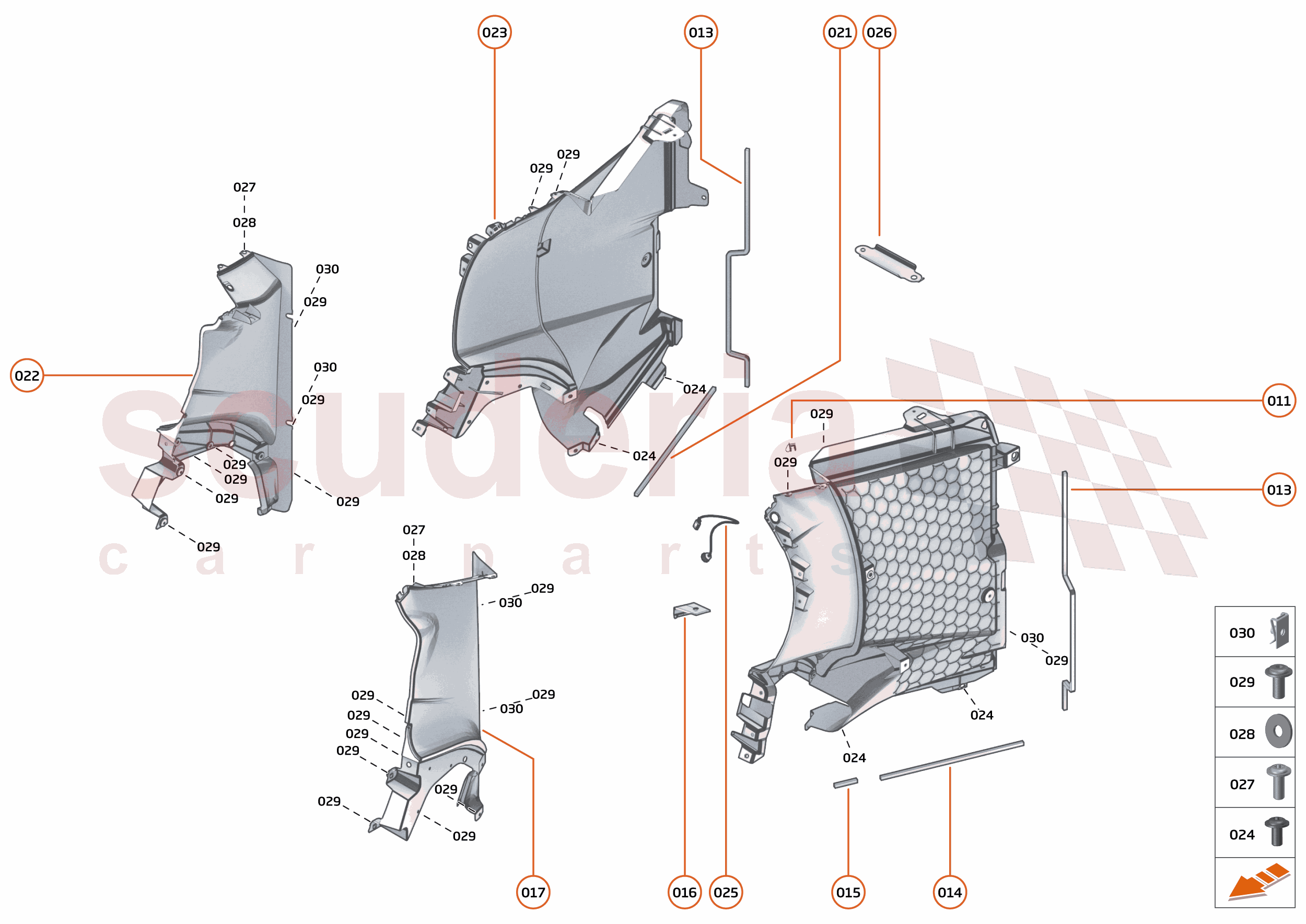

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A2349CP	DUCT SIDE OUTER FOAM REAR	$11.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14A2350CP	DUCT SIDE OUTER LOWER FOAM	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3025CP	DUCT SIDE OUTER LOWER FOAM FRONT	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB145CP	RAD DUCT FOAM AC PIPE-LH	$5.59	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD535CP	DUCT SIDE INR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A2353CP	DUCT SIDE OUTER FOAM	$7.89	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD536CP	DUCT SIDE INR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD538CP	DUCT SIDE OTR RH UPR LHD	Enquire	To Order
	14AD540CP	DUCT SIDE OTR RH UPR RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA609	SCR-BTN HD-TX-FL-M6X1X10-8.8-85	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA028CP	SWITCH - DOOR LOCK - PIEZOELECTRIC - TOUCH SENSITIVE	$206.19	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA221SP	SIDE DUCT SUPPORT BRACE SPIDER LH	$51.60	To Order
	14AA225SP	SIDE DUCT SUPPORT BRACE SPIDER RH	$61.42	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Row ID: ID__11A7405CP_ContPgHS; Resolution: Available;	$18.11	1
-	13MA021CP	O RING SEAL	13MA021CP O RING SEAL Row ID: ID__13MA021CP_ContPgHS; Resolution: Available;	-	1	Enquire
-	13MA026CP	HEX NUT M19 X 0.75	13MA026CP HEX NUT M19 X 0.75 Row ID: ID__13MA026CP_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RC050	Washer - M6x5.0mm	00RC050 Washer - M6x5.0mm Row ID: ID__00RC050_ContPgHS; Resolution: Available;	-	2	Enquire
000	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID__00RC048_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RC113	SPACER - NYLON - 6.6X17.45X1.05	00RC113 SPACER - NYLON - 6.6X17.45X1.05 Row ID: ID__00RC113_ContPgHS; Resolution: Available;	-	1	Enquire
011	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS; Resolution: Available;	-	1	Enquire
013	14A2349CP	DUCT SIDE OUTER FOAM REAR	14A2349CP DUCT SIDE OUTER FOAM REAR Row ID: ID__14A2349CP_ContPgHS; Resolution: Available;	$11.06	1
014	14A2350CP	DUCT SIDE OUTER LOWER FOAM	14A2350CP DUCT SIDE OUTER LOWER FOAM Row ID: ID__14A2350CP_ContPgHS; Resolution: Available;	$6.02	1
015	14A3025CP	DUCT SIDE OUTER LOWER FOAM FRONT	14A3025CP DUCT SIDE OUTER LOWER FOAM FRONT Row ID: ID__14A3025CP_ContPgHS; Resolution: Available;	$5.75	1
016	14AB145CP	RAD DUCT FOAM AC PIPE-LH	14AB145CP RAD DUCT FOAM AC PIPE-LH Row ID: ID__14AB145CP_ContPgHS; Resolution: Available;	$5.59	1
017	14AD535CP	DUCT SIDE INR LH	14AD535CP DUCT SIDE INR LH Row ID: ID__14AD535CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	14AD537CP	DUCT SIDE OTR LH UPR LHD	14AD537CP DUCT SIDE OTR LH UPR LHD Row ID: ID__14AD537CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	14AD539CP	DUCT SIDE OTR LH UPR RHD	14AD539CP DUCT SIDE OTR LH UPR RHD Row ID: ID__14AD539CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	14A2353CP	DUCT SIDE OUTER FOAM	14A2353CP DUCT SIDE OUTER FOAM Row ID: ID__14A2353CP_ContPgHS; Resolution: Available;	$7.89	1
022	14AD536CP	DUCT SIDE INR RH	14AD536CP DUCT SIDE INR RH Row ID: ID__14AD536CP_ContPgHS; Resolution: Available;	-	1	Enquire
023	14AD538CP	DUCT SIDE OTR RH UPR LHD	14AD538CP DUCT SIDE OTR RH UPR LHD Row ID: ID__14AD538CP_ContPgHS; Resolution: Available;	-	1	Enquire
023	14AD540CP	DUCT SIDE OTR RH UPR RHD	14AD540CP DUCT SIDE OTR RH UPR RHD Row ID: ID__14AD540CP_ContPgHS; Resolution: Available;	-	1	Enquire
024	00RA609	SCR-BTN HD-TX-FL-M6X1X10-8.8-85	00RA609 SCR-BTN HD-TX-FL-M6X1X10-8.8-85 Row ID: ID__00RA609_ContPgHS; Resolution: Available;	-	2	Enquire
025	13MA028CP	SWITCH - DOOR LOCK - PIEZOELECTRIC - TOUCH SENSITIVE	13MA028CP SWITCH - DOOR LOCK - PIEZOELECTRIC - TOUCH SENSITIVE Row ID: ID__13MA028CP_ContPgHS; Resolution: Available;	$206.19	1
026	14AA221SP	SIDE DUCT SUPPORT BRACE SPIDER LH	14AA221SP SIDE DUCT SUPPORT BRACE SPIDER LH Row ID: ID__14AA221SP_ContPgHS; Resolution: Available;	$51.60	1
026	14AA225SP	SIDE DUCT SUPPORT BRACE SPIDER RH	14AA225SP SIDE DUCT SUPPORT BRACE SPIDER RH Row ID: ID__14AA225SP_ContPgHS; Resolution: Available;	$61.42	1
027	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS; Resolution: Available;	-	3	Enquire
028	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS; Resolution: Available;	-	1	Enquire
029	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	2	Enquire
