11 - EXTERIOR ORNAMENTATION - 11.8 - REAR BUMPER of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 11 - EXTERIOR ORNAMENTATION - 11.8 - REAR BUMPER

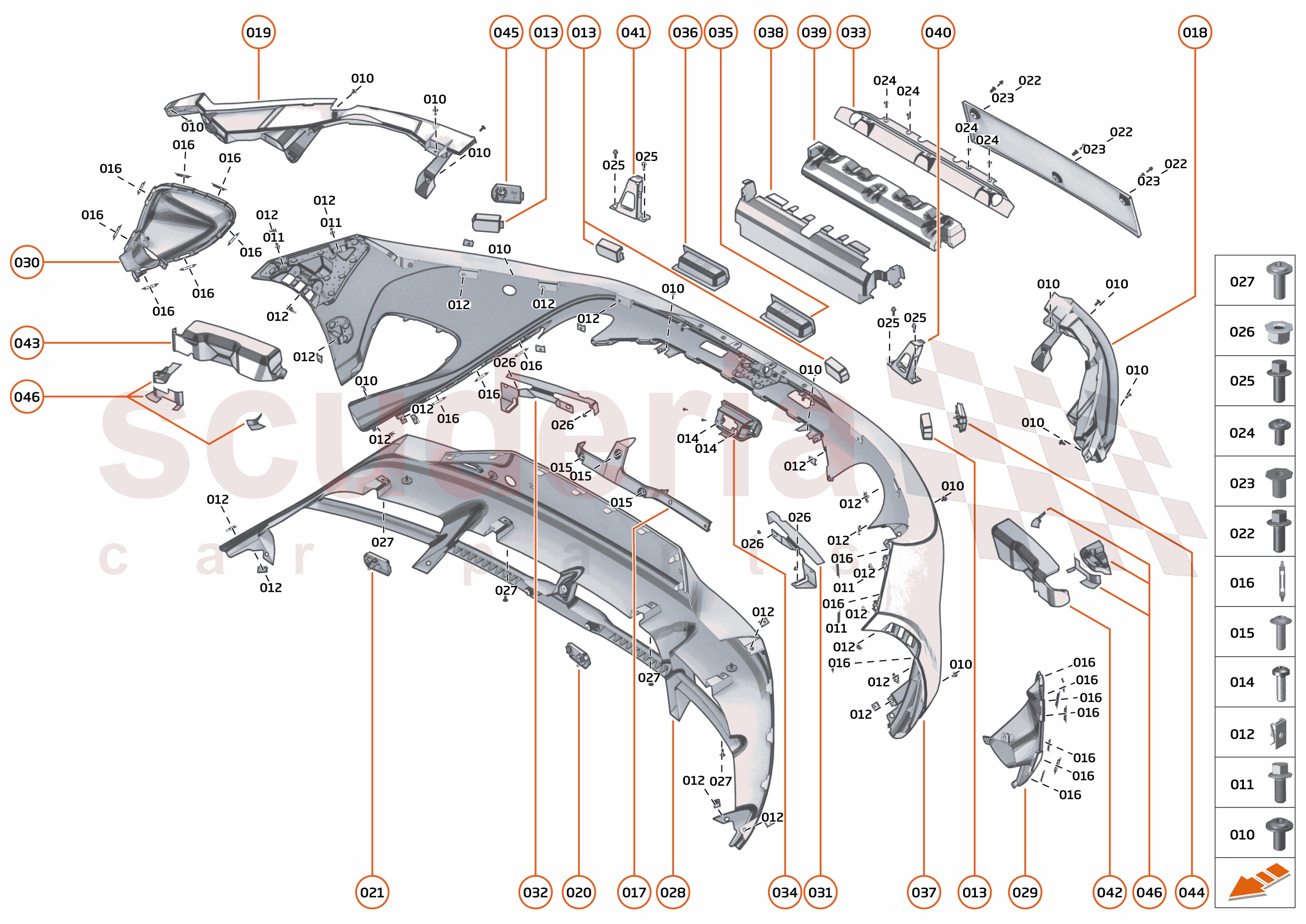

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14M0005CP	DECOUPLING RING-PDC SENSOR	$2.88	To Order
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA263	SCREW - M6X20 - BUTTON	Enquire	To Order
	00RA565	BOLT - HEX HEAD - FLANGE - M6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB194	CLIP - U NUT NPT - M6X0.5-4-MS-78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A4456CP	REAR PDC BEZEL COVER	$23.29	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA363	SCREW - TORX - 4X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB176	CLIP - STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3064CP	RR BUMPER CTR CAP	$53.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA414CP	BRKT REAR LAMP MTG LH	$94.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA415CP	BRKT REAR LAMP MTG RH	$94.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA850CP	PDC BEZEL LH RR INR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA851CP	PDC BEZEL RH RR INR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA249	NUT - M5 - RAWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA241CP	ASSY RR BUMPER LOWER PDC CF	Enquire	To Order
	28AA242CP	ASSY REAR BUMPER LOWER CF	Enquire	To Order
	28AA802CP	ASSY RR BUMPER LOWER PDC	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	28AA827CP	ASSY REAR BUMPER OUTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA828CP	ASSY REAR BUMPER OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA295CP	REAR BUMPER REFLECTOR BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA296CP	REAR BUMPER REFLECTOR BRACKET RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA365CP	HEATHSIELD BRACKET REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA075CP	REAR BUMPER CAMERA COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA347CP	RR BMPR NUMBER PLATE LAMP COVER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA348CP	RR BMPR NUMBER PLATE LAMP COVER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA661CP	ASSY REAR BUMPER UPPER PDC CAMERA	Enquire	To Order
	28AA662CP	ASSY REAR BUMPER UPPER CAMERA	Enquire	To Order
	28AA223CP	BUMPER SKIN REAR UPPER CAMERA	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	28AA010CP	REAR CAMERA AND LAMPS HEATSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA377CP	INSULATION FOAM REAR BUMPER	Enquire	To Order
	28AA730CP	ADDITIONAL INSULATION FOAM RH	Enquire	To Order
	28AA729CP	ADDITIONAL INSULATION FOAM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA597CP	RR BPR REINF BRACKET - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA598CP	RR BPR REINF BRACKET - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA635CP	HEATSHIELD REAR REFLECTOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA636CP	HEATSHIELD REAR REFLECTOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA711CP	PDC BEZEL LH RR OTR	Enquire	To Order
	28AA714CP	PDC BEZEL LH RR OTR BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA712CP	PDC BEZEL RH RR OTR	Enquire	To Order
	28AA715CP	PDC BEZEL RH RR OTR BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28AA497CP	431- FOIL TAPE 50MMX50M	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Row ID: ID__11A7405CP_ContPgHS; Resolution: Available;	$18.11	1
000	14AC718CP	FOAM BUMPER REAR FED	14AC718CP FOAM BUMPER REAR FED Row ID: ID__14AC718CP_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RB213	CLIP-U NUT-PT-M6X1.5-6-SS-00	00RB213 CLIP-U NUT-PT-M6X1.5-6-SS-00 Row ID: ID__00RB213_ContPgHS; Resolution: Available;	-	5	Enquire
000	00RA074	NUT-HEX HEAD FLANGE-M5	00RA074 NUT-HEX HEAD FLANGE-M5 Row ID: ID__00RA074_ContPgHS; Resolution: Available;	-	4	Enquire
000	00RC063	WASHER - M5X20X1	00RC063 WASHER - M5X20X1 Row ID: ID__00RC063_ContPgHS; Resolution: Available;	-	4	Enquire
000	14AC623CP	EXTENSION REAR BUMPER	14AC623CP EXTENSION REAR BUMPER Row ID: ID__14AC623CP_ContPgHS; Resolution: Available;	$715.07	1
000	11A4758CP	BLACK DECAL - BODYSIDE REAR LOWER	11A4758CP BLACK DECAL - BODYSIDE REAR LOWER Row ID: ID__11A4758CP_ContPgHS; Resolution: Available;	$14.76	1
000	00RC064	WASHER - M6X18X1.6 - BLACK	00RC064 WASHER - M6X18X1.6 - BLACK Row ID: ID__00RC064_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RA112	TORX SCREW-WASHER 4.2X16	00RA112 TORX SCREW-WASHER 4.2X16 Row ID: ID__00RA112_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Row ID: ID__00RB006_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RB262	CLIP-U NUT-M5X0.5-3-STL-81	00RB262 CLIP-U NUT-M5X0.5-3-STL-81 Row ID: ID__00RB262_ContPgHS; Resolution: Available;	-	6	Enquire
000	28AA660CP	DUMMY CAMERA 180 DEGREES	28AA660CP DUMMY CAMERA 180 DEGREES Row ID: ID__28AA660CP_ContPgHS; Resolution: Available;	-	1	Enquire
000	28AA769CP	RR BUMPER UPPER STONE PROTECTION UPR LH	28AA769CP RR BUMPER UPPER STONE PROTECTION UPR LH Row ID: ID__28AA769CP_ContPgHS; Resolution: Available;	-	1	Enquire
000	28AA770CP	RR BUMPER UPPER STONE PROTECTION UPR RH	28AA770CP RR BUMPER UPPER STONE PROTECTION UPR RH Row ID: ID__28AA770CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	14M0005CP	DECOUPLING RING-PDC SENSOR	14M0005CP DECOUPLING RING-PDC SENSOR Row ID: ID__14M0005CP_ContPgHS; Resolution: Available;	$2.88	2
010	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS; Resolution: Available;	-	5	Enquire
011	00RA263	SCREW - M6X20 - BUTTON	00RA263 SCREW - M6X20 - BUTTON Row ID: ID__00RA263_ContPgHS; Resolution: Available;	-	2	Enquire
011	00RA565	BOLT - HEX HEAD - FLANGE - M6X12	00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Row ID: ID__00RA565_ContPgHS; Resolution: Available;	-	4	Enquire
012	00RB194	CLIP - U NUT NPT - M6X0.5-4-MS-78	00RB194 CLIP - U NUT NPT - M6X0.5-4-MS-78 Row ID: ID__00RB194_ContPgHS; Resolution: Available;	-	14	Enquire
013	14A4456CP	REAR PDC BEZEL COVER	14A4456CP REAR PDC BEZEL COVER Row ID: ID__14A4456CP_ContPgHS; Resolution: Available;	$23.29	2
014	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12 Row ID: ID__00RA363_ContPgHS; Resolution: Available;	-	2	Enquire
015	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS; Resolution: Available;	-	3	Enquire
016	00RB176	CLIP - STEM	00RB176 CLIP - STEM Row ID: ID__00RB176_ContPgHS; Resolution: Available;	-	6	Enquire
017	14A3064CP	RR BUMPER CTR CAP	14A3064CP RR BUMPER CTR CAP Row ID: ID__14A3064CP_ContPgHS; Resolution: Available;	$53.57	1
018	14AA414CP	BRKT REAR LAMP MTG LH	14AA414CP BRKT REAR LAMP MTG LH Row ID: ID__14AA414CP_ContPgHS; Resolution: Available;	$94.55	1
019	14AA415CP	BRKT REAR LAMP MTG RH	14AA415CP BRKT REAR LAMP MTG RH Row ID: ID__14AA415CP_ContPgHS; Resolution: Available;	$94.55	1
020	14AA850CP	PDC BEZEL LH RR INR	14AA850CP PDC BEZEL LH RR INR Row ID: ID__14AA850CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	14AA851CP	PDC BEZEL RH RR INR	14AA851CP PDC BEZEL RH RR INR Row ID: ID__14AA851CP_ContPgHS; Resolution: Available;	-	1	Enquire
022	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS; Resolution: Available;	-	3	Enquire
023	00RA249	NUT - M5 - RAWL	00RA249 NUT - M5 - RAWL Row ID: ID__00RA249_ContPgHS; Resolution: Available;	-	3	Enquire
024	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS; Resolution: Available;	-	7	Enquire
025	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	4	Enquire
026	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS; Resolution: Available;	-	4	Enquire
027	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	4	Enquire
028	28AA241CP	ASSY RR BUMPER LOWER PDC CF	28AA241CP ASSY RR BUMPER LOWER PDC CF Row ID: ID__28AA241CP_ContPgHS;	-	1	Enquire
028	28AA242CP	ASSY REAR BUMPER LOWER CF	28AA242CP ASSY REAR BUMPER LOWER CF Row ID: ID__28AA242CP_ContPgHS;	-	1	Enquire
028	28AA802CP	ASSY RR BUMPER LOWER PDC	28AA802CP ASSY RR BUMPER LOWER PDC Row ID: ID__28AA802CP_ContPgHS; Resolution: Available;	-	1	Enquire
028	28AA803CP	ASSY REAR BUMPER LOWER	28AA803CP ASSY REAR BUMPER LOWER Row ID: ID__28AA803CP_ContPgHS; Resolution: Available;	-	1	Enquire
029	28AA827CP	ASSY REAR BUMPER OUTER LH	28AA827CP ASSY REAR BUMPER OUTER LH Row ID: ID__28AA827CP_ContPgHS; Resolution: Available;	-	1	Enquire
030	28AA828CP	ASSY REAR BUMPER OUTER RH	28AA828CP ASSY REAR BUMPER OUTER RH Row ID: ID__28AA828CP_ContPgHS; Resolution: Available;	-	1	Enquire
031	28AA295CP	REAR BUMPER REFLECTOR BRACKET LH	28AA295CP REAR BUMPER REFLECTOR BRACKET LH Row ID: ID__28AA295CP_ContPgHS; Resolution: Available;	-	1	Enquire
032	28AA296CP	REAR BUMPER REFLECTOR BRACKET RH	28AA296CP REAR BUMPER REFLECTOR BRACKET RH Row ID: ID__28AA296CP_ContPgHS; Resolution: Available;	-	1	Enquire
033	28AA365CP	HEATHSIELD BRACKET REAR BUMPER	28AA365CP HEATHSIELD BRACKET REAR BUMPER Row ID: ID__28AA365CP_ContPgHS; Resolution: Available;	-	1	Enquire
034	28AA075CP	REAR BUMPER CAMERA COVER	28AA075CP REAR BUMPER CAMERA COVER Row ID: ID__28AA075CP_ContPgHS; Resolution: Available;	-	1	Enquire
035	28AA347CP	RR BMPR NUMBER PLATE LAMP COVER LH	28AA347CP RR BMPR NUMBER PLATE LAMP COVER LH Row ID: ID__28AA347CP_ContPgHS; Resolution: Available;	-	1	Enquire
036	28AA348CP	RR BMPR NUMBER PLATE LAMP COVER RH	28AA348CP RR BMPR NUMBER PLATE LAMP COVER RH Row ID: ID__28AA348CP_ContPgHS; Resolution: Available;	-	1	Enquire
037	28AA661CP	ASSY REAR BUMPER UPPER PDC CAMERA	28AA661CP ASSY REAR BUMPER UPPER PDC CAMERA Row ID: ID__28AA661CP_ContPgHS; Resolution: Available;	-	1	Enquire
037	28AA662CP	ASSY REAR BUMPER UPPER CAMERA	28AA662CP ASSY REAR BUMPER UPPER CAMERA Row ID: ID__28AA662CP_ContPgHS; Resolution: Available;	-	1	Enquire
037	28AA223CP	BUMPER SKIN REAR UPPER CAMERA	28AA223CP BUMPER SKIN REAR UPPER CAMERA Row ID: ID__28AA223CP_ContPgHS; Resolution: Available;	-	1	Enquire
037	28AA625CP	ASSY REAR BUMPER UPPER PDC CAMERA CF	28AA625CP ASSY REAR BUMPER UPPER PDC CAMERA CF Row ID: ID__28AA625CP_ContPgHS;	-	1	Enquire
037	28AA627CP	ASSY REAR BUMPER UPPER CAMERA CF	28AA627CP ASSY REAR BUMPER UPPER CAMERA CF Row ID: ID__28AA627CP_ContPgHS;	-	1	Enquire
037	28AA629CP	ASSY REAR BUMPER UPPER PDC CAM CF PRIMED	28AA629CP ASSY REAR BUMPER UPPER PDC CAM CF PRIMED Row ID: ID__28AA629CP_ContPgHS; Resolution: Available;	-	1	Enquire
037	28AA630CP	ASSY REAR BUMPER UPPER CAM CF PRIMED	28AA630CP ASSY REAR BUMPER UPPER CAM CF PRIMED Row ID: ID__28AA630CP_ContPgHS; Resolution: Available;	-	1	Enquire
038	28AA010CP	REAR CAMERA AND LAMPS HEATSHIELD	28AA010CP REAR CAMERA AND LAMPS HEATSHIELD Row ID: ID__28AA010CP_ContPgHS; Resolution: Available;	-	1	Enquire
039	28AA377CP	INSULATION FOAM REAR BUMPER	28AA377CP INSULATION FOAM REAR BUMPER Row ID: ID__28AA377CP_ContPgHS; Resolution: Available;	-	1	Enquire
039	28AA730CP	ADDITIONAL INSULATION FOAM RH	28AA730CP ADDITIONAL INSULATION FOAM RH Row ID: ID__28AA730CP_ContPgHS; Resolution: Available;	-	1	Enquire
039	28AA729CP	ADDITIONAL INSULATION FOAM LH	28AA729CP ADDITIONAL INSULATION FOAM LH Row ID: ID__28AA729CP_ContPgHS; Resolution: Available;	-	1	Enquire
040	28AA597CP	RR BPR REINF BRACKET - LH	28AA597CP RR BPR REINF BRACKET - LH Row ID: ID__28AA597CP_ContPgHS; Resolution: Available;	-	1	Enquire
041	28AA598CP	RR BPR REINF BRACKET - RH	28AA598CP RR BPR REINF BRACKET - RH Row ID: ID__28AA598CP_ContPgHS; Resolution: Available;	-	1	Enquire
042	28AA635CP	HEATSHIELD REAR REFLECTOR LH	28AA635CP HEATSHIELD REAR REFLECTOR LH Row ID: ID__28AA635CP_ContPgHS; Resolution: Available;	-	1	Enquire
043	28AA636CP	HEATSHIELD REAR REFLECTOR RH	28AA636CP HEATSHIELD REAR REFLECTOR RH Row ID: ID__28AA636CP_ContPgHS; Resolution: Available;	-	1	Enquire
044	28AA711CP	PDC BEZEL LH RR OTR	28AA711CP PDC BEZEL LH RR OTR Row ID: ID__28AA711CP_ContPgHS; Resolution: Available;	-	1	Enquire
044	28AA714CP	PDC BEZEL LH RR OTR BLACK	28AA714CP PDC BEZEL LH RR OTR BLACK Row ID: ID__28AA714CP_ContPgHS; Resolution: Available;	-	1	Enquire
045	28AA712CP	PDC BEZEL RH RR OTR	28AA712CP PDC BEZEL RH RR OTR Row ID: ID__28AA712CP_ContPgHS; Resolution: Available;	-	1	Enquire
045	28AA715CP	PDC BEZEL RH RR OTR BLACK	28AA715CP PDC BEZEL RH RR OTR BLACK Row ID: ID__28AA715CP_ContPgHS; Resolution: Available;	-	1	Enquire
046	28AA497CP	431- FOIL TAPE 50MMX50M	28AA497CP 431- FOIL TAPE 50MMX50M Row ID: ID__28AA497CP_ContPgHS; Resolution: Available;	-	1	Enquire
