35 - ENGINE AIR SYSTEMS - 35.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM of McLaren McLaren McLaren 750S Coupe

View All

McLaren McLaren 750S Coupe - 35 - ENGINE AIR SYSTEMS - 35.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM

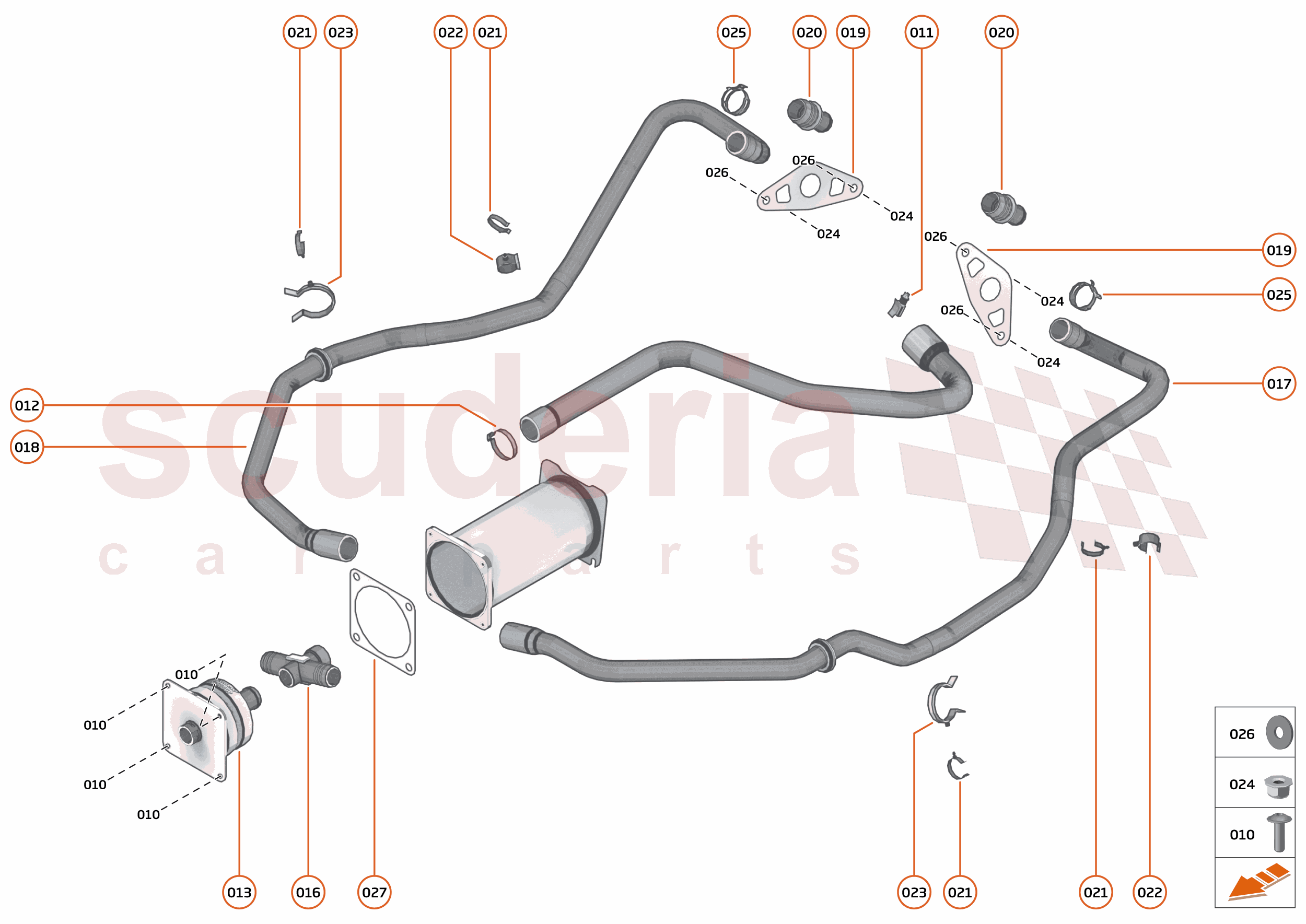

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB139	Stepless Ear Clamp - 34.6-706DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0664CP	SYMPOSER - ISG \ ESG	$576.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0760CP	ADAPTER - INTAKE SOUND GENERATOR	$30.46	To Order

Photo	Part No	Description	Price (each)	Stock
	28FA009CP	ISG SECONDARY HOSE-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28FA010CP	ISG SECONDARY HOSE-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28FA011CP	ISG MOUNTING PLATE - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28FA012CP	ISG SPIGOT - OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG018	SWIVEL CLIP - 22-24MM -MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB204	CLAMP - SPRING BAND - 27X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC077	CONVERTIBLE ROOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA121CP	SEAL - ISG \ ESG - BULKHEAD	$26.65	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Row ID: ID__00RG028_ContPgHS; Resolution: Available;	-	3	Enquire
000	00RB035	Cable Tie - Female - Dia 8-20	00RB035 Cable Tie - Female - Dia 8-20 Row ID: ID__00RB035_ContPgHS; Resolution: Available;	-	1	Enquire
010	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS; Resolution: Available;	-	4	Enquire
011	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Row ID: ID__00RB053_ContPgHS; Resolution: Available;	-	1	Enquire
012	00RB139	Stepless Ear Clamp - 34.6-706DR	00RB139 Stepless Ear Clamp - 34.6-706DR Row ID: ID__00RB139_ContPgHS; Resolution: Available;	-	1	Enquire
013	14F0664CP	SYMPOSER - ISG \ ESG	14F0664CP SYMPOSER - ISG \ ESG Row ID: ID__14F0664CP_ContPgHS; Resolution: Available;	$576.24	1
014	14FA132CP	HOSE - PRIMARY - INTAKE SOUND GENERATOR	14FA132CP HOSE - PRIMARY - INTAKE SOUND GENERATOR Row ID: ID__14FA132CP_ContPgHS; Resolution: Available;	$155.26	1
015	14F0763CP	BRACKET - INTAKE SOUND GENERATOR - BULKHEAD	14F0763CP BRACKET - INTAKE SOUND GENERATOR - BULKHEAD Row ID: ID__14F0763CP_ContPgHS; Resolution: Available;	$71.17	1
016	14F0760CP	ADAPTER - INTAKE SOUND GENERATOR	14F0760CP ADAPTER - INTAKE SOUND GENERATOR Row ID: ID__14F0760CP_ContPgHS; Resolution: Available;	$30.46	1
017	28FA009CP	ISG SECONDARY HOSE-LH	28FA009CP ISG SECONDARY HOSE-LH Row ID: ID__28FA009CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	28FA010CP	ISG SECONDARY HOSE-RH	28FA010CP ISG SECONDARY HOSE-RH Row ID: ID__28FA010CP_ContPgHS; Resolution: Available;	-	1	Enquire
019	28FA011CP	ISG MOUNTING PLATE - COUPE	28FA011CP ISG MOUNTING PLATE - COUPE Row ID: ID__28FA011CP_ContPgHS; Resolution: Available;	-	2	Enquire
020	28FA012CP	ISG SPIGOT - OUTLET	28FA012CP ISG SPIGOT - OUTLET Row ID: ID__28FA012CP_ContPgHS; Resolution: Available;	-	2	Enquire
021	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID__00RG018_ContPgHS; Resolution: Available;	-	4	Enquire
022	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Row ID: ID__00RB120_ContPgHS; Resolution: Available;	-	2	Enquire
023	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE Row ID: ID__00RB057_ContPgHS; Resolution: Available;	-	2	Enquire
024	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	4	Enquire
025	00RB204	CLAMP - SPRING BAND - 27X12	00RB204 CLAMP - SPRING BAND - 27X12 Row ID: ID__00RB204_ContPgHS; Resolution: Available;	-	2	Enquire
026	00RC077	CONVERTIBLE ROOF	00RC077 CONVERTIBLE ROOF Row ID: ID__00RC077_ContPgHS; Resolution: Available;	-	4	Enquire
027	14FA121CP	SEAL - ISG \ ESG - BULKHEAD	14FA121CP SEAL - ISG \ ESG - BULKHEAD Row ID: ID__14FA121CP_ContPgHS; Resolution: Available;	$26.65	1
