Name: 34 - ENGINE - 34.8 - ELECTRICAL SYSTEM
Rating: 5.0 (1 reviews)

34 - ENGINE - 34.8 - ELECTRICAL SYSTEM of McLaren McLaren McLaren 750S Coupe

View All

McLaren McLaren 750S Coupe - 34 - ENGINE - 34.8 - ELECTRICAL SYSTEM

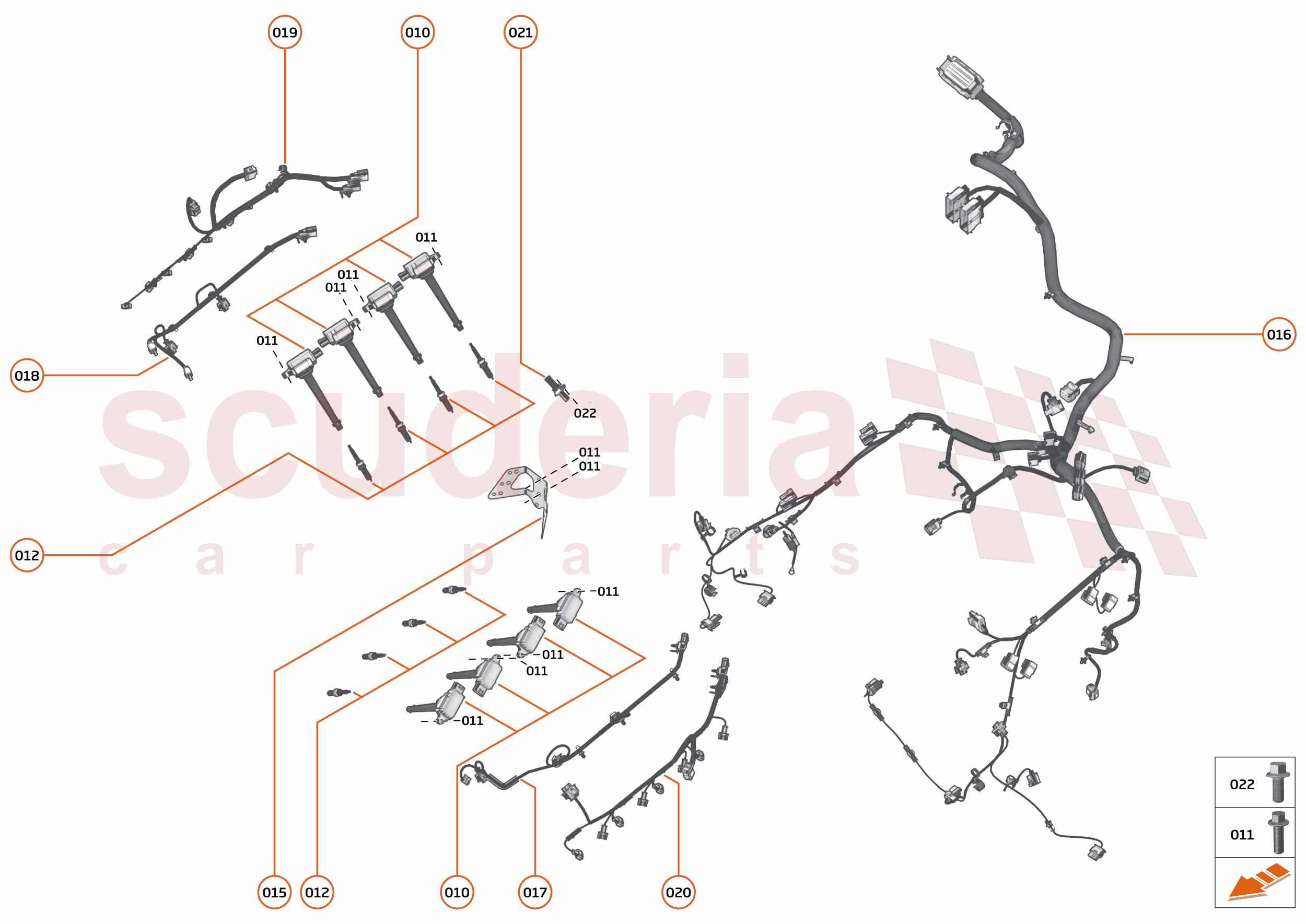

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F1892CP	Ignition Coil - Engine	$223.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1792CP	Bolt - M6x16 - Engine	$12.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1893CP	Spark Plug - Engine	$39.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0478CP	BRACKET - ENGINE HARNESS	$41.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0839CP	WIRING HARNESS - ENGINE	$1,074.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0720CP	HARNESS - VEE LINK - LH - LH	$63.90	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0483CP	HARNESS - VEE LINK - RH	$82.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA291CP	HARNESS - ENGINE LINK - INJECTORS - RH	$173.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA292CP	HARNESS - ENGINE LINK - INJECTORS - LH	$173.17	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1894CP	SENSOR - ENGINE KNOCK	Enquire	To Order
	11F2191CP	Sensor - Engine - Crank Position	$54.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	$10.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11F1892CP	Ignition Coil - Engine	11F1892CP Ignition Coil - Engine Row ID: ID__11F1892CP_ContPgHS; Resolution: Available;	$223.40	8
011	11F1792CP	Bolt - M6x16 - Engine	11F1792CP Bolt - M6x16 - Engine Row ID: ID__11F1792CP_ContPgHS; Resolution: Available;	$12.08	4
012	11F1893CP	Spark Plug - Engine	11F1893CP Spark Plug - Engine Row ID: ID__11F1893CP_ContPgHS; Resolution: Available;	$39.97	8
014	11F1783CP	Bolt - M8x30 - Engine - Thermostat	11F1783CP Bolt - M8x30 - Engine - Thermostat Row ID: ID__11F1783CP_ContPgHS; Resolution: Available;	$13.44	4
015	14F0478CP	BRACKET - ENGINE HARNESS	14F0478CP BRACKET - ENGINE HARNESS Row ID: ID__14F0478CP_ContPgHS; Resolution: Available;	$41.86	1
016	14F0839CP	WIRING HARNESS - ENGINE	14F0839CP WIRING HARNESS - ENGINE Row ID: ID__14F0839CP_ContPgHS; Resolution: Available;	$1,074.85	1
017	14F0720CP	HARNESS - VEE LINK - LH - LH	14F0720CP HARNESS - VEE LINK - LH - LH Row ID: ID__14F0720CP_ContPgHS; Resolution: Available;	$63.90	1
018	14F0483CP	HARNESS - VEE LINK - RH	14F0483CP HARNESS - VEE LINK - RH Row ID: ID__14F0483CP_ContPgHS; Resolution: Available;	$82.17	1
019	14FA291CP	HARNESS - ENGINE LINK - INJECTORS - RH	14FA291CP HARNESS - ENGINE LINK - INJECTORS - RH Row ID: ID__14FA291CP_ContPgHS; Resolution: Available;	$173.17	1
020	14FA292CP	HARNESS - ENGINE LINK - INJECTORS - LH	14FA292CP HARNESS - ENGINE LINK - INJECTORS - LH Row ID: ID__14FA292CP_ContPgHS; Resolution: Available;	$173.17	1
021	11F1894CP	SENSOR - ENGINE KNOCK	11F1894CP SENSOR - ENGINE KNOCK Row ID: ID__11F1894CP_ContPgHS; Resolution: Available;	-	4	Enquire
021	11F2191CP	Sensor - Engine - Crank Position	11F2191CP Sensor - Engine - Crank Position Row ID: ID__11F2191CP_ContPgHS; Resolution: Available;	$54.19	1
022	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID__11F1793CP_ContPgHS; Resolution: Available;	$10.14	8

34 - Engine - 34.8 - Electrical System

McLaren McLaren 750S Coupe

McLaren McLaren 750S Coupe - 34 - ENGINE - 34.8 - ELECTRICAL SYSTEM
