33 - Heat Insulation - 33.1 - Heatshields - Powertrain Mounted

McLaren McLaren 750S Coupe

Find Your Part

McLaren McLaren 750S Coupe - 33 - HEAT INSULATION - 33.1 - HEATSHIELDS - POWERTRAIN MOUNTED

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14EA012CP HEATSHIELD-AC COMPRESSOR $165.70 To Order
View All

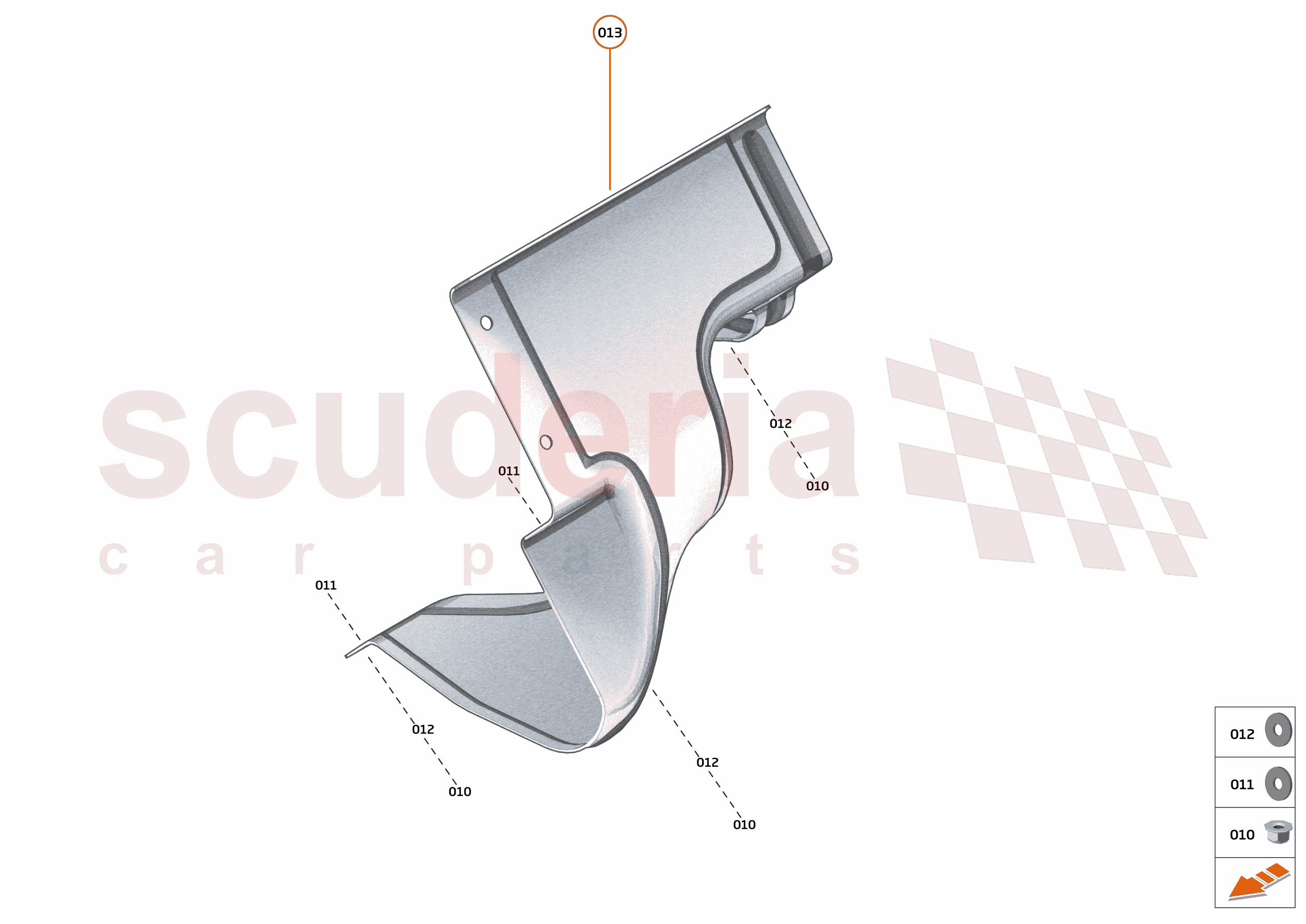

33 - HEAT INSULATION - 33.1 - HEATSHIELDS - POWERTRAIN MOUNTED of McLaren McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 3 Enquire
011 00RC015
WASHER - M8X24X2
Row ID: ID__00RC015_ContPgHS; Resolution: Available; 		- - Enquire
012 00RC064
WASHER - M6X18X1.6 - BLACK
Row ID: ID__00RC064_ContPgHS; Resolution: Available; 		- 3 Enquire
013 14EA012CP
HEATSHIELD-AC COMPRESSOR
Row ID: ID__14EA012CP_ContPgHS; Resolution: Available; 		$165.70 1
