46 - INFOTAINMENT - 46.5 - CAMERAS of McLaren McLaren McLaren 750S Coupe

View All

McLaren McLaren 750S Coupe - 46 - INFOTAINMENT - 46.5 - CAMERAS

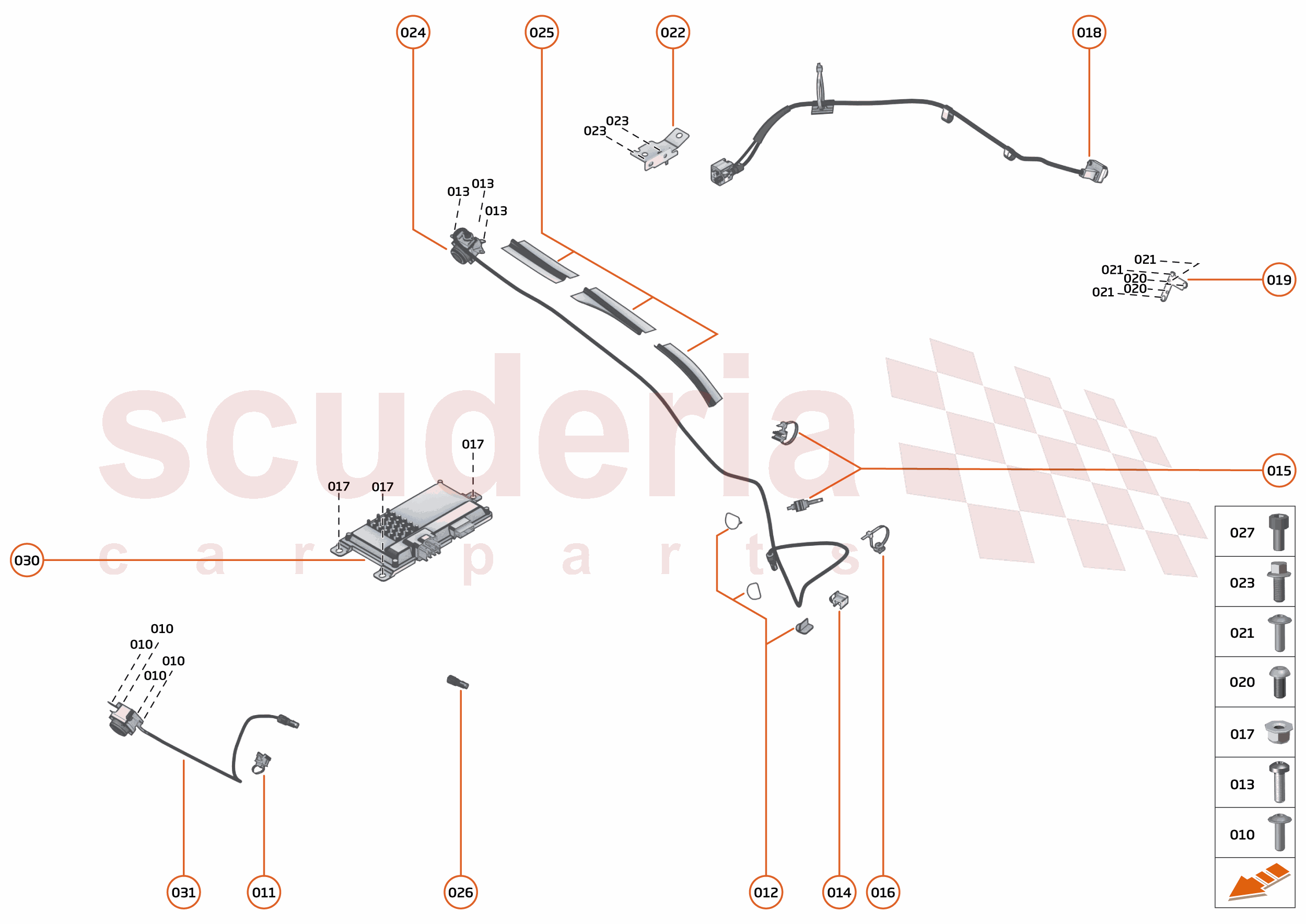

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA363	SCREW - TORX - 4X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7405CP	CLIP - HARNESS	$18.11	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA524	Screw - Torx - 4x10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT - M6 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA289RP	REAR CAMERA-GTR	$507.57	To Order

Photo	Part No	Description	Price (each)	Stock
	28MA426CP	REAR VIEW CAMERA BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA706	SCR-PAN HD-TX-PTF-2.2X6-STL-80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA607	SCREW - TORX - PAN HEAD - M3X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28MA453CP	RVC CONNECTORS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14MA519CP	CAMERA 180 DEGREES-CABIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13M1511CP	Tape - Duplocoll 2100FL	$0.16	To Order
	00RL004	FELT TAPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14M1190CP	BLANK - CAMERA CONNECTOR	$12.40	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA303	SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28MA368CP	CAMERAS ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16MA981CP	MA CAMERA 180 DEGREES-FRONT	$462.78	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS; Resolution: Available;	-	2	Enquire
010	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12 Row ID: ID__00RA363_ContPgHS; Resolution: Available;	-	4	Enquire
011	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	00RG024 CABLE TIE - 90 DEG - EDGE PANEL Row ID: ID__00RG024_ContPgHS; Resolution: Available;	-	1	Enquire
012	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Row ID: ID__11A7405CP_ContPgHS; Resolution: Available;	$18.11	3
013	00RA524	Screw - Torx - 4x10	00RA524 Screw - Torx - 4x10 Row ID: ID__00RA524_ContPgHS; Resolution: Available;	-	3	Enquire
014	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS; Resolution: Available;	-	1	Enquire
015	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM Row ID: ID__00RL011_ContPgHS; Resolution: Available;	-	2	Enquire
016	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS; Resolution: Available;	-	1	Enquire
017	00RA011	NUT - M6 - FLANGE HEX	00RA011 NUT - M6 - FLANGE HEX Row ID: ID__00RA011_ContPgHS; Resolution: Available;	-	3	Enquire
018	13MA289RP	REAR CAMERA-GTR	13MA289RP REAR CAMERA-GTR Row ID: ID__13MA289RP_ContPgHS; Resolution: Available;	$507.57	1
019	28MA426CP	REAR VIEW CAMERA BRACKET	28MA426CP REAR VIEW CAMERA BRACKET Row ID: ID__28MA426CP_ContPgHS; Resolution: Available;	-	1	Enquire
020	00RA706	SCR-PAN HD-TX-PTF-2.2X6-STL-80	00RA706 SCR-PAN HD-TX-PTF-2.2X6-STL-80 Row ID: ID__00RA706_ContPgHS; Resolution: Available;	-	2	Enquire
021	00RA607	SCREW - TORX - PAN HEAD - M3X12	00RA607 SCREW - TORX - PAN HEAD - M3X12 Row ID: ID__00RA607_ContPgHS; Resolution: Available;	-	3	Enquire
022	28MA453CP	RVC CONNECTORS BRACKET	28MA453CP RVC CONNECTORS BRACKET Row ID: ID__28MA453CP_ContPgHS; Resolution: Available;	-	1	Enquire
023	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS; Resolution: Available;	-	2	Enquire
024	14MA519CP	CAMERA 180 DEGREES-CABIN	14MA519CP CAMERA 180 DEGREES-CABIN Row ID: ID__14MA519CP_ContPgHS; Resolution: Available;	-	1	Enquire
025	13M1511CP	Tape - Duplocoll 2100FL	13M1511CP Tape - Duplocoll 2100FL Row ID: ID__13M1511CP_ContPgHS; Resolution: Available;	$0.16	1
025	00RL004	FELT TAPE	00RL004 FELT TAPE Row ID: ID__00RL004_ContPgHS; Resolution: Available;	-	1	Enquire
026	14M1190CP	BLANK - CAMERA CONNECTOR	14M1190CP BLANK - CAMERA CONNECTOR Row ID: ID__14M1190CP_ContPgHS; Resolution: Available;	$12.40	1
027	00RA303	SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK	00RA303 SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK Row ID: ID__00RA303_ContPgHS; Resolution: Available;	-	4	Enquire
030	28MA368CP	CAMERAS ECU	28MA368CP CAMERAS ECU Row ID: ID__28MA368CP_ContPgHS; Resolution: Available;	-	1	Enquire
031	16MA981CP	MA CAMERA 180 DEGREES-FRONT	16MA981CP MA CAMERA 180 DEGREES-FRONT Row ID: ID__16MA981CP_ContPgHS; Resolution: Available;	$462.78	1
