46 - INFOTAINMENT - 46.2 - ANTENNA SYSTEM of McLaren McLaren McLaren 750S Coupe

View All

McLaren McLaren 750S Coupe - 46 - INFOTAINMENT - 46.2 - ANTENNA SYSTEM

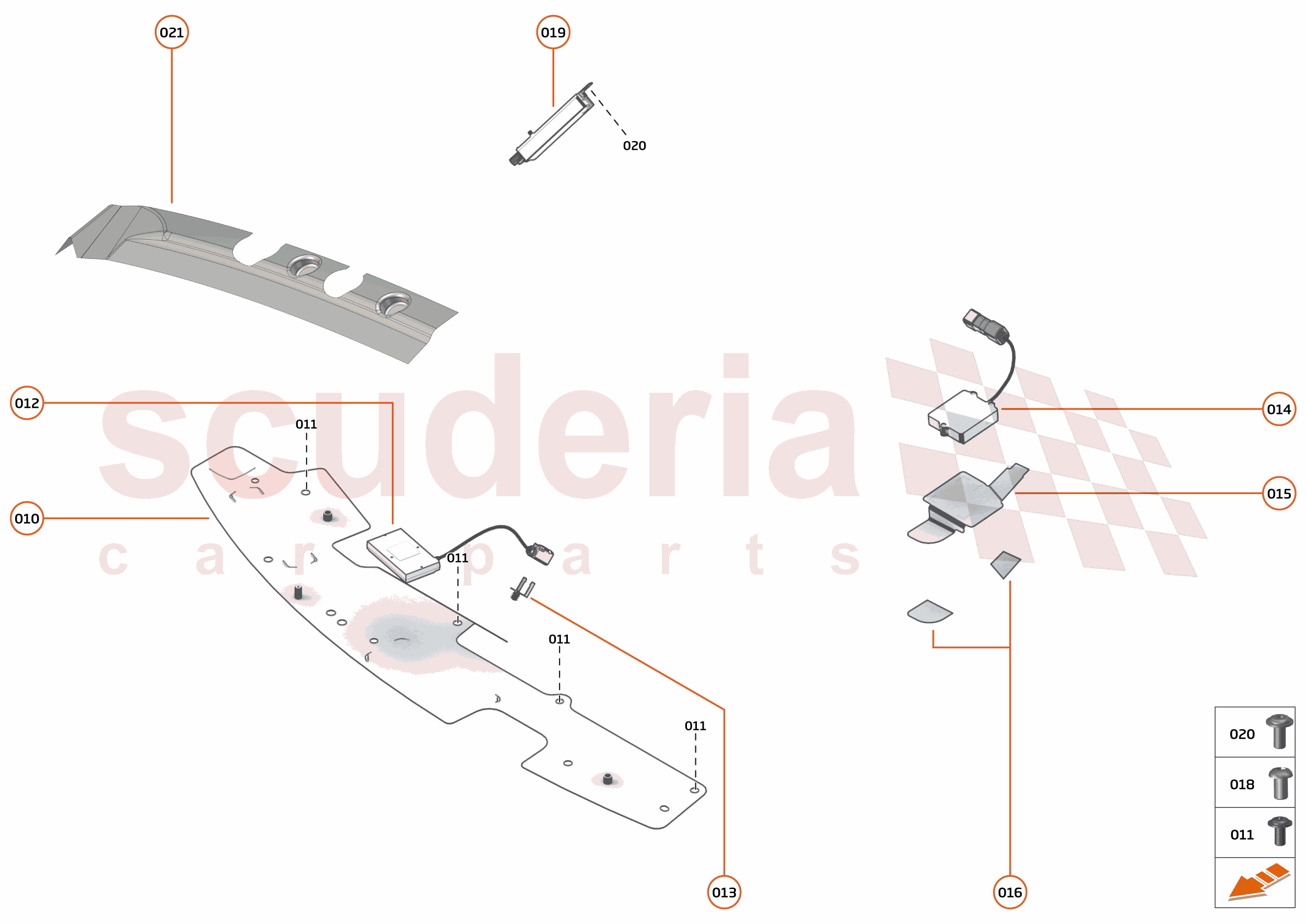

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	28MA377CP	MTG PNL-ANTENNA-LHD	Enquire	To Order
	28MA378CP	MTG PNL-ANTENNA-RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16MA439CP	ANTENNA-GNSS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0555CP	CONNECTOR HOLDER - SINGLE	$12.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14M0251CP	ANTENNA - SIRIUS - MY18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14MA139CP	BRACKET - ANTENNA - SIRIUS XM	$27.39	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL004	FELT TAPE	Enquire	To Order
	11C0593CP	TAPE ADHESIVE - COROPLAST - 837X - 19X100MM	$25.77	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA116	SCREW - M6X10 - BUTTON - 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0454CP	ANTENNA - AM/FM AMPLIFIER	$166.55	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA142	SCREW - M6X8 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14MA299CP	GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN LHD	Enquire	To Order
	14MA300CP	GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN RHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	2	Enquire
000	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS; Resolution: Available;	-	1	Enquire
010	28MA377CP	MTG PNL-ANTENNA-LHD	28MA377CP MTG PNL-ANTENNA-LHD Row ID: ID__28MA377CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	28MA378CP	MTG PNL-ANTENNA-RHD	28MA378CP MTG PNL-ANTENNA-RHD Row ID: ID__28MA378CP_ContPgHS; Resolution: Available;	-	1	Enquire
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS; Resolution: Available;	-	4	Enquire
012	16MA439CP	ANTENNA-GNSS	16MA439CP ANTENNA-GNSS Row ID: ID__16MA439CP_ContPgHS; Resolution: Available;	-	1	Enquire
013	12M0555CP	CONNECTOR HOLDER - SINGLE	12M0555CP CONNECTOR HOLDER - SINGLE Row ID: ID__12M0555CP_ContPgHS; Resolution: Available;	$12.22	1
014	14M0251CP	ANTENNA - SIRIUS - MY18	14M0251CP ANTENNA - SIRIUS - MY18 Row ID: ID__14M0251CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	14MA139CP	BRACKET - ANTENNA - SIRIUS XM	14MA139CP BRACKET - ANTENNA - SIRIUS XM Row ID: ID__14MA139CP_ContPgHS; Resolution: Available;	$27.39	1
016	00RL004	FELT TAPE	00RL004 FELT TAPE Row ID: ID__00RL004_ContPgHS; Resolution: Available;	-	1	Enquire
016	11C0593CP	TAPE ADHESIVE - COROPLAST - 837X - 19X100MM	11C0593CP TAPE ADHESIVE - COROPLAST - 837X - 19X100MM Row ID: ID__11C0593CP_ContPgHS; Resolution: Available;	$25.77	1
018	00RA116	SCREW - M6X10 - BUTTON - 8.8	00RA116 SCREW - M6X10 - BUTTON - 8.8 Row ID: ID__00RA116_ContPgHS; Resolution: Available;	-	1	Enquire
019	11M0454CP	ANTENNA - AM/FM AMPLIFIER	11M0454CP ANTENNA - AM/FM AMPLIFIER Row ID: ID__11M0454CP_ContPgHS; Resolution: Available;	$166.55	1
020	00RA142	SCREW - M6X8 - BUTTON	00RA142 SCREW - M6X8 - BUTTON Row ID: ID__00RA142_ContPgHS; Resolution: Available;	-	1	Enquire
021	14MA299CP	GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN LHD	14MA299CP GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN LHD Row ID: ID__14MA299CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	14MA300CP	GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN RHD	14MA300CP GROUND PLANE - AM-FM ANTENNA - A PILLAR - AM-FM ANTENNA CU GND PLN RHD Row ID: ID__14MA300CP_ContPgHS; Resolution: Available;	-	1	Enquire
