44 - Electrical Systems - 44.1 - Interior Switches

McLaren McLaren 750S Coupe

Find Your Part

McLaren McLaren 750S Coupe - 44 - ELECTRICAL SYSTEMS - 44.1 - INTERIOR SWITCHES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13MA178CP CONTROL UNIT - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
14MA283CP SWITCHPACK - CENTRE CONSOLE DISPLAY $680.46 To Order
Photo Part No Description Price (each) Stock
14MA399CP BUTTON - ENGINE START/STOP $372.74 To Order
Photo Part No Description Price (each) Stock
14MA380CP SWITCH - HAZARD LIGHTS - LHD Enquire To Order
14MA402CP SWITCH - HAZARD LIGHTS - RHD $139.39 To Order
Photo Part No Description Price (each) Stock
14MA381CP SWITCH - STOP-START - DEACTIVATION - LHD Enquire To Order
14MA386CP SWITCH - STOP-START - DEACTIVATION - RHD $218.89 To Order
Photo Part No Description Price (each) Stock
14MA382CP SWITCH - LAUNCH CONTROL - LHD Enquire To Order
14MA385CP SWITCH - LAUNCH CONTROL - RHD $132.33 To Order
28MA365CP LAUNCH SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
14MA383CP SWITCH - AERO - LHD Enquire To Order
14MA387CP SWITCH - AERO - RHD $203.03 To Order
28MA366CP AERO SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
14MA400CP SWITCH - ACTIVE $215.72 To Order
28MA364CP MODE RESET SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
28MA436CP DRIVE SWITCH LHD Enquire To Order
28MA439CP DRIVE SWITCH RHD Enquire To Order
Photo Part No Description Price (each) Stock
28MA437CP NEUTRAL SWITCH LHD Enquire To Order
28MA440CP NEUTRAL SWITCH RHD Enquire To Order
Photo Part No Description Price (each) Stock
28MA438CP REVERSE SWITCH LHD Enquire To Order
28MA441CP REVERSE SWITCH RHD Enquire To Order
Photo Part No Description Price (each) Stock
28MA393CP POWERTRAIN DYNAMICS CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
14MA358CP BRACKET - CONTROL UNIT - ROOF $38.35 To Order
Photo Part No Description Price (each) Stock
14M0053CP AUXILIARY CONTROL PANEL - DOOR $239.51 To Order
Photo Part No Description Price (each) Stock
14M0054CP AUXILIARY CONTROL PANEL - NO IRS - DOOR $210.96 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA607 SCREW - TORX - PAN HEAD - M3X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA615 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
View All

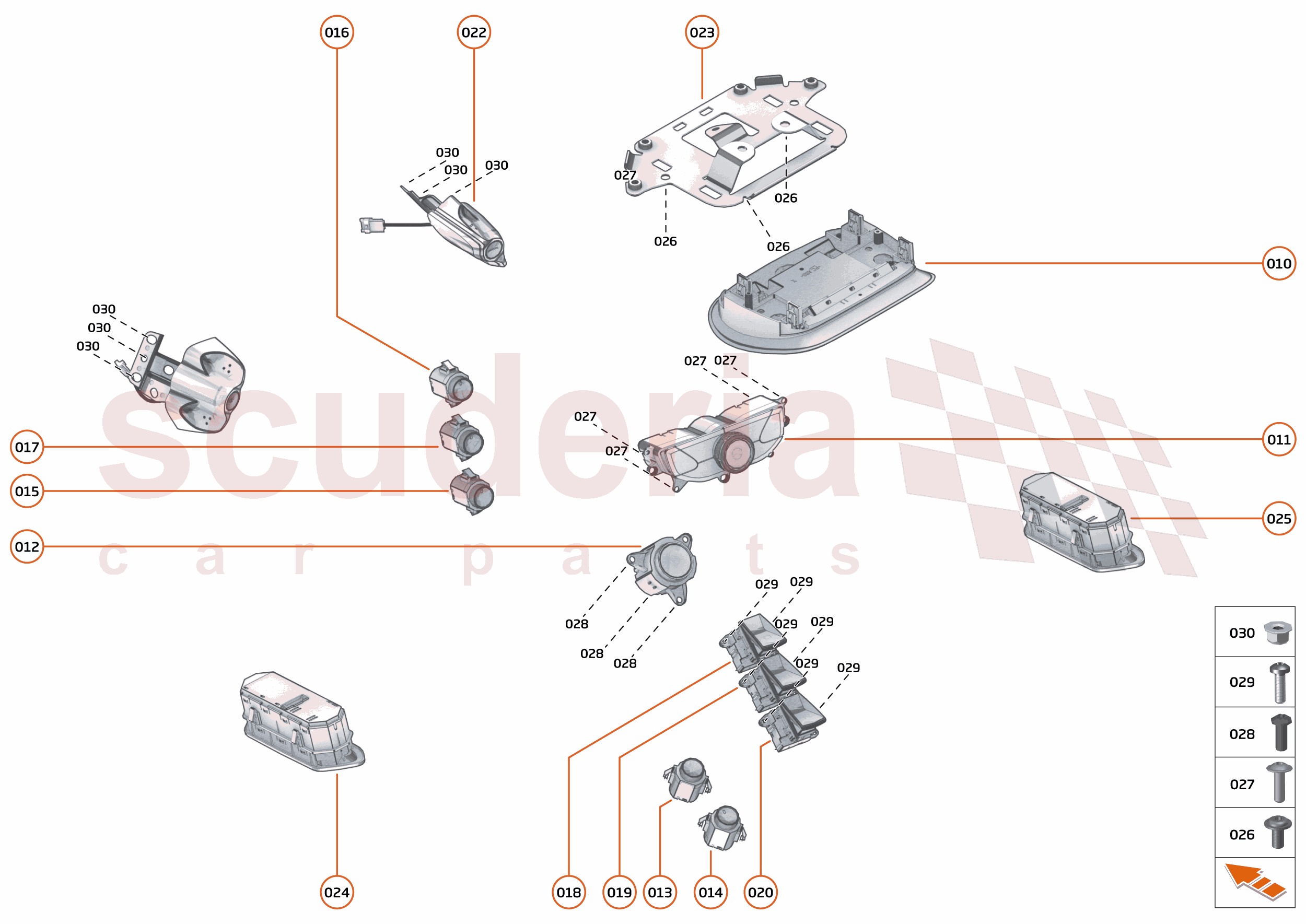

44 - ELECTRICAL SYSTEMS - 44.1 - INTERIOR SWITCHES of McLaren McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13MA178CP
CONTROL UNIT - ROOF
Row ID: ID__13MA178CP_ContPgHS; 		- 1 Enquire
011 14MA283CP
SWITCHPACK - CENTRE CONSOLE DISPLAY
Row ID: ID__14MA283CP_ContPgHS; Resolution: Available; 		$680.46 1
012 14MA399CP
BUTTON - ENGINE START/STOP
Row ID: ID__14MA399CP_ContPgHS; Resolution: Available; 		$372.74 1
013 14MA380CP
SWITCH - HAZARD LIGHTS - LHD
Row ID: ID__14MA380CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 14MA402CP
SWITCH - HAZARD LIGHTS - RHD
Row ID: ID__14MA402CP_ContPgHS; Resolution: Available; 		$139.39 1
014 14MA381CP
SWITCH - STOP-START - DEACTIVATION - LHD
Row ID: ID__14MA381CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 14MA386CP
SWITCH - STOP-START - DEACTIVATION - RHD
Row ID: ID__14MA386CP_ContPgHS; Resolution: Available; 		$218.89 1
015 14MA382CP
SWITCH - LAUNCH CONTROL - LHD
Row ID: ID__14MA382CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 14MA385CP
SWITCH - LAUNCH CONTROL - RHD
Row ID: ID__14MA385CP_ContPgHS; Resolution: Available; 		$132.33 1
015 28MA365CP
LAUNCH SWITCH
Row ID: ID__28MA365CP_ContPgHS; Resolution: Available; 		- 1 Enquire
016 14MA383CP
SWITCH - AERO - LHD
Row ID: ID__14MA383CP_ContPgHS; Resolution: Available; 		- 1 Enquire
016 14MA387CP
SWITCH - AERO - RHD
Row ID: ID__14MA387CP_ContPgHS; Resolution: Available; 		$203.03 1
016 28MA366CP
AERO SWITCH
Row ID: ID__28MA366CP_ContPgHS; Resolution: Available; 		- 1 Enquire
017 14MA400CP
SWITCH - ACTIVE
Row ID: ID__14MA400CP_ContPgHS; Resolution: Available; 		$215.72 1
017 28MA364CP
MODE RESET SWITCH
Row ID: ID__28MA364CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 28MA436CP
DRIVE SWITCH LHD
Row ID: ID__28MA436CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 28MA439CP
DRIVE SWITCH RHD
Row ID: ID__28MA439CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 28MA437CP
NEUTRAL SWITCH LHD
Row ID: ID__28MA437CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 28MA440CP
NEUTRAL SWITCH RHD
Row ID: ID__28MA440CP_ContPgHS; Resolution: Available; 		- 1 Enquire
020 28MA438CP
REVERSE SWITCH LHD
Row ID: ID__28MA438CP_ContPgHS; Resolution: Available; 		- 1 Enquire
020 28MA441CP
REVERSE SWITCH RHD
Row ID: ID__28MA441CP_ContPgHS; Resolution: Available; 		- 1 Enquire
021 28MA394CP
HANDLING DYNAMICS CONTROL
Row ID: ID__28MA394CP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 28MA393CP
POWERTRAIN DYNAMICS CONTROL
Row ID: ID__28MA393CP_ContPgHS; Resolution: Available; 		- 1 Enquire
023 14MA358CP
BRACKET - CONTROL UNIT - ROOF
Row ID: ID__14MA358CP_ContPgHS; Resolution: Available; 		$38.35 1
024 14M0053CP
AUXILIARY CONTROL PANEL - DOOR
Row ID: ID__14M0053CP_ContPgHS; Resolution: Available; 		$239.51 1
025 14M0054CP
AUXILIARY CONTROL PANEL - NO IRS - DOOR
Row ID: ID__14M0054CP_ContPgHS; Resolution: Available; 		$210.96 1
026 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 3 Enquire
027 00RA607
SCREW - TORX - PAN HEAD - M3X12
Row ID: ID__00RA607_ContPgHS; Resolution: Available; 		- 4 Enquire
028 00RA140
SCREW - 3X8 - TORX
Row ID: ID__00RA140_ContPgHS; Resolution: Available; 		- 3 Enquire
029 00RA615
SCREW - TORX - 3.5X12
Row ID: ID__00RA615_ContPgHS; Resolution: Available; 		- 6 Enquire
030 00RA582
NUT - M5 - HEX
Row ID: ID__00RA582_ContPgHS; Resolution: Available; 		- 6 Enquire
