5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE of McLaren McLaren McLaren 750S Coupe

View All

McLaren McLaren 750S Coupe - 5 - UPPER STRUCTURES - 5.2 - REAR UPPER STRUCTURE

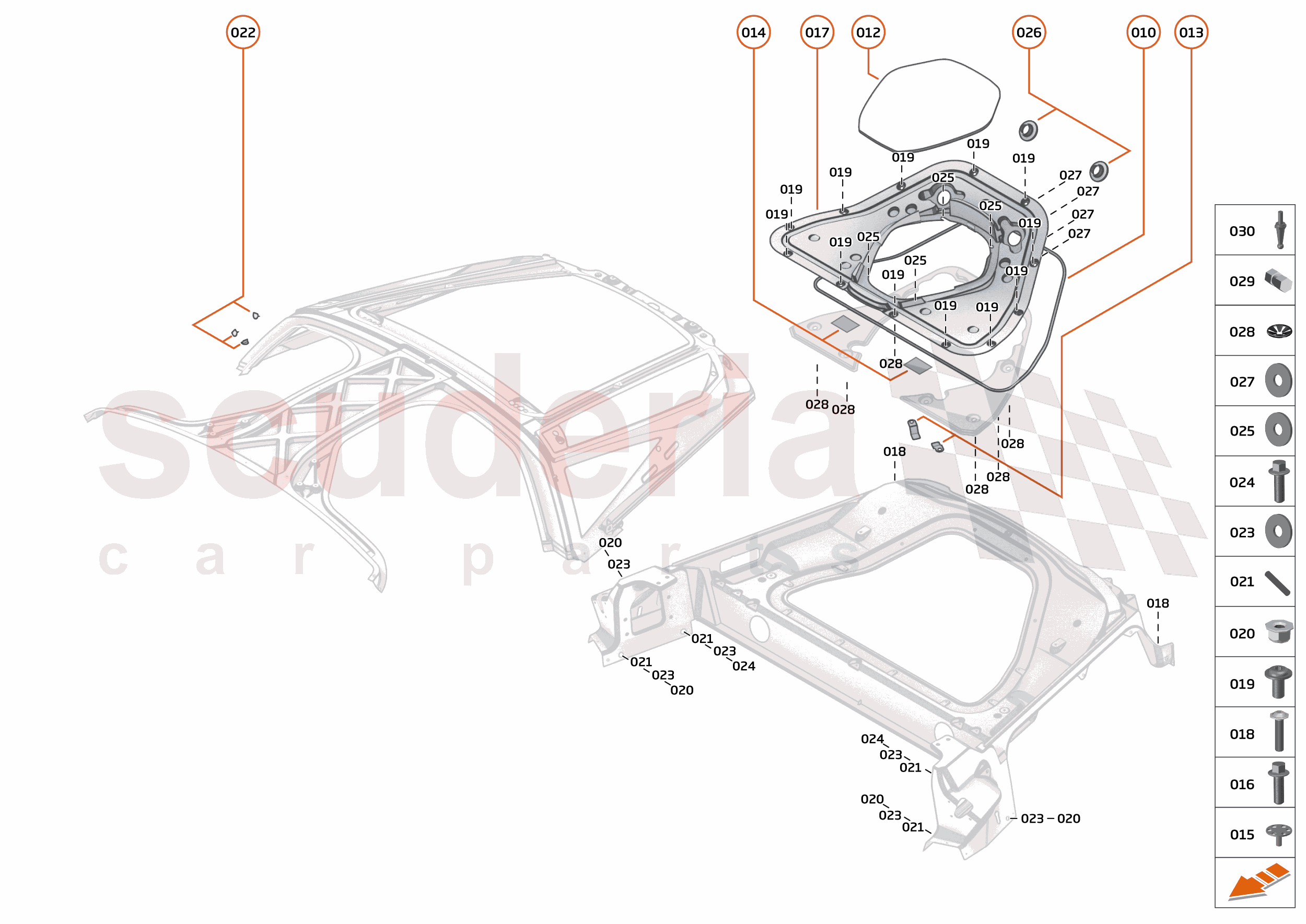

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14AA333CP	FOAM SEAL - SERVICE HATCH	$14.44	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA182RP	ASSY-SERVICE HATCH GLAZING	$597.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB440RP	BRKT-SERVICE HATCH 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3464CP	SPACER - BULKHEAD GLASS	$7.35	To Order

Photo	Part No	Description	Price (each)	Stock
	00RK005	STUD CIRCLE BASE M6X16-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA557	BOLT - HEX HEAD - M8X1.25X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC028RP	SERVICE HATCH NON-GLAZING ASSY	Enquire	To Order
	28AA376CP	SERVICE HATCH-GLAZING ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA410	BOLT - BUTTON - FLANGE - M6X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA242	STUD - M8X1.25X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7405CP	CLIP - HARNESS	$18.11	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC104	WASHER - M8X24X2 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA606	BOLT - M8X1.25 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14HA051RP	GROMMET - ESG SYMPOSER	$17.59	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC051	WASHER - M6X4.0MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC039	WASHER - M6 - STAR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3890CP	SMC COMOULDED HEXINSERT M6X9	$22.57	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA788	STUD-BALL-M6X12X28-8.8-ZNPC	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AA333CP	FOAM SEAL - SERVICE HATCH	14AA333CP FOAM SEAL - SERVICE HATCH Row ID: ID__14AA333CP_ContPgHS; Resolution: Available;	$14.44	1
012	14AA182RP	ASSY-SERVICE HATCH GLAZING	14AA182RP ASSY-SERVICE HATCH GLAZING Row ID: ID__14AA182RP_ContPgHS; Resolution: Available;	$597.15	1
013	14AB440RP	BRKT-SERVICE HATCH 1	14AB440RP BRKT-SERVICE HATCH 1 Row ID: ID__14AB440RP_ContPgHS; Resolution: Available;	-	2	Enquire
014	11A3464CP	SPACER - BULKHEAD GLASS	11A3464CP SPACER - BULKHEAD GLASS Row ID: ID__11A3464CP_ContPgHS; Resolution: Available;	$7.35	2
015	00RK005	STUD CIRCLE BASE M6X16-SS-00	00RK005 STUD CIRCLE BASE M6X16-SS-00 Row ID: ID__00RK005_ContPgHS; Resolution: Available;	-	15	Enquire
016	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS; Resolution: Available;	-	3	Enquire
017	14AC028RP	SERVICE HATCH NON-GLAZING ASSY	14AC028RP SERVICE HATCH NON-GLAZING ASSY Row ID: ID__14AC028RP_ContPgHS; Resolution: Available;	-	1	Enquire
017	28AA376CP	SERVICE HATCH-GLAZING ASSY	28AA376CP SERVICE HATCH-GLAZING ASSY Row ID: ID__28AA376CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS; Resolution: Available;	-	2	Enquire
019	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS; Resolution: Available;	-	12	Enquire
020	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX Row ID: ID__00RA056_ContPgHS; Resolution: Available;	-	4	Enquire
021	00RA242	STUD - M8X1.25X35	00RA242 STUD - M8X1.25X35 Row ID: ID__00RA242_ContPgHS; Resolution: Available;	-	4	Enquire
022	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Row ID: ID__11A7405CP_ContPgHS; Resolution: Available;	$18.11	3
023	00RC104	WASHER - M8X24X2 - BLACK	00RC104 WASHER - M8X24X2 - BLACK Row ID: ID__00RC104_ContPgHS; Resolution: Available;	-	6	Enquire
024	00RA606	BOLT - M8X1.25 - HEX	00RA606 BOLT - M8X1.25 - HEX Row ID: ID__00RA606_ContPgHS; Resolution: Available;	-	2	Enquire
025	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	4	Enquire
026	14HA051RP	GROMMET - ESG SYMPOSER	14HA051RP GROMMET - ESG SYMPOSER Row ID: ID__14HA051RP_ContPgHS; Resolution: Available;	$17.59	2
027	00RC051	WASHER - M6X4.0MM	00RC051 WASHER - M6X4.0MM Row ID: ID__00RC051_ContPgHS; Resolution: Available;	-	4	Enquire
028	00RC039	WASHER - M6 - STAR LOCK	00RC039 WASHER - M6 - STAR LOCK Row ID: ID__00RC039_ContPgHS; Resolution: Available;	-	5	Enquire
029	14A3890CP	SMC COMOULDED HEXINSERT M6X9	14A3890CP SMC COMOULDED HEXINSERT M6X9 Row ID: ID__14A3890CP_ContPgHS; Resolution: Available;	$22.57	10
030	00RA788	STUD-BALL-M6X12X28-8.8-ZNPC	00RA788 STUD-BALL-M6X12X28-8.8-ZNPC Row ID: ID__00RA788_ContPgHS; Resolution: Available;	-	4	Enquire
