7 - CLOSURES - 7.1 - BONNET STRUCTURE of McLaren McLaren McLaren 750S Coupe

View All

McLaren McLaren 750S Coupe - 7 - CLOSURES - 7.1 - BONNET STRUCTURE

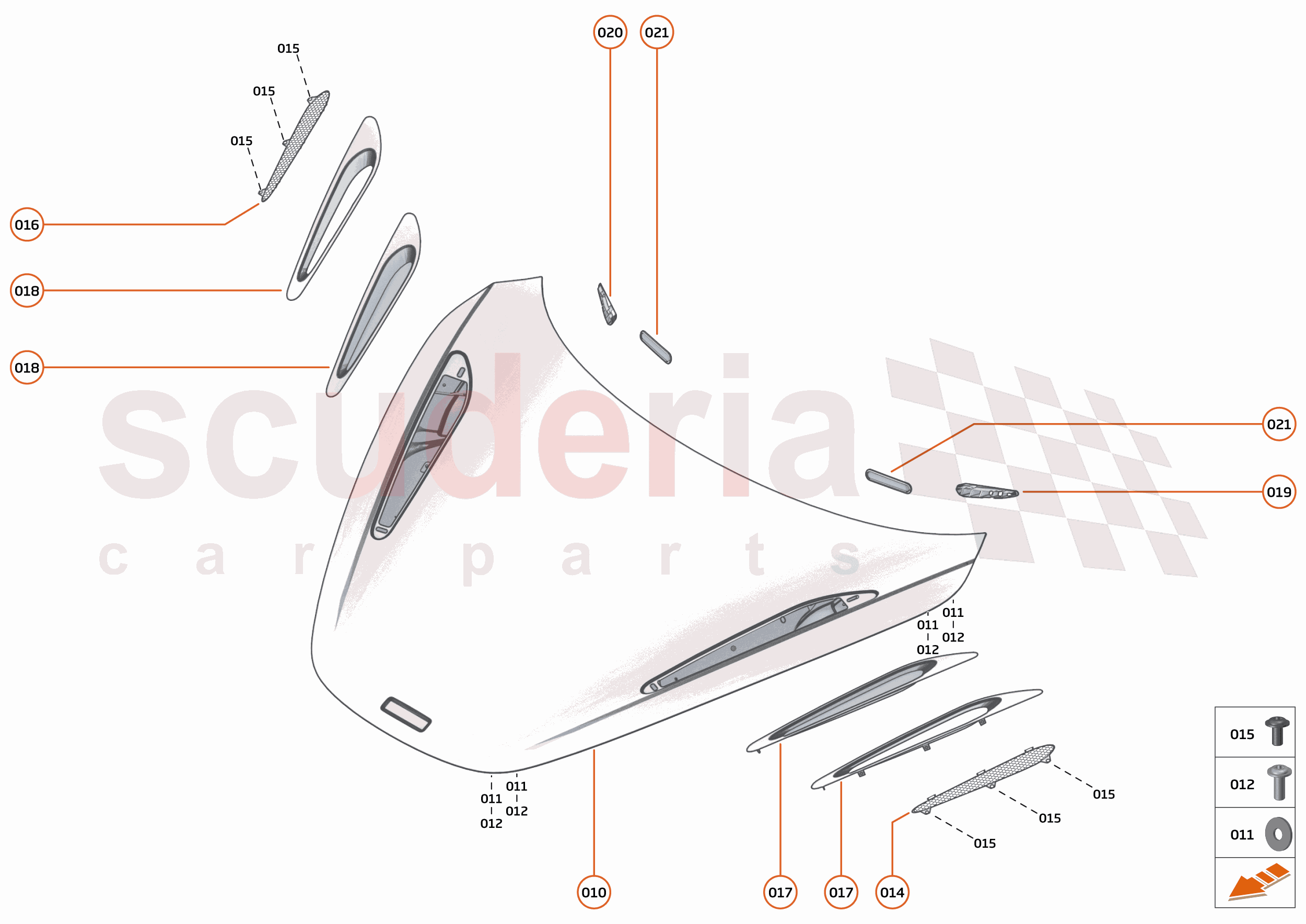

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14AB136MP	ASSY BONNET MSO CF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC064	WASHER - M6X18X1.6 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA410	BOLT - BUTTON - FLANGE - M6X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD626CP	ASSY BONNET GRILLE LH	Enquire	To Order
	14A3591CP	BONNET GRILLE - LH	$291.85	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA303	SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD628CP	ASSY BONNET GRILLE RH	Enquire	To Order
	14A3590CP	BONNET GRILLE RH	$291.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD629CP	ASSY BONNET DUCT CARBON LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AD630CP	ASSY BONNET DUCT CARBON RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB882CP	FINISHER - BONNET INNER - REAR - LH	$22.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB883CP	FINISHER - BONNET INNER - REAR - RH	$22.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB873CP	PLUG - BONNET VENT	$5.42	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	28AB127CP	TRIPLE CROWN BONNET STENCIL	28AB127CP TRIPLE CROWN BONNET STENCIL Row ID: ID__28AB127CP_ContPgHS; Resolution: Available;	-	-	Enquire
010	14AB136MP	ASSY BONNET MSO CF	14AB136MP ASSY BONNET MSO CF Row ID: ID__14AB136MP_ContPgHS;	-	1	Enquire
011	00RC064	WASHER - M6X18X1.6 - BLACK	00RC064 WASHER - M6X18X1.6 - BLACK Row ID: ID__00RC064_ContPgHS; Resolution: Available;	-	4	Enquire
012	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS; Resolution: Available;	-	4	Enquire
014	14AD626CP	ASSY BONNET GRILLE LH	14AD626CP ASSY BONNET GRILLE LH Row ID: ID__14AD626CP_ContPgHS;	-	1	Enquire
014	14A3591CP	BONNET GRILLE - LH	14A3591CP BONNET GRILLE - LH Row ID: ID__14A3591CP_ContPgHS; Resolution: Available;	$291.85	1
015	00RA303	SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK	00RA303 SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK Row ID: ID__00RA303_ContPgHS; Resolution: Available;	-	3	Enquire
016	14AD628CP	ASSY BONNET GRILLE RH	14AD628CP ASSY BONNET GRILLE RH Row ID: ID__14AD628CP_ContPgHS;	-	1	Enquire
016	14A3590CP	BONNET GRILLE RH	14A3590CP BONNET GRILLE RH Row ID: ID__14A3590CP_ContPgHS; Resolution: Available;	$291.85	1
017	14AD629CP	ASSY BONNET DUCT CARBON LH	14AD629CP ASSY BONNET DUCT CARBON LH Row ID: ID__14AD629CP_ContPgHS;	-	1	Enquire
018	14AD630CP	ASSY BONNET DUCT CARBON RH	14AD630CP ASSY BONNET DUCT CARBON RH Row ID: ID__14AD630CP_ContPgHS;	-	1	Enquire
019	14AB882CP	FINISHER - BONNET INNER - REAR - LH	14AB882CP FINISHER - BONNET INNER - REAR - LH Row ID: ID__14AB882CP_ContPgHS; Resolution: Available;	$22.46	1
020	14AB883CP	FINISHER - BONNET INNER - REAR - RH	14AB883CP FINISHER - BONNET INNER - REAR - RH Row ID: ID__14AB883CP_ContPgHS; Resolution: Available;	$22.46	1
021	14AB873CP	PLUG - BONNET VENT	14AB873CP PLUG - BONNET VENT Row ID: ID__14AB873CP_ContPgHS; Resolution: Available;	$5.42	2
