42 - Wiring Harness - 42.3 - Non-Body Wiring Harness

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 42 - WIRING HARNESS - 42.3 - NON-BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14MA044SP HARNESS SPIDER ROOF FED $125.73 To Order
14MA043SP HARNESS SPIDER ROOF RHD $125.73 To Order
14MA042SP HARNESS SPIDER ROOF LHD $125.73 To Order
Photo Part No Description Price (each) Stock
14MA081SP HARNESS SPIDER PASS DOOR LHD Enquire To Order
14MA085SP HARNESS SPIDER PASS DOOR LHD CAM Enquire To Order
14MA082SP HARNESS SPIDER PASS DOOR LHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14MA080SP HARNESS SPIDER DVR DOOR LHD Enquire To Order
14MA084SP HARNESS SPIDER DVR DOOR LHD CAM $2,488.09 To Order
14MA170SP HARNESS SPIDER DVR DOOR RHD CAM $2,220.61 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14MA475CP WIRING HARNESS - BUMPER - FRONT $48.95 To Order
14MA476CP WIRING HARNESS - BUMPER - FRONT - PDC $650.88 To Order
Photo Part No Description Price (each) Stock
14MA477CP WIRING HARNESS - BUMPER - REAR $87.79 To Order
14MA478CP WIRING HARNESS - BUMPER - REAR - PDC $352.82 To Order
Photo Part No Description Price (each) Stock
00RA116 SCREW - M6X10 - BUTTON - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
14M1230CP TAPE - DUPLOCOLL - 17X30 $3.78 To Order
Photo Part No Description Price (each) Stock
14MA107SP HARNESS SPIDER ENGINE BAY LAMPS $172.72 To Order
Photo Part No Description Price (each) Stock
14MA108SP HARNESS SPIDER SWITCHES FLY LEAD Enquire To Order
Photo Part No Description Price (each) Stock
14MA079SP HARNESS SPIDER CHMSL FLY LEAD Enquire To Order
Photo Part No Description Price (each) Stock
14MA117SP CHMSL TONNEAU GROMMET $56.42 To Order
Photo Part No Description Price (each) Stock
00RL010 SEAT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
14MA249CP HARNESS - HUB LEAD $40.39 To Order
View All

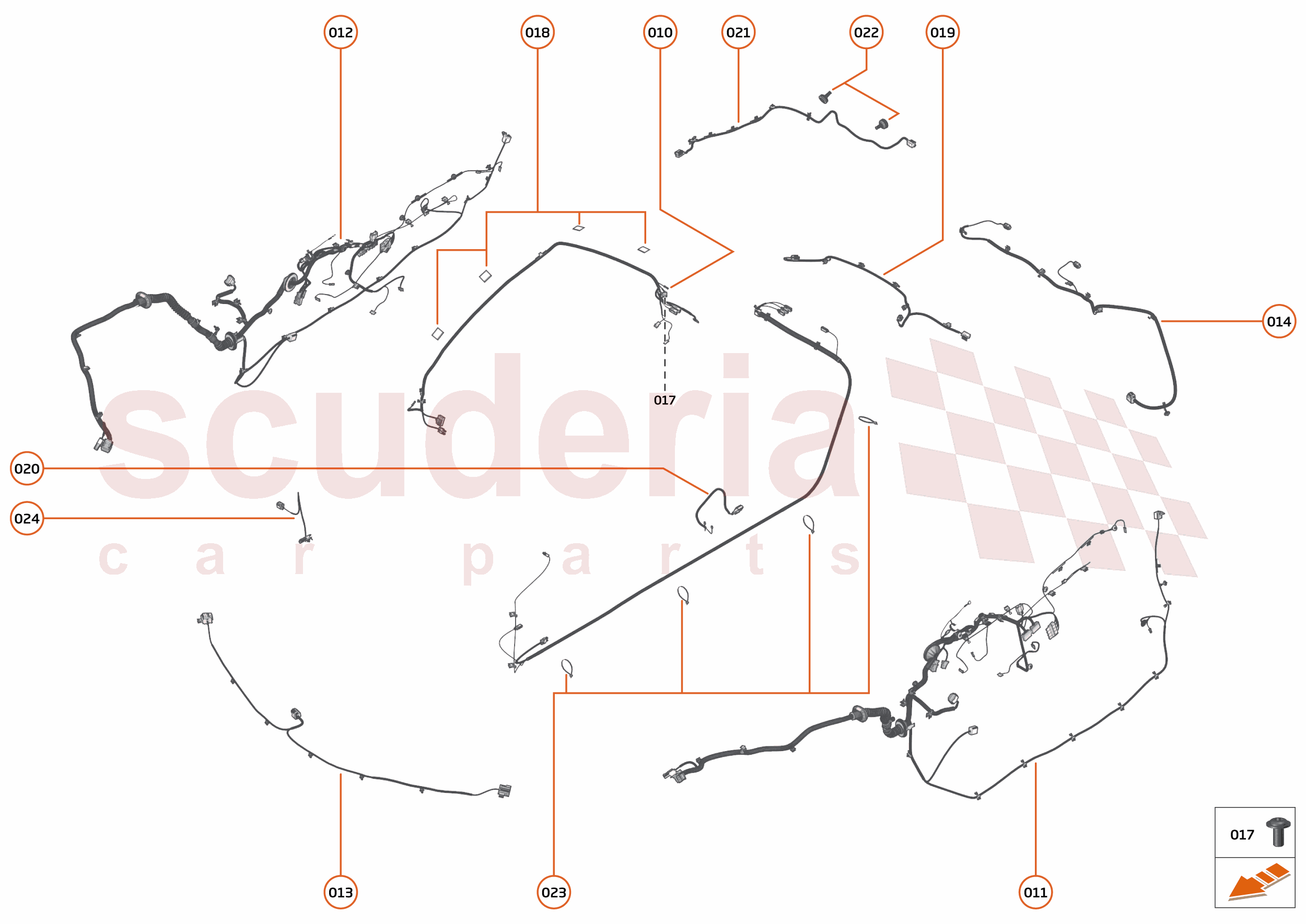

42 - WIRING HARNESS - 42.3 - NON-BODY WIRING HARNESS of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14MA044SP
HARNESS SPIDER ROOF FED
Row ID: ID_DGMA0329_14MA044SP_ContPgHS; Resolution: Available; 		$125.73 1
010 14MA043SP
HARNESS SPIDER ROOF RHD
Row ID: ID_DGMA0330_14MA043SP_ContPgHS; Resolution: Available; 		$125.73 1
010 14MA042SP
HARNESS SPIDER ROOF LHD
Row ID: ID_DGMA0331_14MA042SP_ContPgHS; Resolution: Available; 		$125.73 1
011 14MA081SP
HARNESS SPIDER PASS DOOR LHD
Row ID: ID_DGMA0322_14MA081SP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 14MA085SP
HARNESS SPIDER PASS DOOR LHD CAM
Row ID: ID_DGMA0324_14MA085SP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 14MA082SP
HARNESS SPIDER PASS DOOR LHD
Row ID: ID_DGMA0325_14MA082SP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 14MA083SP
HARNESS SPIDER PASS DOOR RHD
Row ID: ID_DGMA0326_14MA083SP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 14MA080SP
HARNESS SPIDER DVR DOOR LHD
Row ID: ID_DGMA0320_14MA080SP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 14MA084SP
HARNESS SPIDER DVR DOOR LHD CAM
Row ID: ID_DGMA0323_14MA084SP_ContPgHS; Resolution: Available; 		$2,488.09 1
012 14MA170SP
HARNESS SPIDER DVR DOOR RHD CAM
Row ID: ID_DGMA0327_14MA170SP_ContPgHS; Resolution: Available; 		$2,220.61 1
012 14MA087SP
HARNESS SPIDER PASS DOOR RHD CAM
Row ID: ID_DGMA0328_14MA087SP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 14MA081SP
HARNESS SPIDER PASS DOOR LHD
Row ID: ID__14MA081SP_ContPgHS; Resolution: Available; 		- - Enquire
013 14MA475CP
WIRING HARNESS - BUMPER - FRONT
Row ID: ID_DGMA0301_14MA475CP_ContPgHS; Resolution: Available; 		$48.95 1
013 14MA476CP
WIRING HARNESS - BUMPER - FRONT - PDC
Row ID: ID_DGMA0302_14MA476CP_ContPgHS; Resolution: Available; 		$650.88 1
014 14MA477CP
WIRING HARNESS - BUMPER - REAR
Row ID: ID_DGMA0318_14MA477CP_ContPgHS; Resolution: Available; 		$87.79 1
014 14MA478CP
WIRING HARNESS - BUMPER - REAR - PDC
Row ID: ID_DGMA0319_14MA478CP_ContPgHS; Resolution: Available; 		$352.82 1
015 14MA465CP
WIRING HARNESS - ANTENNA - LHD
Row ID: ID_DGMA0307_14MA465CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 14MA466CP
WIRING HARNESS - ANTENNA - RHD
Row ID: ID_DGMA0308_14MA466CP_ContPgHS; Resolution: Available; 		$149.98 1
017 00RA116
SCREW - M6X10 - BUTTON - 8.8
Row ID: ID_XXXXXXZV_00RA116_ContPgHS; Resolution: Available; 		- 1 Enquire
018 14M1230CP
TAPE - DUPLOCOLL - 17X30
Row ID: ID_DGMA0306_14M1230CP_ContPgHS; Resolution: Available; 		$3.78 4
019 14MA107SP
HARNESS SPIDER ENGINE BAY LAMPS
Row ID: ID_DGMA0332_14MA107SP_ContPgHS; Resolution: Available; 		$172.72 1
020 14MA108SP
HARNESS SPIDER SWITCHES FLY LEAD
Row ID: ID_DGMA0333_14MA108SP_ContPgHS; Resolution: Available; 		- 1 Enquire
021 14MA079SP
HARNESS SPIDER CHMSL FLY LEAD
Row ID: ID_DGMA0334_14MA079SP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 14MA117SP
CHMSL TONNEAU GROMMET
Row ID: ID_DGMA0335_14MA117SP_ContPgHS; Resolution: Available; 		$56.42 2
023 00RL010
SEAT ASSY
Row ID: ID_XXXXXXZZ_00RL010_ContPgHS; Resolution: Available; 		- 4 Enquire
024 14MA249CP
HARNESS - HUB LEAD
Row ID: ID_DGMA0309_14MA249CP_ContPgHS; Resolution: Available; 		$40.39 1
