27 - Fuel Tank - 27.2 - Fuel Tank Retention

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 27 - FUEL TANK - 27.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
14K0143CP PAD - FUEL TANK - BULKHEAD - LOWER - RH $8.59 To Order
Photo Part No Description Price (each) Stock
14KA031CP PAD - FUEL TANK - CROSS MEMBER $11.51 To Order
Photo Part No Description Price (each) Stock
14KA032CP PAD - FUEL TANK - CROSS MEMBER - RH $5.78 To Order
Photo Part No Description Price (each) Stock
14KA033CP PAD - FUEL TANK - REAR - CENTRE $6.38 To Order
Photo Part No Description Price (each) Stock
14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK $13.45 To Order
Photo Part No Description Price (each) Stock
14K0068CP MOUNTING STRAP - FUEL TANK $82.97 To Order
Photo Part No Description Price (each) Stock
14KA024CP BRACKET - FUEL TANK - LOWER - FRONT $33.05 To Order
Photo Part No Description Price (each) Stock
00RG010 Nut Protector - M6 -Reevite Enquire To Order
Photo Part No Description Price (each) Stock
14KA005CP RETAINING STRAP - FUEL TANK - LH $81.23 To Order
Photo Part No Description Price (each) Stock
14KA006CP RETAINING STRAP - FUEL TANK - RH $81.23 To Order
Photo Part No Description Price (each) Stock
11K0105CP Stud Plate - M6x18 - Fuel Tank $29.35 To Order
View All

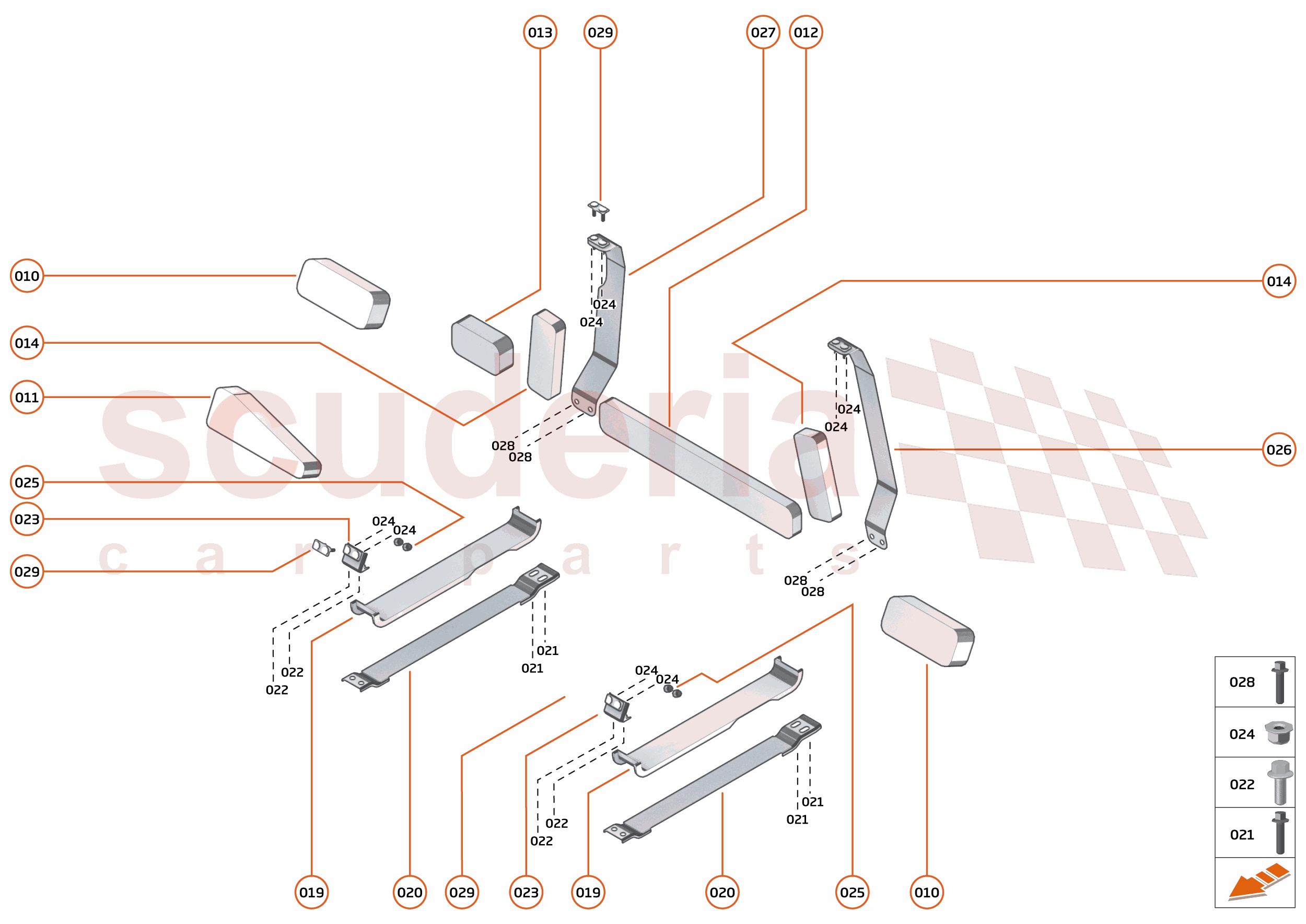

27 - FUEL TANK - 27.2 - FUEL TANK RETENTION of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13K0074CP
PAD - FUEL TANK - BULKHEAD - LOWER
Row ID: ID_DDKA0201_13K0074CP_ContPgHS; Resolution: Available; 		- 3 Enquire
011 14K0143CP
PAD - FUEL TANK - BULKHEAD - LOWER - RH
Row ID: ID_DDKA0202_14K0143CP_ContPgHS; Resolution: Available; 		$8.59 1
012 14KA031CP
PAD - FUEL TANK - CROSS MEMBER
Row ID: ID_DDKA0203_14KA031CP_ContPgHS; Resolution: Available; 		$11.51 1
013 14KA032CP
PAD - FUEL TANK - CROSS MEMBER - RH
Row ID: ID_DDKA0204_14KA032CP_ContPgHS; Resolution: Available; 		$5.78 1
014 14KA033CP
PAD - FUEL TANK - REAR - CENTRE
Row ID: ID_DDKA0205_14KA033CP_ContPgHS; Resolution: Available; 		$6.38 2
019 14KA046CP
MOUNTING STRAP - MOULDED - FUEL TANK
Row ID: ID_DDKA0210_14KA046CP_ContPgHS; Resolution: Available; 		$13.45 1
020 14K0068CP
MOUNTING STRAP - FUEL TANK
Row ID: ID_DDKA0211_14K0068CP_ContPgHS; Resolution: Available; 		$82.97 2
023 14KA024CP
BRACKET - FUEL TANK - LOWER - FRONT
Row ID: ID_DDKA0212_14KA024CP_ContPgHS; Resolution: Available; 		$33.05 2
025 00RG010
Nut Protector - M6 -Reevite
Row ID: ID_XXXXXXZV_00RG010_ContPgHS; Resolution: Available; 		- 4 Enquire
026 14KA005CP
RETAINING STRAP - FUEL TANK - LH
Row ID: ID_DDKA0213_14KA005CP_ContPgHS; Resolution: Available; 		$81.23 1
027 14KA006CP
RETAINING STRAP - FUEL TANK - RH
Row ID: ID_DDKA0214_14KA006CP_ContPgHS; Resolution: Available; 		$81.23 1
029 11K0105CP
Stud Plate - M6x18 - Fuel Tank
Row ID: ID_DDKA0215_11K0105CP_ContPgHS; Resolution: Available; 		$29.35 2
