24 - BRAKES - SYSTEMS - 24.1 - PEDAL BOX of McLaren McLaren McLaren 720S Spider

View All

McLaren McLaren 720S Spider - 24 - BRAKES - SYSTEMS - 24.1 - PEDAL BOX

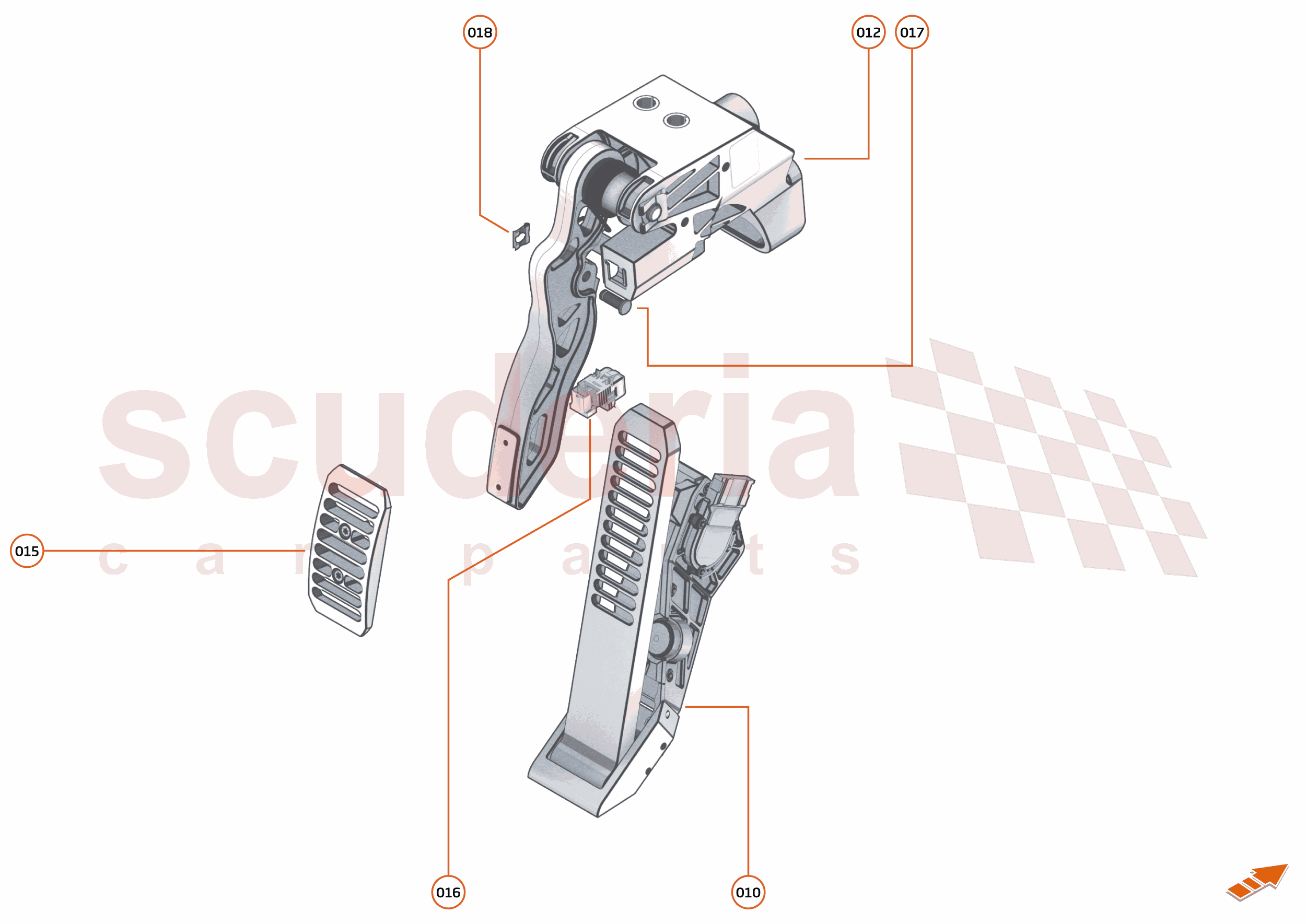

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11CA002CP	Throttle Pedal	$875.56	To Order
	13C0198CP	ASSY-RESERVOIR-BRAKE FLUID	$234.58	To Order

Photo	Part No	Description	Price (each)	Stock
	13C0196CP	BRACKET - BRAKE FLUID RESERVOIR - LHD	Enquire	To Order
	13C0197CP	BRACKET - BRAKE FLUID RESERVOIR - RHD	$22.08	To Order
	11CA001CP	BRAKE PEDAL ASSY - LHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11CA005CP	PIN - PISTON ROD TO BRAKE PEDAL	$3.09	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11CA002CP	Throttle Pedal	11CA002CP Throttle Pedal Row ID: ID_DDCC0101_11CA002CP_ContPgHS; Resolution: Available;	$875.56	1
010	13C0198CP	ASSY-RESERVOIR-BRAKE FLUID	13C0198CP ASSY-RESERVOIR-BRAKE FLUID Row ID: ID_DDCC0201_13C0198CP_ContPgHS; Resolution: Available;	$234.58	1
011	00RA581	BOLT - HEX HEAD - FLANGE - M6X30	00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Row ID: ID_XXXXXXZV_00RA581_ContPgHS; Resolution: Available;	-	3	Enquire
011	00RA373	SCREW - HEX HEAD - LOCK - M6X25-8.8	00RA373 SCREW - HEX HEAD - LOCK - M6X25-8.8 Row ID: ID_XXXXXXZV_00RA373_ContPgHS; Resolution: Available;	-	1	Enquire
012	13C0196CP	BRACKET - BRAKE FLUID RESERVOIR - LHD	13C0196CP BRACKET - BRAKE FLUID RESERVOIR - LHD Row ID: ID_DDCC0202_13C0196CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	13C0197CP	BRACKET - BRAKE FLUID RESERVOIR - RHD	13C0197CP BRACKET - BRAKE FLUID RESERVOIR - RHD Row ID: ID_DDCC0203_13C0197CP_ContPgHS; Resolution: Available;	$22.08	1
012	11CA001CP	BRAKE PEDAL ASSY - LHD	11CA001CP BRAKE PEDAL ASSY - LHD Row ID: ID_DDCC0102_11CA001CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	13CA034CP	BRAKE PEDAL ASSY - RHD	13CA034CP BRAKE PEDAL ASSY - RHD Row ID: ID_DDCC0103_13CA034CP_ContPgHS; Resolution: Available;	-	1	Enquire
013	00RA236	BOLT - M8X70 - HEX	00RA236 BOLT - M8X70 - HEX Row ID: ID_XXXXXXZV_00RA236_ContPgHS; Resolution: Available;	-	2	Enquire
017	11CA005CP	PIN - PISTON ROD TO BRAKE PEDAL	11CA005CP PIN - PISTON ROD TO BRAKE PEDAL Row ID: ID_DDCC0106_11CA005CP_ContPgHS; Resolution: Available;	$3.09	1
