18 - Suspension - Rear - 18.3 - Transverse Links Rear

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 18 - SUSPENSION - REAR - 18.3 - TRANSVERSE LINKS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14B0579CP WISHBONE - UPPER - REAR - LH $1,134.86 To Order
14B0580CP WISHBONE - UPPER - REAR - RH $716.21 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.10 To Order
Photo Part No Description Price (each) Stock
14BA018CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH $17.87 To Order
Photo Part No Description Price (each) Stock
14BA020CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH $17.87 To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $133.27 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $29.86 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $11.10 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1552CP BALL JOINT - GAITER - KIT $44.05 To Order
View All

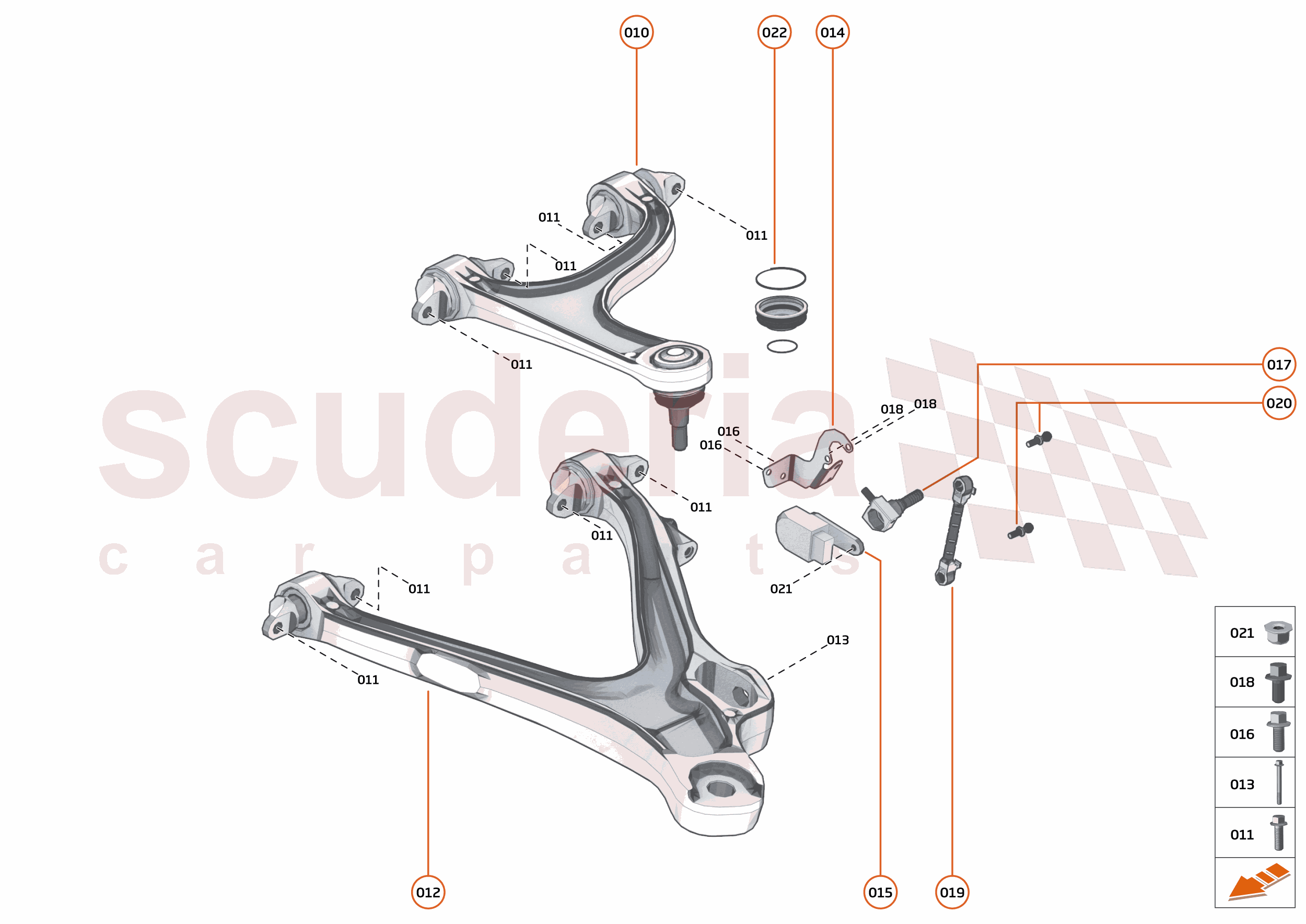

18 - SUSPENSION - REAR - 18.3 - TRANSVERSE LINKS REAR of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14B0579CP
WISHBONE - UPPER - REAR - LH
Row ID: ID_DDBB0301_14B0579CP_ContPgHS; Resolution: Available; 		$1,134.86 1
010 14B0580CP
WISHBONE - UPPER - REAR - RH
Row ID: ID_DDBB0302_14B0580CP_ContPgHS; Resolution: Available; 		$716.21 1
011 00RA457
SCREW - M10X30-10.9 - HEX
Row ID: ID_XXXXXXZV_00RA457_ContPgHS; Resolution: Available; 		- 16 Enquire
012 14B0584CP
WISHBONE - LOWER - REAR - LH
Row ID: ID_DDBB0303_14B0584CP_ContPgHS; Resolution: Available; 		$1,023.66 1
012 14B0585CP
WISHBONE - LOWER - REAR - RH
Row ID: ID_DDBB0304_14B0585CP_ContPgHS; Resolution: Available; 		$1,238.01 1
013 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER
Row ID: ID_DDBB0305_11B1314CP_ContPgHS; Resolution: Available; 		$8.10 2
014 14BA018CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH
Row ID: ID_DDBB0306_14BA018CP_ContPgHS; Resolution: Available; 		$17.87 1
015 14BA020CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH
Row ID: ID_DDBB0307_14BA020CP_ContPgHS; Resolution: Available; 		$17.87 1
016 00RX001
Bolt - M5x16 - Hex
Row ID: ID_XXXXXXZV_00RX001_ContPgHS; Resolution: Available; 		- 4 Enquire
017 11M0253CP
Sensor - Displacement
Row ID: ID_DDBB0308_11M0253CP_ContPgHS; Resolution: Available; 		$133.27 2
018 00RA087
SCREW - M5X10 - HEX
Row ID: ID_XXXXXXZV_00RA087_ContPgHS; Resolution: Available; 		- 4 Enquire
019 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL
Row ID: ID_DDBB0309_14B0494CP_ContPgHS; Resolution: Available; 		$29.86 2
020 14B0545CP
BALL STUD - DISPLACEMENT SENSOR
Row ID: ID_DDBB0310_14B0545CP_ContPgHS; Resolution: Available; 		$11.10 4
021 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_XXXXXXZV_00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
022 11B1552CP
BALL JOINT - GAITER - KIT
Row ID: ID_DDBB0311_11B1552CP_ContPgHS; Resolution: Available; 		$44.05 2
023 14BA246CP
WISHBONE BUSH
Row ID: ID__14BA246CP_ContPgHS; Resolution: Available; 		- 1 Enquire
024 14BA255CP
WISHBONE BUSH - 3.5MM
Row ID: ID__14BA255CP_ContPgHS; Resolution: Available; 		- 1 Enquire
