18 - Suspension - Rear - 18.2 - Uprights Rear

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 18 - SUSPENSION - REAR - 18.2 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA233CP UPRIGHT - SUSPENSION - REAR - LH $1,064.30 To Order
14BA234CP UPRIGHT - SUSPENSION - REAR - RH $1,064.30 To Order
Photo Part No Description Price (each) Stock
14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER $14.30 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER $14.74 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $55.94 To Order
Photo Part No Description Price (each) Stock
11B0993CP Screw - M3x12 - Hex $2.00 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $36.99 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $11.29 To Order
Photo Part No Description Price (each) Stock
14B0463CP BOLT - CAP HEAD - M12X30 - HEX $3.20 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.77 To Order
Photo Part No Description Price (each) Stock
11B0630CP CAP - HUB $37.52 To Order
Photo Part No Description Price (each) Stock
11B0322CP WHEEL HUB ASSY - BEARING $597.15 To Order
Photo Part No Description Price (each) Stock
11M0432CP Sensor - Wheel Speed - Rear $171.31 To Order
Photo Part No Description Price (each) Stock
11E0022CP Heatshield - Wheel Speed Sensor $41.49 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $113.43 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
14BA039CP BALL JOINT - GAITER - LOWER - KIT $3.73 To Order
View All

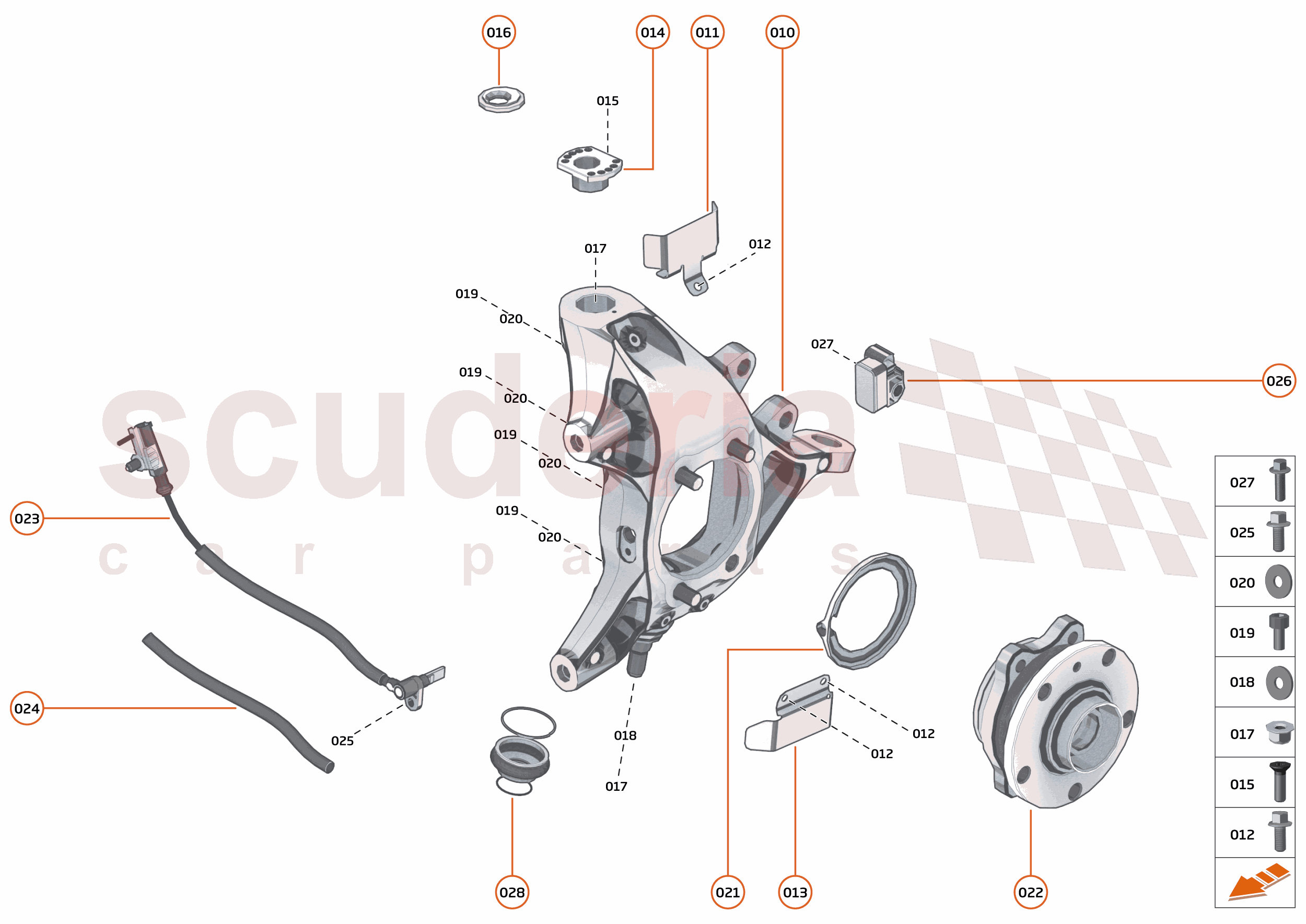

18 - SUSPENSION - REAR - 18.2 - UPRIGHTS REAR of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14BA233CP
UPRIGHT - SUSPENSION - REAR - LH
Row ID: ID_DDBB0201_14BA233CP_ContPgHS; Resolution: Available; 		$1,064.30 1
010 14BA234CP
UPRIGHT - SUSPENSION - REAR - RH
Row ID: ID_DDBB0202_14BA234CP_ContPgHS; Resolution: Available; 		$1,064.30 1
011 14B0631CP
HEATSHIELD - BALL JOINT - REAR - UPPER
Row ID: ID_DDBB0203_14B0631CP_ContPgHS; Resolution: Available; 		$14.30 2
012 00RA165
BOLT - M5X8 - HEX
Row ID: ID_XXXXXXZV_00RA165_ContPgHS; Resolution: Available; 		- 6 Enquire
013 14B0632CP
HEATSHIELD - BALL JOINT - REAR - LOWER
Row ID: ID_DDBB0204_14B0632CP_ContPgHS; Resolution: Available; 		$14.74 2
014 11B0541CP
TOPHAT - CAMBER ADJUSTMENT
Row ID: ID_DDBB0205_11B0541CP_ContPgHS; Resolution: Available; 		$55.94 2
015 11B0993CP
Screw - M3x12 - Hex
Row ID: ID_DDBB0206_11B0993CP_ContPgHS; Resolution: Available; 		$2.00 2
016 11B0739CP
WASHER - CAMBER ADJUSTMENT
Row ID: ID_DDBB0207_11B0739CP_ContPgHS; Resolution: Available; 		$36.99 2
017 00RA229
NUT - M14X1.5 - LOCKED HEX
Row ID: ID_XXXXXXZV_00RA229_ContPgHS; Resolution: Available; 		- 4 Enquire
018 11B0320CP
WASHER - DIA 35X3.9X14.5
Row ID: ID_DDBB0208_11B0320CP_ContPgHS; Resolution: Available; 		$11.29 2
019 14B0463CP
BOLT - CAP HEAD - M12X30 - HEX
Row ID: ID_DDBB0209_14B0463CP_ContPgHS; Resolution: Available; 		$3.20 8
020 14B0714CP
WASHER - M12X23
Row ID: ID_DDBB0210_14B0714CP_ContPgHS; Resolution: Available; 		$2.77 8
021 11B0630CP
CAP - HUB
Row ID: ID_DDBB0211_11B0630CP_ContPgHS; Resolution: Available; 		$37.52 2
022 11B0322CP
WHEEL HUB ASSY - BEARING
Row ID: ID_DDBB0212_11B0322CP_ContPgHS; Resolution: Available; 		$597.15 2
023 11M0432CP
Sensor - Wheel Speed - Rear
Row ID: ID_DDBA0216_11M0432CP_ContPgHS; Resolution: Available; 		$171.31 2
024 11E0022CP
Heatshield - Wheel Speed Sensor
Row ID: ID_DDBB0214_11E0022CP_ContPgHS; Resolution: Available; 		$41.49 2
025 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_XXXXXXZV_00RX003_ContPgHS; Resolution: Available; 		- 2 Enquire
026 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH
Row ID: ID__16MB093CP_ContPgHS; Resolution: Available; 		$113.43 2
027 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available; 		- 2 Enquire
028 14BA039CP
BALL JOINT - GAITER - LOWER - KIT
Row ID: ID_DDBB0216_14BA039CP_ContPgHS; Resolution: Available; 		$3.73 2
