17 - Suspension - Front - 17.2 - Uprights Front

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 17 - SUSPENSION - FRONT - 17.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA247CP UPRIGHT - SUSPENSION - FRONT - LH $1,701.41 To Order
14BA231CP UPRIGHT - SUSPENSION - FRONT - LH Enquire To Order
14BA248CP UPRIGHT - SUSPENSION - FRONT - RH $1,715.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER $15.83 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY $523.99 To Order
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $113.43 To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $55.94 To Order
Photo Part No Description Price (each) Stock
11B0993CP Screw - M3x12 - Hex $2.00 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $36.99 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $11.29 To Order
Photo Part No Description Price (each) Stock
13B0750CP Tophat - Trackrod - 1.6 Taper $21.37 To Order
Photo Part No Description Price (each) Stock
14B0463CP BOLT - CAP HEAD - M12X30 - HEX $3.20 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.77 To Order
Photo Part No Description Price (each) Stock
11B0630CP CAP - HUB $37.52 To Order
Photo Part No Description Price (each) Stock
14B0373CP Stub Axle - Front $109.16 To Order
Photo Part No Description Price (each) Stock
11B0566CP NUT - M26 - 12POINT - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
13BA350RP Wheel Hub Assy - Bearing & Speed Sensor $613.93 To Order
11B0322CP WHEEL HUB ASSY - BEARING $597.15 To Order
Photo Part No Description Price (each) Stock
11M0432CP Sensor - Wheel Speed - Rear $171.31 To Order
11E0022CP Heatshield - Wheel Speed Sensor $41.49 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
View All

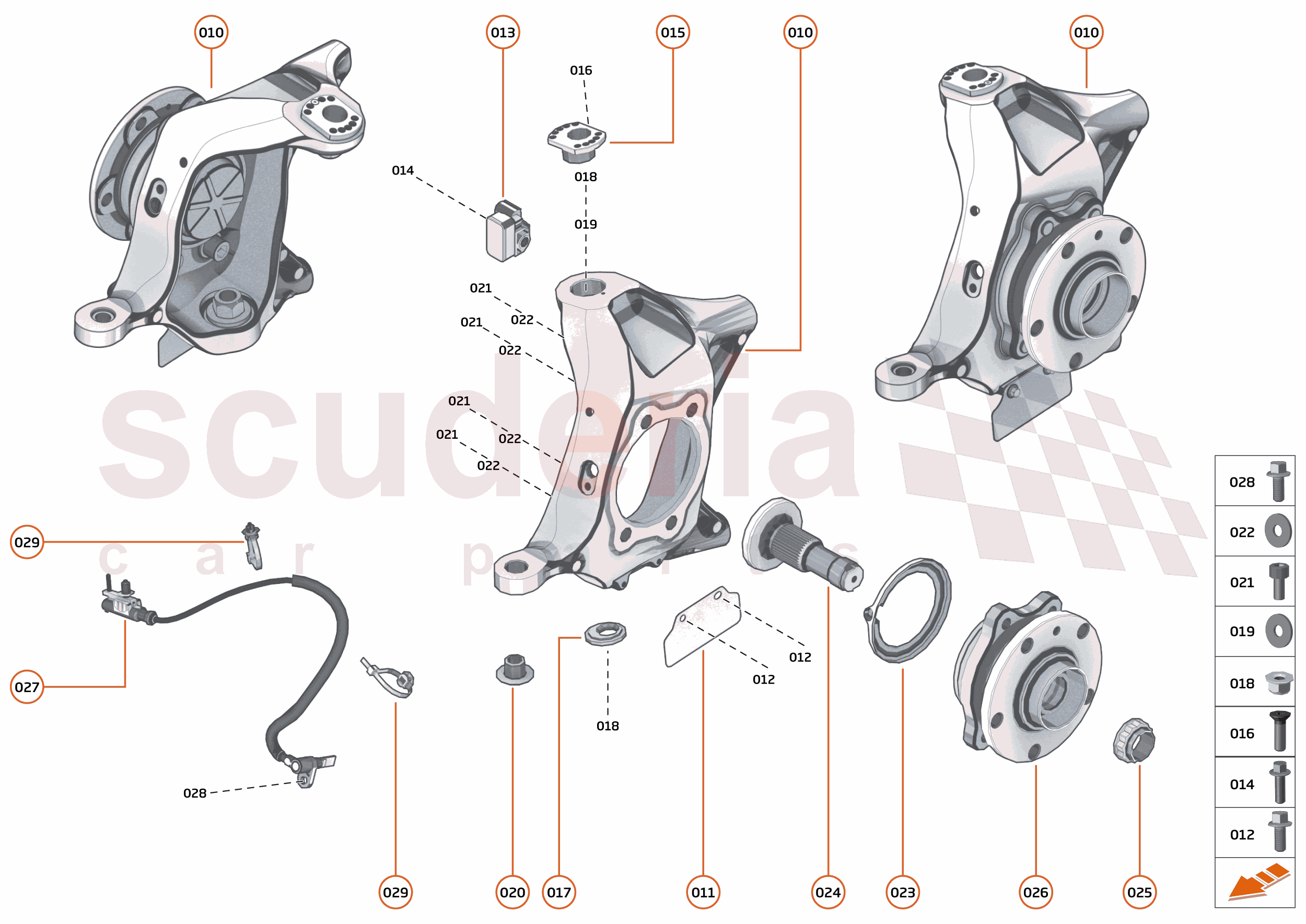

17 - SUSPENSION - FRONT - 17.2 - UPRIGHTS FRONT of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14BA247CP
UPRIGHT - SUSPENSION - FRONT - LH
Row ID: ID_DDBA0201_14BA247CP_ContPgHS; Resolution: Available; 		$1,701.41 1
010 14BA231CP
UPRIGHT - SUSPENSION - FRONT - LH
Row ID: ID__14BA231CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 14BA248CP
UPRIGHT - SUSPENSION - FRONT - RH
Row ID: ID_DDBA0202_14BA248CP_ContPgHS; Resolution: Available; 		$1,715.64 1
010 14BA232CP
UPRIGHT - SUSPENSION - FRONT - LH
Row ID: ID__14BA232CP_ContPgHS; Resolution: Available; 		$1,074.85 1
011 14B0431CP
HEATSHIELD - SUSPENSION UPRIGHT - LOWER
Row ID: ID_DDBA0203_14B0431CP_ContPgHS; Resolution: Available; 		$15.83 1
012 00RA165
BOLT - M5X8 - HEX
Row ID: ID_XXXXXXZV_00RA165_ContPgHS; Resolution: Available; 		- 2 Enquire
013 16MB358CP
SENSOR HUB ACCELEROMETER FR RH - ONLY
Row ID: ID__16MB358CP_ContPgHS; Resolution: Available; 		$523.99 2
013 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH
Row ID: ID__16MB093CP_ContPgHS; Resolution: Available; 		$113.43 2
014
Row ID: ID_XXXXXXZV_00RA083_ContPgHS; Resolution: Available; 		- 2 Enquire
015 11B0541CP
TOPHAT - CAMBER ADJUSTMENT
Row ID: ID_DDBA0205_11B0541CP_ContPgHS; Resolution: Available; 		$55.94 1
016 11B0993CP
Screw - M3x12 - Hex
Row ID: ID_DDBA0206_11B0993CP_ContPgHS; Resolution: Available; 		$2.00 1
017 11B0739CP
WASHER - CAMBER ADJUSTMENT
Row ID: ID_DDBA0207_11B0739CP_ContPgHS; Resolution: Available; 		$36.99 1
018 00RA229
NUT - M14X1.5 - LOCKED HEX
Row ID: ID_XXXXXXZV_00RA229_ContPgHS; Resolution: Available; 		- 2 Enquire
019 11B0320CP
WASHER - DIA 35X3.9X14.5
Row ID: ID_DDBA0208_11B0320CP_ContPgHS; Resolution: Available; 		$11.29 1
020 13B0750CP
Tophat - Trackrod - 1.6 Taper
Row ID: ID_DDBA0209_13B0750CP_ContPgHS; Resolution: Available; 		$21.37 1
021 14B0463CP
BOLT - CAP HEAD - M12X30 - HEX
Row ID: ID_DDBA0210_14B0463CP_ContPgHS; Resolution: Available; 		$3.20 8
022 14B0714CP
WASHER - M12X23
Row ID: ID_DDBA0211_14B0714CP_ContPgHS; Resolution: Available; 		$2.77 4
023 11B0630CP
CAP - HUB
Row ID: ID_DDBA0212_11B0630CP_ContPgHS; Resolution: Available; 		$37.52 1
024 14B0373CP
Stub Axle - Front
Row ID: ID__14B0373CP_ContPgHS; Resolution: Available; 		$109.16 1
025 11B0566CP
NUT - M26 - 12POINT - HEX
Row ID: ID_DDBA0214_11B0566CP_ContPgHS; Resolution: Available; 		$11.14 1
026 13BA350RP
Wheel Hub Assy - Bearing & Speed Sensor
Row ID: ID__13BA350RP_ContPgHS; Resolution: Available; 		$613.93 1
026 11B0322CP
WHEEL HUB ASSY - BEARING
Row ID: ID_DDBB0212_11B0322CP_ContPgHS; Resolution: Available; 		$597.15 2
027 11M0432CP
Sensor - Wheel Speed - Rear
Row ID: ID_DDBA0216_11M0432CP_ContPgHS; Resolution: Available; 		$171.31 2
027 11E0022CP
Heatshield - Wheel Speed Sensor
Row ID: ID_DDBA0217_11E0022CP_ContPgHS; Resolution: Available; 		$41.49 2
028 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_XXXXXXZV_00RX003_ContPgHS; Resolution: Available; 		- 2 Enquire
029 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID_XXXXXXZZ_00RL001_ContPgHS; Resolution: Available; 		- 4 Enquire
