2 - Mid Structures - 2.1 - Monocoque

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.82 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14A3398SP COVER PANEL - WHEEL ARCH LINER - SPIDER LH - LH $1,199.13 To Order
Photo Part No Description Price (each) Stock
14A3399SP COVER PANEL - WHEEL ARCH LINER - SPIDER RH - RH $1,199.13 To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $194.06 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $194.06 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $9.85 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $9.85 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $43.28 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $44.59 To Order
View All

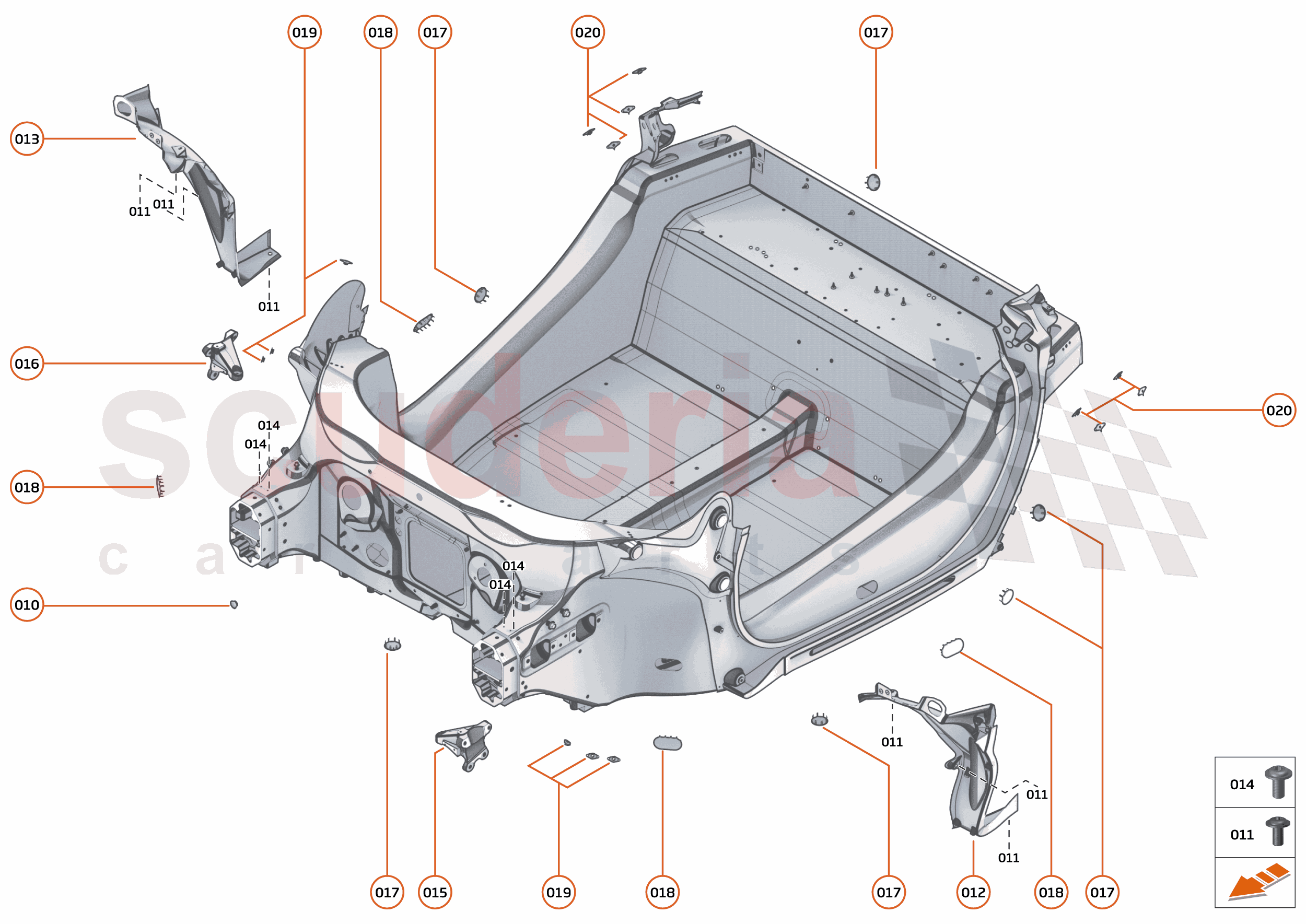

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A5736CP
PLUG - TUB DATUM
Row ID: ID_DAAB0136_11A5736CP_ContPgHS; Resolution: Available; 		$6.82 4
011 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID_XXXXXXZV_00RA468_ContPgHS; Resolution: Available; 		- 3 Enquire
012 14A3398SP
COVER PANEL - WHEEL ARCH LINER - SPIDER LH - LH
Row ID: ID_DAAB0139_14A3398SP_ContPgHS; Resolution: Available; 		$1,199.13 1
013 14A3399SP
COVER PANEL - WHEEL ARCH LINER - SPIDER RH - RH
Row ID: ID_DAAB0142_14A3399SP_ContPgHS; Resolution: Available; 		$1,199.13 1
014 00RA522
BOLT - BUTTON HEAD - TORX - M5X16
Row ID: ID_XXXXXXZV_00RA522_ContPgHS; Resolution: Available; 		- 2 Enquire
015 11A7142CP
BRACKET - DAMPER MOUNTING - LH
Row ID: ID_DAAB0145_11A7142CP_ContPgHS; Resolution: Available; 		$194.06 1
016 11A7143CP
BRACKET - DAMPER MOUNTING - RH
Row ID: ID_DAAB0134_11A7143CP_ContPgHS; Resolution: Available; 		$194.06 1
017 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM
Row ID: ID_DAAB0135_11A5734CP_ContPgHS; Resolution: Available; 		$9.85 6
018 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM
Row ID: ID_DAAB0146_11A5735CP_ContPgHS; Resolution: Available; 		$9.85 4
019 11A7572CP
NUT PLATE - A-POST - M8
Row ID: ID_DAAB0147_11A7572CP_ContPgHS; Resolution: Available; 		$43.28 2
020 11A7573CP
NUT PLATE - B-POST - M8
Row ID: ID_DAAB0148_11A7573CP_ContPgHS; Resolution: Available; 		$44.59 6
