48 - Infotainment - 48.2 - Sound System - 12 Speakers - High-Line

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 48 - INFOTAINMENT - 48.2 - SOUND SYSTEM - 12 SPEAKERS - HIGH-LINE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13M1026CP Speaker - 80mm - Facia High-Line - Spider Rear Enquire To Order
Photo Part No Description Price (each) Stock
00RA463 SCREW- 2.9X13 - TORX - SELF TAPPER - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
14MA003CP TWEETER - 25MM - HIGH LINE $136.97 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
14M1112CP NVH - LOWER DOOR SPEAKER - LH Enquire To Order
Photo Part No Description Price (each) Stock
14M1113CP NVH - LOWER DOOR SPEAKER - RH Enquire To Order
Photo Part No Description Price (each) Stock
13M1024CP Speaker - 200mm - High-Line $341.02 To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
14M0895CP BRACKET - DOOR SPEAKER - LOWER - LH $126.95 To Order
Photo Part No Description Price (each) Stock
00RA605 SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
14M0897CP BRACKET - DOOR SPEAKER - LOWER - RH $126.95 To Order
Photo Part No Description Price (each) Stock
14MA599CP NVH - UPPER DOOR SPEAKER - FRONT $13.78 To Order
Photo Part No Description Price (each) Stock
14MA600CP NVH - UPPER DOOR SPEAKER - REAR $11.02 To Order
Photo Part No Description Price (each) Stock
13M1025CP Speaker - 100mm - High-Line Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14MA584CP SPEAKER ENCLOSURE - DOOR - UPPER - RH $342.14 To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14MA583CP SPEAKER ENCLOSURE - DOOR - UPPER - LH $342.14 To Order
Photo Part No Description Price (each) Stock
14M1117CP NVH - REAR SPEAKER - RH $25.15 To Order
Photo Part No Description Price (each) Stock
14M1116CP NVH - REAR SPEAKER - LH $25.15 To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA267 Pozi Screw- 3.5X1.57-13mm Enquire To Order
Photo Part No Description Price (each) Stock
14MA122CP BRACKET - SPEAKER - REAR - RH $41.11 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14MA121CP BRACKET - SPEAKER - REAR - LH $41.11 To Order
Photo Part No Description Price (each) Stock
14MA777CP AUDIO AMPLIFIER - HIGH-LINE $3,767.66 To Order
Photo Part No Description Price (each) Stock
14MA547CP NVH - UPPER DOOR SPEAKER - FRONT $13.78 To Order
View All

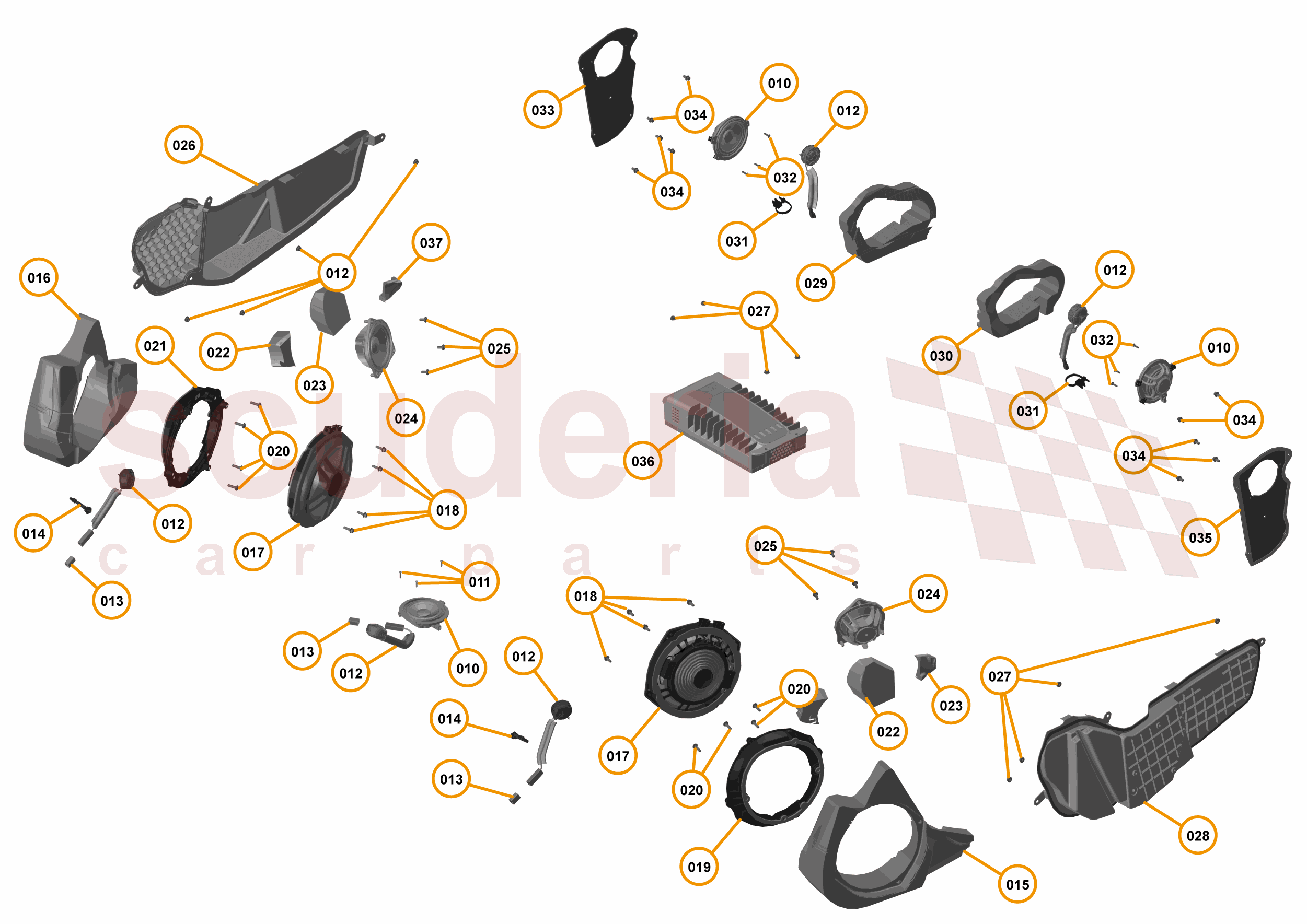

48 - INFOTAINMENT - 48.2 - SOUND SYSTEM - 12 SPEAKERS - HIGH-LINE of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13M1026CP
Speaker - 80mm - Facia High-Line - Spider Rear
Row ID: ID_DGME0210_13M1026CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 00RA463
SCREW- 2.9X13 - TORX - SELF TAPPER - PAN HEAD
Row ID: ID_XXXXXXZV_00RA463_ContPgHS; Resolution: Available; 		- 3 Enquire
012 14MA003CP
TWEETER - 25MM - HIGH LINE
Row ID: ID_DGME0211_14MA003CP_ContPgHS; Resolution: Available; 		$136.97 5
013 00RL004
FELT TAPE
Row ID: ID_XXXXXXZZ_00RL004_ContPgHS; Resolution: Available; 		- 3 Enquire
014 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID_XXXXXXZZ_00RL001_ContPgHS; Resolution: Available; 		- 2 Enquire
015 14M1112CP
NVH - LOWER DOOR SPEAKER - LH
Row ID: ID_DGME0203_14M1112CP_ContPgHS; Resolution: Available; 		- 1 Enquire
016 14M1113CP
NVH - LOWER DOOR SPEAKER - RH
Row ID: ID_DGME0204_14M1113CP_ContPgHS; Resolution: Available; 		- 1 Enquire
017 13M1024CP
Speaker - 200mm - High-Line
Row ID: ID_DGME0212_13M1024CP_ContPgHS; Resolution: Available; 		$341.02 2
018 00RX001
Bolt - M5x16 - Hex
Row ID: ID_XXXXXXZV_00RX001_ContPgHS; Resolution: Available; 		- 8 Enquire
019 14M0895CP
BRACKET - DOOR SPEAKER - LOWER - LH
Row ID: ID_DGME0206_14M0895CP_ContPgHS; Resolution: Available; 		$126.95 1
020 00RA605
SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8
Row ID: ID_XXXXXXZV_00RA605_ContPgHS; Resolution: Available; 		- 8 Enquire
021 14M0897CP
BRACKET - DOOR SPEAKER - LOWER - RH
Row ID: ID_DGME0207_14M0897CP_ContPgHS; Resolution: Available; 		$126.95 1
022 14MA599CP
NVH - UPPER DOOR SPEAKER - FRONT
Row ID: ID_DGME0213_14MA599CP_ContPgHS; Resolution: Available; 		$13.78 2
023 14MA600CP
NVH - UPPER DOOR SPEAKER - REAR
Row ID: ID_DGME0214_14MA600CP_ContPgHS; Resolution: Available; 		$11.02 2
024 13M1025CP
Speaker - 100mm - High-Line
Row ID: ID_DGME0215_13M1025CP_ContPgHS; Resolution: Available; 		- 2 Enquire
025 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID_XXXXXXZV_00RA432_ContPgHS; Resolution: Available; 		- 6 Enquire
026 14MA584CP
SPEAKER ENCLOSURE - DOOR - UPPER - RH
Row ID: ID_DGME0216_14MA584CP_ContPgHS; Resolution: Available; 		$342.14 1
027 00RA582
NUT - M5 - HEX
Row ID: ID_XXXXXXZV_00RA582_ContPgHS; Resolution: Available; 		- 12 Enquire
028 14MA583CP
SPEAKER ENCLOSURE - DOOR - UPPER - LH
Row ID: ID_DGME0217_14MA583CP_ContPgHS; Resolution: Available; 		$342.14 1
029 14M1117CP
NVH - REAR SPEAKER - RH
Row ID: ID_DGME0218_14M1117CP_ContPgHS; Resolution: Available; 		$25.15 1
030 14M1116CP
NVH - REAR SPEAKER - LH
Row ID: ID_DGME0219_14M1116CP_ContPgHS; Resolution: Available; 		$25.15 1
031 00RL011
EDGE CLIP - 202X4.6MM
Row ID: ID_XXXXXXZZ_00RL011_ContPgHS; Resolution: Available; 		- 2 Enquire
032 00RA267
Pozi Screw- 3.5X1.57-13mm
Row ID: ID_XXXXXXZV_00RA267_ContPgHS; Resolution: Available; 		- 6 Enquire
033 14MA122CP
BRACKET - SPEAKER - REAR - RH
Row ID: ID_DGME0220_14MA122CP_ContPgHS; Resolution: Available; 		$41.11 1
034 00RA087
SCREW - M5X10 - HEX
Row ID: ID_XXXXXXZV_00RA087_ContPgHS; Resolution: Available; 		- 10 Enquire
035 14MA121CP
BRACKET - SPEAKER - REAR - LH
Row ID: ID_DGME0221_14MA121CP_ContPgHS; Resolution: Available; 		$41.11 1
036 14MA777CP
AUDIO AMPLIFIER - HIGH-LINE
Row ID: ID_DGME0222_14MA777CP_ContPgHS; Resolution: Available; 		$3,767.66 1
037 14MA547CP
NVH - UPPER DOOR SPEAKER - FRONT
Row ID: ID_DGME0223_14MA547CP_ContPgHS; Resolution: Available; 		$13.78 2
