31 - Cooling - Low Temperature - 31.1 - Low Temperature Circuit & Pipes

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 31 - COOLING - LOW TEMPERATURE - 31.1 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14L0032CP HOSE - LOW TEMPERATURE RADIATOR - OUTLET - LH $284.34 To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA068 Screw - M8x12 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB025 CLIP - 13-14MM - MALE-FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
14L0098CP HOSE - LOW TEMPERATURE RADIATOR - INLET - LH $284.34 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB191 P-Clip - 14x15 Enquire To Order
Photo Part No Description Price (each) Stock
14L0033CP HOSE - LOW TEMPERATURE RADIATOR - OUTLET - RH $284.34 To Order
Photo Part No Description Price (each) Stock
14L0124CP HOSE - LOW TEMPERATURE RADIATOR - INLET - RH $284.34 To Order
Photo Part No Description Price (each) Stock
14L0069CP HOSE - LTR CIRCUIT - RETURN - CENTRE $268.72 To Order
Photo Part No Description Price (each) Stock
14L0068CP HOSE - LTR CIRCUIT - FEED - CENTRE $268.72 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
14LA022CP CLIP - 4WAY - RH $8.70 To Order
Photo Part No Description Price (each) Stock
13L0214CP Pipe Clip - Rear - LH $12.35 To Order
Photo Part No Description Price (each) Stock
14L0150CP CLIP - CHASSIS TUNNEL $17.91 To Order
Photo Part No Description Price (each) Stock
14L0151CP PIPE CLIP - 8 WAY $13.83 To Order
Photo Part No Description Price (each) Stock
13L0211CP Pipe Clip - Rear - Right $39.05 To Order
Photo Part No Description Price (each) Stock
14LA035CP HOSE - WATER CHARGE AIR COOLER - INLET - LH $152.27 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
14L0083CP HOSE - WATER CHARGE AIR COOLER - OUTLET $526.98 To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
14L0125CP CLIP - TUNNEL - 12 WAY $32.04 To Order
View All

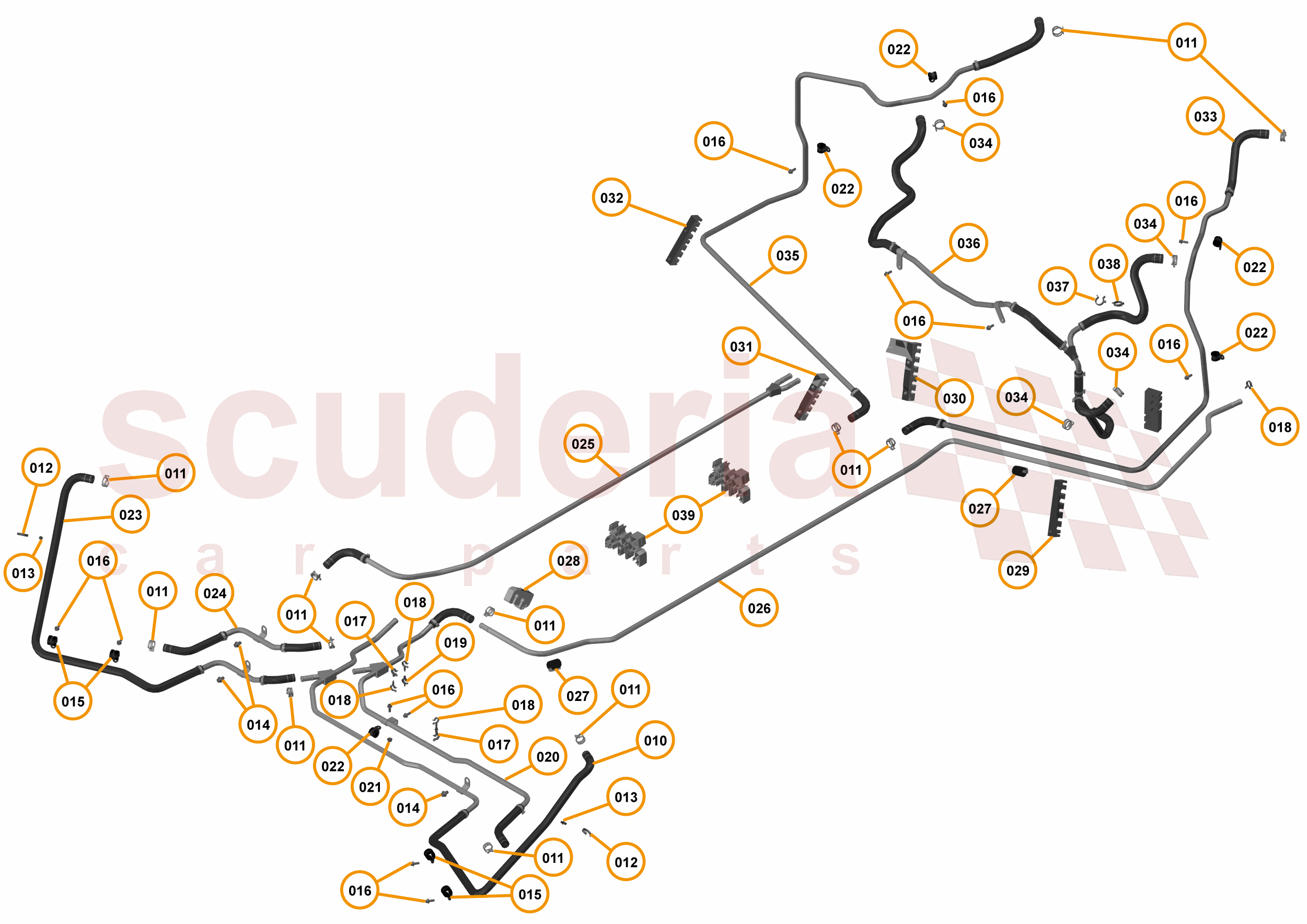

31 - COOLING - LOW TEMPERATURE - 31.1 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14L0032CP
HOSE - LOW TEMPERATURE RADIATOR - OUTLET - LH
Row ID: ID_DDLB0101_14L0032CP_ContPgHS; Resolution: Available; 		$284.34 1
011 00RB201
CLAMP - SPRING BAND - 21X12
Row ID: ID_XXXXXXZX_00RB201_ContPgHS; Resolution: Available; 		- 13 Enquire
012 00RG018
SWIVEL CLIP - 22-24MM -MALE
Row ID: ID_XXXXXXZY_00RG018_ContPgHS; Resolution: Available; 		- 2 Enquire
013 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE
Row ID: ID_XXXXXXZY_00RG019_ContPgHS; Resolution: Available; 		- 2 Enquire
014 00RA068
Screw - M8x12 - Hex
Row ID: ID_XXXXXXZV_00RA068_ContPgHS; Resolution: Available; 		- 3 Enquire
015 00RB060
P CLIP - DIA 20
Row ID: ID_XXXXXXZZ_00RB060_ContPgHS; Resolution: Available; 		- 4 Enquire
016 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available; 		- 10 Enquire
017 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID_XXXXXXZZ_00RB032_ContPgHS; Resolution: Available; 		- 2 Enquire
018 00RB034
CLIP - 14-15MM - MALE
Row ID: ID_XXXXXXZZ_00RB034_ContPgHS; Resolution: Available; 		- 4 Enquire
019 00RB025
CLIP - 13-14MM - MALE-FEMALE
Row ID: ID_XXXXXXZZ_00RB025_ContPgHS; Resolution: Available; 		- 1 Enquire
020 14L0098CP
HOSE - LOW TEMPERATURE RADIATOR - INLET - LH
Row ID: ID_DDLB0102_14L0098CP_ContPgHS; Resolution: Available; 		$284.34 1
021 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_XXXXXXZV_00RA011_ContPgHS; Resolution: Available; 		- 1 Enquire
022 00RB191
P-Clip - 14x15
Row ID: ID_XXXXXXZY_00RB191_ContPgHS; Resolution: Available; 		- 5 Enquire
023 14L0033CP
HOSE - LOW TEMPERATURE RADIATOR - OUTLET - RH
Row ID: ID_DDLB0103_14L0033CP_ContPgHS; Resolution: Available; 		$284.34 1
024 14L0124CP
HOSE - LOW TEMPERATURE RADIATOR - INLET - RH
Row ID: ID_DDLB0104_14L0124CP_ContPgHS; Resolution: Available; 		$284.34 1
025 14L0069CP
HOSE - LTR CIRCUIT - RETURN - CENTRE
Row ID: ID_DDLB0105_14L0069CP_ContPgHS; Resolution: Available; 		$268.72 1
026 14L0068CP
HOSE - LTR CIRCUIT - FEED - CENTRE
Row ID: ID_DDLB0106_14L0068CP_ContPgHS; Resolution: Available; 		$268.72 1
027 00RA357
PIPE PROTECTOR
Row ID: ID_XXXXXXZY_00RA357_ContPgHS; Resolution: Available; 		- 2 Enquire
028 14LA022CP
CLIP - 4WAY - RH
Row ID: ID_DDLB0107_14LA022CP_ContPgHS; Resolution: Available; 		$8.70 1
029 13L0214CP
Pipe Clip - Rear - LH
Row ID: ID_DDLB0108_13L0214CP_ContPgHS; Resolution: Available; 		$12.35 1
030 14L0150CP
CLIP - CHASSIS TUNNEL
Row ID: ID_DDLB0109_14L0150CP_ContPgHS; Resolution: Available; 		$17.91 1
031 14L0151CP
PIPE CLIP - 8 WAY
Row ID: ID_DDLB0110_14L0151CP_ContPgHS; Resolution: Available; 		$13.83 1
032 13L0211CP
Pipe Clip - Rear - Right
Row ID: ID_DDLB0111_13L0211CP_ContPgHS; Resolution: Available; 		$39.05 1
033 14LA035CP
HOSE - WATER CHARGE AIR COOLER - INLET - LH
Row ID: ID_DDLB0112_14LA035CP_ContPgHS; Resolution: Available; 		$152.27 1
034 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID_XXXXXXZX_00RB202_ContPgHS; Resolution: Available; 		- 3 Enquire
035 14LA036CP
HOSE - WATER CHARGE AIR COOLER - INLET - RH
Row ID: ID_DDLB0113_14LA036CP_ContPgHS; Resolution: Available; 		$190.34 1
036 14L0083CP
HOSE - WATER CHARGE AIR COOLER - OUTLET
Row ID: ID_DDLB0114_14L0083CP_ContPgHS; Resolution: Available; 		$526.98 1
037 00RB007
CLIP - 18-20MM - FEMALE
Row ID: ID_XXXXXXZY_00RB007_ContPgHS; Resolution: Available; 		- 1 Enquire
038 00RB008
CLIP - 18-20MM - MALE
Row ID: ID_XXXXXXZY_00RB008_ContPgHS; Resolution: Available; 		- 1 Enquire
039 14L0125CP
CLIP - TUNNEL - 12 WAY
Row ID: ID_XXXXXXZY_14L0125CP_ContPgHS; Resolution: Available; 		$32.04 2
