30 - COOLING - HIGH TEMPERATURE - 30.1 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren McLaren 720S Coupe

View All

McLaren McLaren 720S Coupe - 30 - COOLING - HIGH TEMPERATURE - 30.1 - HIGH TEMPERATURE CIRCUIT & PIPES

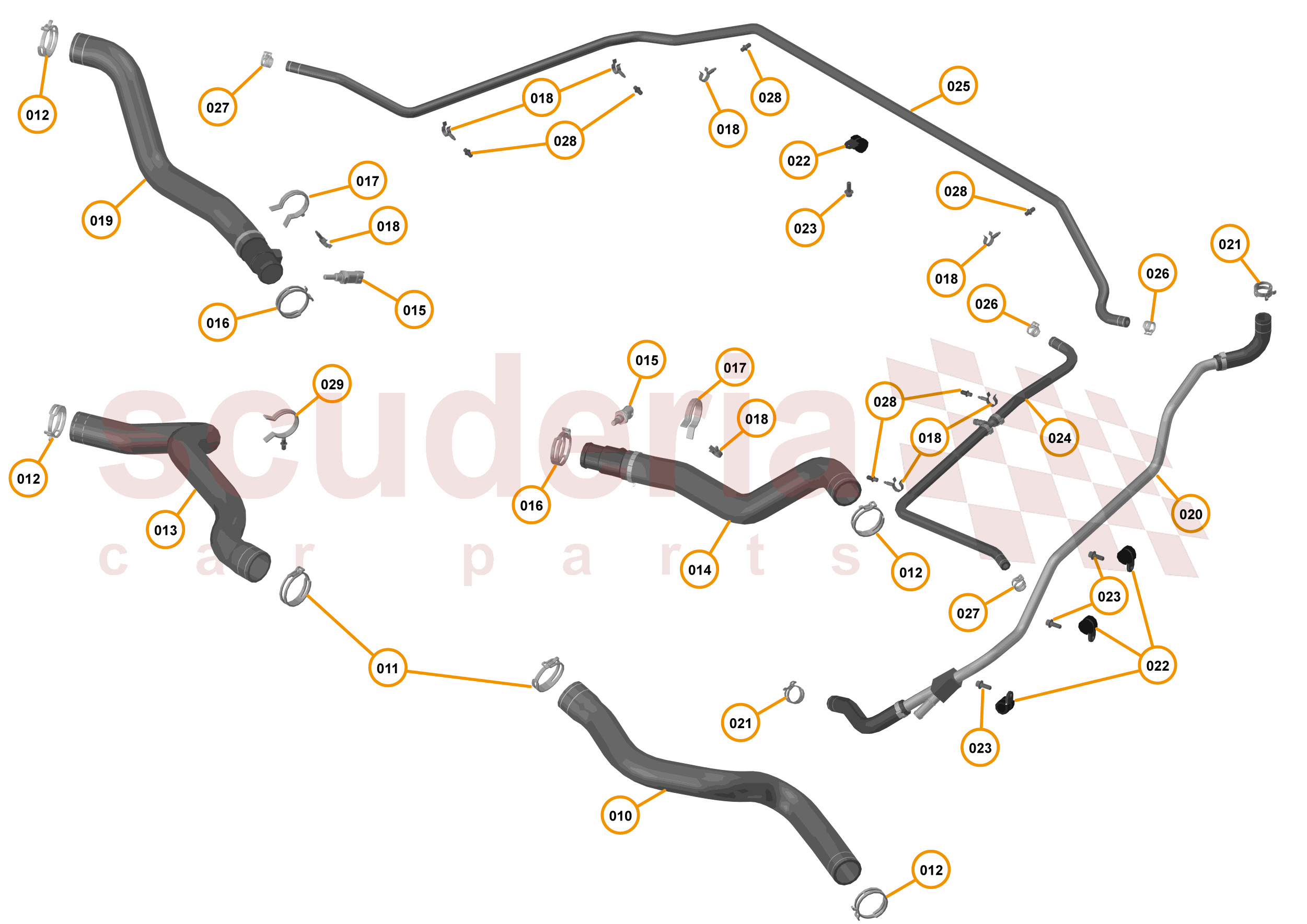

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14LA044CP	HOSE - ENGINE TO RADIATOR - LH	$155.26	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB206	Clamp - Spring Band - 47x12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB212	CLAMP - SPRING BAND - 42X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14L0043CP	HOSE - ENGINE TO RADIATOR - RH	$156.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14L0038CP	HOSE - RADIATOR - UPPER - LH	$174.67	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	$114.21	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB205	CLAMP - SPRING BAND - 43X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14L0039CP	HOSE - RADIATOR - UPPER - RH	$174.67	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB005	P CLIP - DIA 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14L0006CP	HOSE - RADIATOR WATER BLEED - LH	$129.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14L0008CP	HOSE - RADIATOR WATER BLEED - RH	$108.80	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB199	CLAMP - SPRING BAND - 14X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB200	CLAMP - SPRING BAND - 17X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB023	CLIP SPACER - 1MM - MALE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14LA044CP	HOSE - ENGINE TO RADIATOR - LH	14LA044CP HOSE - ENGINE TO RADIATOR - LH Row ID: ID_DDLA0101_14LA044CP_ContPgHS; Resolution: Available;	$155.26	1
011	00RB206	Clamp - Spring Band - 47x12	00RB206 Clamp - Spring Band - 47x12 Row ID: ID_XXXXXXZX_00RB206_ContPgHS; Resolution: Available;	-	2	Enquire
012	00RB212	CLAMP - SPRING BAND - 42X12	00RB212 CLAMP - SPRING BAND - 42X12 Row ID: ID_XXXXXXZX_00RB212_ContPgHS; Resolution: Available;	-	4	Enquire
013	14L0043CP	HOSE - ENGINE TO RADIATOR - RH	14L0043CP HOSE - ENGINE TO RADIATOR - RH Row ID: ID_DDLA0102_14L0043CP_ContPgHS; Resolution: Available;	$156.75	1
014	14L0038CP	HOSE - RADIATOR - UPPER - LH	14L0038CP HOSE - RADIATOR - UPPER - LH Row ID: ID_DDLA0103_14L0038CP_ContPgHS; Resolution: Available;	$174.67	1
015	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE Row ID: ID_DDLA0104_11L0247CP_ContPgHS; Resolution: Available;	$114.21	1
016	00RB205	CLAMP - SPRING BAND - 43X12	00RB205 CLAMP - SPRING BAND - 43X12 Row ID: ID_XXXXXXZX_00RB205_ContPgHS; Resolution: Available;	-	2	Enquire
017	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE Row ID: ID_XXXXXXZZ_00RB057_ContPgHS; Resolution: Available;	-	2	Enquire
018	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID_XXXXXXZZ_00RB034_ContPgHS; Resolution: Available;	-	8	Enquire
019	14L0039CP	HOSE - RADIATOR - UPPER - RH	14L0039CP HOSE - RADIATOR - UPPER - RH Row ID: ID_DDLA0105_14L0039CP_ContPgHS; Resolution: Available;	$174.67	1
022	00RB005	P CLIP - DIA 16	00RB005 P CLIP - DIA 16 Row ID: ID_XXXXXXZZ_00RB005_ContPgHS; Resolution: Available;	-	4	Enquire
023	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available;	-	4	Enquire
024	14L0006CP	HOSE - RADIATOR WATER BLEED - LH	14L0006CP HOSE - RADIATOR WATER BLEED - LH Row ID: ID_DDLA0107_14L0006CP_ContPgHS; Resolution: Available;	$129.12	1
025	14L0008CP	HOSE - RADIATOR WATER BLEED - RH	14L0008CP HOSE - RADIATOR WATER BLEED - RH Row ID: ID_DDLA0108_14L0008CP_ContPgHS; Resolution: Available;	$108.80	1
026	00RB199	CLAMP - SPRING BAND - 14X12	00RB199 CLAMP - SPRING BAND - 14X12 Row ID: ID_XXXXXXZX_00RB199_ContPgHS; Resolution: Available;	-	1	Enquire
027	00RB200	CLAMP - SPRING BAND - 17X12	00RB200 CLAMP - SPRING BAND - 17X12 Row ID: ID_XXXXXXZX_00RB200_ContPgHS; Resolution: Available;	-	2	Enquire
028	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID_XXXXXXZY_00RG019_ContPgHS; Resolution: Available;	-	7	Enquire
029	00RB023	CLIP SPACER - 1MM - MALE	00RB023 CLIP SPACER - 1MM - MALE Row ID: ID_XXXXXXZZ_00RB023_ContPgHS; Resolution: Available;	-	1	Enquire
