3 - Rear Structures - 3.2 - Rear Crash Structure

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 3 - REAR STRUCTURES - 3.2 - REAR CRASH STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A1962CP ASSY-BMPR-BEAM-ENERGY SYSTEM-RR Enquire To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
View All

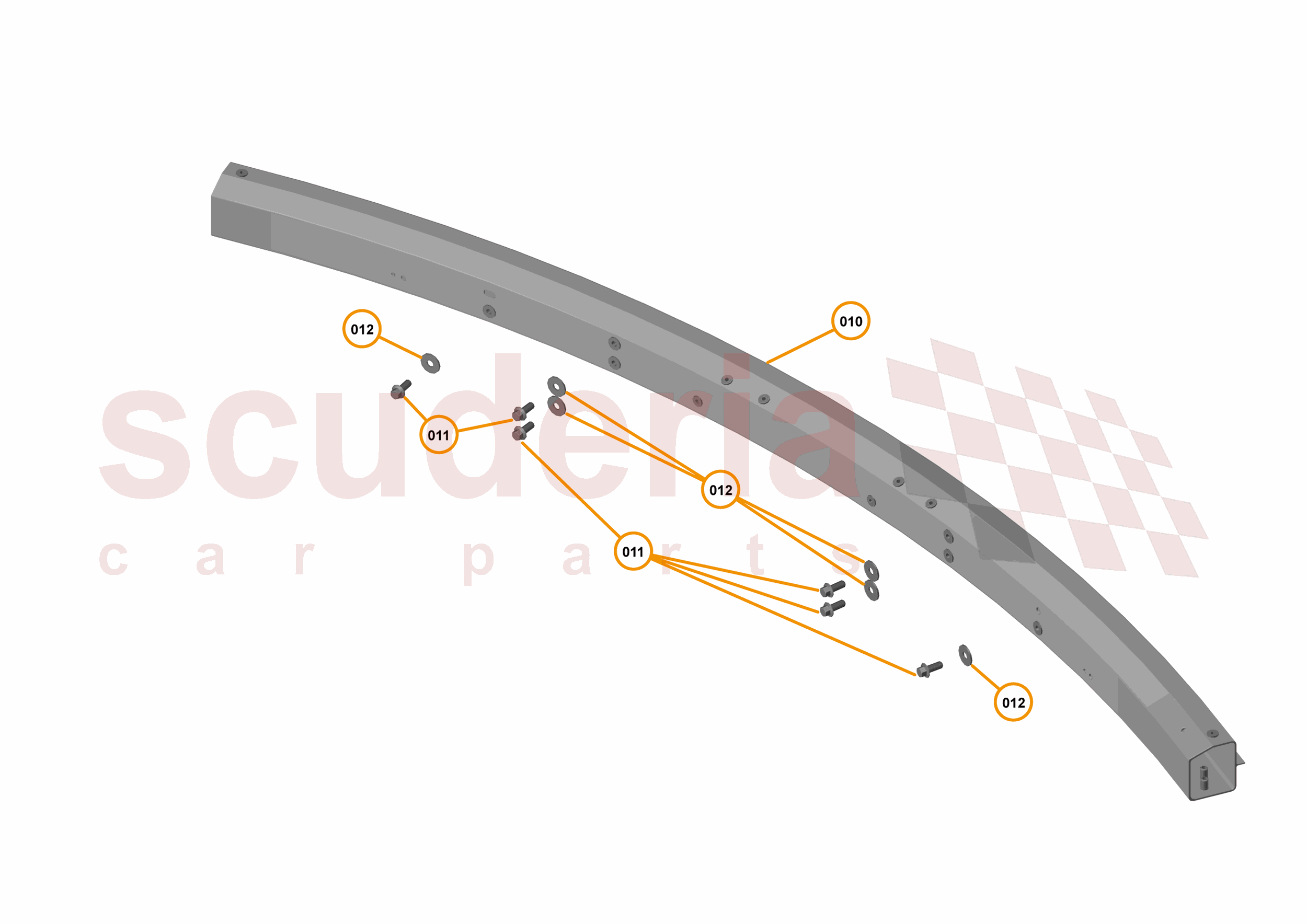

3 - REAR STRUCTURES - 3.2 - REAR CRASH STRUCTURE of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A1962CP
ASSY-BMPR-BEAM-ENERGY SYSTEM-RR
Row ID: ID_DAAC0201_14A1962CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 00RA002
BOLT - M8X20 - HEX
Row ID: ID_XXXXXXZV_00RA002_ContPgHS; Resolution: Available; 		- 8 Enquire
012 00RC015
WASHER - M8X24X2
Row ID: ID_XXXXXXZW_00RC015_ContPgHS; Resolution: Available; 		- 9 Enquire
