7 - Closures - 7.4 - Door Structure

McLaren McLaren 720S Coupe

Find Your Part

McLaren McLaren 720S Coupe - 7 - CLOSURES - 7.4 - DOOR STRUCTURE

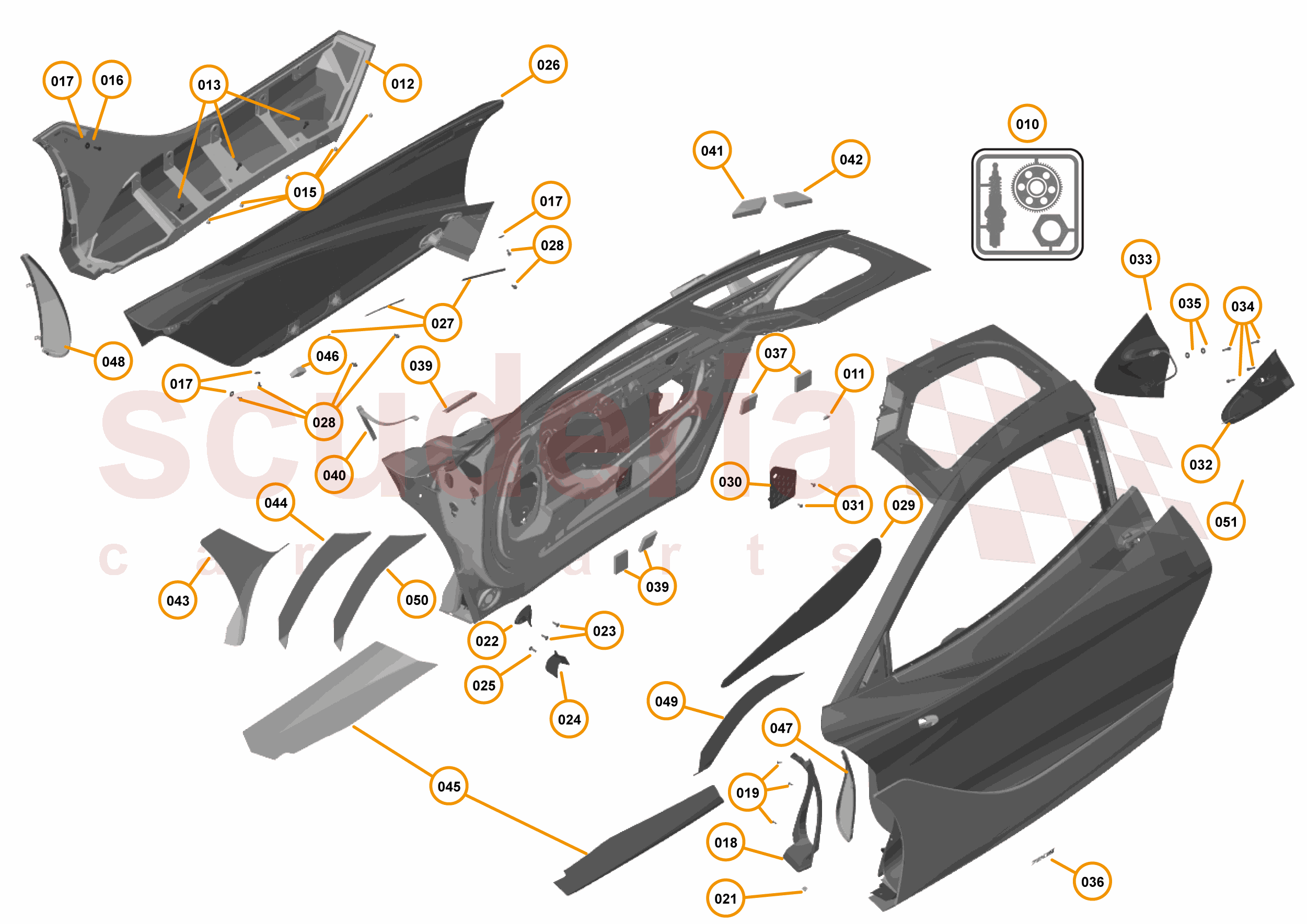

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AB483CP DOOR ASSY - LH Enquire To Order
14AC462CP DOOR ASSY - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AB301CP GROMMET - DOOR $3.12 To Order
Photo Part No Description Price (each) Stock
14AA159CP AERO BLADE - DOOR - LH $2,343.77 To Order
14AA165CP AERO BLADE - DOOR - RH $2,343.77 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14AB639CP AERO BLADE DUCT - WHEEL ARCH LINER - DOOR - LH Enquire To Order
14AB642CP AERO BLADE DUCT - WHEEL ARCH LINER - DOOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RB185 Clip - Cantrail Capping Panel Enquire To Order
Photo Part No Description Price (each) Stock
14AB045CP SUPPORT - LOWER DOOR - LH $17.90 To Order
14AB048CP SUPPORT - LOWER DOOR - RH $17.90 To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
14AB046CP SUPPORT - LOWER DOOR - BODY MOUNTED - LH $28.62 To Order
14AB049CP SUPPORT - LOWER DOOR - BODY MOUNTED - RH $28.62 To Order
Photo Part No Description Price (each) Stock
00RA588 Bolt - M8x1.25x14 Enquire To Order
Photo Part No Description Price (each) Stock
14AC575CP APPLIQUE - DOOR - LH Enquire To Order
14AC578CP APPLIQUE - DOOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AA399CP TAPE - APPLIQUE - DOOR - LH $111.73 To Order
14AA400CP TAPE - APPLIQUE - DOOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Enquire To Order
Photo Part No Description Price (each) Stock
14AC041CP ACCESS PANEL - DOOR - LH $479.20 To Order
14AC045CP ACCESS PANEL - DOOR - RH $479.20 To Order
Photo Part No Description Price (each) Stock
14AA323CP BRACKET - DOOR ANTENNA - LH $57.86 To Order
14AA327CP BRACKET - DOOR ANTENNA - RH $57.86 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14AD125CP WINGLET - DOOR - OUTER - LH Enquire To Order
14AD126CP WINGLET - DOOR - OUTER - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AA171CP INNER WINGLET - DOOR - LH Enquire To Order
14AA185CP INNER WINGLET - DOOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA152 Screw - M6x25 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
14A4445CP BADGE - SIDE - 720S $81.15 To Order
Photo Part No Description Price (each) Stock
13A5635CP NVH FOAM - DOOR INNER - GT BULKHEAD $3.34 To Order
Photo Part No Description Price (each) Stock
14AB578CP FOAM - BAFFLE - DOOR - LEADING EDGE - UPPER $13.13 To Order
Photo Part No Description Price (each) Stock
14AB268CP FOAM - BAFFLE - DOOR - LEADING EDGE $15.74 To Order
Photo Part No Description Price (each) Stock
14AB270CP FOAM - BAFFLE - DOOR HINGE - FRONT $12.30 To Order
Photo Part No Description Price (each) Stock
14AB579CP FOAM - BAFFLE - DOOR HINGE - REAR $12.30 To Order
Photo Part No Description Price (each) Stock
14AC348CP TAPE DOOR OUTER STONE PROTECTION RH $23.74 To Order
Photo Part No Description Price (each) Stock
14AC349CP TAPE DOOR OUTER STONE PROTECTION LH $23.74 To Order
Photo Part No Description Price (each) Stock
14AB032CP TAPE - STONE PROTECTION - AERO BLADE OUTER - LH $31.97 To Order
14AB040CP TAPE - STONE PROTECTION - AERO BLADE OUTER - RH $31.97 To Order
Photo Part No Description Price (each) Stock
14AC506CP REINFORCEMENT FOAM - DOOR APPLIQUE $6.39 To Order
Photo Part No Description Price (each) Stock
14AC558CP MESH - AERO DUCT - DOOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AC559CP MESH - AERO DUCT - DOOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AB030CP TAPE DOOR BLADE STONE PROTECTION LH $21.52 To Order
Photo Part No Description Price (each) Stock
14AB038CP TAPE DOOR BLADE STONE PROTECTION RH $18.21 To Order
Photo Part No Description Price (each) Stock
14AC520CP PADDLE SWITCH LH $380.67 To Order
14AC521CP PADDLE SWITCH RH $380.67 To Order
View All
7 - CLOSURES - 7.4 - DOOR STRUCTURE of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AB483CP
DOOR ASSY - LH
Row ID: ID_DBAF0501_14AB483CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 14AC462CP
DOOR ASSY - RH
Row ID: ID_DBAF0502_14AC462CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 14AB301CP
GROMMET - DOOR
Row ID: ID_DBAF0503_14AB301CP_ContPgHS; Resolution: Available; 		$3.12 2
012 14AA159CP
AERO BLADE - DOOR - LH
Row ID: ID_DBAF0504_14AA159CP_ContPgHS; Resolution: Available; 		$2,343.77 1
012 14AA165CP
AERO BLADE - DOOR - RH
Row ID: ID_DBAF0505_14AA165CP_ContPgHS; Resolution: Available; 		$2,343.77 1
013 00RA120
SCREW - M6X25 - HEX
Row ID: ID_XXXXXXZV_00RA120_ContPgHS; Resolution: Available; 		- 6 Enquire
015 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_XXXXXXZV_00RA011_ContPgHS; Resolution: Available; 		- 10 Enquire
016 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78
Row ID: ID_XXXXXXZV_00RA600_ContPgHS; Resolution: Available; 		- 2 Enquire
017 00RC064
WASHER - M6X18X1.6 - BLACK
Row ID: ID_XXXXXXZW_00RC064_ContPgHS; Resolution: Available; 		- 8 Enquire
018 14AB639CP
AERO BLADE DUCT - WHEEL ARCH LINER - DOOR - LH
Row ID: ID_DBAF0506_14AB639CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 14AB642CP
AERO BLADE DUCT - WHEEL ARCH LINER - DOOR - RH
Row ID: ID_DBAF0507_14AB642CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX
Row ID: ID_XXXXXXZV_00RA492_ContPgHS; Resolution: Available; 		- 6 Enquire
021 00RB185
Clip - Cantrail Capping Panel
Row ID: ID_XXXXXXZZ_00RB185_ContPgHS; Resolution: Available; 		- 2 Enquire
022 14AB045CP
SUPPORT - LOWER DOOR - LH
Row ID: ID_DBAF0508_14AB045CP_ContPgHS; Resolution: Available; 		$17.90 1
022 14AB048CP
SUPPORT - LOWER DOOR - RH
Row ID: ID_DBAF0509_14AB048CP_ContPgHS; Resolution: Available; 		$17.90 1
023 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available; 		- 4 Enquire
024 14AB046CP
SUPPORT - LOWER DOOR - BODY MOUNTED - LH
Row ID: ID_DBAF0510_14AB046CP_ContPgHS; Resolution: Available; 		$28.62 1
024 14AB049CP
SUPPORT - LOWER DOOR - BODY MOUNTED - RH
Row ID: ID_DBAF0511_14AB049CP_ContPgHS; Resolution: Available; 		$28.62 1
025 00RA588
Bolt - M8x1.25x14
Row ID: ID_XXXXXXZV_00RA588_ContPgHS; Resolution: Available; 		- 2 Enquire
026 14AC575CP
APPLIQUE - DOOR - LH
Row ID: ID_DBAF0512_14AC575CP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 14AC578CP
APPLIQUE - DOOR - RH
Row ID: ID_DBAF0513_14AC578CP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 14AA399CP
TAPE - APPLIQUE - DOOR - LH
Row ID: ID_DBAF0514_14AA399CP_ContPgHS; Resolution: Available; 		$111.73 1
027 14AA400CP
TAPE - APPLIQUE - DOOR - RH
Row ID: ID_DBAF0515_14AA400CP_ContPgHS; Resolution: Available; 		- 1 Enquire
028 00RA565
BOLT - HEX HEAD - FLANGE - M6X12
Row ID: ID_XXXXXXZV_00RA565_ContPgHS; Resolution: Available; 		- 12 Enquire
029 14AC041CP
ACCESS PANEL - DOOR - LH
Row ID: ID_DBAF0516_14AC041CP_ContPgHS; Resolution: Available; 		$479.20 1
029 14AC045CP
ACCESS PANEL - DOOR - RH
Row ID: ID_DBAF0517_14AC045CP_ContPgHS; Resolution: Available; 		$479.20 1
030 14AA323CP
BRACKET - DOOR ANTENNA - LH
Row ID: ID_DBAF0518_14AA323CP_ContPgHS; Resolution: Available; 		$57.86 1
030 14AA327CP
BRACKET - DOOR ANTENNA - RH
Row ID: ID_DBAF0519_14AA327CP_ContPgHS; Resolution: Available; 		$57.86 1
031 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID_XXXXXXZV_00RA432_ContPgHS; Resolution: Available; 		- 4 Enquire
032 14AD125CP
WINGLET - DOOR - OUTER - LH
Row ID: ID__14AD125CP_ContPgHS; 		- 1 Enquire
032 14AD126CP
WINGLET - DOOR - OUTER - RH
Row ID: ID__14AD126CP_ContPgHS; 		- 1 Enquire
033 14AA171CP
INNER WINGLET - DOOR - LH
Row ID: ID_DBAF0522_14AA171CP_ContPgHS; 		- 1 Enquire
033 14AA185CP
INNER WINGLET - DOOR - RH
Row ID: ID_DBAF0523_14AA185CP_ContPgHS; 		- 1 Enquire
034 00RA152
Screw - M6x25 - Hex Socket
Row ID: ID_XXXXXXZV_00RA152_ContPgHS; Resolution: Available; 		- 8 Enquire
035 00RC028
WASHER - M6 FORM C
Row ID: ID_XXXXXXZW_00RC028_ContPgHS; Resolution: Available; 		- 4 Enquire
036 14A4445CP
BADGE - SIDE - 720S
Row ID: ID_DBAF0524_14A4445CP_ContPgHS; Resolution: Available; 		$81.15 2
037 13A5635CP
NVH FOAM - DOOR INNER - GT BULKHEAD
Row ID: ID_DBAF0525_13A5635CP_ContPgHS; Resolution: Available; 		$3.34 8
039 14AB578CP
FOAM - BAFFLE - DOOR - LEADING EDGE - UPPER
Row ID: ID_DBAF0526_14AB578CP_ContPgHS; Resolution: Available; 		$13.13 2
040 14AB268CP
FOAM - BAFFLE - DOOR - LEADING EDGE
Row ID: ID_DBAF0527_14AB268CP_ContPgHS; Resolution: Available; 		$15.74 2
041 14AB270CP
FOAM - BAFFLE - DOOR HINGE - FRONT
Row ID: ID_DBAF0528_14AB270CP_ContPgHS; Resolution: Available; 		$12.30 2
042 14AB579CP
FOAM - BAFFLE - DOOR HINGE - REAR
Row ID: ID_DBAF0529_14AB579CP_ContPgHS; Resolution: Available; 		$12.30 2
043 14AC348CP
TAPE DOOR OUTER STONE PROTECTION RH
Row ID: ID_DBAF0539_14AC348CP_ContPgHS; Resolution: Available; 		$23.74 1
044 14AC349CP
TAPE DOOR OUTER STONE PROTECTION LH
Row ID: ID_DBAF0540_14AC349CP_ContPgHS; Resolution: Available; 		$23.74 1
045 14AB032CP
TAPE - STONE PROTECTION - AERO BLADE OUTER - LH
Row ID: ID_DBAF0534_14AB032CP_ContPgHS; Resolution: Available; 		$31.97 1
045 14AB040CP
TAPE - STONE PROTECTION - AERO BLADE OUTER - RH
Row ID: ID_DBAF0535_14AB040CP_ContPgHS; Resolution: Available; 		$31.97 1
046 14AC506CP
REINFORCEMENT FOAM - DOOR APPLIQUE
Row ID: ID_DBAF0536_14AC506CP_ContPgHS; Resolution: Available; 		$6.39 2
047 14AC558CP
MESH - AERO DUCT - DOOR - LH
Row ID: ID_DBAF0537_14AC558CP_ContPgHS; Resolution: Available; 		- 1 Enquire
048 14AC559CP
MESH - AERO DUCT - DOOR - RH
Row ID: ID_DBAF0538_14AC559CP_ContPgHS; Resolution: Available; 		- 1 Enquire
049 14AB030CP
TAPE DOOR BLADE STONE PROTECTION LH
Row ID: ID__14AB030CP_ContPgHS; Resolution: Available; 		$21.52 1
050 14AB038CP
TAPE DOOR BLADE STONE PROTECTION RH
Row ID: ID__14AB038CP_ContPgHS; Resolution: Available; 		$18.21 1
051 14AC520CP
PADDLE SWITCH LH
Row ID: ID__14AC520CP_ContPgHS; Resolution: Available; 		$380.67 1
051 14AC521CP
PADDLE SWITCH RH
Row ID: ID__14AC521CP_ContPgHS; Resolution: Available; 		$380.67 1

Haven't found what you're looking for?

More: McLaren Doors Tuning Parts Need help? Call us

View Cart / Checkout
