McLaren McLaren 720S Coupe - 16 - HVAC - 16.1 - HVAC INLET & DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A3588CP Distribution Unit - HVAC $1,056.18 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA369 Screw - Plas Tech - M6x16mm Enquire To Order
Photo Part No Description Price (each) Stock
00RC075 WASHER - NYLON - 14.35X6.45X2.39 Enquire To Order
Photo Part No Description Price (each) Stock
13AB030CP Intake Unit - HVAC $1,267.34 To Order
13A5729CP Intake Unit - HVAC - R1234yf $1,265.76 To Order
Photo Part No Description Price (each) Stock
11A7034CP Drain Tube - HVAC $43.61 To Order
Photo Part No Description Price (each) Stock
11A4152CP Filter - Cabin - HVAC $81.23 To Order
Photo Part No Description Price (each) Stock
11A4612CP Access Panel - HVAC Inlet - Filter $66.36 To Order
Photo Part No Description Price (each) Stock
11A4153CP MOTOR - CONTROL MODULE - HVAC $682.05 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $283.92 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $71.09 To Order
Photo Part No Description Price (each) Stock
11A4134CP HVAC-FLAP MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
11A4137CP HVAC FLAP MOTOR BOLT $5.98 To Order
Photo Part No Description Price (each) Stock
11A4135CP WIRING HARNESS - INLET - HVAC $171.31 To Order
Photo Part No Description Price (each) Stock
11A4136CP WIRING HARNESS - DISTRIBUTION - HVAC $247.44 To Order
Photo Part No Description Price (each) Stock
11A4144CP HVAC HARNESS P-CLIP $12.75 To Order
Photo Part No Description Price (each) Stock
11A4146CP HVAC HEATER MATRIX $415.01 To Order
Photo Part No Description Price (each) Stock
11A4147CP HVAC HEATER MATRIX CLAMP $21.11 To Order
Photo Part No Description Price (each) Stock
11A4149CP SEAL - BULKHEAD - INTAKE UNIT - HVAC $100.14 To Order
Photo Part No Description Price (each) Stock
11A4150CP HVAC BULKHEAD SEAL DIST UNIT $100.04 To Order
Photo Part No Description Price (each) Stock
11A4151CP HVAC DUCT FACIA SEAL SET $70.19 To Order
Photo Part No Description Price (each) Stock
11A5951CP NVH - HVAC UNIT - INLET - LOWER $72.56 To Order
Photo Part No Description Price (each) Stock
11A5952CP NVH - HVAC UNIT - INLET - UPPER $171.31 To Order
Photo Part No Description Price (each) Stock
11A4857CP HVAC - COVER - FLAP MOTOR - INTAKE UNIT $30.46 To Order
View All

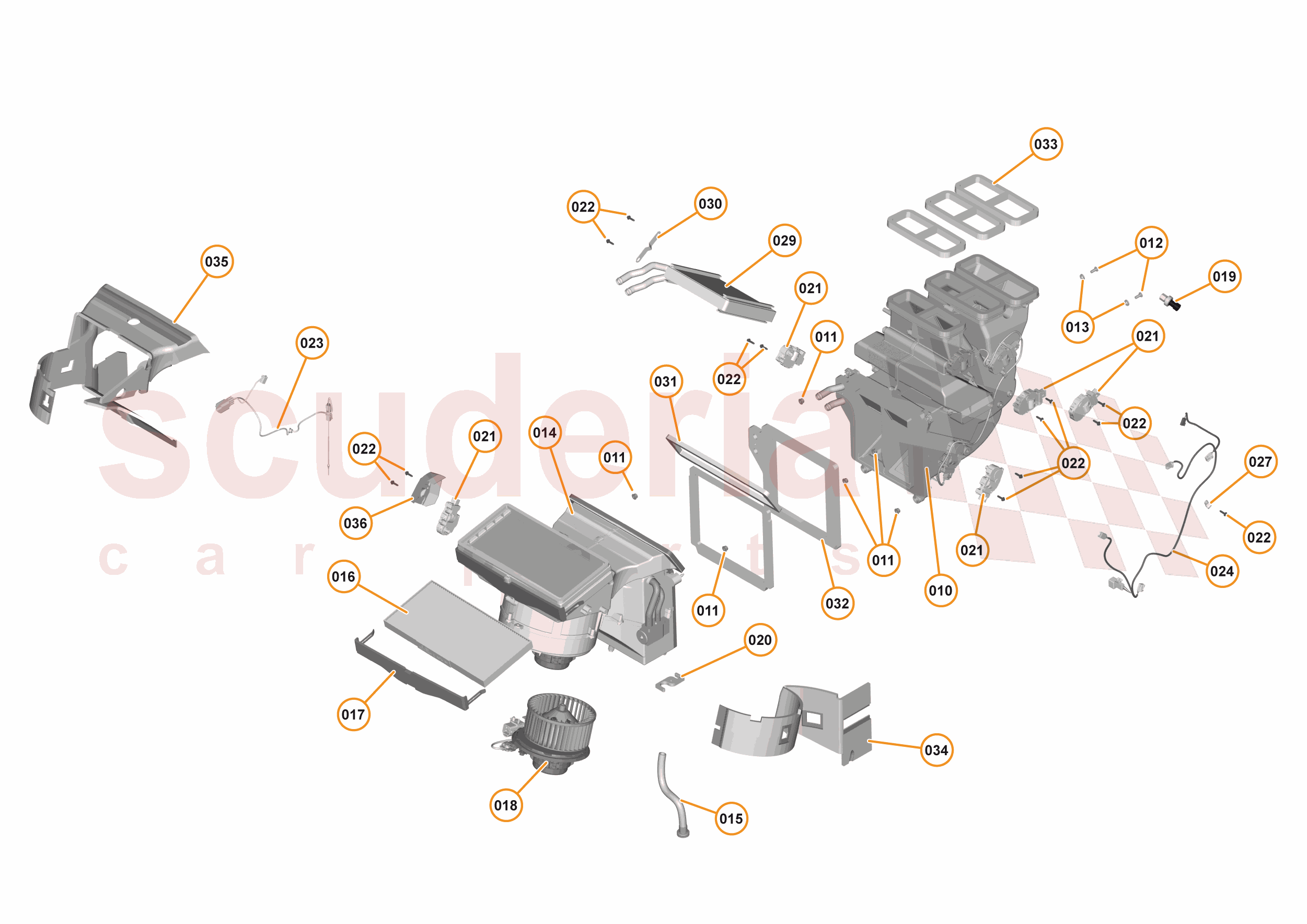

16 - HVAC - 16.1 - HVAC INLET & DISTRIBUTION of McLaren McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A5913CP
Cap - HVAC - LS - P1436-D1820
Row ID: ID_A0A501A9_11A5913CP_ContPgHS; Resolution: Available; 		$9.43 1
000 11A5914CP
Cap - HVAC - HS - P1436-D1830
Row ID: ID_A0A501B0_11A5914CP_ContPgHS; Resolution: Available; 		$9.43 1
010 13A3588CP
Distribution Unit - HVAC
Row ID: ID_DCAS0101_13A3588CP_ContPgHS; Resolution: Available; 		$1,056.18 1
011 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_XXXXXXZV_00RA055_ContPgHS; Resolution: Available; 		- 6 Enquire
012 00RA369
Screw - Plas Tech - M6x16mm
Row ID: ID_XXXXXXZV_00RA369_ContPgHS; Resolution: Available; 		- 2 Enquire
013 00RC075
WASHER - NYLON - 14.35X6.45X2.39
Row ID: ID_XXXXXXZW_00RC075_ContPgHS; Resolution: Available; 		- 2 Enquire
014 13AB030CP
Intake Unit - HVAC
Row ID: ID_DCAS0102_13AB030CP_ContPgHS; Resolution: Available; 		$1,267.34 1
014 13A5729CP
Intake Unit - HVAC - R1234yf
Row ID: ID_DCAS0103_13A5729CP_ContPgHS; Resolution: Available; 		$1,265.76 1
015 11A7034CP
Drain Tube - HVAC
Row ID: ID_DCAS0104_11A7034CP_ContPgHS; Resolution: Available; 		$43.61 1
016 11A4152CP
Filter - Cabin - HVAC
Row ID: ID_DCAS0105_11A4152CP_ContPgHS; Resolution: Available; 		$81.23 1
017 11A4612CP
Access Panel - HVAC Inlet - Filter
Row ID: ID_DCAS0125_11A4612CP_ContPgHS; Resolution: Available; 		$66.36 1
018 11A4153CP
MOTOR - CONTROL MODULE - HVAC
Row ID: ID_DCAS0106_11A4153CP_ContPgHS; Resolution: Available; 		$682.05 1
019 11A6627CP
SENSOR - PRESSURE - HVAC
Row ID: ID_DCAS0107_11A6627CP_ContPgHS; Resolution: Available; 		$283.92 1
020 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION
Row ID: ID_DCAS0108_11A4434CP_ContPgHS; Resolution: Available; 		$71.09 1
021 11A4134CP
HVAC-FLAP MOTOR
Row ID: ID_DCAS0109_11A4134CP_ContPgHS; Resolution: Available; 		- 5 Enquire
022 11A4137CP
HVAC FLAP MOTOR BOLT
Row ID: ID_DCAS0110_11A4137CP_ContPgHS; Resolution: Available; 		$5.98 13
023 11A4135CP
WIRING HARNESS - INLET - HVAC
Row ID: ID_DCAS0111_11A4135CP_ContPgHS; Resolution: Available; 		$171.31 1
024 11A4136CP
WIRING HARNESS - DISTRIBUTION - HVAC
Row ID: ID_DCAS0112_11A4136CP_ContPgHS; Resolution: Available; 		$247.44 1
027 11A4144CP
HVAC HARNESS P-CLIP
Row ID: ID_DCAS0113_11A4144CP_ContPgHS; Resolution: Available; 		$12.75 1
029 11A4146CP
HVAC HEATER MATRIX
Row ID: ID_DCAS0114_11A4146CP_ContPgHS; Resolution: Available; 		$415.01 1
030 11A4147CP
HVAC HEATER MATRIX CLAMP
Row ID: ID_DCAS0115_11A4147CP_ContPgHS; Resolution: Available; 		$21.11 1
031 11A4149CP
SEAL - BULKHEAD - INTAKE UNIT - HVAC
Row ID: ID_DCAS0116_11A4149CP_ContPgHS; Resolution: Available; 		$100.14 1
032 11A4150CP
HVAC BULKHEAD SEAL DIST UNIT
Row ID: ID_DCAS0117_11A4150CP_ContPgHS; Resolution: Available; 		$100.04 1
033 11A4151CP
HVAC DUCT FACIA SEAL SET
Row ID: ID_DCAS0118_11A4151CP_ContPgHS; Resolution: Available; 		$70.19 1
034 11A5951CP
NVH - HVAC UNIT - INLET - LOWER
Row ID: ID_DCAS0119_11A5951CP_ContPgHS; Resolution: Available; 		$72.56 1
035 11A5952CP
NVH - HVAC UNIT - INLET - UPPER
Row ID: ID_DCAS0120_11A5952CP_ContPgHS; Resolution: Available; 		$171.31 1
036 11A4857CP
HVAC - COVER - FLAP MOTOR - INTAKE UNIT
Row ID: ID_DCAS0121_11A4857CP_ContPgHS; Resolution: Available; 		$30.46 1
