14 - DUCTS, VENTS & FLOORS - 14.2 - SIDE DUCTS & VENTS of McLaren McLaren McLaren 720S Coupe

View All

McLaren McLaren 720S Coupe - 14 - DUCTS, VENTS & FLOORS - 14.2 - SIDE DUCTS & VENTS

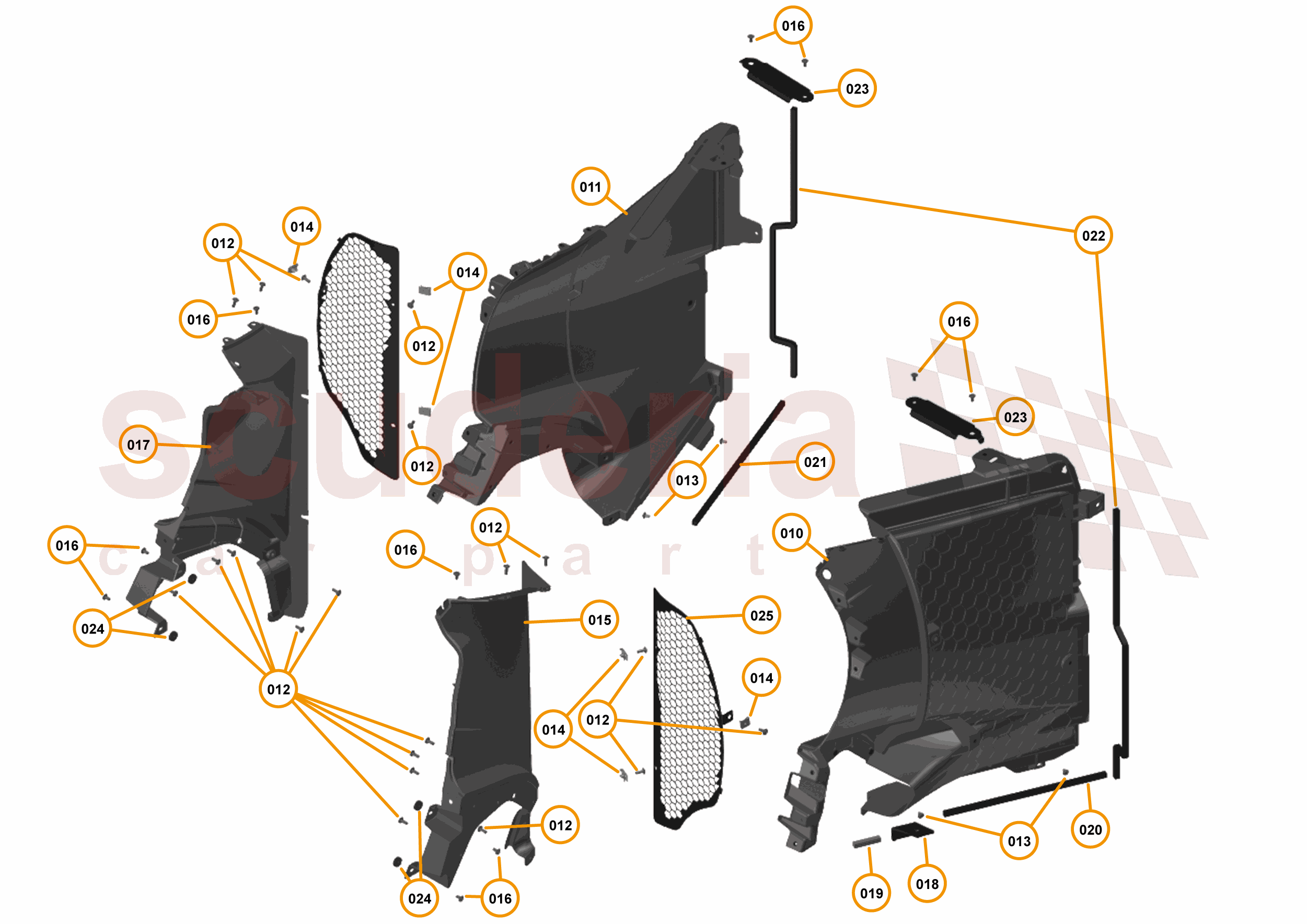

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14AB144CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - LHD	Enquire	To Order
	14AB148CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB148CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - RHD	Enquire	To Order
	14AB154CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA609	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB183	CLIP - U-NUT - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A0322CP	SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A0327CP	SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB145CP	FOAM - RADIATOR DUCT - HVAC PIPE - LH	$5.59	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3025CP	DUCT SIDE OUTER LOWER FOAM - FRONT - RADIATOR DUCT	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14A2350CP	FOAM - RADIATOR DUCT - FRONT - LONG - LH	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14A2353CP	FOAM - RADIATOR DUCT - FRONT - RH	$7.89	To Order

Photo	Part No	Description	Price (each)	Stock
	14A2349CP	FOAM - RADIATOR DUCT - REAR	$11.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3209CP	SUPPORT BRACE - SIDE DUCT	$15.69	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC050	Washer - M6x5.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A0323CP	GRILLE - SIDE DUCT - LH	$409.23	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AB144CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - LHD	14AB144CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - LHD Row ID: ID_DCAQ0201_14AB144CP_ContPgHS;	-	1	Enquire
010	14AB148CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - LHD	14AB148CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - LHD Row ID: ID_DCAQ0203_14AB148CP_ContPgHS;	-	1	Enquire
011	14AB148CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - RHD	14AB148CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - RHD Row ID: ID_DCAQ0202_14AB148CP_ContPgHS;	-	1	Enquire
011	14AB154CP	SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - RHD	14AB154CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - RHD Row ID: ID_DCAQ0204_14AB154CP_ContPgHS;	-	1	Enquire
012	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID_XXXXXXZV_00RA409_ContPgHS; Resolution: Available;	-	20	Enquire
013	00RA609	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85	00RA609 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85 Row ID: ID_XXXXXXZV_00RA609_ContPgHS; Resolution: Available;	-	4	Enquire
014	00RB183	CLIP - U-NUT - M6	00RB183 CLIP - U-NUT - M6 Row ID: ID_XXXXXXZV_00RB183_ContPgHS; Resolution: Available;	-	6	Enquire
015	14A0322CP	SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - LH	14A0322CP SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - LH Row ID: ID_DCAQ0205_14A0322CP_ContPgHS;	-	1	Enquire
016	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS; Resolution: Available;	-	10	Enquire
017	14A0327CP	SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - RH	14A0327CP SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - RH Row ID: ID_DCAQ0206_14A0327CP_ContPgHS;	-	1	Enquire
018	14AB145CP	FOAM - RADIATOR DUCT - HVAC PIPE - LH	14AB145CP FOAM - RADIATOR DUCT - HVAC PIPE - LH Row ID: ID_DCAQ0207_14AB145CP_ContPgHS; Resolution: Available;	$5.59	1
019	14A3025CP	DUCT SIDE OUTER LOWER FOAM - FRONT - RADIATOR DUCT	14A3025CP DUCT SIDE OUTER LOWER FOAM - FRONT - RADIATOR DUCT Row ID: ID_DCAQ0208_14A3025CP_ContPgHS; Resolution: Available;	$5.75	1
020	14A2350CP	FOAM - RADIATOR DUCT - FRONT - LONG - LH	14A2350CP FOAM - RADIATOR DUCT - FRONT - LONG - LH Row ID: ID_DCAQ0209_14A2350CP_ContPgHS; Resolution: Available;	$6.02	1
021	14A2353CP	FOAM - RADIATOR DUCT - FRONT - RH	14A2353CP FOAM - RADIATOR DUCT - FRONT - RH Row ID: ID_DCAQ0212_14A2353CP_ContPgHS; Resolution: Available;	$7.89	1
022	14A2349CP	FOAM - RADIATOR DUCT - REAR	14A2349CP FOAM - RADIATOR DUCT - REAR Row ID: ID_DCAQ0213_14A2349CP_ContPgHS; Resolution: Available;	$11.06	2
023	14A3209CP	SUPPORT BRACE - SIDE DUCT	14A3209CP SUPPORT BRACE - SIDE DUCT Row ID: ID_DCAQ0214_14A3209CP_ContPgHS; Resolution: Available;	$15.69	2
024	00RC050	Washer - M6x5.0mm	00RC050 Washer - M6x5.0mm Row ID: ID_XXXXXXZW_00RC050_ContPgHS; Resolution: Available;	-	4	Enquire
025	14A0323CP	GRILLE - SIDE DUCT - LH	14A0323CP GRILLE - SIDE DUCT - LH Row ID: ID_DCAQ0207_14A0323CP_ContPgHS; Resolution: Available;	$409.23	1
