16 - F1 - Power Unit - 16.8 - 01 - Power Unit - Exhaust Manifold + Turbochargers

McLaren McLaren 675LT Spider

Find Your Part

McLaren McLaren 675LT Spider - 16 - F1 - POWER UNIT - 16.8 - 01 - POWER UNIT - EXHAUST MANIFOLD + TURBOCHARGERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
13F0598CP HEATSHIELD - TURBOCHARGER $53.43 To Order
Photo Part No Description Price (each) Stock
11F1625RP Turbocharger Assy - Engine - RH - 675LT $4,450.56 To Order
Photo Part No Description Price (each) Stock
11F2586RP Gasket - Turbocharger to Manifold - inc Nuts - 675LT $132.80 To Order
13F0738CP NUT - M8 - TURBOCHARGER TO MANIFOLD $14.05 To Order
Photo Part No Description Price (each) Stock
13F0796CP HEATSHIELD - CAM COVER RH $119.86 To Order
Photo Part No Description Price (each) Stock
11F1795CP Exhaust Manifold - Heatshield - Screw - M6X20 - 675LT $10.64 To Order
Photo Part No Description Price (each) Stock
13F0737CP SCREW - M6X24 Enquire To Order
Photo Part No Description Price (each) Stock
11F2585RP Stud - Exhaust Manifold - 675LT $16.71 To Order
Photo Part No Description Price (each) Stock
13F0801CP EXHAUST MANIFOLD - ENGINE - RH $4,343.26 To Order
Photo Part No Description Price (each) Stock
13F0802CP EXHAUST MANIFOLD - ENGINE - LH Enquire To Order
Photo Part No Description Price (each) Stock
11F1905CP Nut - Exhaust Manifold Flanged - M8 $10.14 To Order
Photo Part No Description Price (each) Stock
13F0599CP Gasket - Exhaust Manifold - Engine $85.07 To Order
Photo Part No Description Price (each) Stock
13F0800CP HEATSHIELD - EXHAUST MANIFOLD - LOWER RH $246.32 To Order
Photo Part No Description Price (each) Stock
11F0811CP Heatshield - Head - Engine - LH $118.01 To Order
Photo Part No Description Price (each) Stock
13F0798CP HEATSHIELD - EXHAUST MANIFOLD - LOWER LH $246.32 To Order
Photo Part No Description Price (each) Stock
13F0797CP HEATSHIELD - EXHAUST MANIFOLD - UPPER LH $213.47 To Order
Photo Part No Description Price (each) Stock
11F1624RP Turbocharger Assy - Engine - LH - 675LT $4,450.56 To Order
Photo Part No Description Price (each) Stock
11F2588RP Bolt Set - Engine - Exhaust Turbocharger - Heatshield - 675LT $34.64 To Order
Photo Part No Description Price (each) Stock
13F0879CP Kit - Dump Valve - Electric - Inc Screws $253.78 To Order
Photo Part No Description Price (each) Stock
13F0743CP V-RING - TURBO SEAL $24.12 To Order
View All

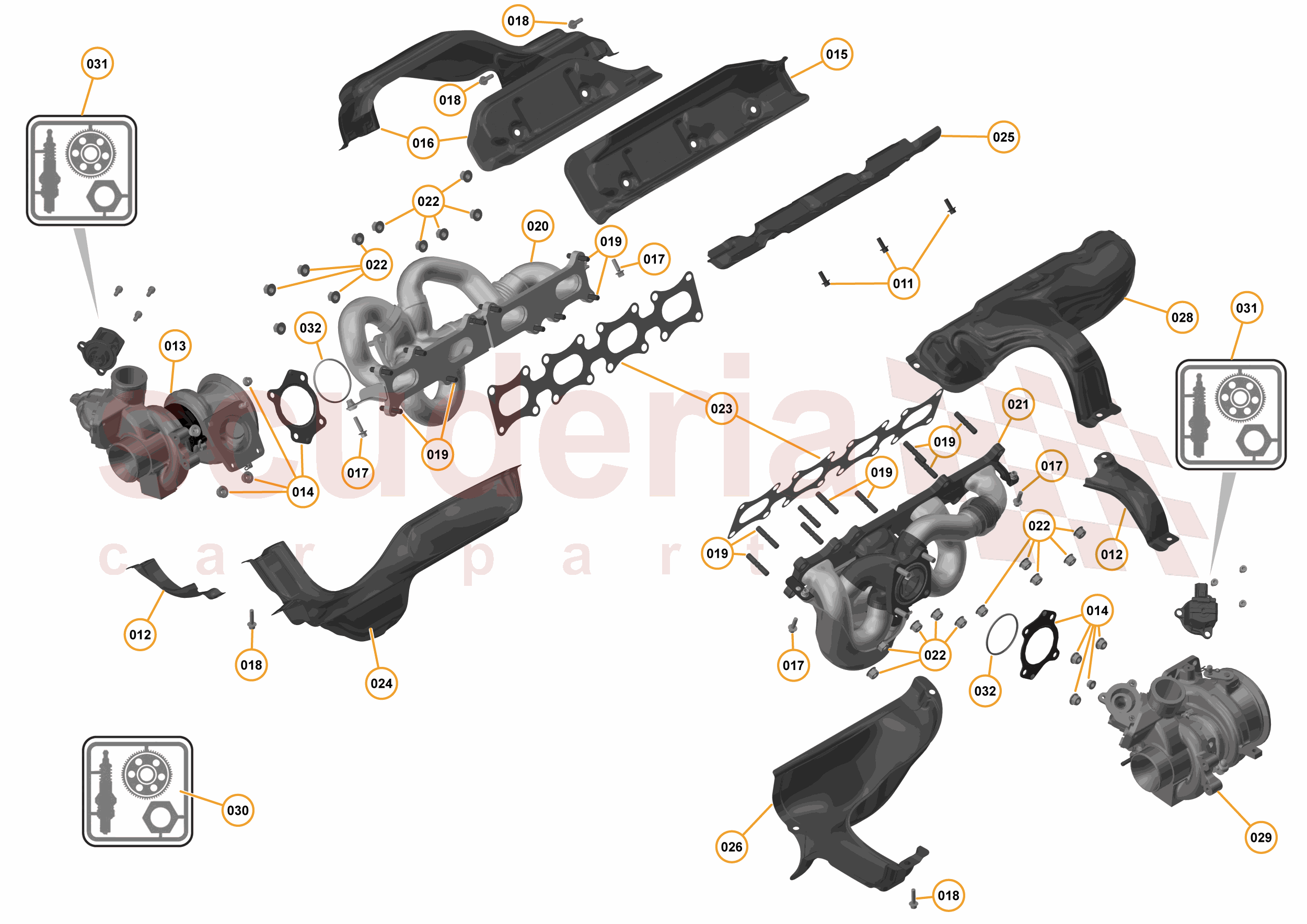

16 - F1 - POWER UNIT - 16.8 - 01 - POWER UNIT - EXHAUST MANIFOLD + TURBOCHARGERS of McLaren McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1116CP
Wastegate Assembly - Turbocharger - Engine
Row ID: ID_E0F101K7_11F1116CP_ContPgHS; Resolution: Available; 		$1,464.48 2
011 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_E0F10183_11F0822CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 13F0598CP
HEATSHIELD - TURBOCHARGER
Row ID: ID_E0F101W4_13F0598CP_ContPgHS; Resolution: Available; 		$53.43 2
013 11F1625RP
Turbocharger Assy - Engine - RH - 675LT
Row ID: ID_E0F101W5_11F1625RP_ContPgHS; Resolution: Available; 		$4,450.56 1
014 11F2586RP
Gasket - Turbocharger to Manifold - inc Nuts - 675LT
Row ID: ID_E0F101W6_11F2586RP_ContPgHS; Resolution: Available; 		$132.80 2
014 13F0738CP
NUT - M8 - TURBOCHARGER TO MANIFOLD
Row ID: ID_E0F1010X_13F0738CP_ContPgHS; Resolution: Available; 		$14.05 1
015 13F0796CP
HEATSHIELD - CAM COVER RH
Row ID: ID_E0F101W7_13F0796CP_ContPgHS; Resolution: Available; 		$119.86 1
017 11F1795CP
Exhaust Manifold - Heatshield - Screw - M6X20 - 675LT
Row ID: ID_E0F101W9_11F1795CP_ContPgHS; Resolution: Available; 		$10.64 2
018 13F0737CP
SCREW - M6X24
Row ID: ID_E0F101X0_13F0737CP_ContPgHS; Resolution: Available; 		- 4 Enquire
019 11F2585RP
Stud - Exhaust Manifold - 675LT
Row ID: ID_E0F101W3_11F2585RP_ContPgHS; Resolution: Available; 		$16.71 20
020 13F0801CP
EXHAUST MANIFOLD - ENGINE - RH
Row ID: ID_E0F101W2_13F0801CP_ContPgHS; Resolution: Available; 		$4,343.26 1
021 13F0802CP
EXHAUST MANIFOLD - ENGINE - LH
Row ID: ID_E0F101W1_13F0802CP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 11F1905CP
Nut - Exhaust Manifold Flanged - M8
Row ID: ID_E0F1011N_11F1905CP_ContPgHS; Resolution: Available; 		$10.14 22
023 13F0599CP
Gasket - Exhaust Manifold - Engine
Row ID: ID_E0F101W0_13F0599CP_ContPgHS; Resolution: Available; 		$85.07 2
024 13F0800CP
HEATSHIELD - EXHAUST MANIFOLD - LOWER RH
Row ID: ID_E0F101V9_13F0800CP_ContPgHS; Resolution: Available; 		$246.32 2
025 11F0811CP
Heatshield - Head - Engine - LH
Row ID: ID_E0F101F1_11F0811CP_ContPgHS; Resolution: Available; 		$118.01 1
026 13F0798CP
HEATSHIELD - EXHAUST MANIFOLD - LOWER LH
Row ID: ID_E0F101V8_13F0798CP_ContPgHS; Resolution: Available; 		$246.32 1
028 13F0797CP
HEATSHIELD - EXHAUST MANIFOLD - UPPER LH
Row ID: ID_E0F101V6_13F0797CP_ContPgHS; Resolution: Available; 		$213.47 1
029 11F1624RP
Turbocharger Assy - Engine - LH - 675LT
Row ID: ID_E0F101V2_11F1624RP_ContPgHS; Resolution: Available; 		$4,450.56 1
030 11F2588RP
Bolt Set - Engine - Exhaust Turbocharger - Heatshield - 675LT
Row ID: ID_E0F101V1_11F2588RP_ContPgHS; Resolution: Available; 		$34.64 2
031 13F0879CP
Kit - Dump Valve - Electric - Inc Screws
Row ID: ID_E0F101V5_13F0879CP_ContPgHS; Resolution: Available; 		$253.78 2
032 13F0743CP
V-RING - TURBO SEAL
Row ID: ID_E0F1011B_13F0743CP_ContPgHS; Resolution: Available; 		$24.12 2
